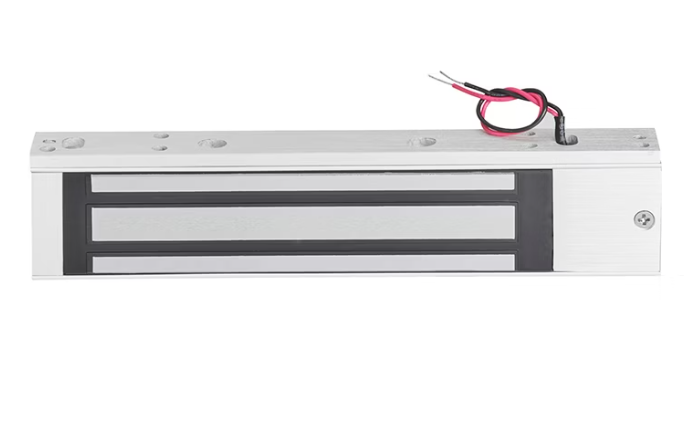

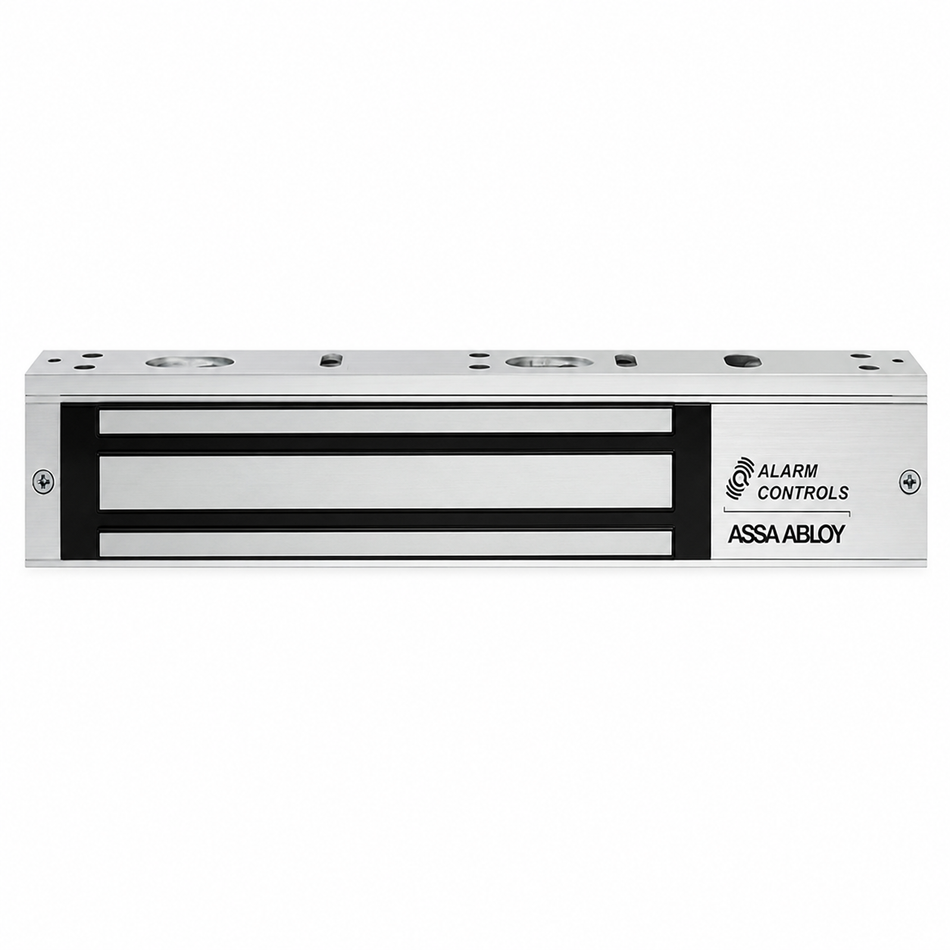

Maglock, 600LB, 12/24VDC, Single, Aluminum
Bracket mounted, single magnetic lock with 600 lbs holding force that can be easily installed without special tools and used with any access control system. Ideal for high-use areas for traffic control in interior applications. Available with LED, bond sensor and door status signalling options.
Features
Standard Features
- 600S Standard model
- 600L Magnetic lock with red LED status indicator
- 600LB Magnetic lock with red LED status indicator, bond sensor, and door status sensor
- Built-in arc suppression
- Instant release, no hysteresis
- Self-drilling TEC screws
- Non-aluminum parts are plated to resist corrosion
- E-Z mount header bracket and template provided for easy installation, no special tools required
- Can be used with any access control system
- Clear anodized (US28) finish standard
- Limited lifetime warranty
Options

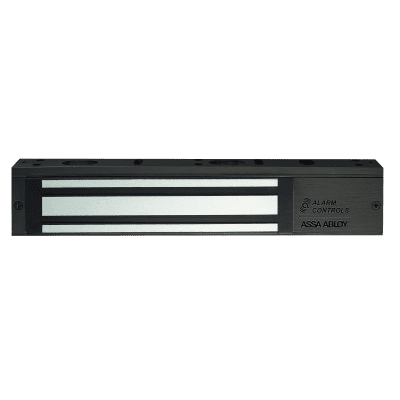

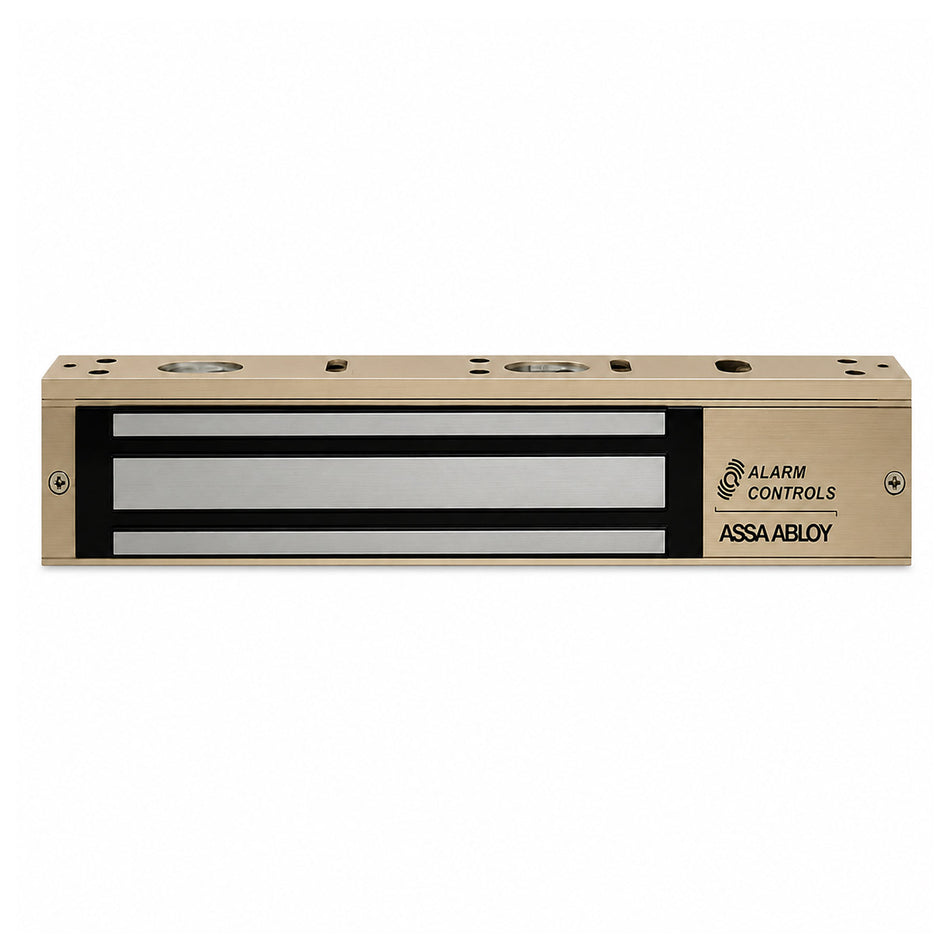

- DURO Duranodic finish (US 40) available, specify when ordering

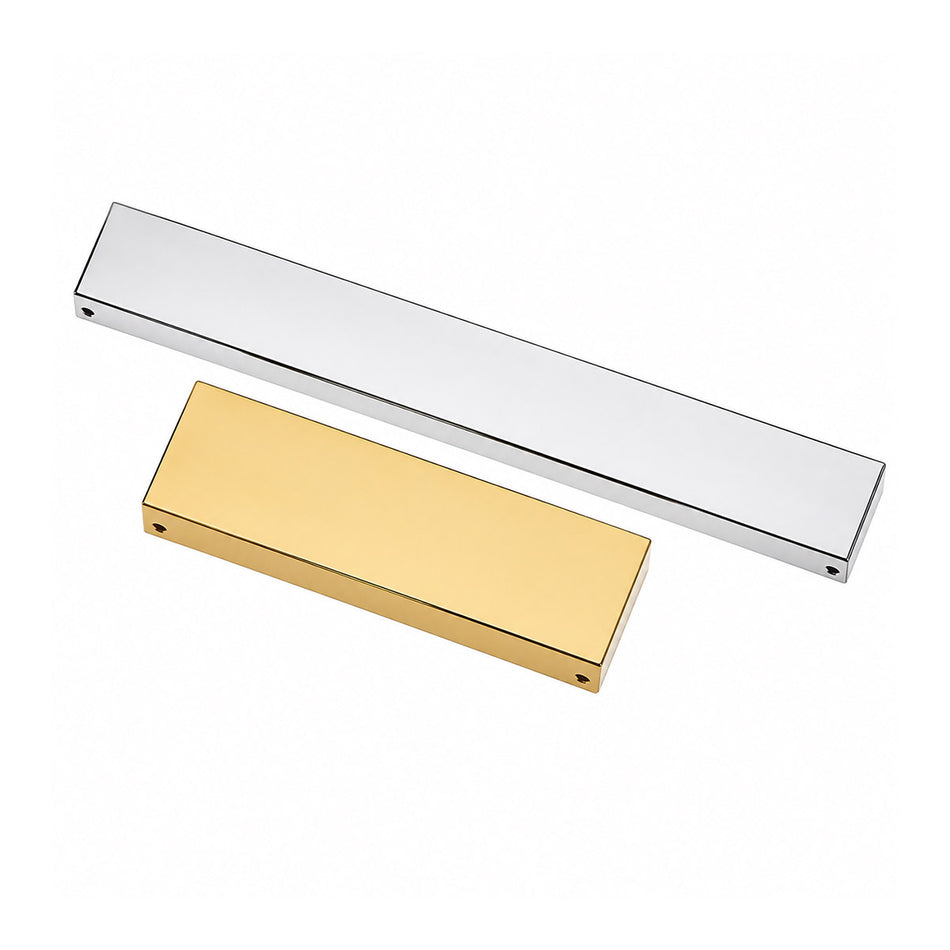

- Dress covers in polished chrome and brass available. See "Magnetic LockAccessories" for options.
Specifications
Certifications & Listings
- UL 294 listed
- UL 10C fire rated
- CAN/ULC-S104 fire door conformant
- UL 864 listed
- CAN/ULC-S527 listed
Holding Force: 600 lbs
Dimensions:
- Magnet size: 9-7/8" L x 1-11/16" H x 1" W
- Armature size: 7-1/4" L x 1-1/2" H x 1/2" W
Electrical
- 12 or 24 VDC, field selectable
- Current draw: 505 mA at 12 VDC, 260 mA at 24 VDC
- 600LB bond sensor has SPDT 3A relay contacts
Operating Temperature: +14 to +131F [-10 to +55C]
