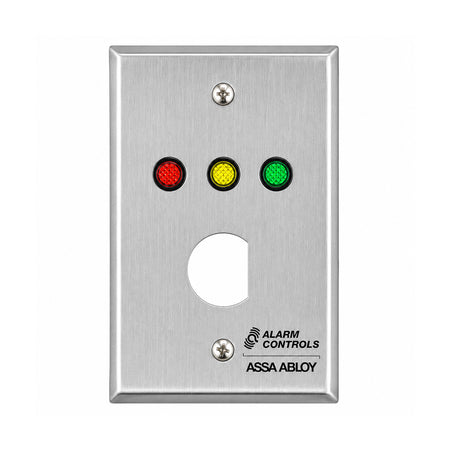

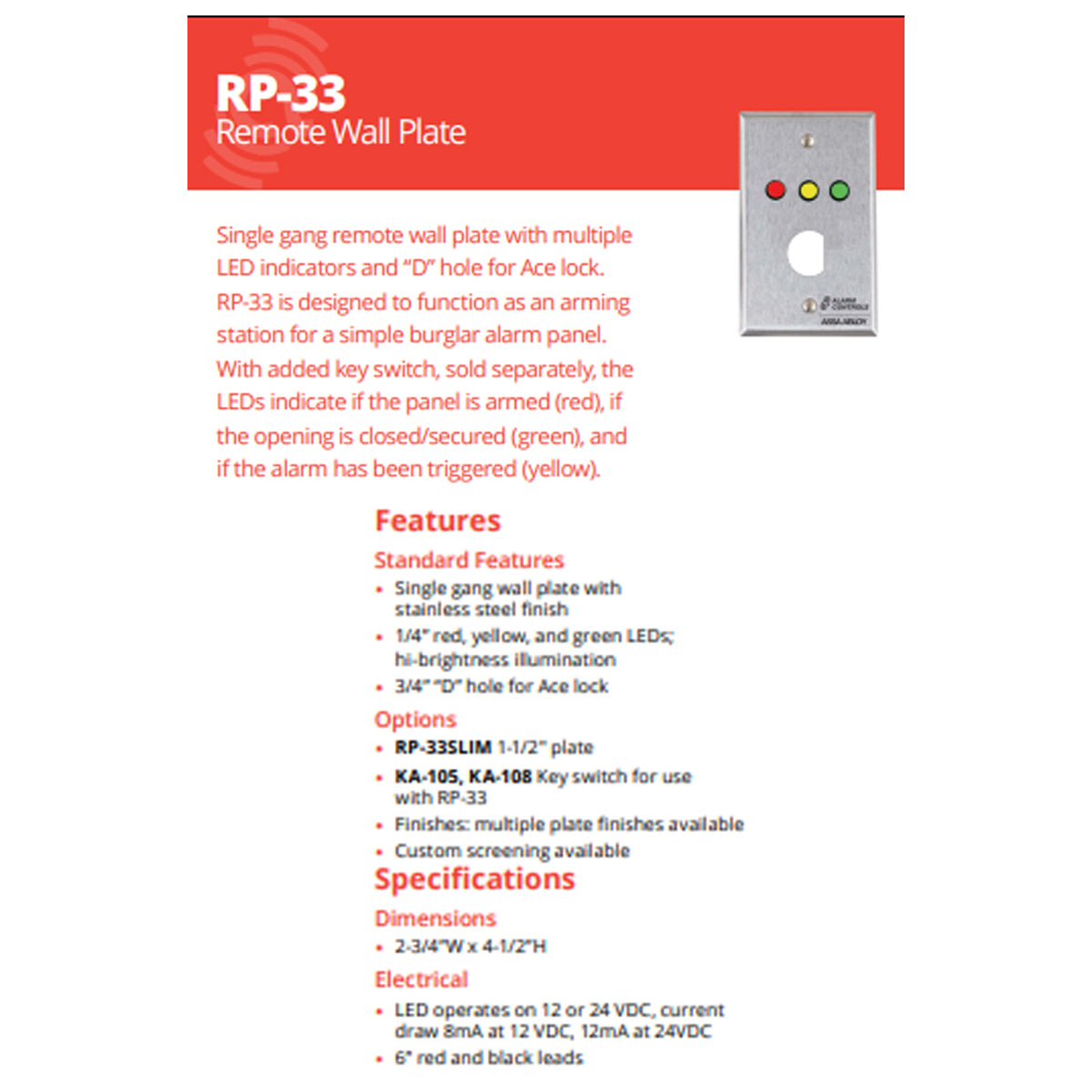

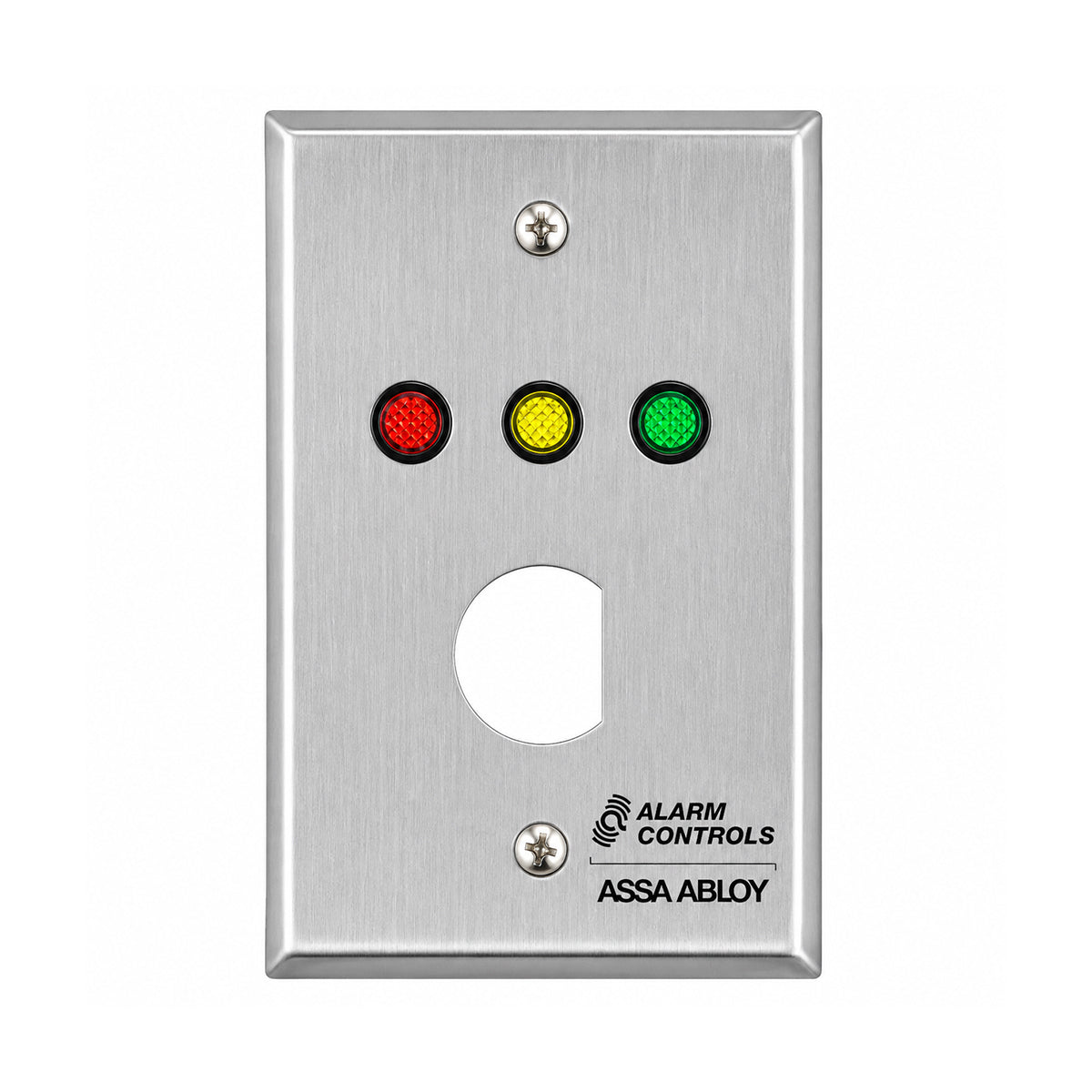

The Alarm Controls RP-33 Remote Wall Plate is a multi-indicator remote arming station designed for simple burglar alarm panels. Featuring bright red, yellow, and green LEDs, the RP-33 provides clear visual status indications for alarm and security conditions.
When paired with an optional key switch, the RP-33 can indicate whether the alarm panel is armed, whether an opening is closed and secured, and whether the alarm has been triggered. Its durable stainless steel wall plate and clean, professional design make it ideal for security and access control installations.
Features
- Single-gang remote wall plate
- Durable stainless steel finish
- 1/4" red, yellow, and green LEDs
- High-brightness LED illumination
- 3/4" “D” hole for Ace lock
- Designed as an arming station for simple burglar alarm panels
- Optional key switch available
- Multiple plate finishes available
- Custom screening available
LED Status Indicators
- Red: Panel is armed
- Green: Opening is closed/secured
- Yellow: Alarm has been triggered
Available Options
- RP-33SLIM – 1-1/2" slimline plate
- KA-105 / KA-108 – Key switches for use with RP-33
- Multiple plate finishes
- Custom screening
Specifications
Dimensions:
2-3/4"W x 4-1/2"H
Electrical:
- LED operation: 12 or 24 VDC
- Current draw: 8mA at 12 VDC
- Current draw: 12mA at 24 VDC
- 6" red and black leads
Applications
The RP-33 is ideal for burglar alarm systems, security panels, alarm arming stations, access control installations, and commercial security applications requiring clear, multi-color visual status indication.
