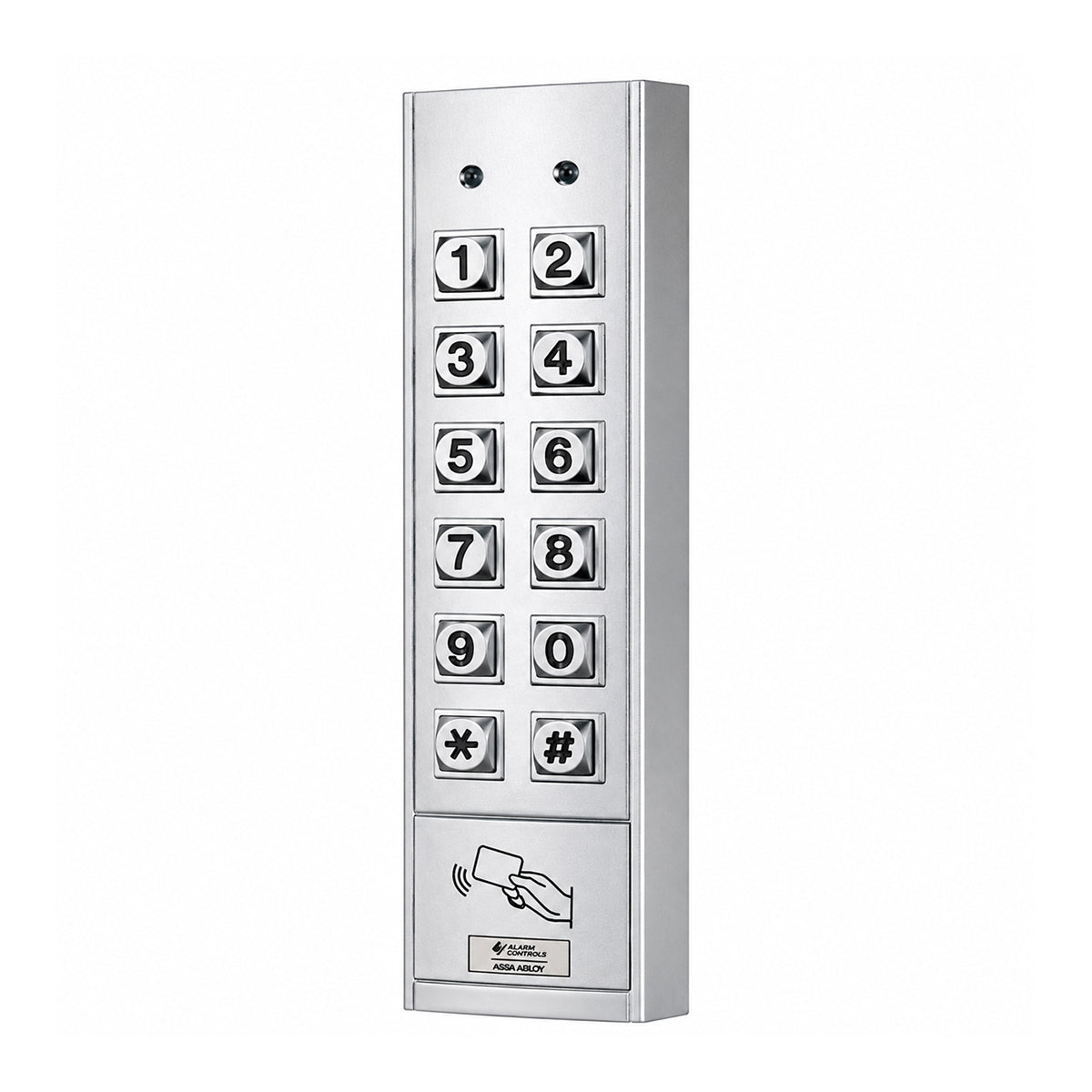

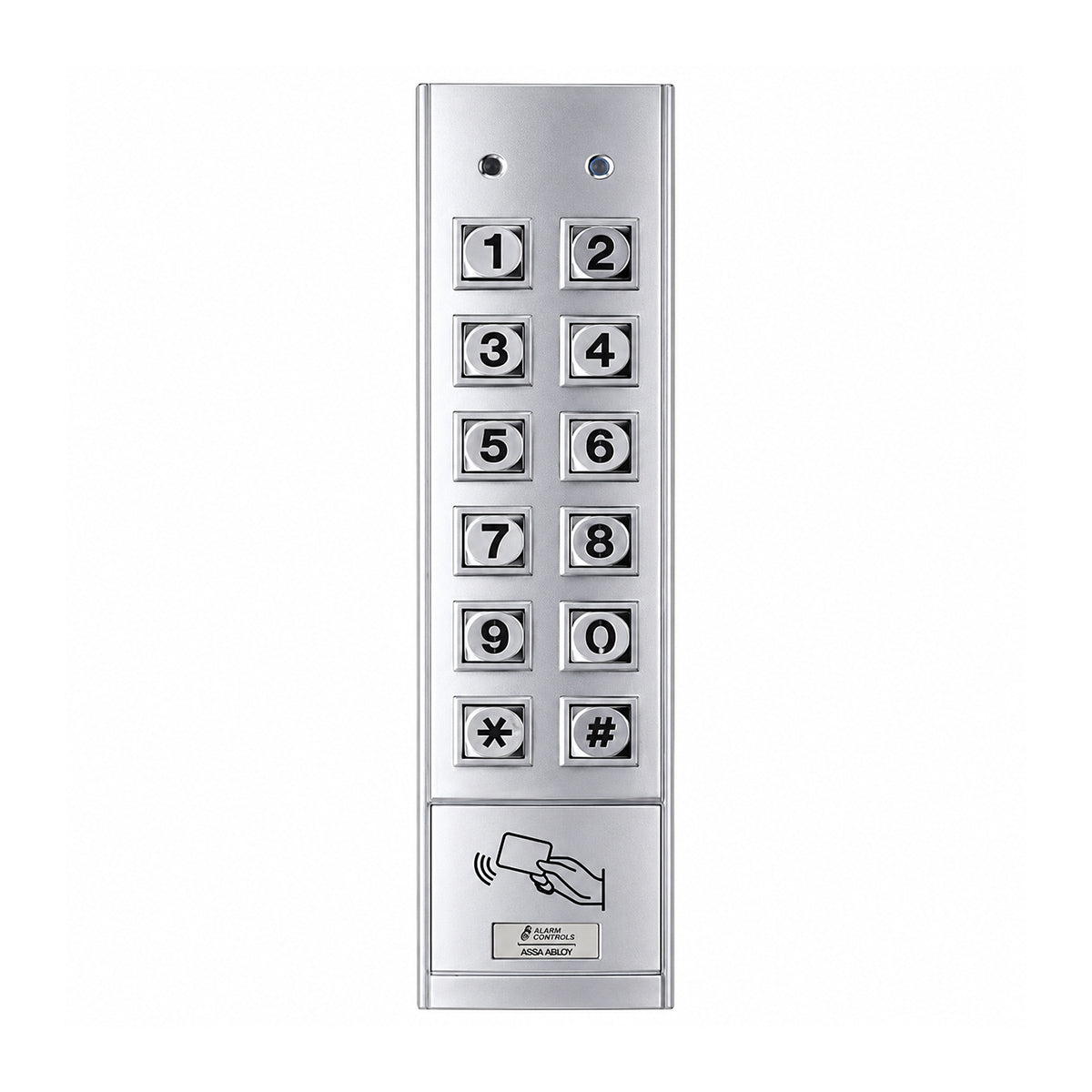

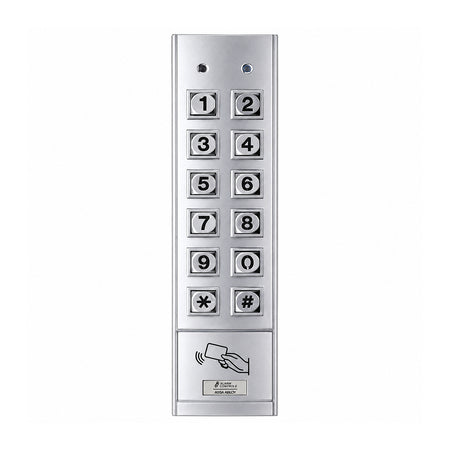

The Alarm Controls KP-300 Digital Keypad is a narrow stile, self-contained access control keypad designed for pedestal and mullion mounting. Its rugged die-cast zinc alloy housing and metal keys provide excellent durability for demanding commercial, industrial, and security applications. With an IP65 rating, weather-resistant construction, and support for both indoor and outdoor installations, the KP-300 provides reliable access control in a compact footprint.
The KP-300 supports card-only, card-and-user-code, or user-code-only operation and provides two independent relay outputs for controlling up to two devices. Output 1 supports up to 1,000 users, while Output 2 supports up to 100 users. Users can be programmed directly at the keypad, including visitor credentials with one-time or time-limited access.
Key Features
- Narrow stile design for mullion and pedestal mounting
- Durable die-cast zinc alloy housing
- Vandal-resistant construction with metal keys
- IP65 rated for indoor and outdoor applications
- 10-digit keypad with * and # keys
- Supports card-only, card + code, or code-only access
- Two independent relay outputs for controlling up to two devices
- Output 1 supports up to 1,000 users
- Output 2 supports up to 100 users
- Up to 50 visitor cards and/or codes with one-time or time-limited access
- User credentials can be programmed directly at the device
- Programmable passage mode and false-code lockout
- Built-in tamper switch
- Green and yellow LEDs provide status and programming feedback
- Backlit keys for easy operation in low-light conditions
- Audible and visible key-press feedback
- Fail-safe or fail-secure operation
- Includes 2 EM cards
- Optional EM-10 10-card pack and EM-04 key fobs
- 3-year warranty

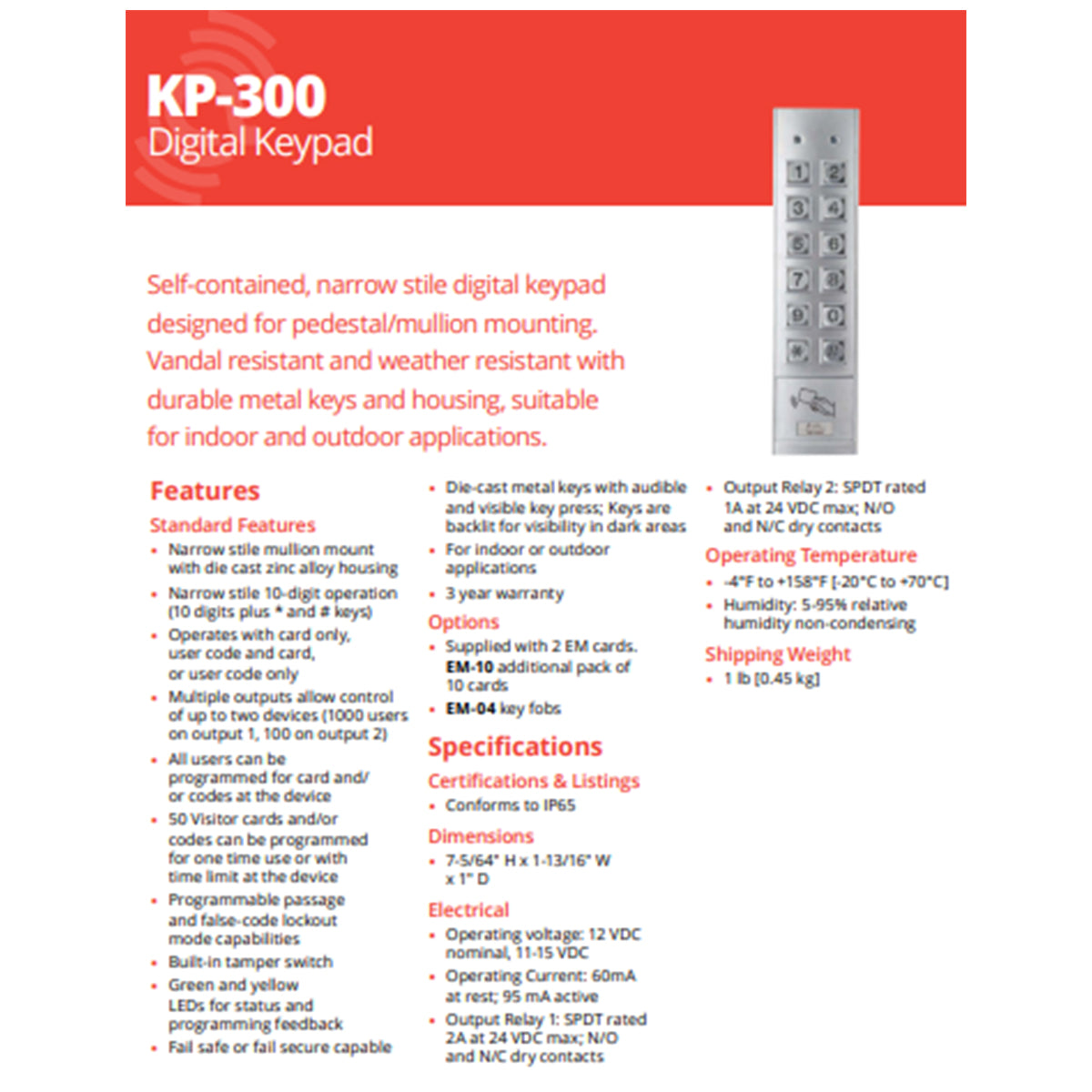

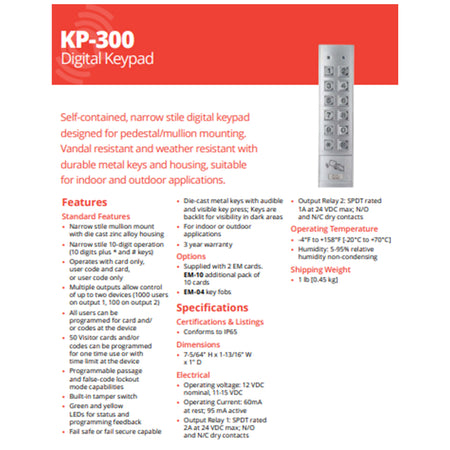

Specifications
| Specification | Details |
|---|---|
| Model | KP-300 |
| Mounting | Narrow stile / mullion / pedestal |
| Certification / Rating | IP65 |
| Dimensions | 7-5/64" H × 1-13/16" W × 1" D |
| Operating Voltage | 12 VDC nominal, 11–15 VDC |
| Current Draw | 60 mA at rest; 95 mA active |
| Output Relay 1 | SPDT, 2A @ 24 VDC max; N/O & N/C dry contacts |
| Output Relay 2 | SPDT, 1A @ 24 VDC max; N/O & N/C dry contacts |
| Operating Temperature | -4°F to +158°F (-20°C to +70°C) |
| Humidity | 5–95% RH, non-condensing |
| Shipping Weight | 1 lb (0.45 kg) |
Ideal for Commercial Access Control
With its narrow profile, rugged metal construction, dual relay outputs, and flexible credential options, the Alarm Controls KP-300 is an excellent choice for controlling access through mullion-mounted doors, gates, pedestals, and other space-constrained entry points. Its weather-resistant design makes it suitable for both indoor and outdoor access control installations.
