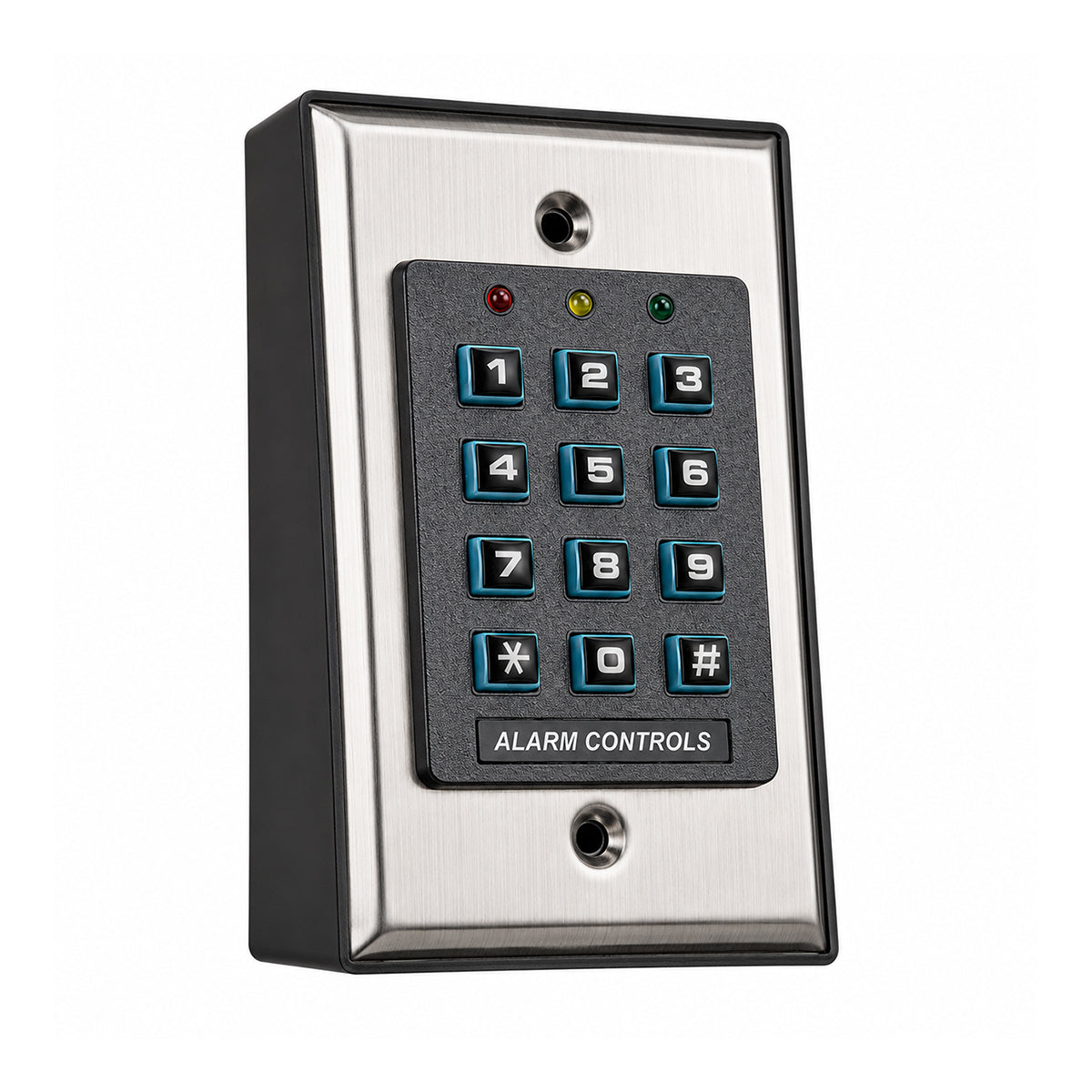

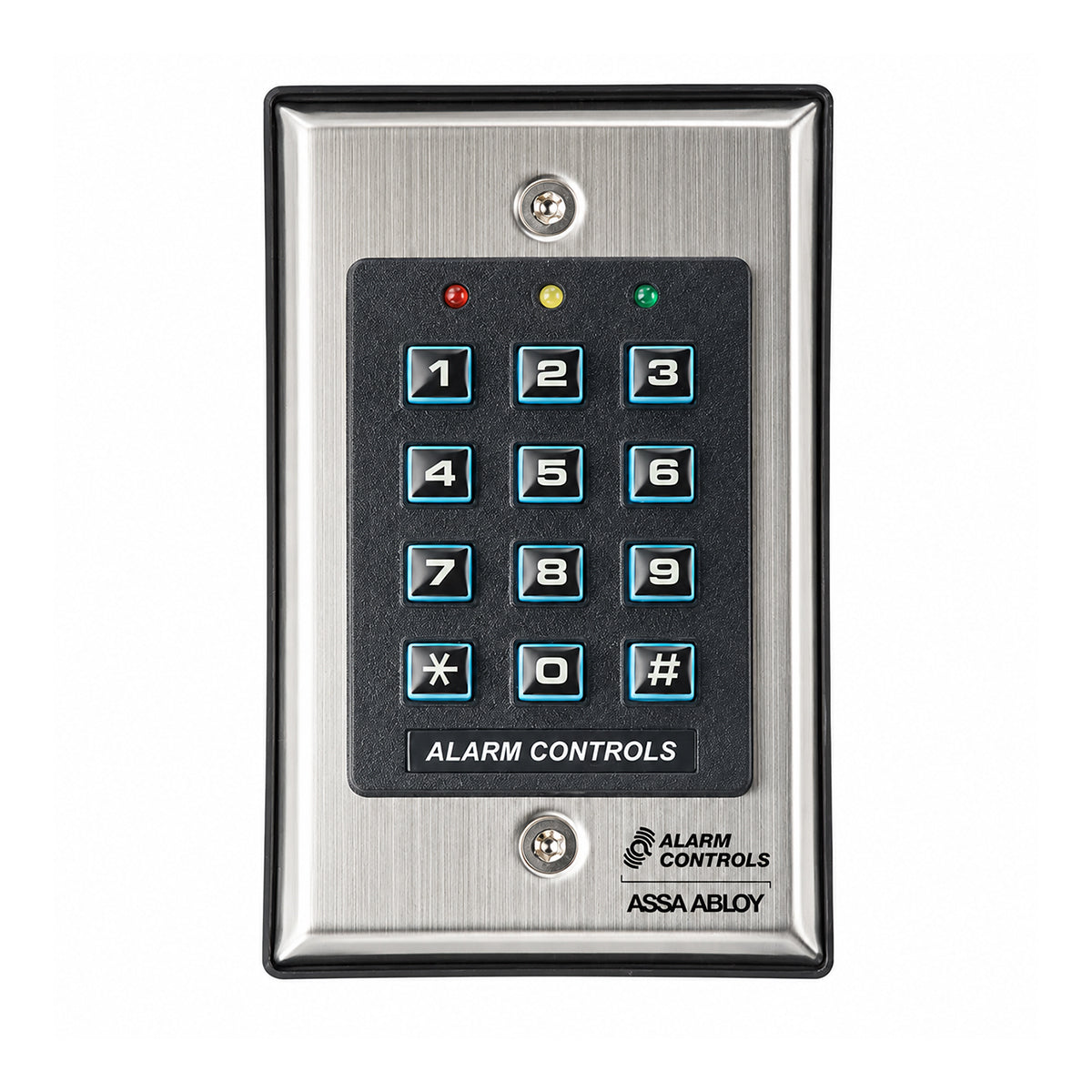

The Alarm Controls KP-100A Digital Keypad is a versatile, self-contained access control keypad designed for residential and commercial indoor applications. Its single-gang flush-mount stainless steel plate and included surface-mount back box provide a clean, professional installation, while the fully programmable keypad offers flexible control for a wide range of access control requirements.
With capacity for up to 1,000 user codes and 50 visitor codes, the KP-100A provides convenient code management without requiring an external programming device. Visitor codes can be programmed for one-time use or limited by time, making the keypad ideal for controlled access in commercial facilities, offices, apartments, and other secured areas.
Key Features
- Self-contained digital access control keypad
- Single-gang flush-mount stainless steel plate
- Includes surface-mount back box
- True 10-digit operation with 0–9, * and # keys
- Supports up to 1,000 user codes
- User code lengths from 4 to 8 digits
- Supports 50 visitor codes
- Visitor codes can be programmed for one-time use or time-limited access
- Fully programmable directly from the keypad
- Programmable passage mode
- False code lockout capability
- Built-in tamper switch
- Red, green, and yellow LEDs for status and programming feedback
- Fail-safe or fail-secure operation
- Request to Exit (REX) input
- Audible and visible key press feedback
- Backlit keys for improved visibility
- Designed for indoor applications
- 3-year warranty
Electrical Specifications
- Operating Voltage: 12–24 VAC/VDC ±10%
- 12 VDC Current: 40mA at rest / 100mA active
- 24 VDC Current: 70mA at rest / 50mA active
- Output Relay: 1 SPDT dry contact, 5A/30 VDC max
- REX Input: N/O dry contact, 1mA/5 VDC max
- Tamper Switch: N/C dry contact, 50mA/24 VDC max
Dimensions
- Keypad: 2-3/4"W x 4-1/2"H x 5/32"D
- Surface Mount Back Box: 2-13/16"W x 4-5/8"H x 1-7/16"D
- Shipping Weight: 0.5 lb (0.23 kg)
Operating Environment
- Temperature: -4°F to +158°F (-20°C to +70°C)
- Humidity: 5–95% relative humidity, non-condensing
- Application: Indoor use only
Applications
The KP-100A is ideal for commercial and residential access control, including offices, apartment buildings, restricted areas, and other indoor locations requiring programmable keypad access.
Why Choose the KP-100A?
With high user-code capacity, programmable visitor access, built-in tamper protection, REX functionality, and fail-safe/fail-secure capability, the Alarm Controls KP-100A delivers flexible and reliable standalone access control in a compact, professional keypad design.
