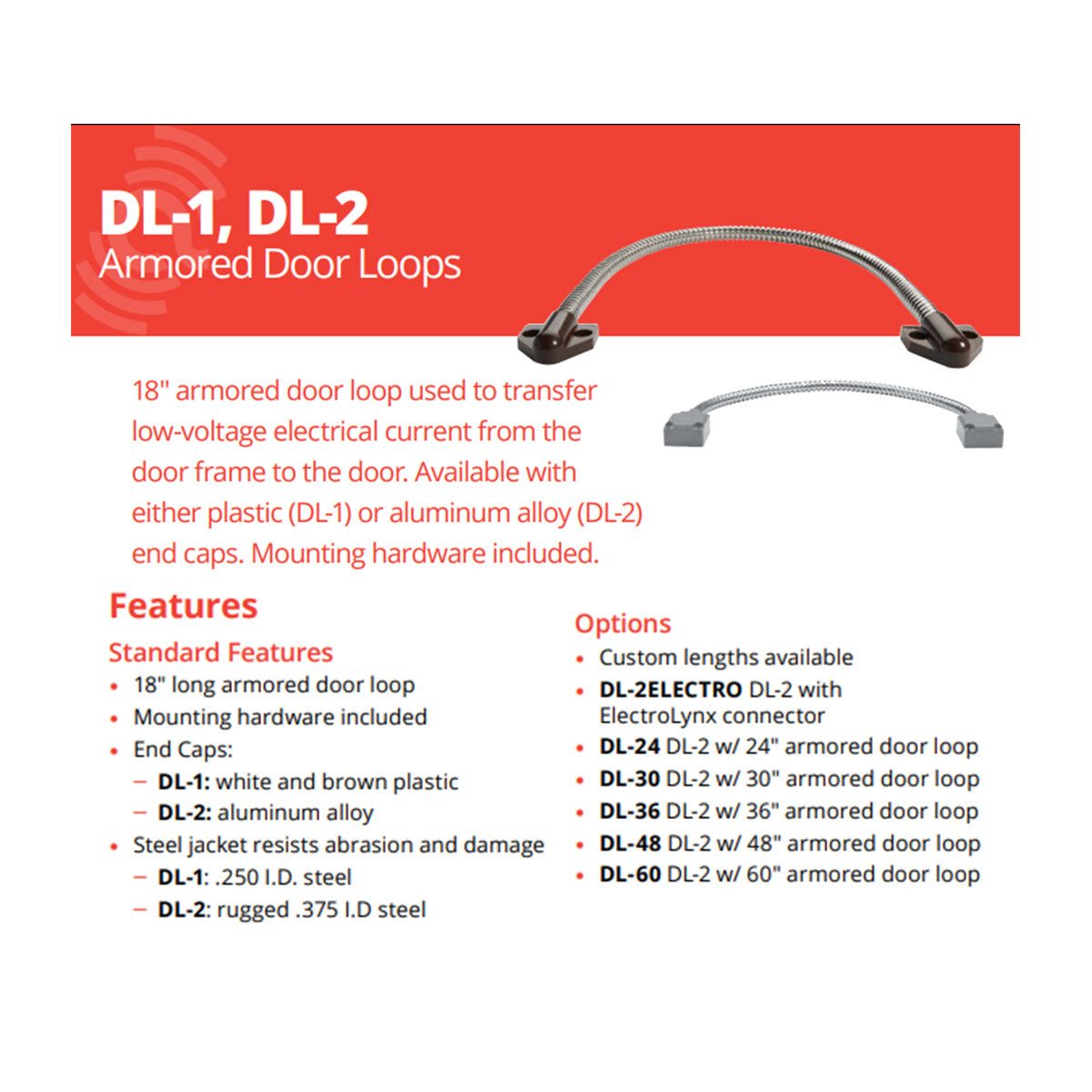

The Alarm Controls DL-1 and DL-2 Armored Door Loops provide a durable, professional solution for transferring low-voltage electrical current from the door frame to the door. Designed to protect wiring from abrasion, wear, and physical damage, these 18" armored door loops are ideal for electrified door hardware, access control systems, security devices, and other low-voltage applications.
Both models feature a rugged steel jacket for dependable protection. The DL-1 is equipped with durable plastic end caps, while the DL-2 features heavy-duty aluminum alloy end caps and a larger .375" I.D. steel jacket for added protection.
Product Features
- 18" armored door loop for transferring low-voltage wiring between the frame and door
- Protects electrical wiring from abrasion, wear, and physical damage
- Rugged steel jacket provides durable wire protection
- Mounting hardware included
- Suitable for electrified door hardware and access control applications
- Available with plastic or aluminum alloy end caps
- Custom lengths available
Model Options
| Model | Description |
|---|---|
| DL-1 | 18" armored door loop with white and brown plastic end caps; .250" I.D. steel jacket |
| DL-2 | 18" armored door loop with aluminum alloy end caps; rugged .375" I.D. steel jacket |
| DL-2ELECTRO | DL-2 with ElectroLynx connector |
| DL-24 | DL-2 with 24" armored door loop |
| DL-30 | DL-2 with 30" armored door loop |
| DL-36 | DL-2 with 36" armored door loop |
| DL-48 | DL-2 with 48" armored door loop |
| DL-60 | DL-2 with 60" armored door loop |
Construction
DL-1
- .250" I.D. steel armored jacket

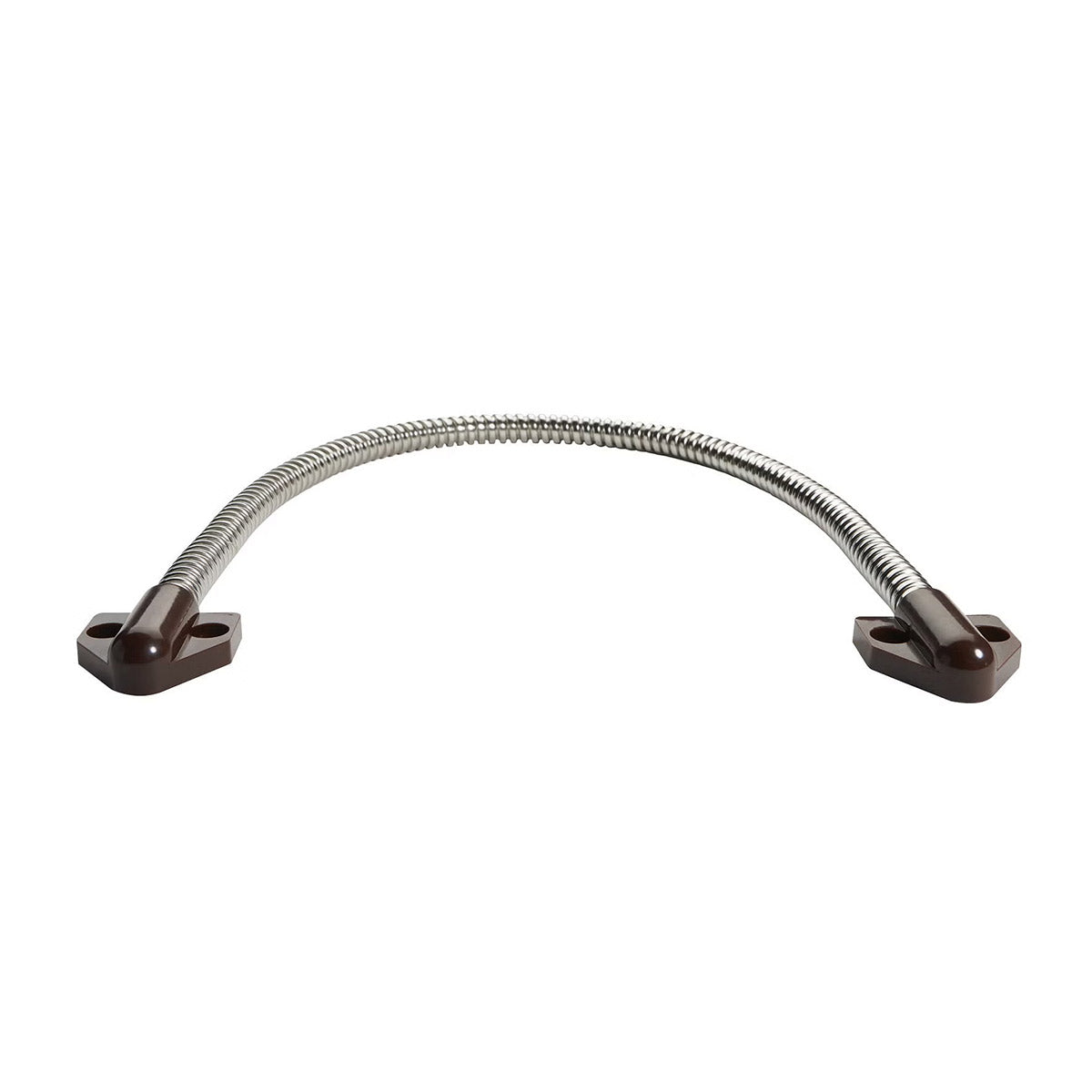

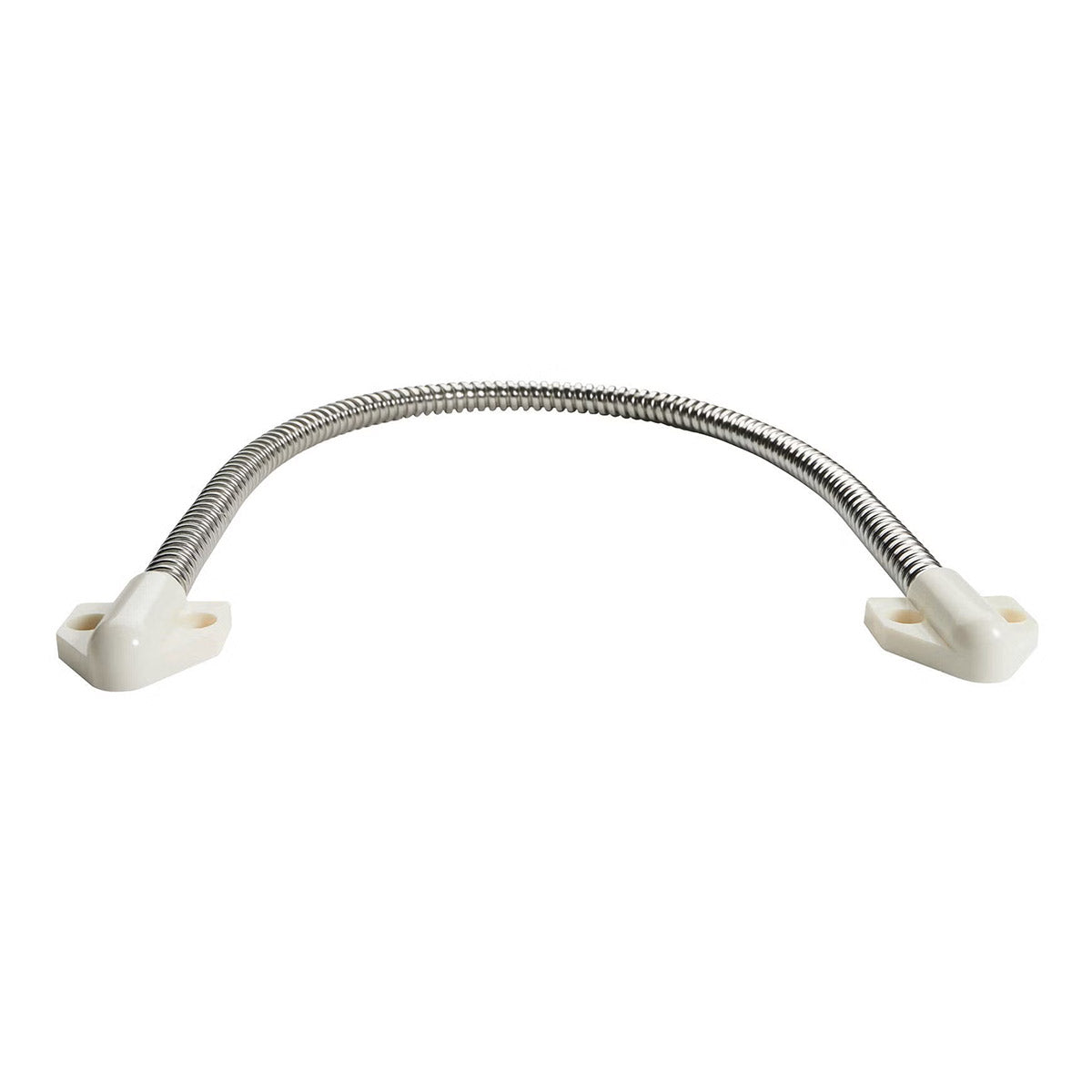

- White and brown plastic end caps
- 18" standard length
DL-2
- Rugged .375" I.D. steel armored jacket
- Aluminum alloy end caps
- 18" standard length
- Available in extended lengths
Applications
Alarm Controls armored door loops are designed for commercial access control, electrified locks, exit devices, electric strikes, door monitoring systems, and other low-voltage electrical installations where wiring must safely transition between the stationary door frame and moving door.
Why Choose Alarm Controls Armored Door Loops?
The DL Series combines durable steel wire protection with straightforward surface-mounted installation, helping protect low-voltage wiring from the repeated movement and abrasion associated with opening and closing doors. With multiple lengths, end-cap materials, and connector options available, the DL-1 and DL-2 provide flexible solutions for a wide range of electrified door applications.
