The Alarm Controls TS Series Mounted Wall Buzzers provide reliable audible notification for access control, security, emergency release, and signaling applications. These compact buzzers are designed for wall mounting on stainless steel wall plates and are available in multiple configurations to accommodate different voltage and installation requirements.
Product Overview
TS Series buzzers feature high-output audible signaling with sound levels up to 85dB at 3 feet. Depending on the model, units operate across a wide DC voltage range from 3 to 28 VDC, making them suitable for a variety of access control and low-voltage systems.
Each buzzer is mounted on a durable stainless steel wall plate and is available with screw terminals or colored wire leads, depending on the selected model. Standard and narrow wall plate configurations provide installation flexibility, while optional finishes and custom silk screening allow the plate to be matched to specific applications.
Key Features
- Audible output up to 85dB @ 3 feet
- Wide operating range of 3 to 28 VDC on applicable models
- Available 12 VDC configuration
- Single-gang stainless steel wall plate mounting

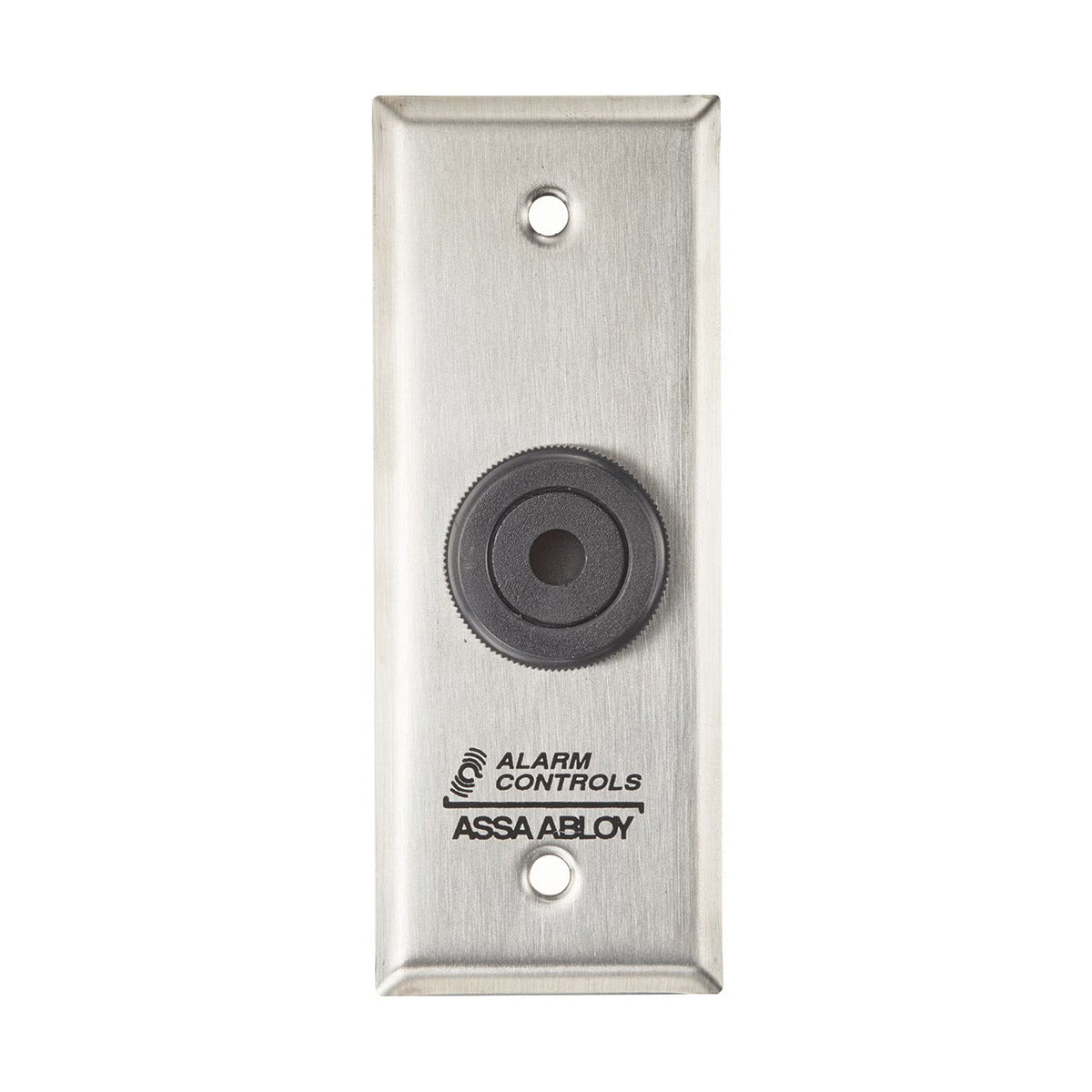

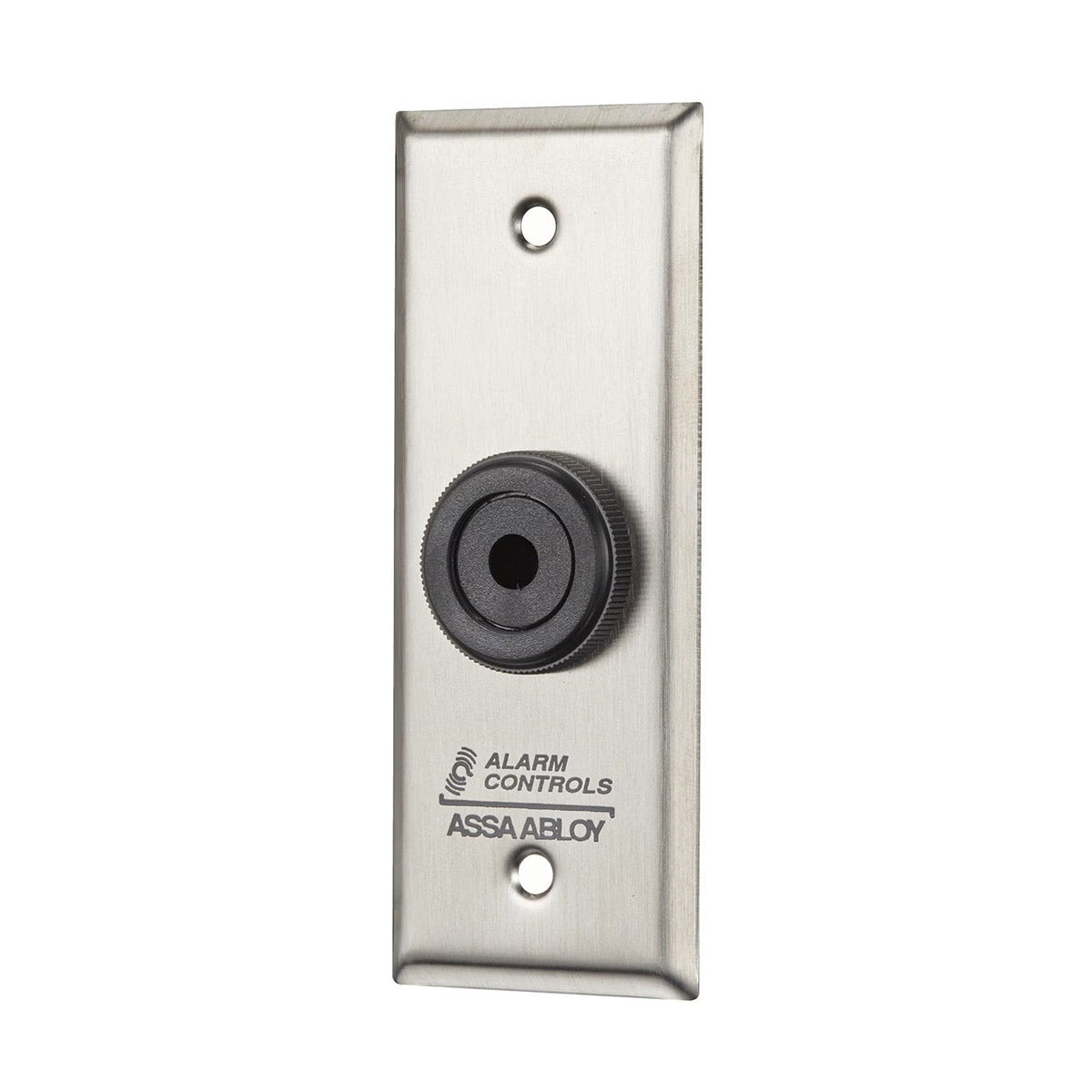

- Narrow wall plate option available
- Screw terminal or wire-lead termination, depending on model
- Low current draw for efficient operation
- Durable stainless steel construction
- Multiple standard plate finishes available
- Custom silk screening available
- Ideal for access control, security, alarm, and notification applications

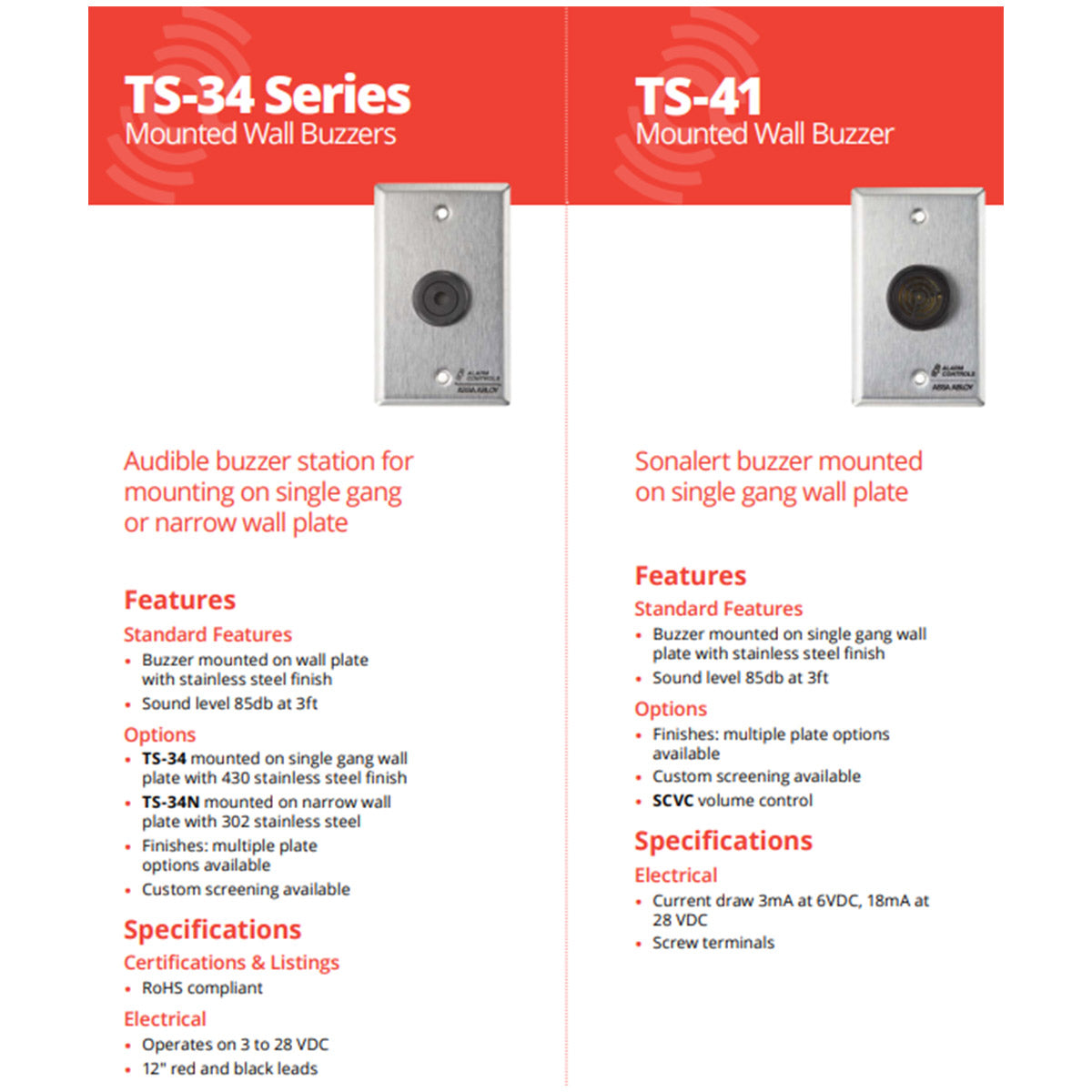

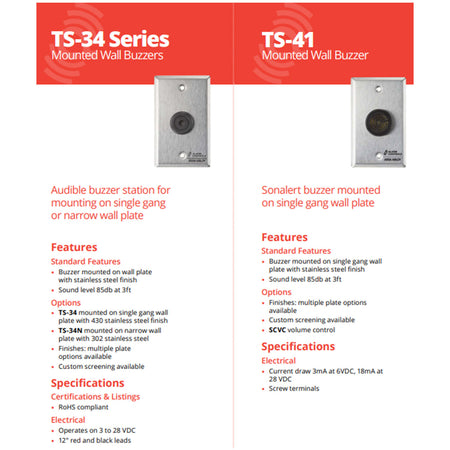

Electrical Specifications
- Operating Voltage: 3–28 VDC, depending on model
- Current Draw: 3mA @ 6 VDC; 18mA @ 28 VDC on applicable model
- 12 VDC Model: 25mA @ 12 VDC
- Sound Level: 80–85dB, depending on model
- Termination: Screw terminals or 5" colored wire leads, depending on model
Available Options

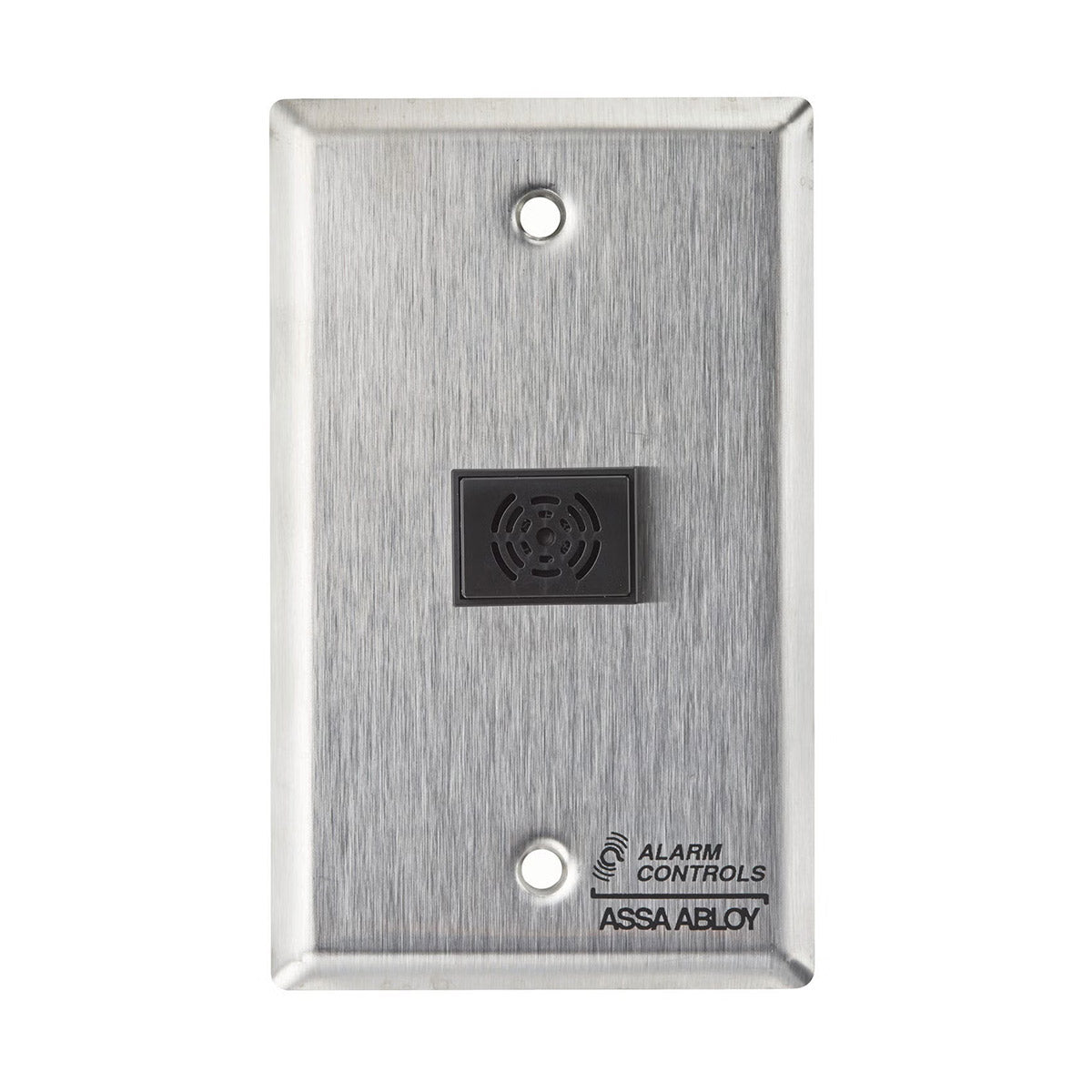

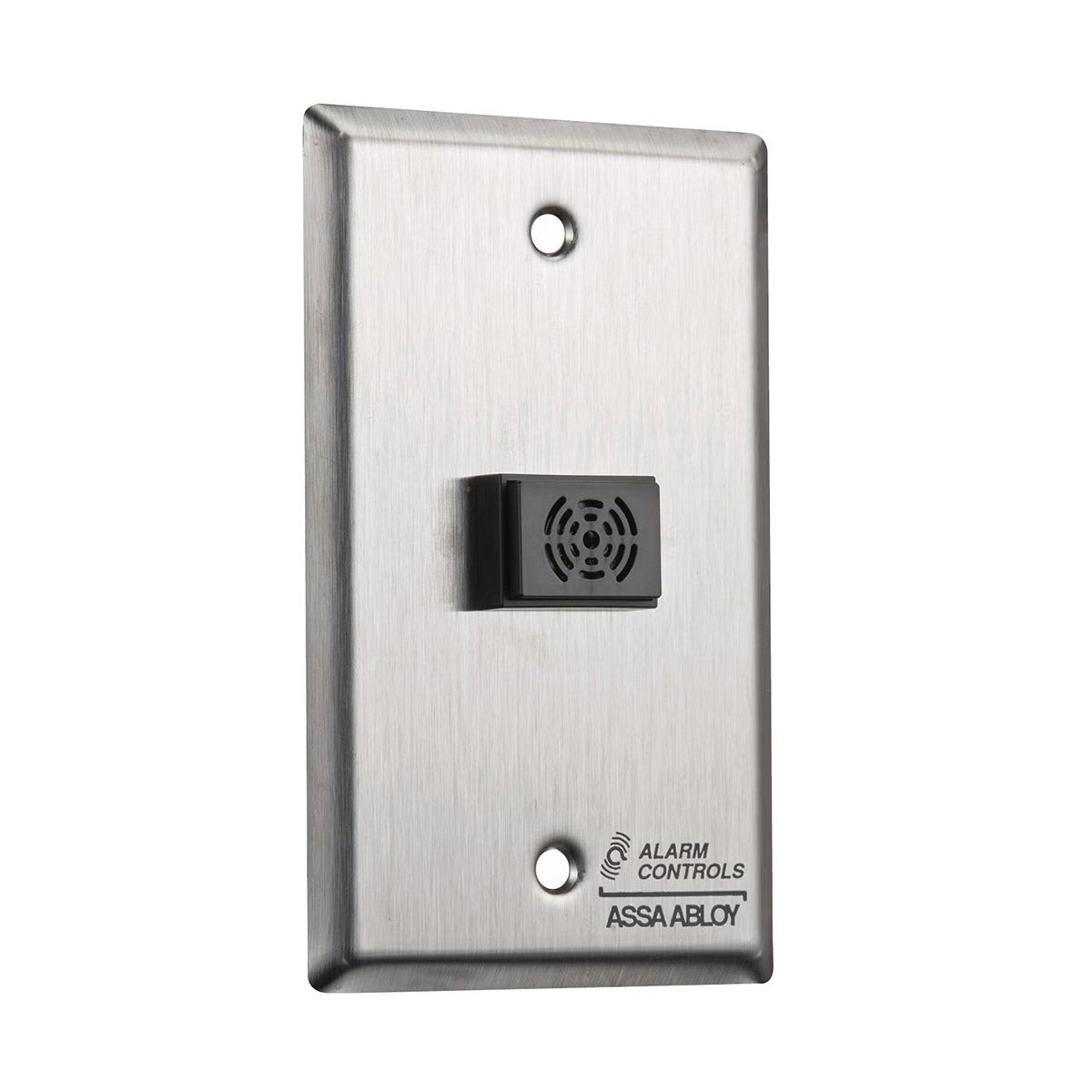

- TS-34: Mounted on single-gang wall plate with 430 stainless steel finish
- TS-34N: Mounted on narrow wall plate with 302 stainless steel finish
- Multiple standard plate finishes available
- Custom plate silk screening available
Applications
The Alarm Controls TS Series is an excellent choice for access control systems, security doors, alarm systems, emergency release stations, request-to-exit applications, and general audible notification where a compact, wall-mounted buzzer is required.
Choose the TS Series configuration that best matches your voltage, termination, wall plate, and finish requirements.
