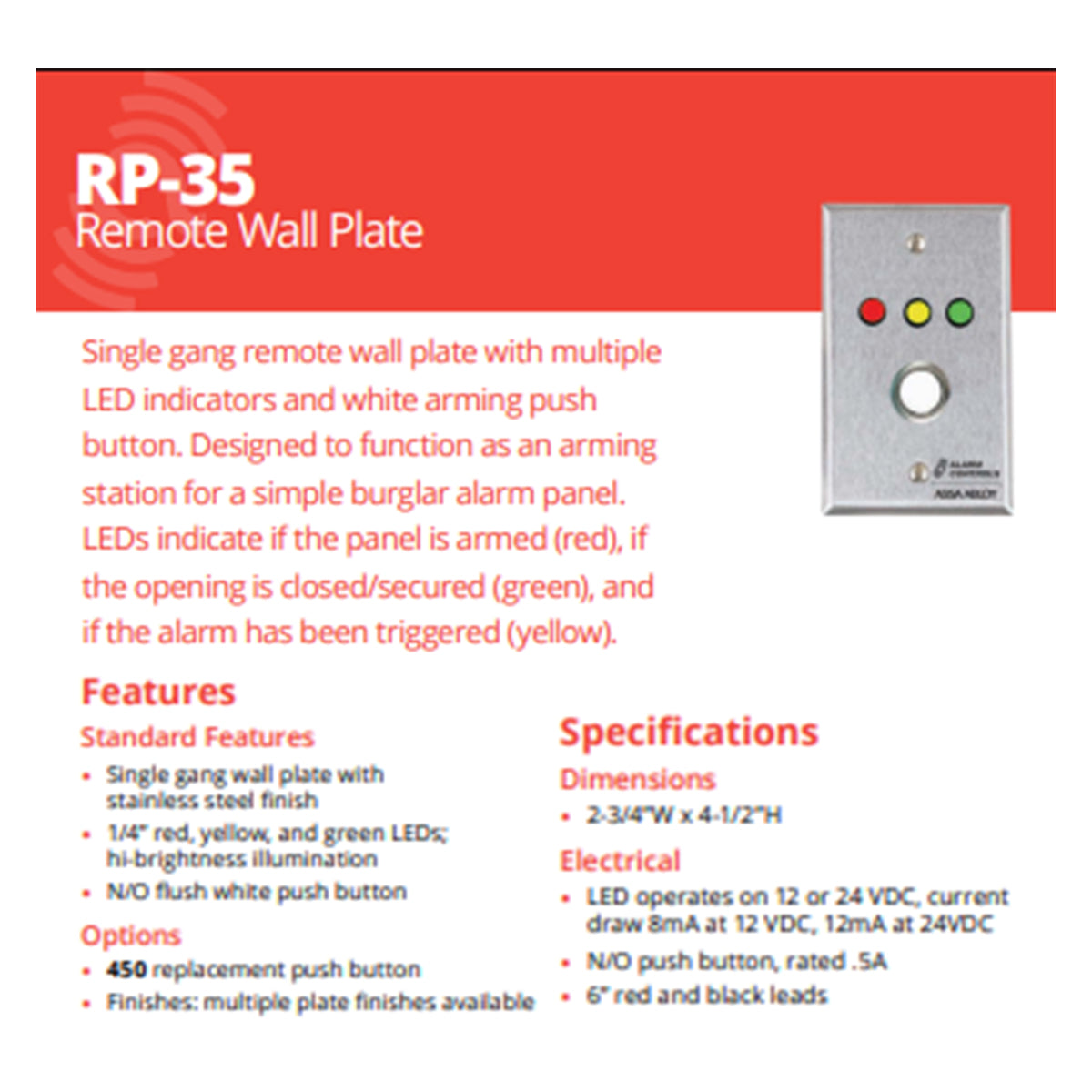

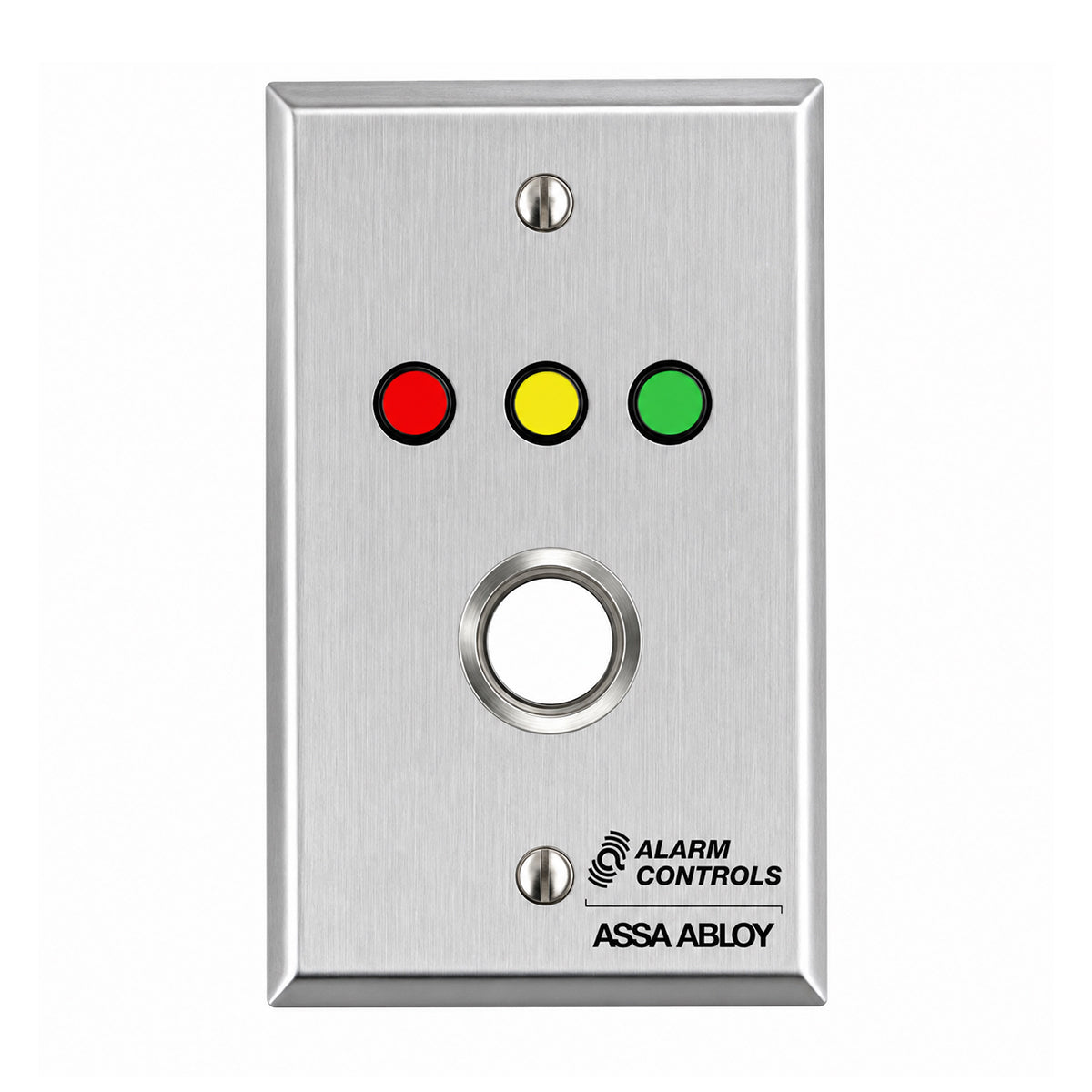

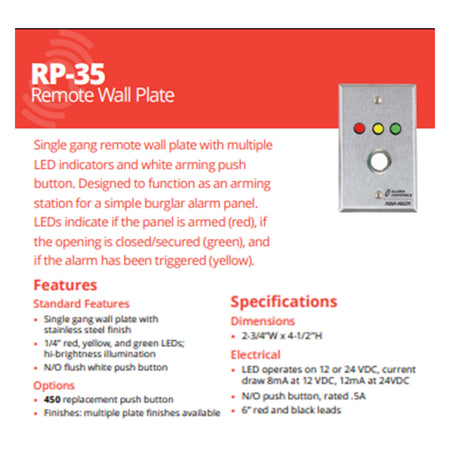

The Alarm Controls RP-35 Remote Wall Plate is a single-gang arming station designed for simple burglar alarm panels. It combines a white arming push button with bright red, yellow, and green LED indicators, providing clear visual status information for security and alarm conditions.
The RP-35 indicates whether the panel is armed, whether an opening is closed and secured, or whether the alarm has been triggered. Its durable stainless steel wall plate provides a clean, professional appearance for commercial and security installations.
Features
- Single-gang remote wall plate
- Durable stainless steel finish
- 1/4" red, yellow, and green LEDs
- High-brightness LED illumination
- Normally Open (N/O) flush white arming push button
- Designed for simple burglar alarm panels
- Multiple plate finishes available
- 6" red and black leads
LED Status Indicators
- Red: Panel is armed
- Green: Opening is closed/secured
- Yellow: Alarm has been triggered
Available Options
- 450 Replacement Push Button
- Multiple plate finishes available
Specifications
Dimensions:
2-3/4"W x 4-1/2"H
LED Electrical:
- Operates on 12 or 24 VDC
- Current draw: 8mA at 12 VDC
- Current draw: 12mA at 24 VDC
Push Button:
- N/O (Normally Open)
- Rated: 0.5A
Applications
The RP-35 is ideal for burglar alarm systems, security panels, alarm arming stations, and commercial security installations requiring a convenient push-button arming control with clear multi-color LED status indicators.
