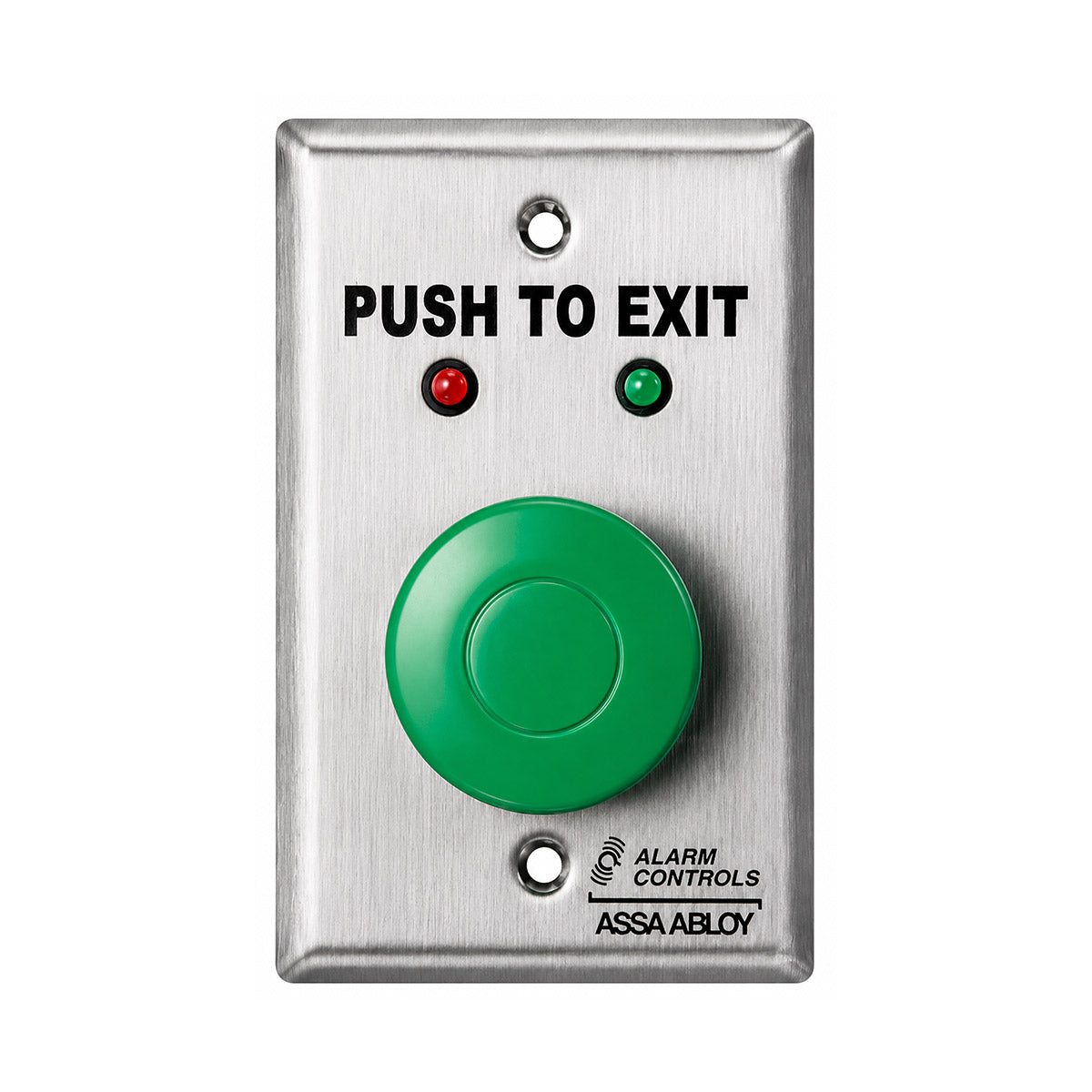

Alarm Controls TS-1 Request to Exit Station with LED Status Indicators
The Alarm Controls TS-1 Request to Exit (REX) Station combines dependable exit control with integrated visual status monitoring, making it an ideal solution for access control systems. Equipped with a large 1-1/2" green mushroom push button and high-brightness red and green LED indicators, the TS-1 provides users and security personnel with an instant visual indication of lock or system status.
Designed for commercial, institutional, healthcare, and industrial applications, the TS-1 features a durable 430 stainless steel single-gang wall plate labeled "PUSH TO EXIT" for clear and intuitive operation. The standard momentary-action switch activates only while the button is depressed, while optional alternate-action and button color configurations allow the station to be customized for specific applications.
Ideal for use with electromagnetic locks, electric strikes, automatic doors, and other access control systems, the TS-1 delivers reliable performance and easy installation.
Key Features
- Large 1-1/2" green mushroom push button for quick and easy exit activation
- Integrated high-brightness red and green LED status indicators for instant system monitoring
- Durable 430 stainless steel single-gang wall plate
- Clearly marked "PUSH TO EXIT" for safe and intuitive operation
- Momentary-action push button (standard)
- One Normally Open (N/O) and one Normally Closed (N/C) contact
- Heavy-duty contacts rated 10A at 35VDC or 120VAC
- Screw terminal wiring for fast installation
- LEDs independently wired for flexible integration
- Compatible with magnetic locks, electric strikes, automatic doors, and access control systems
- UL 294 Listed with CSA Certified components
Available Options
- TS-1L – Alternate-action (latching) switch
- TS-1R – Red mushroom push button
- Multiple stainless steel and architectural plate finishes available
- Custom contact configurations available for specialized applications

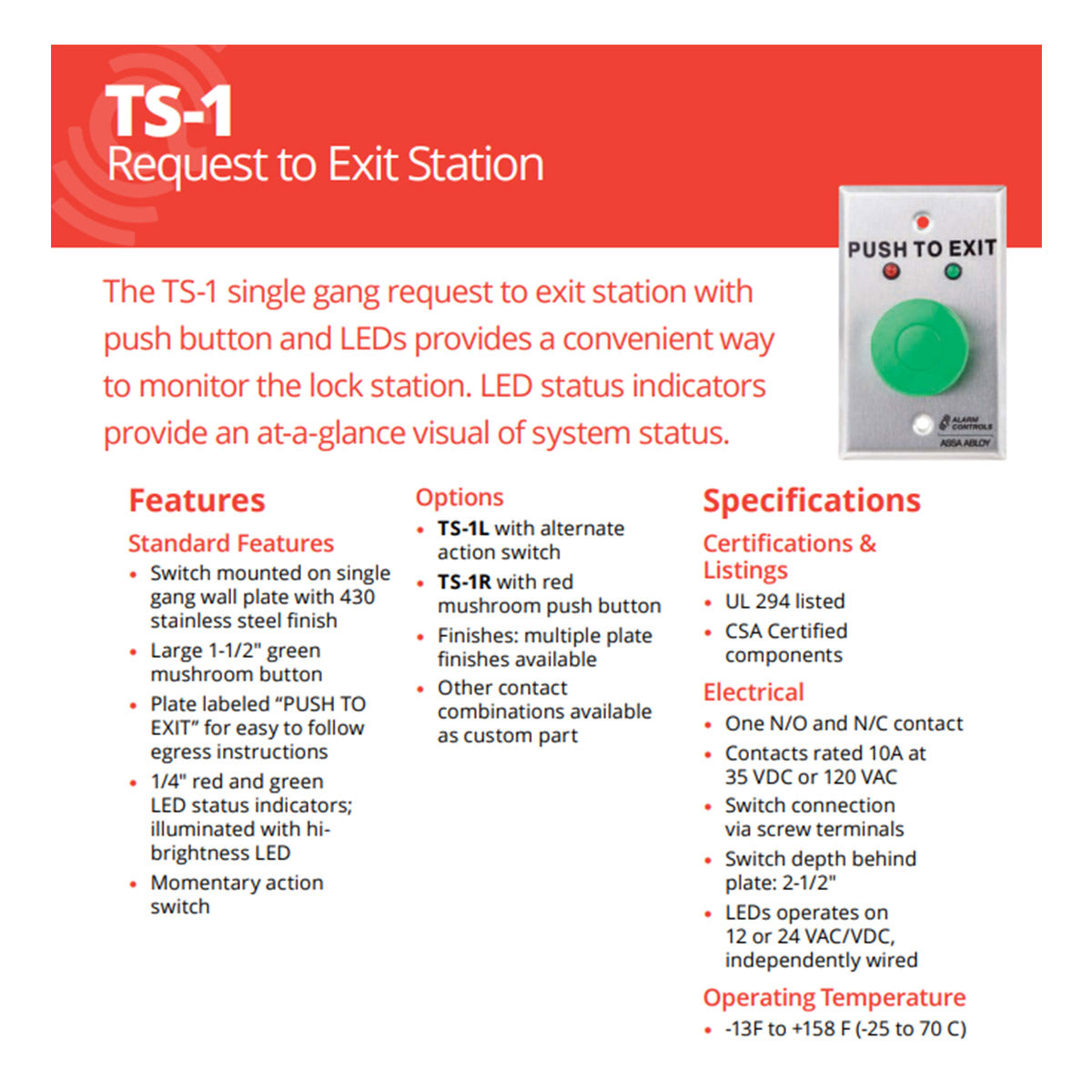

Technical Specifications
| Specification | Details |
|---|---|
| Plate Type | Single-gang 430 stainless steel |
| Button Size | 1-1/2" mushroom button |
| Standard Button Color | Green |
| Plate Marking | PUSH TO EXIT |
| Switch Action | Momentary (standard) |
| Contact Configuration | 1 N/O and 1 N/C |
| Contact Rating | 10A @ 35VDC or 120VAC |
| LED Indicators | High-brightness red and green |
| LED Voltage | 12 or 24 VAC/VDC (independently wired) |
| Wiring | Screw terminals |
| Switch Depth Behind Plate | 2-1/2" |
| Operating Temperature | -13°F to 158°F (-25°C to 70°C) |
| Certifications | UL 294 Listed, CSA Certified components |
Ideal Applications
- Request-to-Exit (REX) systems
- Access control systems
- Electromagnetic lock (Maglock) release
- Electric strike systems
- Automatic door operators
- Office buildings
- Healthcare facilities
- Schools and universities
- Government buildings
- Warehouses and industrial facilities
Why Choose the Alarm Controls TS-1?
The Alarm Controls TS-1 offers more than a standard request-to-exit button by integrating dual LED status indicators that provide immediate visual feedback on system status. Its durable stainless steel construction, high-current switch contacts, and flexible configuration options make it an excellent choice for professional access control installations where reliability and visibility are essential.
