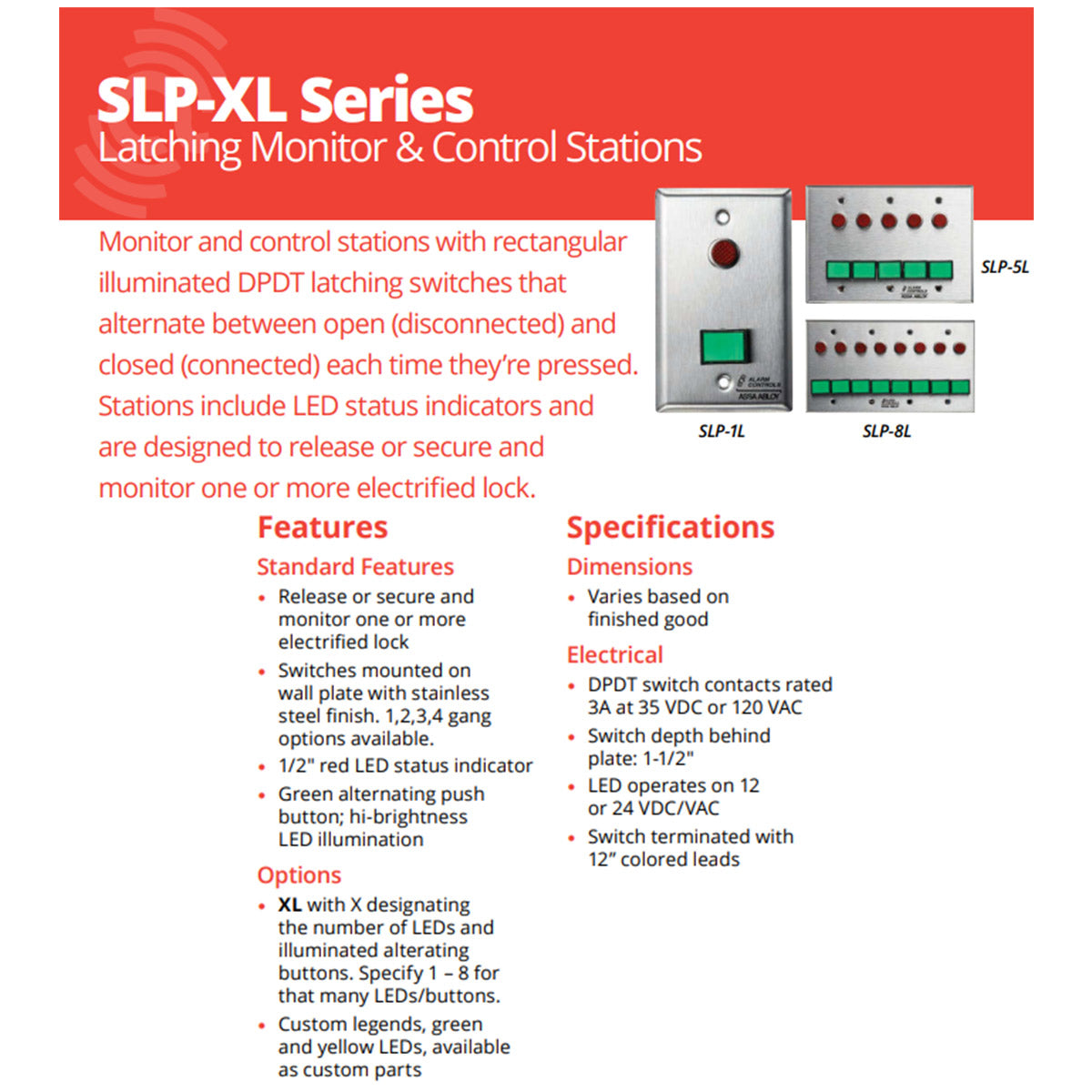

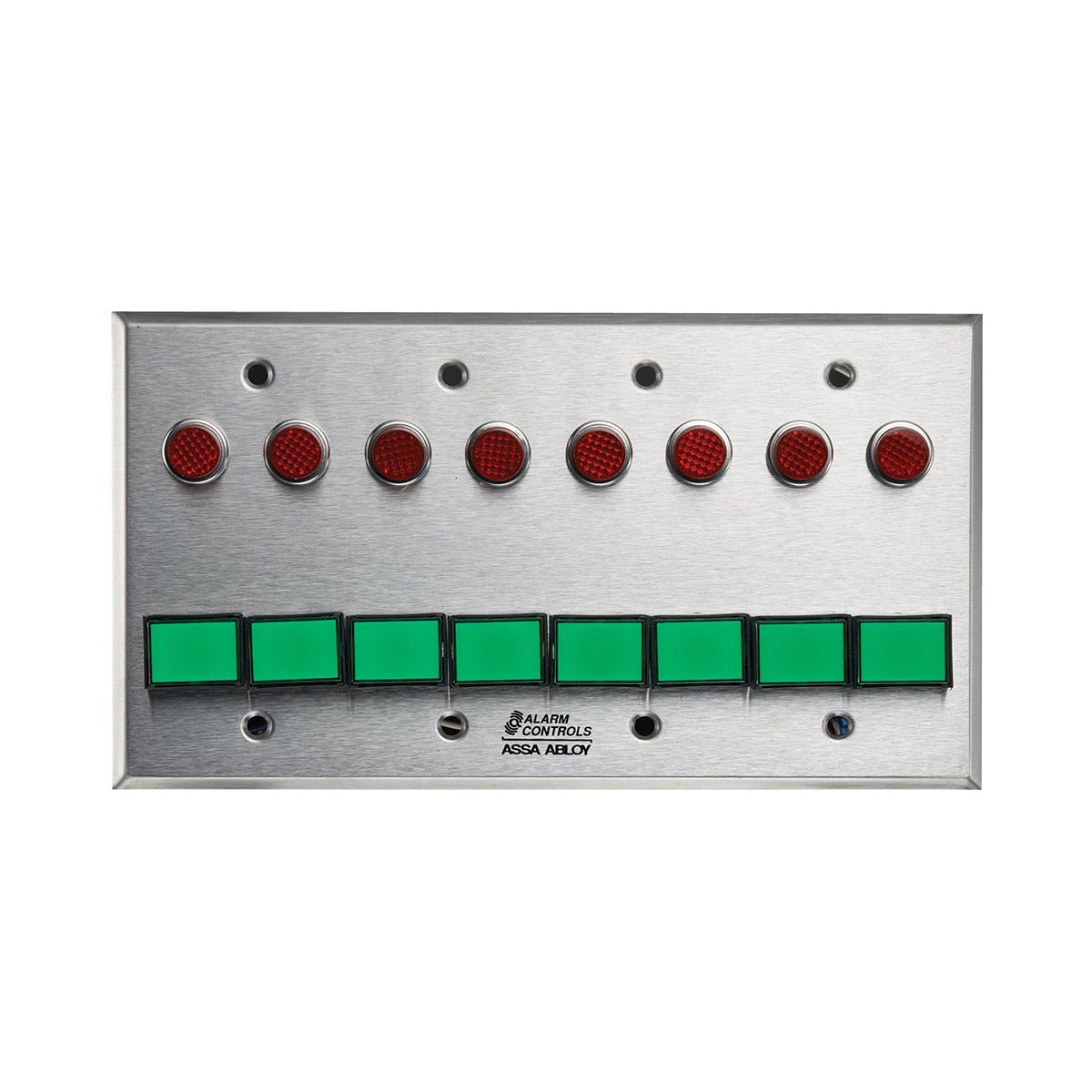

The Alarm Controls SLP-XL Series Latching Monitor & Control Stations provide reliable control, monitoring, and status indication for one or more electrified locks. Each station features a rectangular illuminated DPDT latching switch that alternates between open (disconnected) and closed (connected) each time it is pressed, making it easy to release or secure connected locking devices while providing clear visual status feedback.
Designed for commercial access control and security applications, SLP-XL stations are available in 1-, 2-, 3-, and 4-gang configurations and feature a durable stainless steel wall plate. Built-in red LED status indicators and illuminated alternating push buttons provide convenient visual identification of system status.
Product Features
- Controls, releases, secures, and monitors one or more electrified locks
- DPDT latching switches alternate between open and closed with each press
- Rectangular illuminated alternating push buttons
- 1/2" red LED status indicator
- High-brightness LED illumination for easy visibility
- Durable stainless steel wall plate
- Available in 1-, 2-, 3-, and 4-gang configurations
- Switches supplied with 12" colored leads for convenient installation
- Ideal for commercial access control, security, and electrified locking applications
Available Options

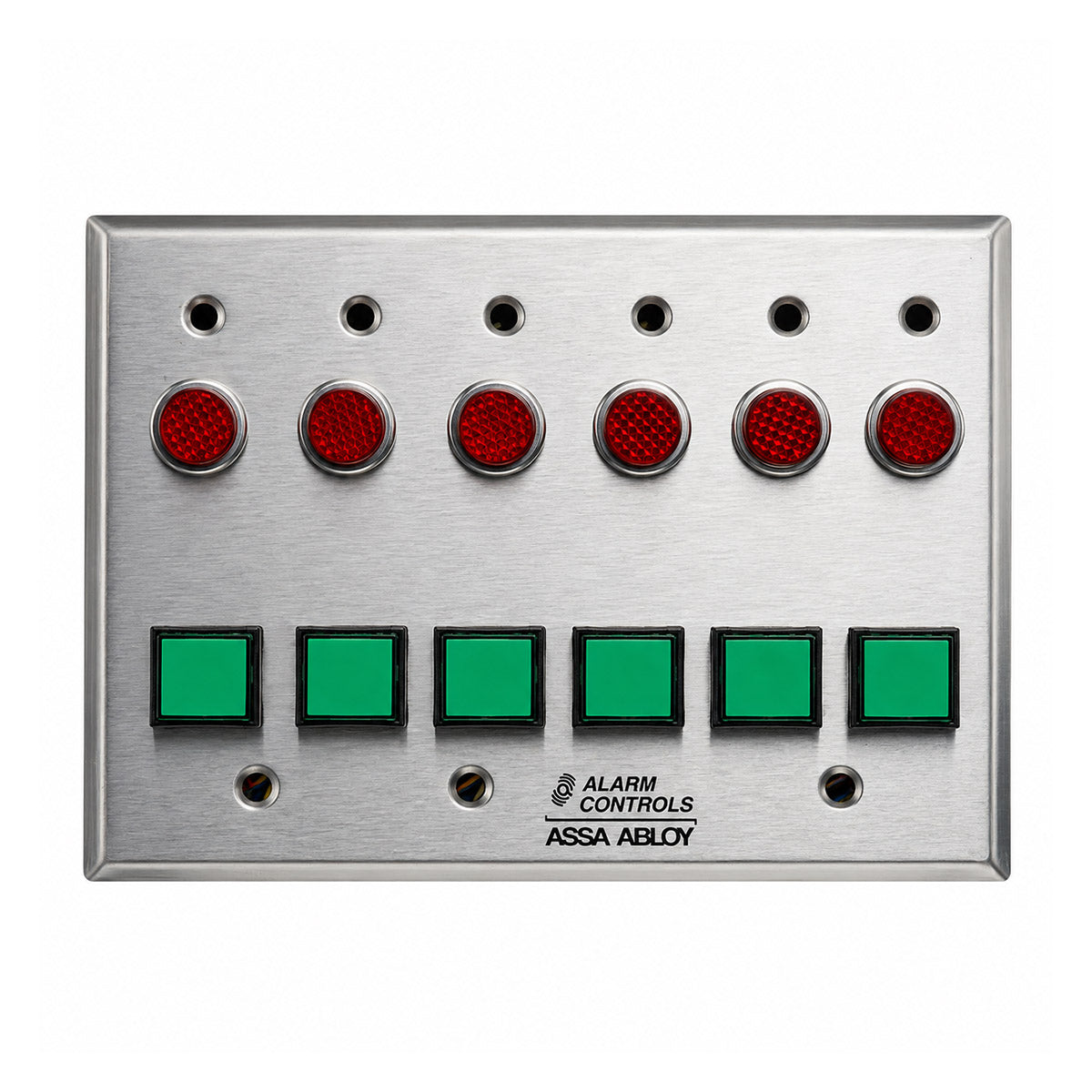

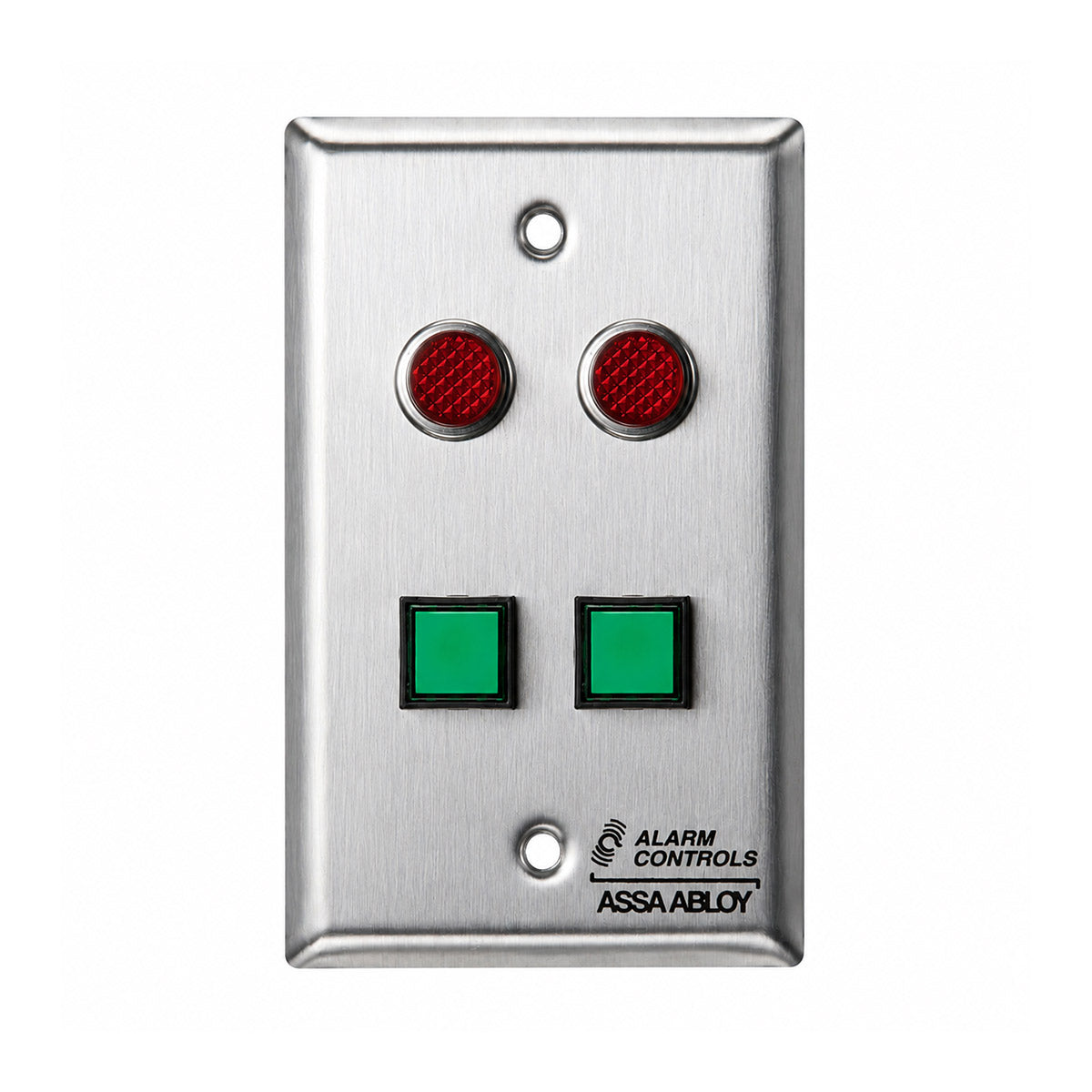

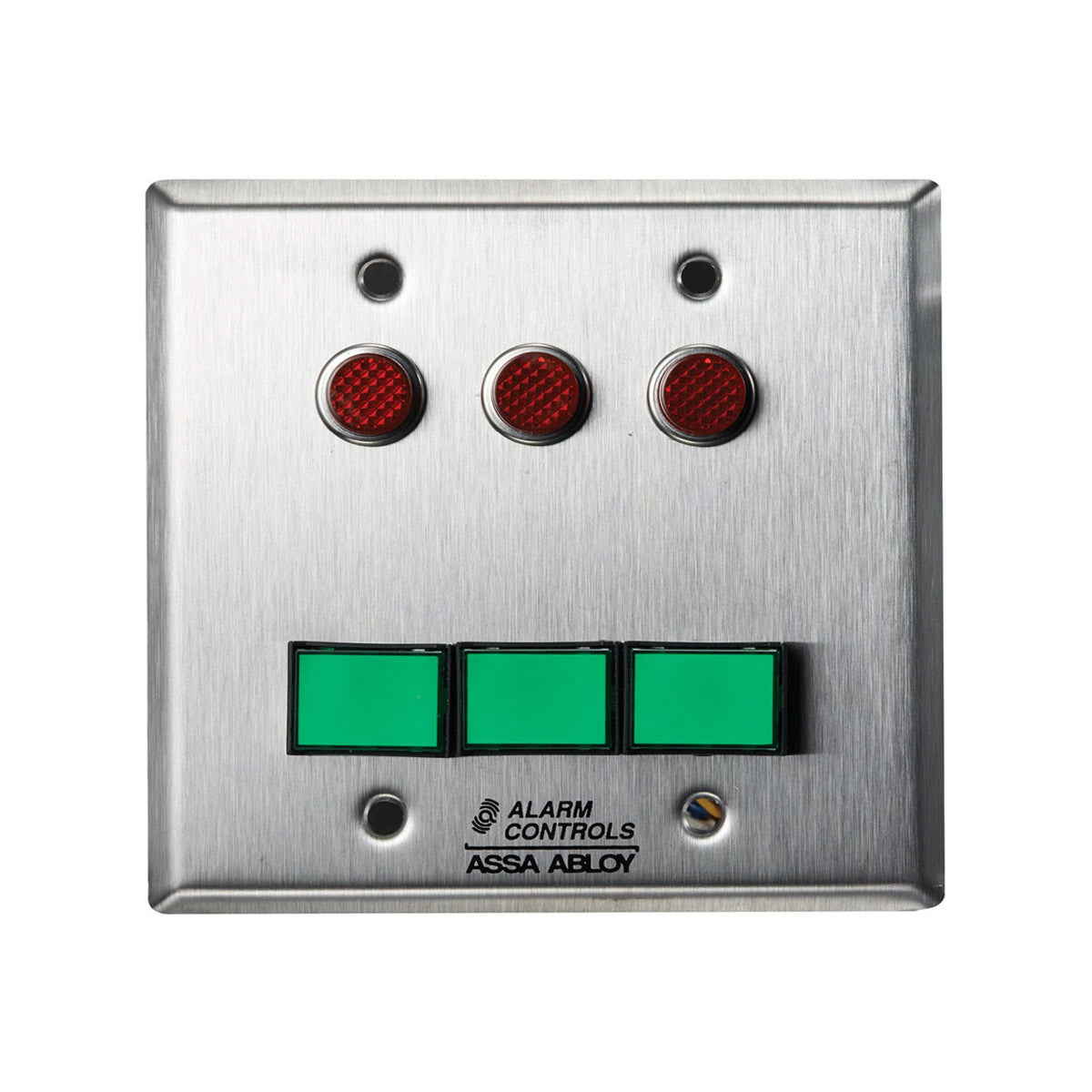

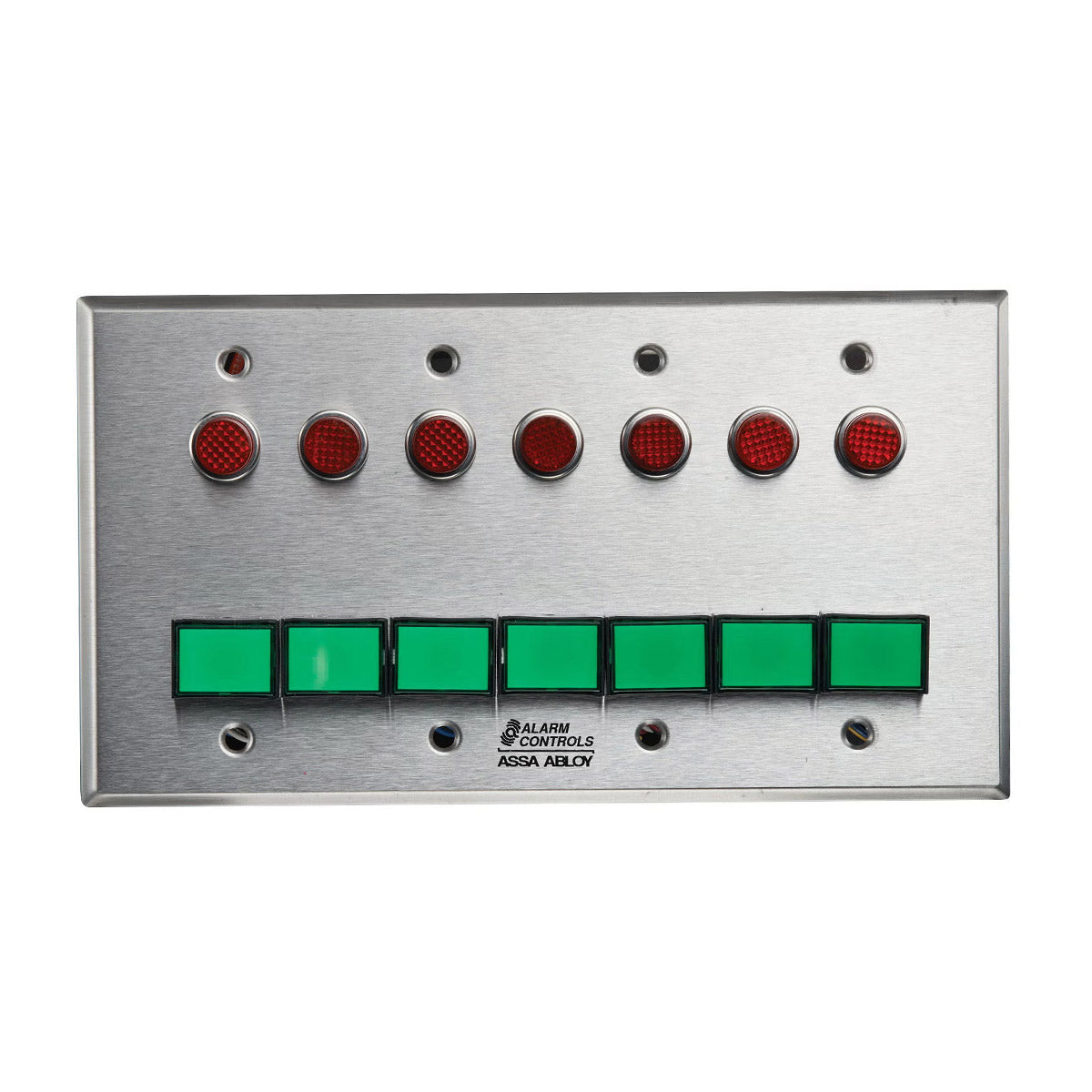

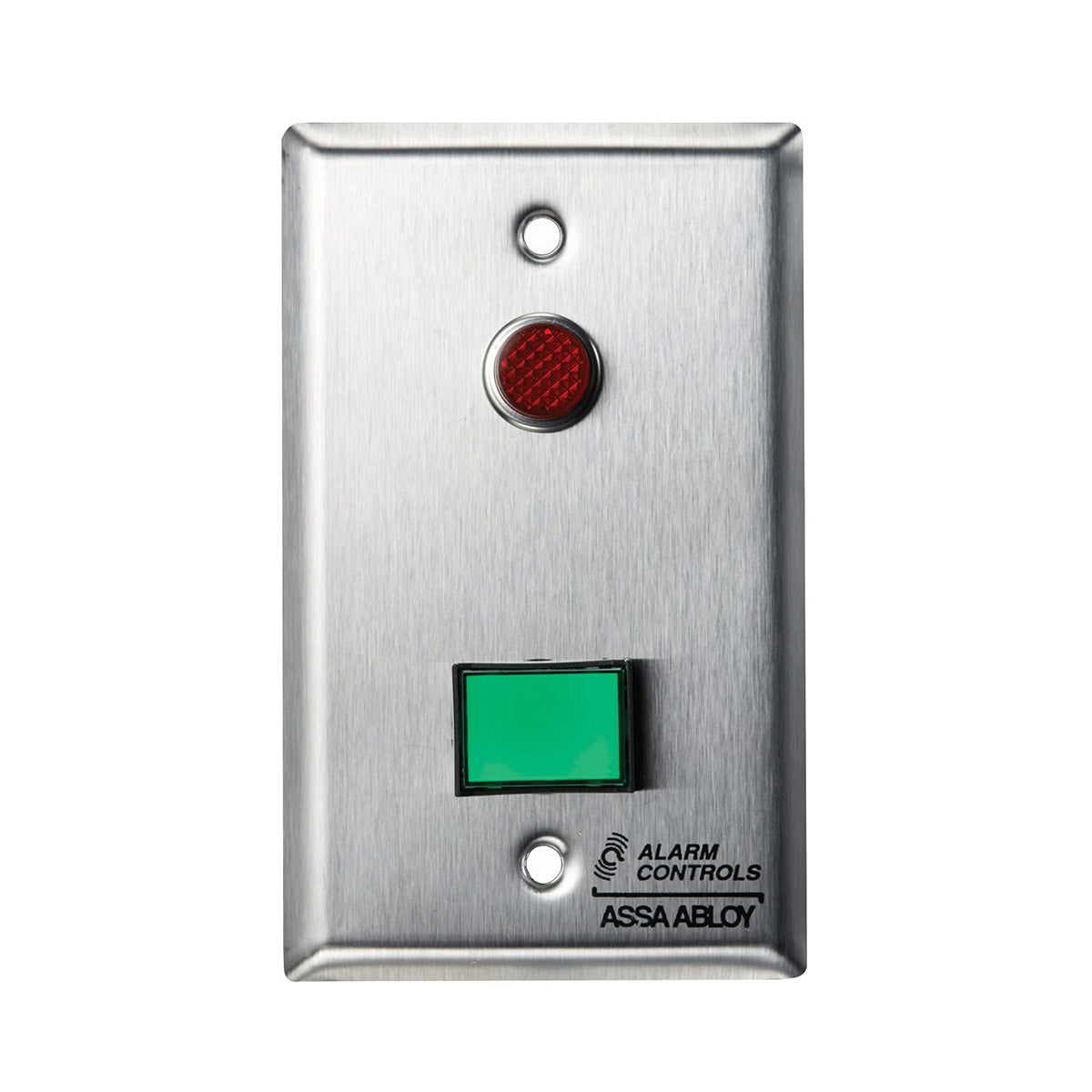

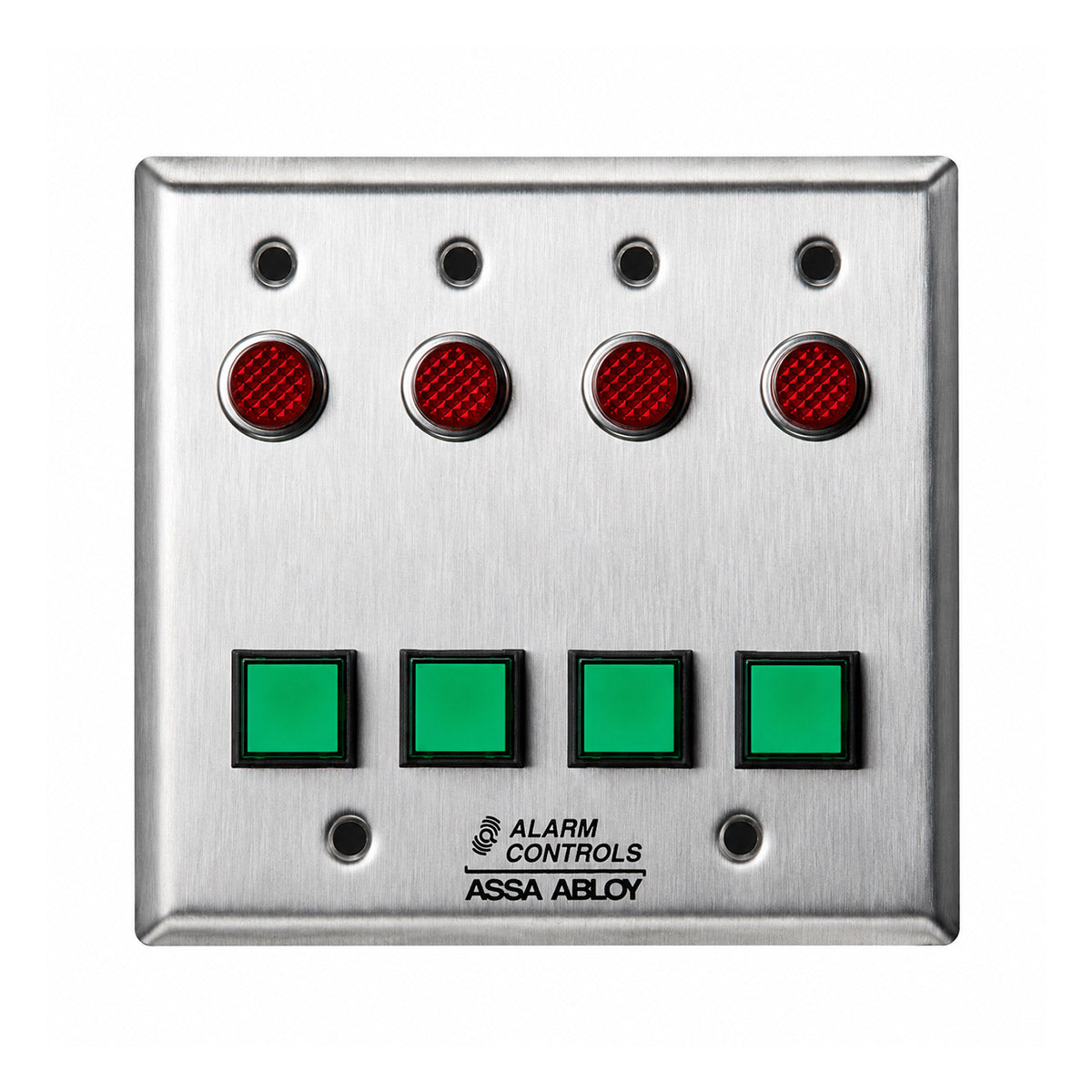

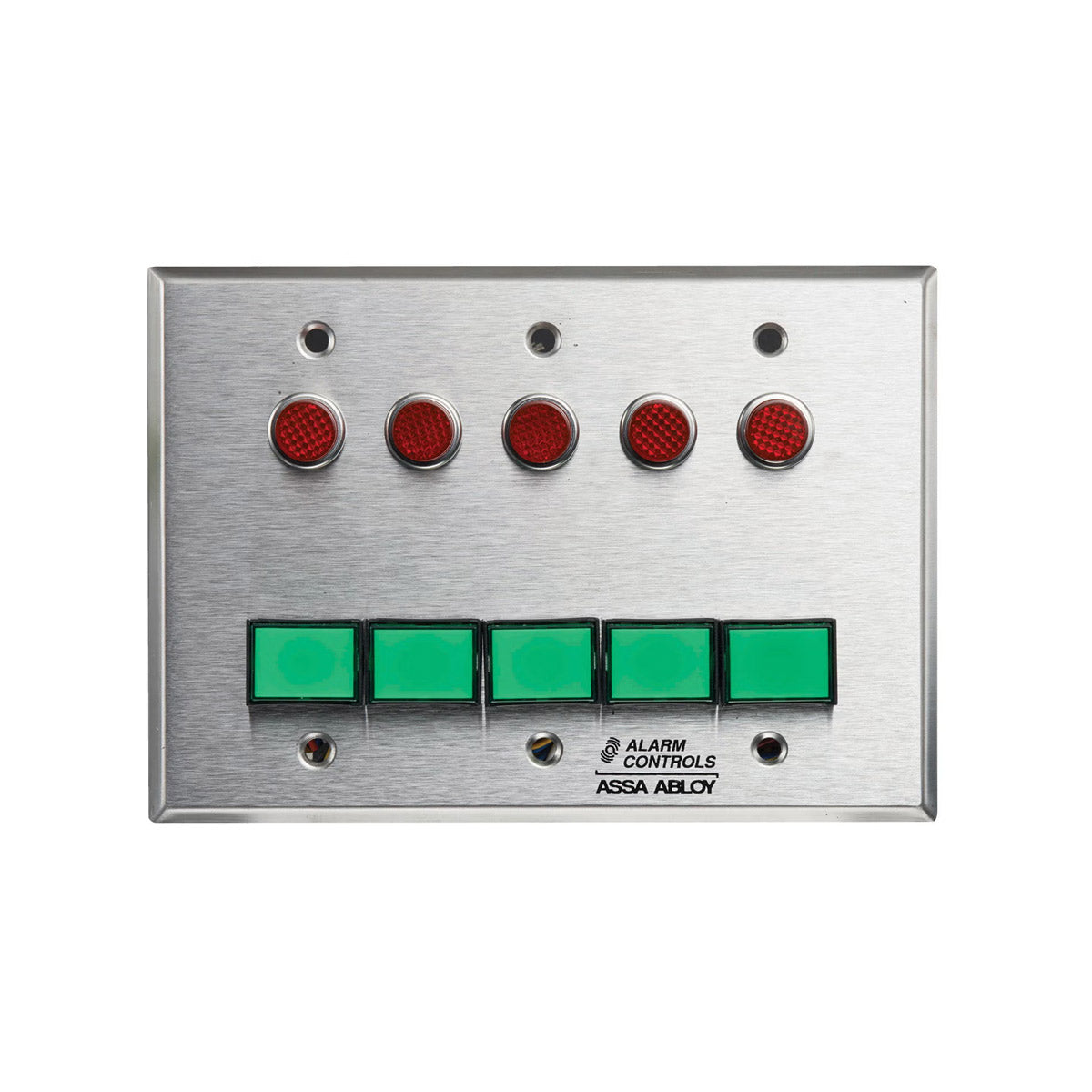

- SLP-XL Series: “X” designates the number of LEDs and illuminated alternating push buttons
- Available configurations from 1 to 8 LEDs/buttons
- Custom legends available
- Custom green and yellow LED options available as special/custom parts

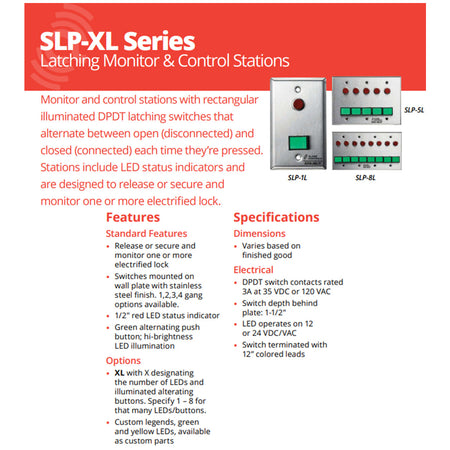

Specifications
| Specification | Details |
|---|---|
| Switch Type | DPDT Latching |
| Switch Contacts | 3A @ 35 VDC or 120 VAC |
| Switch Depth | 1-1/2" behind plate |
| LED Voltage | 12 or 24 VDC/VAC |
| Status Indicator | 1/2" Red LED |
| Leads | 12" colored leads |
| Wall Plate | Stainless steel |
| Gang Options | 1, 2, 3, and 4 gang |
| Dimensions | Vary by finished good |
Applications
The SLP-XL Series is an excellent choice for electrified door control, access control systems, security panels, and commercial locking applications where users need both latching control and visual monitoring of electrified locks.
Why Choose Alarm Controls SLP-XL?
With durable stainless steel construction, illuminated latching switches, and integrated LED status indicators, the Alarm Controls SLP-XL Series combines dependable lock control with clear visual feedback in a compact wall-mounted station. Multiple configurations and customization options make it suitable for a wide range of commercial security and access control installations.
