Alarm Controls Drop Down Plates for Single Locks – AM3300 & AM6300 Series
Product Overview
Alarm Controls Drop Down Plates are spacer plates designed to provide the proper mounting clearance and alignment for single electromagnetic locks. These durable aluminum plates are available in multiple thicknesses to accommodate different installation requirements and lock sizes.
Designed for use with 600 lb. and 1200 lb. electromagnetic locks, the plates help compensate for mounting conditions where additional spacing is required between the lock and mounting surface. Each plate features a clear anodized US28 finish for a clean, professional appearance.
Features
- Designed for single electromagnetic lock installations
- Available for 600 lb. and 1200 lb. locks
- Multiple spacer thicknesses: 1/4", 1/2", and 5/8"
- Durable aluminum construction
- Clear anodized US28 finish
- Helps provide proper lock positioning and mounting clearance
- Ideal for access control and electromagnetic lock installations

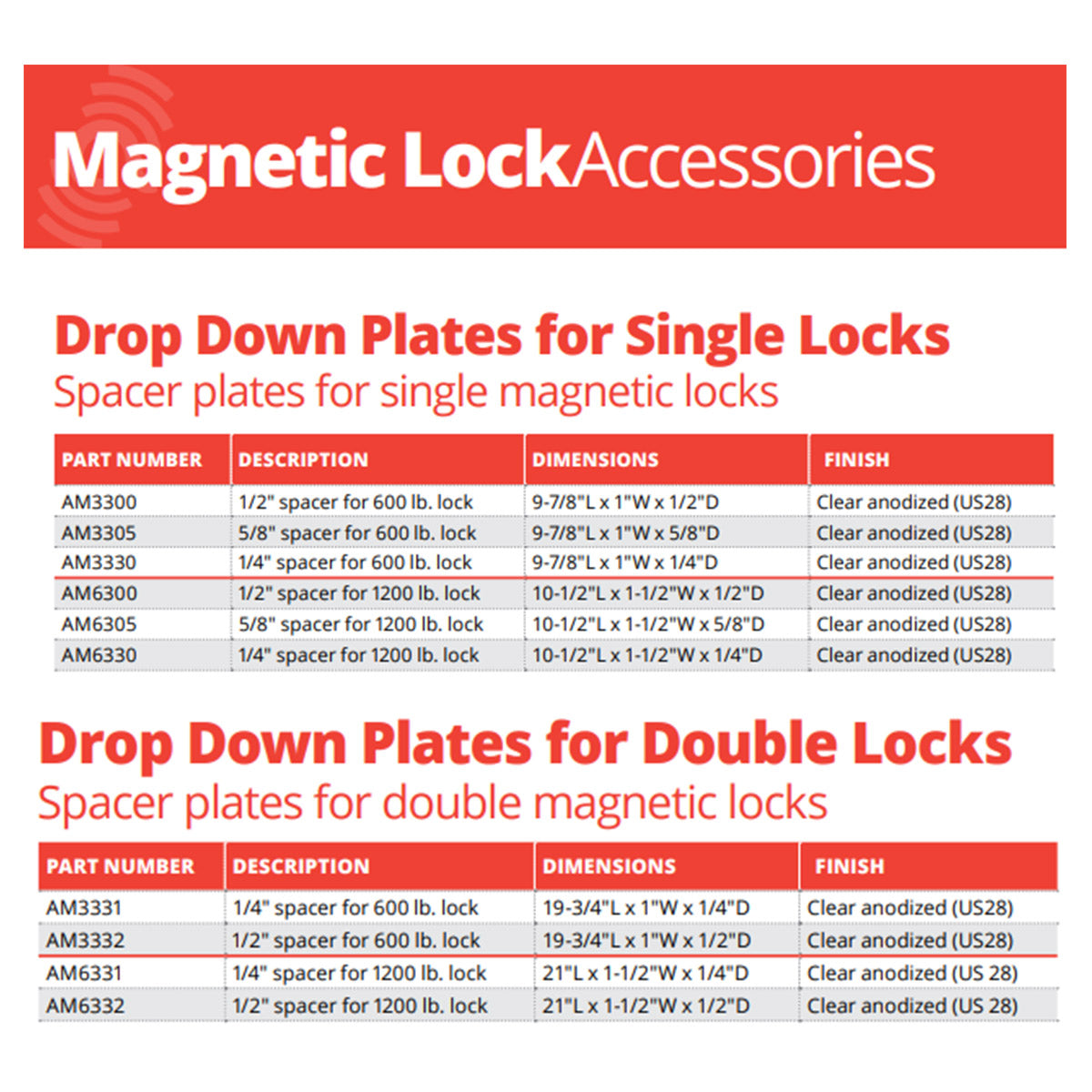

Available Models
| Part Number | Description | Dimensions | Finish |
|---|---|---|---|
| AM3300 | 1/2" spacer for 600 lb. lock | 9-7/8"L x 1"W x 1/2"D | Clear Anodized (US28) |
| AM3305 | 5/8" spacer for 600 lb. lock | 9-7/8"L x 1"W x 5/8"D | Clear Anodized (US28) |
| AM3330 | 1/4" spacer for 600 lb. lock | 9-7/8"L x 1"W x 1/4"D | Clear Anodized (US28) |
| AM6300 | 1/2" spacer for 1200 lb. lock | 10-1/2"L x 1-1/2"W x 1/2"D | Clear Anodized (US28) |
| AM6305 | 5/8" spacer for 1200 lb. lock | 10-1/2"L x 1-1/2"W x 5/8"D | Clear Anodized (US28) |
| AM6330 | 1/4" spacer for 1200 lb. lock | 10-1/2"L x 1-1/2"W x 1/4"D | Clear Anodized (US28) |
Specifications

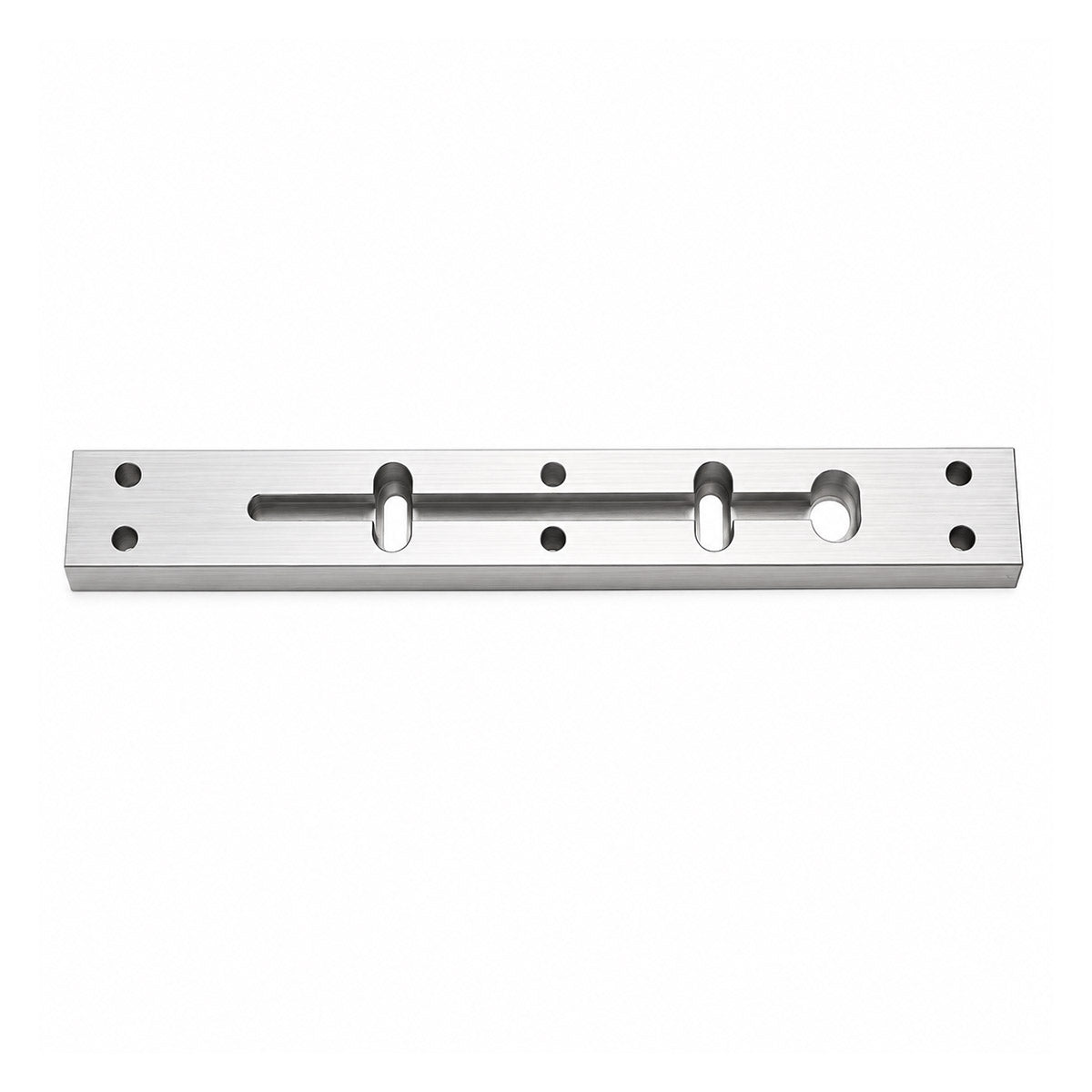

600 lb. Lock Spacers – AM33 Series
- Length: 9-7/8"
- Width: 1"
- Available depths: 1/4", 1/2", 5/8"
- Finish: Clear Anodized (US28)

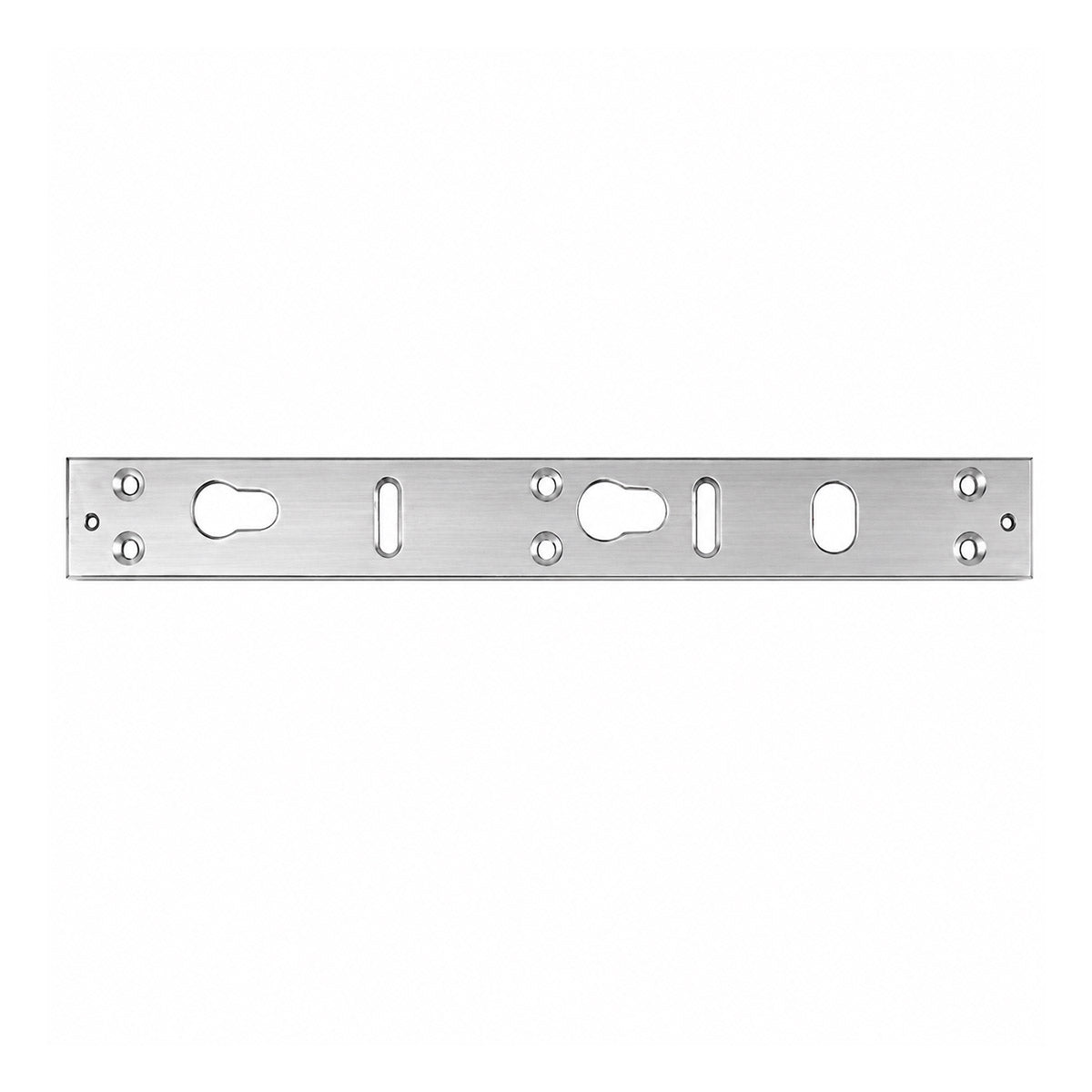

1200 lb. Lock Spacers – AM63 Series
- Length: 10-1/2"
- Width: 1-1/2"
- Available depths: 1/4", 1/2", 5/8"
- Finish: Clear Anodized (US28)
Applications
Alarm Controls Drop Down Plates are suitable for commercial access control, security, storefront, institutional, and other electromagnetic lock installations where additional mounting clearance or proper lock alignment is required.
Choose the appropriate spacer thickness and lock capacity to match your specific installation.
Compatible Models: AM3300, AM3305, AM3330, AM6300, AM6305, AM6330
