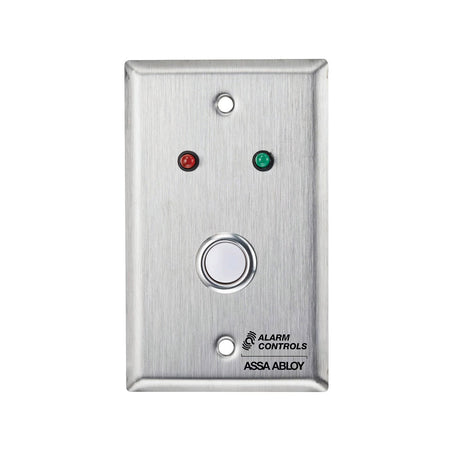

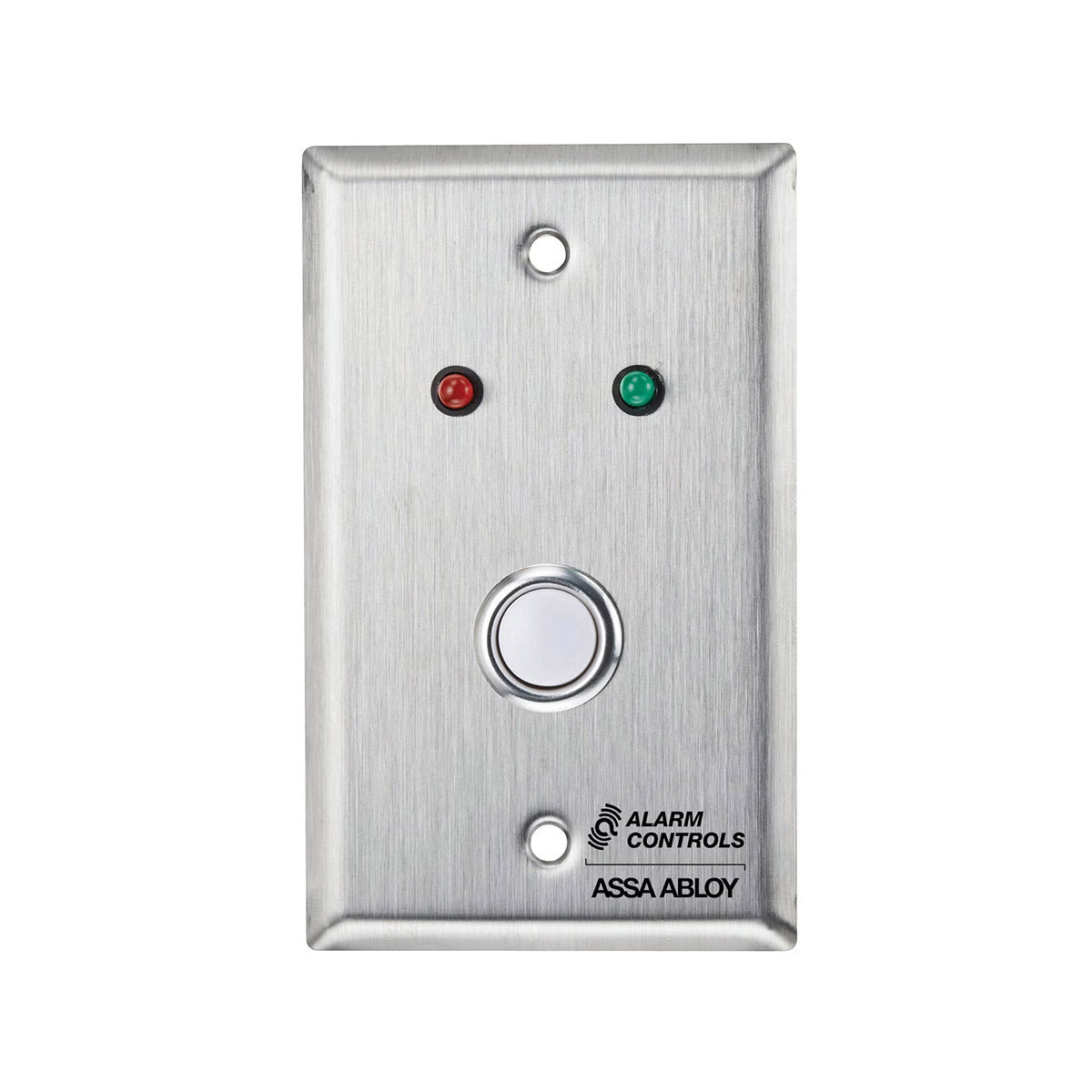

The Alarm Controls RP-05 Remote Wall Plates are single gang remote control stations designed for access control, remote door release, and security applications. Each plate features a durable stainless steel finish, a white flush push button, and red and green LED status indicators for clear visual feedback.
With a compact single gang design and multiple finish options available, the RP-05/RP-06 series provides a clean, professional solution for commercial and industrial installations.
Features
- Single gang remote wall plate
- Stainless steel finish
- White flush push button
- 1/4" red and green LED status indicators
- Normally Open (N/O) push button
- 6" red and black leads
- Compact design for access control installations
- Multiple plate finishes available
Options & Accessories
- RP-05SLIM – Slim plate version
- 450 – Replacement push button
- Multiple plate finishes available

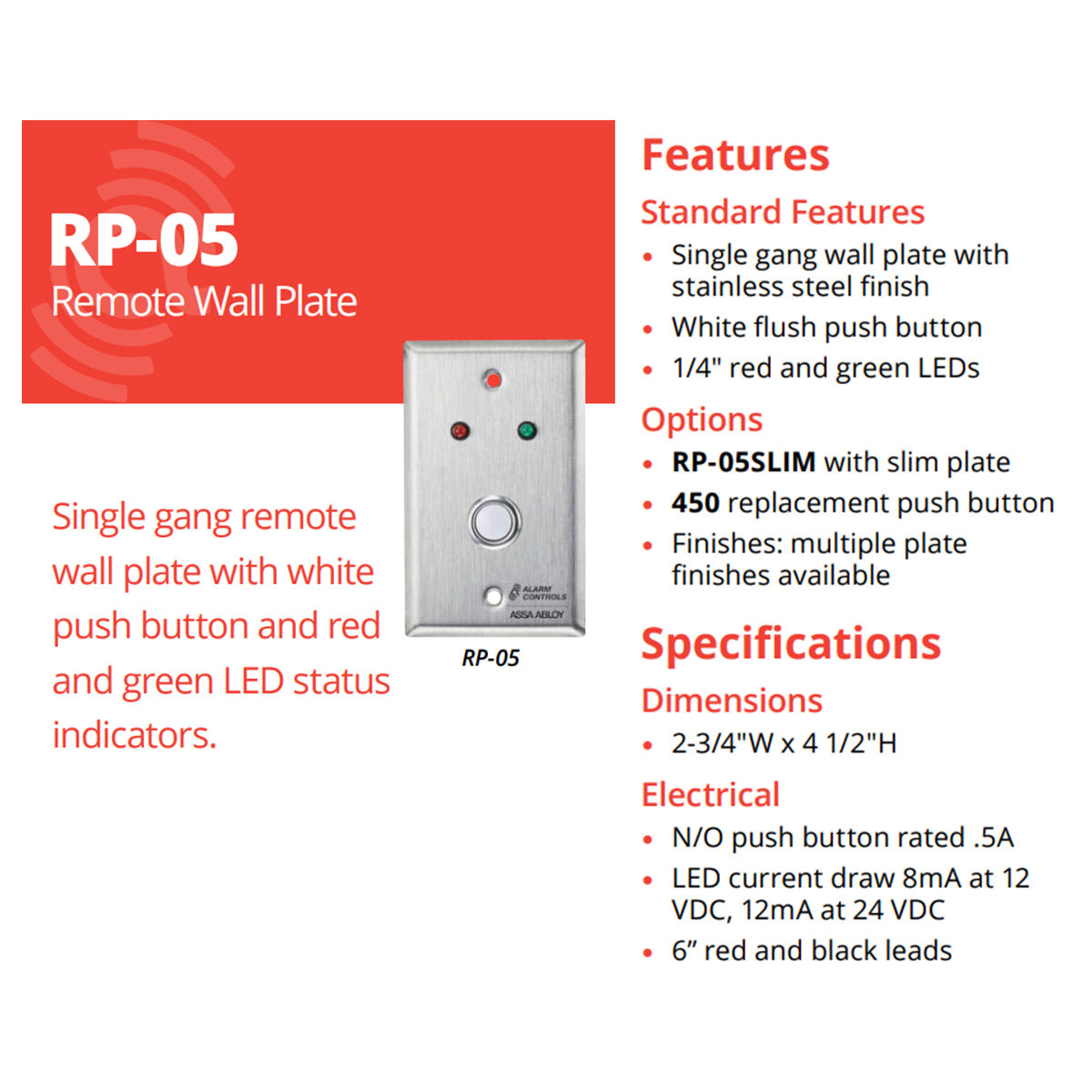

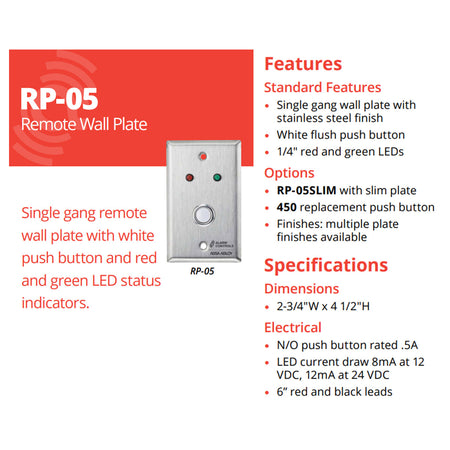

Specifications
| Specification | Details |
|---|---|
| Models | RP-05 |
| Dimensions | 2-3/4"W x 4-1/2"H |
| Plate Type | Single gang |
| Standard Finish | Stainless steel |
| Push Button | White, flush, N/O |
| Push Button Rating | 0.5A |
| LED Indicators | 1/4" red and green |
| LED Current Draw | 8 mA @ 12 VDC; 12 mA @ 24 VDC |
| Leads | 6" red and black |
Applications
The Alarm Controls RP-05 is ideal for commercial access control systems, remote door release, security doors, controlled-entry applications, and industrial installations requiring a reliable wall-mounted push button with visual status indication.
DESCRIPTION TAG: Combining a durable stainless steel faceplate, easy-to-use flush push button, and dual LED indicators, the RP-05 Remote Wall Plate provides a dependable and professional solution for remote access control and door release applications.
