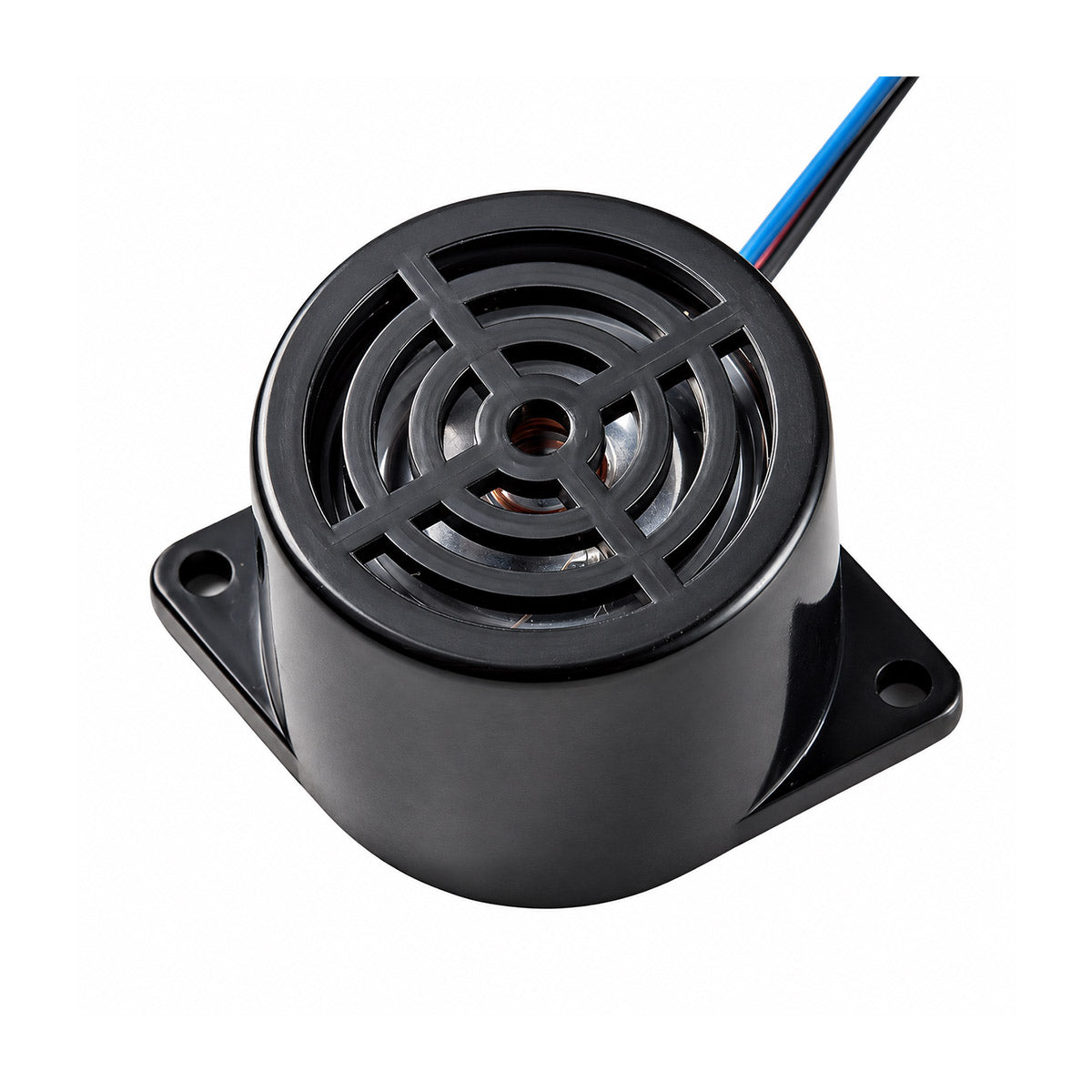

The Alarm Controls PA-200 Piezo Chime is a compact, reliable audible notification device designed for access control, security, and door control applications. Producing an 80–85 dB chime, the PA-200 provides a clear and noticeable audible signal without the harsh tone of a traditional buzzer.
Designed for easy installation, the PA-200 mounts in a 1-1/4" hole on a single gang wall plate and can be flange mounted for added installation flexibility. It operates on 12–24 VDC and includes 6" red, blue, and black leads for convenient wiring.
Product Features
- 80–85 dB sound level
- Piezo chime provides a clear audible notification
- Mounts in a 1-1/4" hole on a single gang wall plate
- Flange mountable for flexible installation
- Operates on 12–24 VDC
- Compact design for access control and security applications
- Includes 6" red, blue, and black leads
Mounting Options
The PA-200 is available for individual installation or as a pre-mounted assembly:
- TS-43 – Pre-mounted on a single gang wall plate
- RP-22E – Single gang wall plate for self-mounting

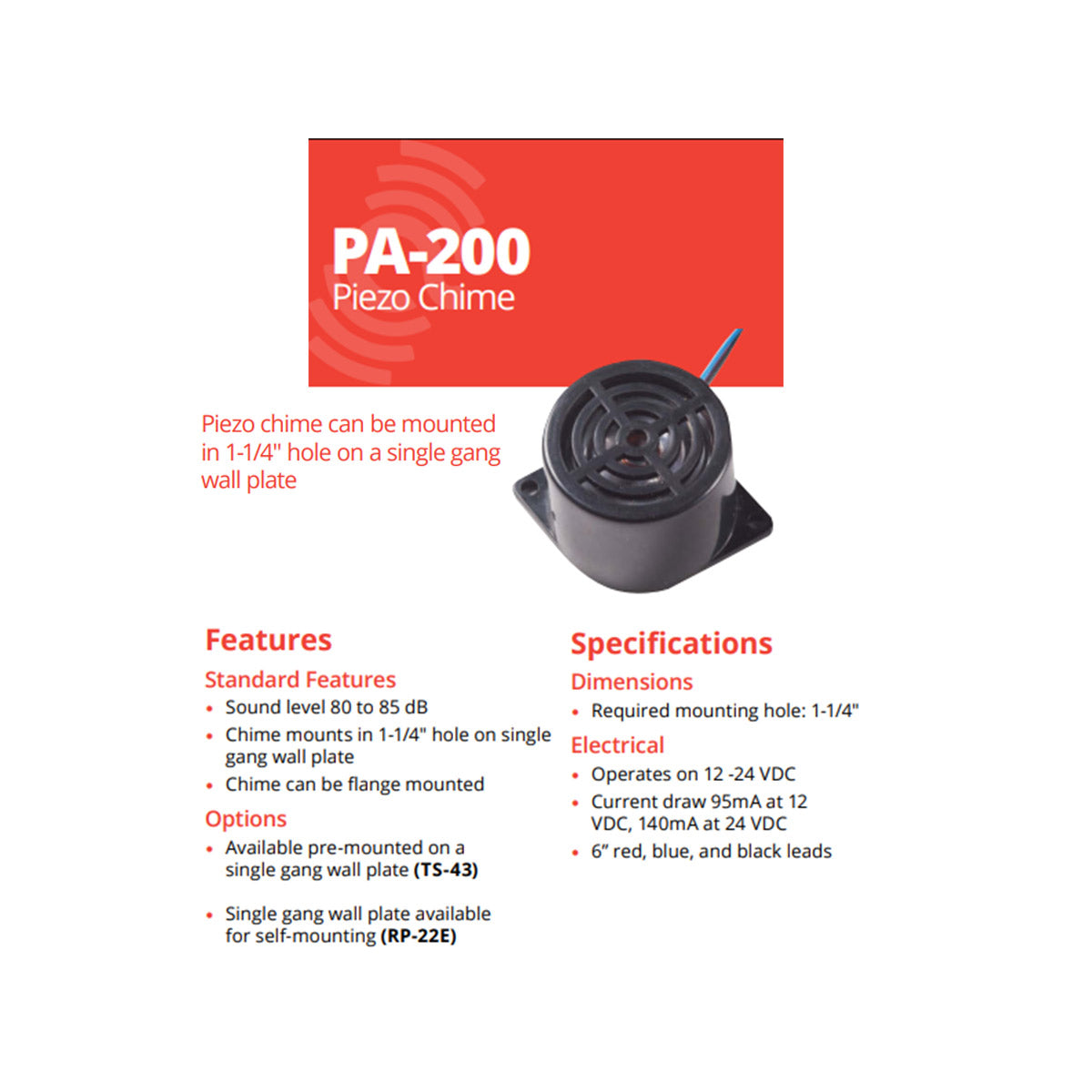

Specifications
| Specification | Details |
|---|---|
| Model | PA-200 |
| Type | Piezo Chime |
| Sound Level | 80–85 dB |
| Required Mounting Hole | 1-1/4" |
| Mounting | Flange mount |
| Operating Voltage | 12–24 VDC |
| Current Draw | 95 mA @ 12 VDC / 140 mA @ 24 VDC |
| Leads | 6" Red, Blue & Black |
Applications
The Alarm Controls PA-200 Piezo Chime is ideal for access control systems, security doors, alarm systems, door monitoring, and general audible notification applications where a compact and dependable chime is required.
