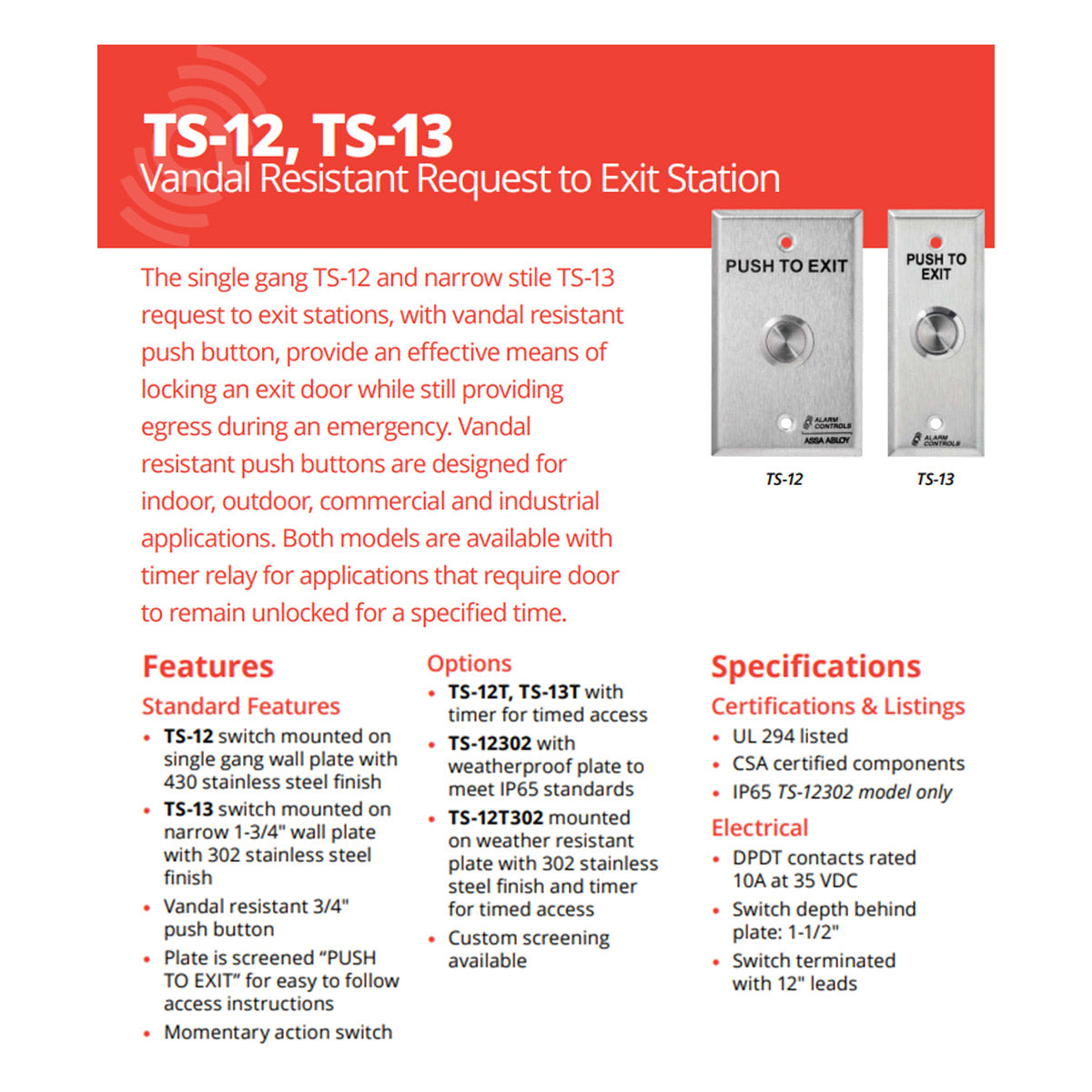

Alarm Controls TS-12 & TS-13 Vandal Resistant Request to Exit Station
The Alarm Controls TS-12 (single gang) and TS-13 (narrow stile) Vandal Resistant Request to Exit Stations are built for demanding access control environments where durability and dependable operation are critical. Equipped with a rugged 3/4" vandal-resistant push button, these request-to-exit stations provide secure egress for commercial and industrial facilities while helping maintain controlled access.
Designed for indoor and outdoor applications, the TS-12 and TS-13 feature stainless steel faceplates engraved with "PUSH TO EXIT" for clear user guidance. Optional timer models allow doors to remain unlocked for a preset period before automatically relocking, while weather-resistant IP65 models provide reliable performance in harsh environments.
Key Features
- Heavy-duty 3/4" vandal-resistant push button
- Durable stainless steel wall plates for long-lasting performance
- Faceplate screened with "PUSH TO EXIT" for clear exit instructions
- Momentary action switch for reliable request-to-exit activation

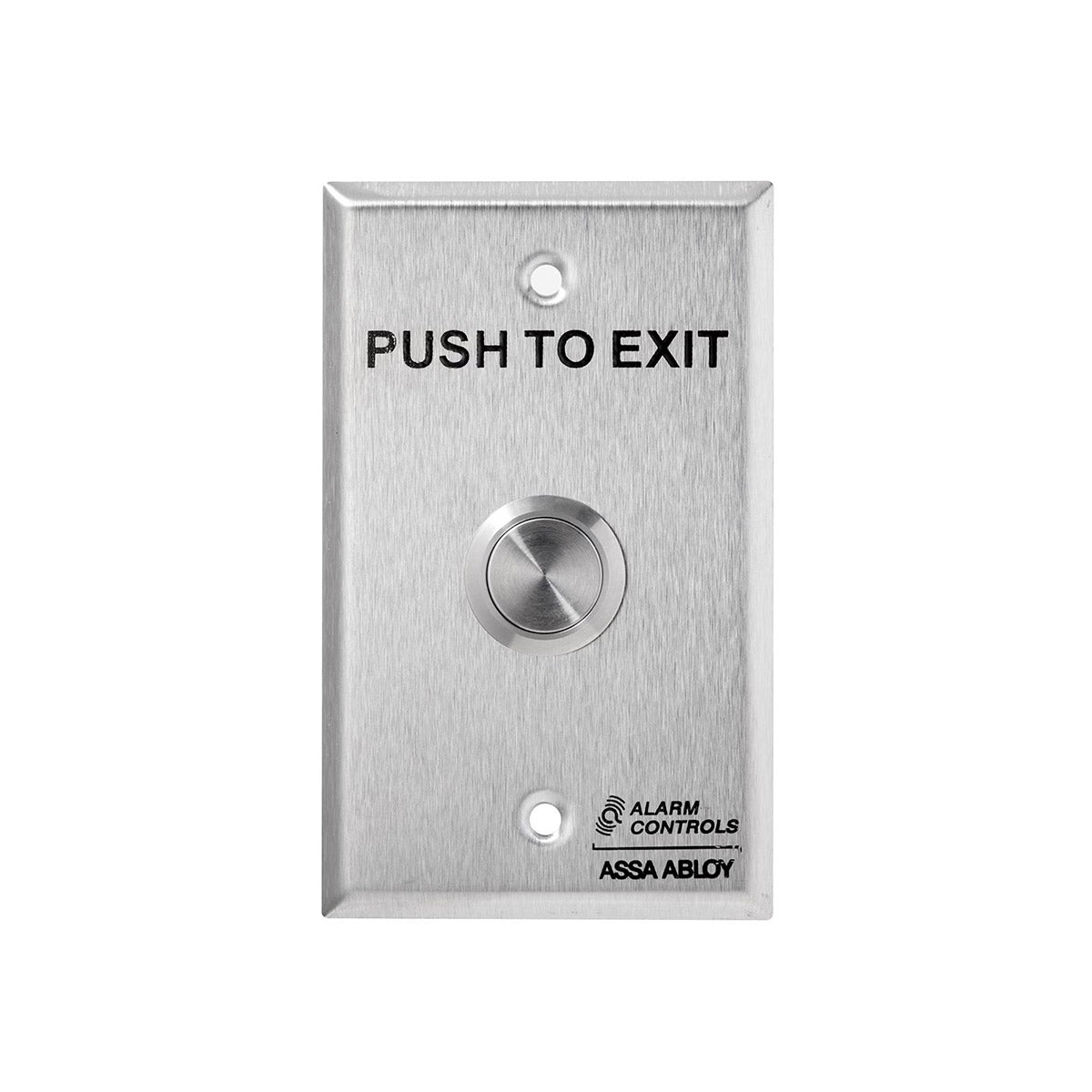

- TS-12: Single gang wall plate with 430 stainless steel finish

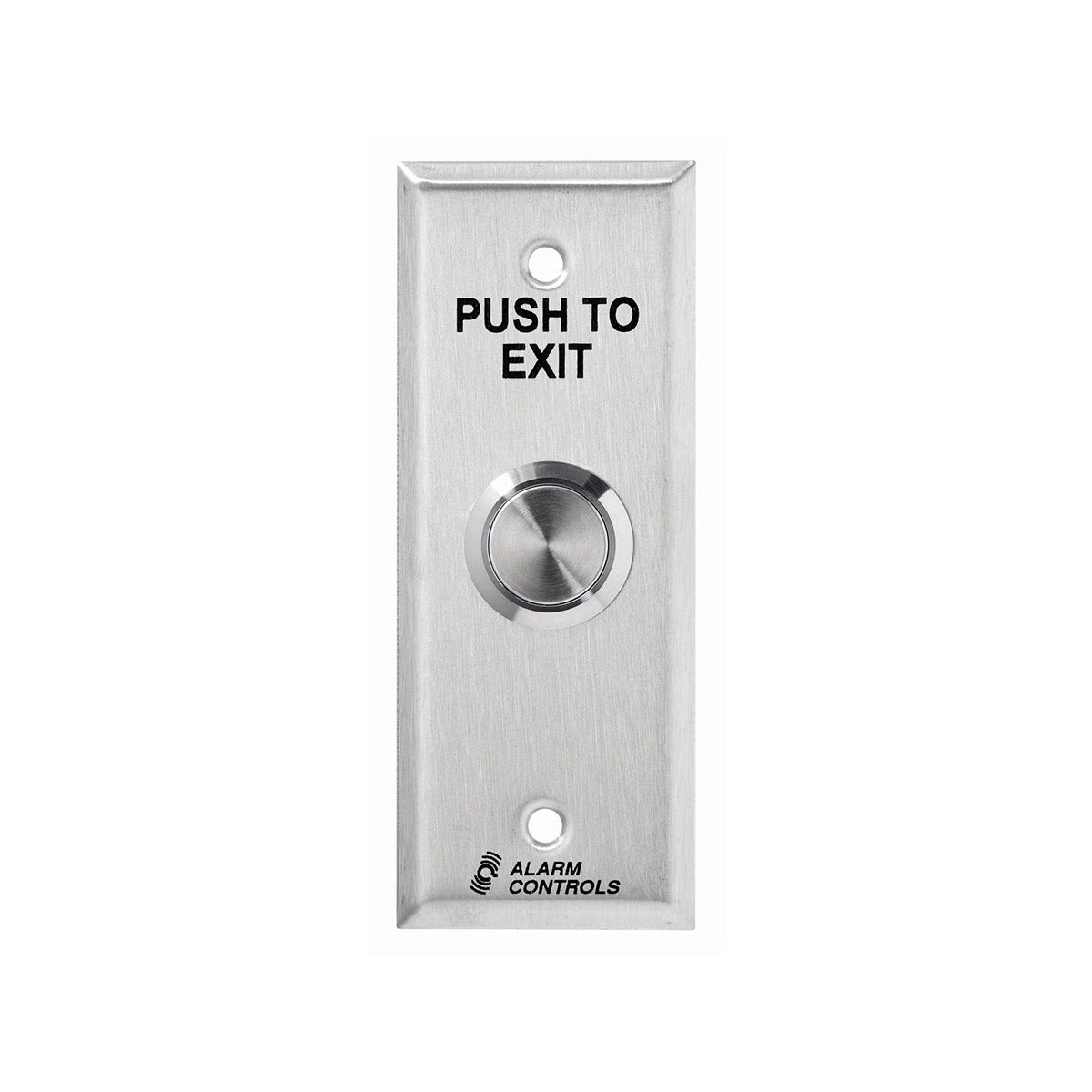

- TS-13: Narrow 1-3/4" wall plate with 302 stainless steel finish
- Optional timer relay models for controlled door release
- Weather-resistant IP65 model available for outdoor installations
- Custom faceplate screening available for specialized applications
Specifications
Certifications & Listings
- UL 294 Listed
- CSA Certified Components
- IP65 Rated (TS-12302 Weatherproof Model Only)
Electrical
- DPDT Contact Configuration
- Contact Rating: 10A at 35 VDC
- Switch Depth Behind Plate: 1-1/2"
- Factory terminated with 12" leads
Construction
- TS-12: 430 Stainless Steel Single Gang Wall Plate
- TS-13: 302 Stainless Steel Narrow Stile Wall Plate
- 3/4" Vandal-Resistant Push Button
- Screened "PUSH TO EXIT" Faceplate
Available Models
| Model | Description |
|---|---|
| TS-12 | Single gang vandal resistant request to exit station |
| TS-13 | Narrow stile vandal resistant request to exit station |
| TS-12T | Single gang model with timer relay |
| TS-13T | Narrow stile model with timer relay |
| TS-12302 | Weatherproof IP65-rated single gang model |
| TS-12T302 | Weather-resistant 302 stainless steel model with timer relay |
Ideal Applications
- Commercial Office Buildings
- Industrial Facilities
- Schools & Universities
- Healthcare Facilities
- Government Buildings
- Warehouses
- Exterior Access Control Doors
- High-Traffic Entry & Exit Points
