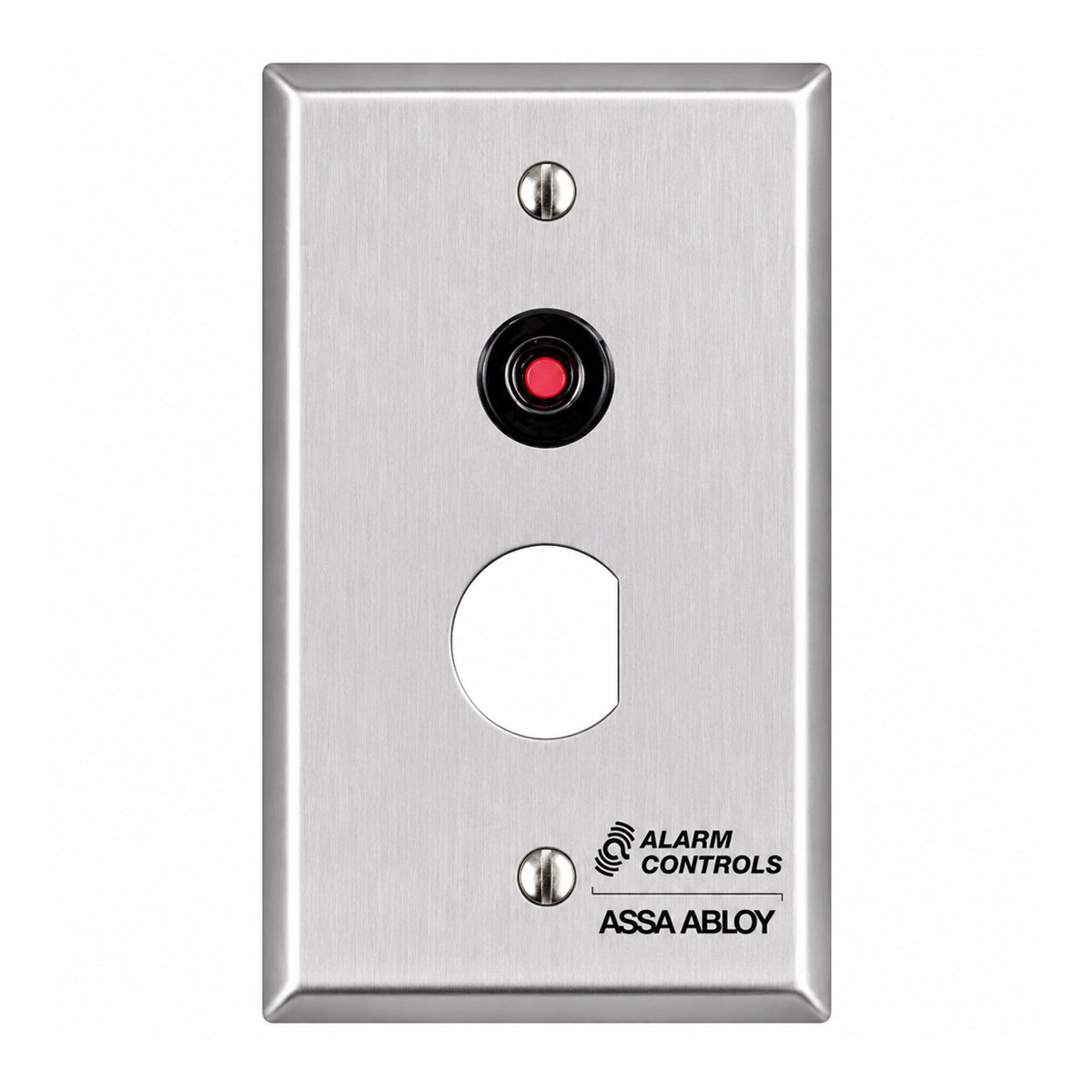

The Alarm Controls RP-49 Remote Wall Plate is a compact single-gang control plate designed for applications requiring an indicating push button and key-switch access in one convenient location. Featuring a durable stainless-steel finish, a red indicating push button, and a 3/4" D-shaped hole for an Ace lock, the RP-49 provides a clean and professional solution for remote control and access applications.
The RP-49 is well suited for access control, alarm systems, security installations, and remote switching applications where visual indication and keyed operation are required.
Key Features
- Single-gang remote wall plate
- Durable stainless-steel finish
- Red indicating push button
- 3/4" D-shaped hole for Ace lock installation
- DPDT contact rated at 2A at 28 VDC
- Multiple plate finishes available
- Custom screening available
Available Options
- RP-49MOM: Momentary switch version
- KA-105: Key switch for use with RP-49
- KA-108: Key switch for use with RP-49
- Multiple plate finishes
- Custom screening
Specifications
Dimensions: 2-3/4" W × 4-1/2" H
Switch Contact: DPDT
Contact Rating: 2A at 28 VDC
Plate: Single-gang stainless steel
Lock Opening: 3/4" D hole for Ace lock
Indication: Red push button
Applications
The Alarm Controls RP-49 is an excellent choice for remote alarm control, access control, security, and door control installations requiring a durable wall-mounted switch with both visual indication and provisions for keyed operation.
Choose the RP-49 for a professional, space-efficient remote wall plate designed for dependable control and easy installation.
