The Alarm Controls RT Series Wireless Transmitters provide convenient wireless access control for up to three doors from a single device, making them an ideal solution for front desk, reception, security, and hard-to-wire applications. These wireless systems are designed to control a wide range of access control and door hardware, including magnetic locks, electric strikes, keypads, gate operators, and door operators.
Each kit includes the required receiver and transmitter components, along with mounting hardware and a keychain for convenient remote operation. With a range of up to 300 feet, rolling-code security, and support for multiple transmitters, the RT Series provides flexible and reliable wireless control without the need to run control wiring to the remote station.
Product Features
- Wireless access control for up to three doors
- Ideal for reception desks, front desks, security stations, and hard-to-wire locations
-
Compatible with:
- Magnetic locks
- Electric strikes
- Keypads
- Gate operators
- Door operators
- Transmitter can be mounted under a desk or on a wall
- Up to 300 ft. wireless range with 12" antenna
- Rolling-code technology with over 1 billion code combinations
- Receiver supports up to 30 transmitters
- Receiver provides a 5-second momentary output
- Optional latching operation keeps the door unlocked until the button is pressed again
- Compact transmitter/receiver design

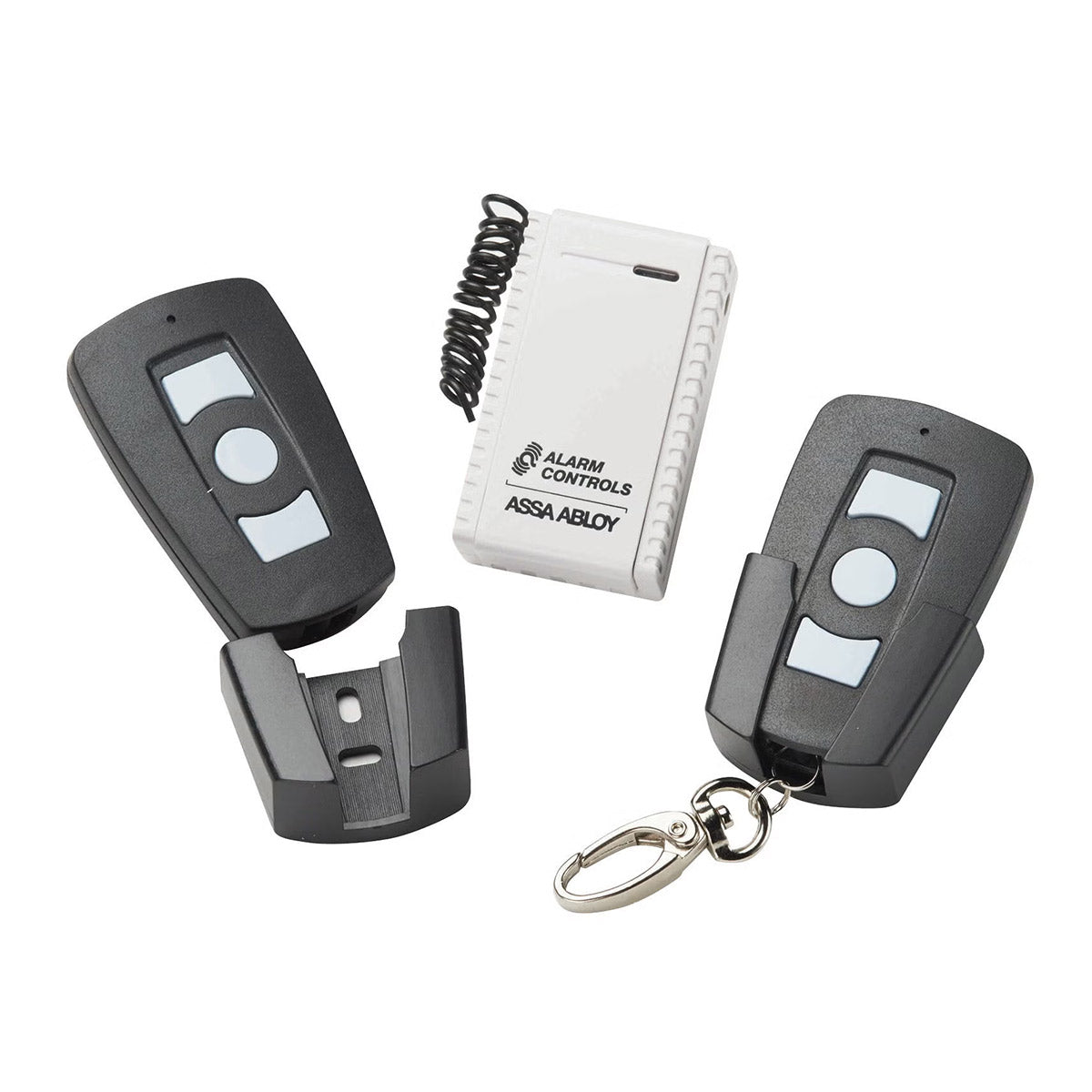

- Kits include transmitter, receiver, mount, and keychain
Model Options
| Model | Description |
|---|---|
| RT-1 | One receiver and two transmitters |

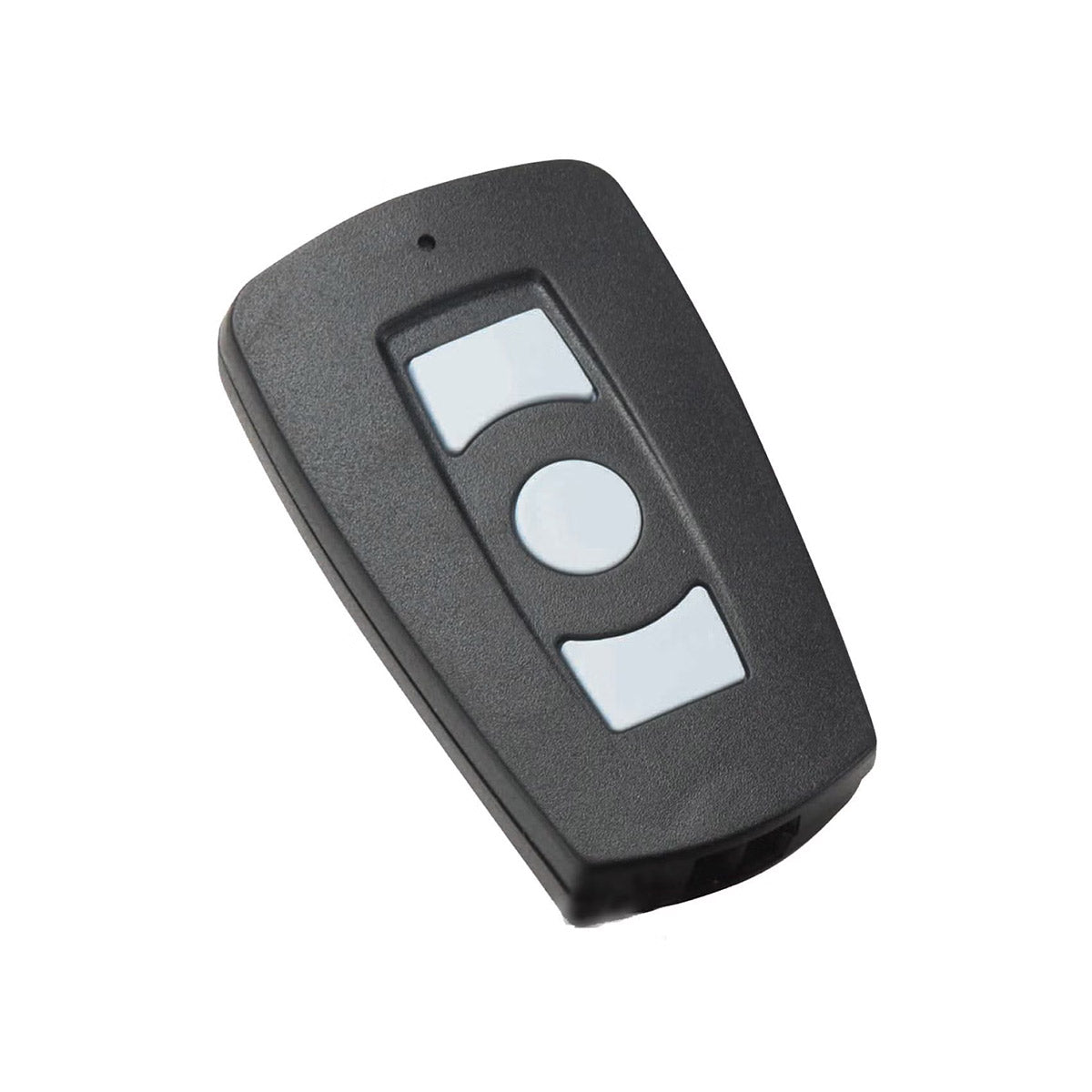

| RT-1T | Additional transmitter |
| RT-1TW | Additional transmitter with wire lead |

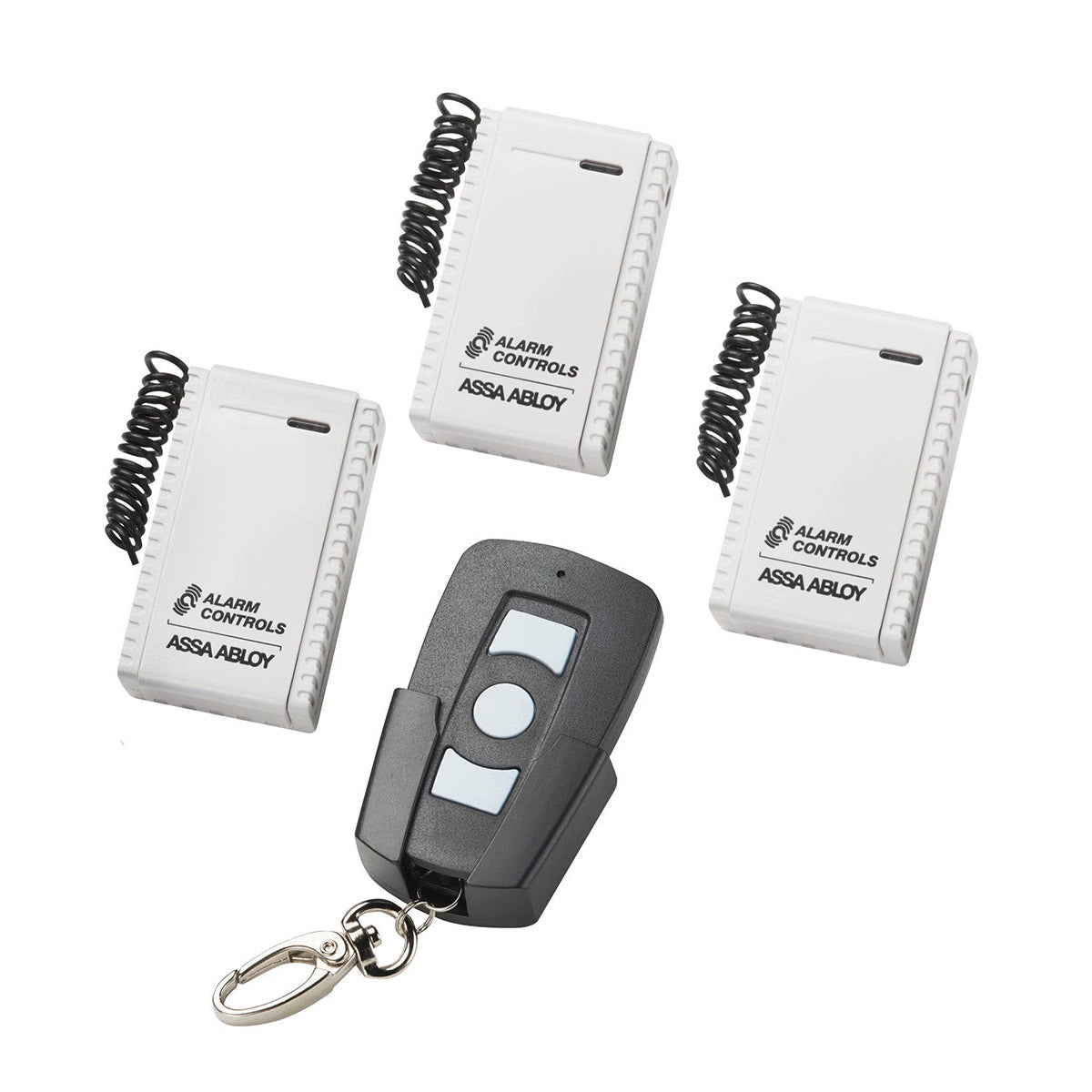

| RT-3 | Three receivers and one transmitter |

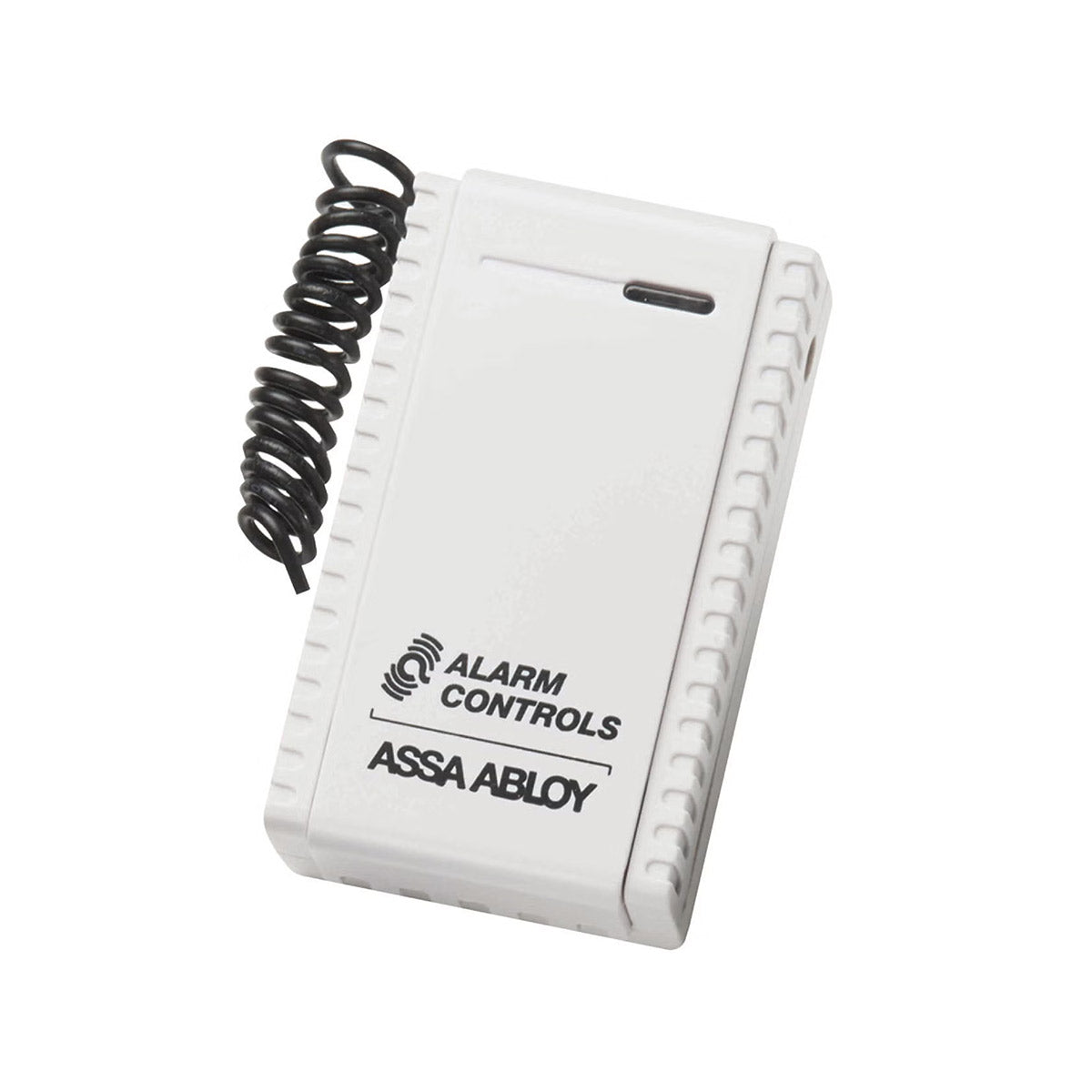

| RT-3R | Additional receiver |
Electrical Specifications
| Specification | Details |
| Receiver Voltage | 12 or 24 VDC/VAC |
| Maximum Current Draw | 50mA |
| Relay | SPDT |
| Relay Contact Rating | 1A @ 30 VDC or 120 VAC |
| Operating Frequency | 433.92 MHz |
| Wireless Range | Up to 300 ft. |
| Receiver Capacity | Up to 30 transmitters |
| Output | 5-second momentary |
| Transmitter Dimensions | 2-1/2" L x 1-1/4" W x 3/4" D |
Security & Reliability
The RT Series uses rolling-code technology with more than 1 billion possible code combinations, providing enhanced security for wireless access control applications. The optional latching function allows a controlled door to remain unlocked until the transmitter button is pressed again, making the system adaptable to different access requirements.
Certifications & Operating Conditions
- CE Certified
- RoHS Compliant
- Operating Temperature: -4°F to +140°F (-20°C to +60°C)
Applications
Alarm Controls RT Series Wireless Transmitters are well suited for commercial access control, reception areas, security desks, parking and gate access, electric door operators, magnetic lock systems, and installations where running control wiring is difficult or impractical.
Why Choose Alarm Controls RT Series?
The RT Series combines wireless convenience, rolling-code security, multi-door capability, and flexible installation options in a compact access control solution. With support for up to 30 transmitters per receiver and up to three controlled doors, the RT Series provides an efficient way to manage electrified locking and door equipment from a convenient remote location.
