Electric Strikes

Adams Rite Electric Strikes In Stock In 313 & 628 Finishes. Description: 7100, 7101 Electric Strikes with 4-7/8” faceplates are designed for Adams Rite deadlatches or cylindrical locksets with 1/2” to 5/8” latchbolt projection. For use in aluminum jambs and stiles.

7100 Installation Instructions

Adams Rite 7100/7101 Catalog

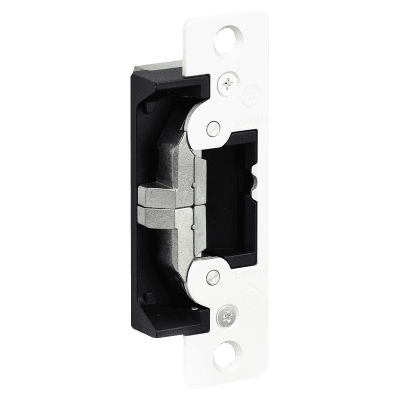

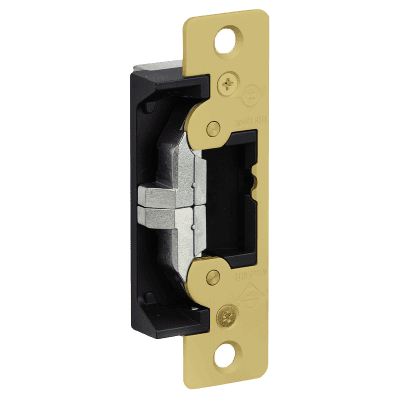

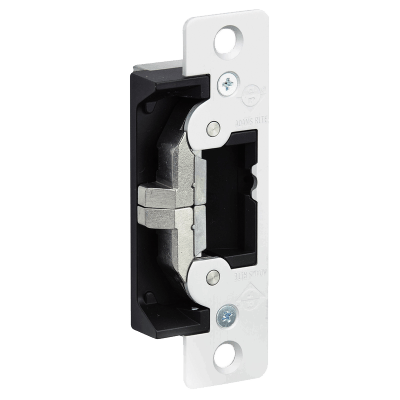

Adams Rite 7400 Electric Strike

Adams Rite 7101 Electric Strike

Function: Remote electrical control of any door equipped with an Adams Rite 4500, 4700, or 4900 Series (or similar) Deadlatch or cylindrical (key-in-knob/lever) type lockset with 1/2” to 5/8” latchbolt projection. Electrical actuation unlocks strike jaw, releasing latchbolt so door can be opened without operating latch itself. Extremely compact mechanism fits into aluminum jamb (or opposing door) sections as shallow as 1-5/8”. Fits existing prep for discontinued Adams Rite 7000, 7500, 7800 Electric Strikes.

Finishes:

313-Dark Bronze Anodized Aluminum

628-Clear Aluminum Anodized

Specifications:

Fail-Safe/Fail-Secure: Field convertible from one mode to the other. However, AC intermittent solenoid must not be used continuously in either.

Case: Approximately 1” x 3-3/8” x 1-5/8” deep.

Strike Lip: Basic 7100 strike has lip of proper length for 1-3/4” thick door that closes flush with jamb edge. Where door thickness or jamb shape differs from this standard relationship, lip extension kits are available, specified by last dash number. Not available on 7101.

Strike Opening: 5/8” x 1-7/16” x 1/2” deep. Bolt retainer jaw is stainless steel. Strike accepts bolt of any Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical latches.

Faceplate: Measures 1-1/4” x 4-7/8”. 7100 has flat faceplate; 7101 is radiused to match nose on inactive leaf in a pair of narrow stile glass doors. Available in a wide range of architectural finishes.

Voltage: Available in 12 or 24 volt AC and DC. DC continuous units are silent, AC intermittent units “buzz” on operation.

US Lock Supply Stocks The 7140 In All Finishes & Options. Description: 7140 Electric Strikes with 4-7/8” faceplates are designed for Adams Rite deadlatches or cylindrical locksets with 1/2” to 5/8” latchbolt projection. For use in hollow metal or wood doors and jambs.

Function: Remote electrical control of any door equipped with an Adams Rite 4500, 4700, or 4900 Series (or similar) Deadlatch or cylindrical (key-in-knob/lever) type locksets with 1/2” to 5/8” latchbolt projection. Electrical actuation unlocks strike jaw, releasing latchbolt so door can be opened without operating latch itself. Extremely compact mechanism fits into aluminum jamb sections as shallow as 1-5/8”. Fits existing prep for discontinued Adams Rite 7040, 7840N, 7850 Electric Strikes.

Finishes:

313-Dark Bronze Anodized Aluminum

628-Clear Aluminum Anodized

Specifications:

Fail-Safe/Fail-Secure: Field convertible from one mode to the other. However, AC intermittent solenoid must not be used continuously in either.

Case: Approximately 1” x 3-3/8” x 1-5/8” deep. Zinc aluminum alloy.

Strike Lip: Basic 7140 strike has lip of proper length for 1-3/4” thick door that closes flush with jamb edge. Where door thickness or jamb shape differs from this standard relationship, lip extension kits are available, specified by last dash number.

Strike Opening: 5/8” x 1-7/16” x 1/2” deep. Bolt retainer jaw is stainless steel. Strike accepts bolt of any Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical latches.

Faceplate: Measures 1-1/4 x 4-7/8” Faceplate is flat, with square corners. Available in a wide range of architectural finishes.

Voltage: Available in 12 or 24 volt AC and DC. DC continuous units are silent, AC intermittent units “buzz” on operation.

Adams Rite Electric Strikes In Stock In 313 & 628 Finishes. Description: 7100, 7101 Electric Strikes with 4-7/8” faceplates are designed for Adams Rite deadlatches or cylindrical locksets with 1/2” to 5/8” latchbolt projection. For use in aluminum jambs and stiles.

Function: Remote electrical control of any door equipped with an Adams Rite 4500, 4700, or 4900 Series (or similar) Deadlatch or cylindrical (key-in-knob/lever) type lockset with 1/2” to 5/8” latchbolt projection. Electrical actuation unlocks strike jaw, releasing latchbolt so door can be opened without operating latch itself. Extremely compact mechanism fits into aluminum jamb (or opposing door) sections as shallow as 1-5/8”. Fits existing prep for discontinued Adams Rite 7000, 7500, 7800 Electric Strikes.

Finishes:

313-Dark Bronze Anodized Aluminum

628-Clear Aluminum Anodized

Specifications:

Fail-Safe/Fail-Secure: Field convertible from one mode to the other. However, AC intermittent solenoid must not be used continuously in either.

Case: Approximately 1” x 3-3/8” x 1-5/8” deep.

Strike Lip: Basic 7100 strike has lip of proper length for 1-3/4” thick door that closes flush with jamb edge. Where door thickness or jamb shape differs from this standard relationship, lip extension kits are available, specified by last dash number. Not available on 7101.

Strike Opening: 5/8” x 1-7/16” x 1/2” deep. Bolt retainer jaw is stainless steel. Strike accepts bolt of any Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical latches.

Faceplate: Measures 1-1/4” x 4-7/8”. 7100 has flat faceplate; 7101 is radiused to match nose on inactive leaf in a pair of narrow stile glass doors. Available in a wide range of architectural finishes.

Voltage: Available in 12 or 24 volt AC and DC. DC continuous units are silent, AC intermittent units “buzz” on operation.

US Lock Supply Stocks The 7110 & 7111 In All Finishes & Options. Description: 7110 Electric Strike with 7-15/16” faceplate and 7111 Electric Strike with 10-1/4” faceplate are designed for Adams Rite deadlatches or cylindrical locksets with 1/2” to 5/8” latchbolt projection. For use in hollow metal, wood and aluminum door jambs.

Function: Replaces earlier 002, 7510, or 7810 electric releases in either metal or wood jambs for remote electrical control of any door equipped with an Adams Rite 4500, 4700, or 4900 Series (or similar) Deadlatch or cylindrical (key-in-knob/lever) type lockset with 1/2” to 5/8” latchbolt projection. Electrical actuation unlocks strike jaw, releasing latchbolt so door can be opened without operating latch itself. Extremely compact mechanism fits into jamb sections as shallow as 1-5/8”.

Finishes:

628-Clear Aluminum Anodized

Specifications:

Fail-Safe/Fail-Secure: Field convertible from one mode to the other. However, AC intermittent solenoid must not be used continuously in either.

Case: Approximately 1” x 3-3/8” x 1-5/8” deep.

Strike Lip: Basic 7110 strike has lip of proper length for 1-3/4” thick door that closes flush with jamb edge. Where door thickness or jamb shape differs from this standard relationship, lip extension kits are available, specified by last dash number (see catalog page).

Strike Opening: 5/8” x 1-7/16” x 1/2” deep. Bolt retainer jaw is stainless steel. Strike accepts bolt of any Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical latches.

Faceplate: Faceplate for 7110 measures 1-7/16” x 7-15/16”. 7111 faceplate measures 1-7/16” x 10-1/4”. Available in a wide range of architectural finishes.

Voltage: Available in 12 or 24 volt AC and DC. DC continuous units are silent, AC intermittent units “buzz” on operation.

The Hes 4500C series electric strike is designed for installation in 2" UL 10C fire-rated frames with 1/2" drywall penetration. The 4500C features a low profile 1-3/8" depth, heavy-duty stainless steel construction. Its strength is derived from a unique keeper pin locking design, enabling the 4500C to exceed the ratings of the frame, door and locking hardware.

US Lock Supply Stocks The 4500c Series In Stock In All Finishes & Options Ready To Ship. Wholesale & Bulk Pricing Available.

Optional Features

• LBM - Latchbolt monitor
• LBSM - Latchbolt strike monitor

Finishes:

630 - Satin stainless steel

605 - Bright brass

606 - Satin brass

612 - Satin bronze

613 - Bronze toned

629 - Bright stainless steel

Each Complete Pac conveniently paris the reliabilty of an HES electric strike with the flexibility of multiple faceplates in a single simple package. The 4500C includes a 4500 strike body and two interchangeable faceplates to accommodate most cylindrical and mortise latchbolts (without deadbolts).

US Lock Supply Stocks The 7130 & 7131 In All Finishes & Options.

Description: 7130, 7131 Electric Strikes with 6-7/8” faceplates are designed for Adams Rite deadlatches or cylindrical locksets with 1/2” to 5/8” latchbolt projection. For use in aluminum jambs and stiles.

Function: Remote electrical control of any narrow stile or hollow metal door equipped with an Adams Rite Series 4500, 4700, or 4900 Series (or similar) Deadlatch or cylindrical (key-in-knob/lever) type lockset with 1/2” to 5/8” latchbolt projection. Large faceplate is designed to cover strike opening when converting from an MS pivoted-bolt deadlock to a deadlatch. Electrical actuation unlocks strike jaw, releasing latchbolt so door can be opened without operating latch itself. Extremely compact mechanism fits into aluminum jamb (or opposing door) sections as shallow as 1-5/8”. Replaces discontinued Adams Rite 7030, 7530, 7830 Electric Strikes.

Finishes:

313-Dark Bronze Anodized Aluminum

628-Clear Aluminum Anodized

Specifications:

Fail-Safe/Fail-Secure: Field convertible from one mode to the other. However, AC intermittent solenoid must not be used continuously in either.

Case: Approximately 1” x 3-3/8” x 1-5/8” deep.

Strike Lip: Basic 7130 strike has lip of proper length for 1-3/4” thick door that closes flush with jamb edge. Where door thickness or jamb shape differs from this standard relationship, lip extension kits are available, specified by last dash number. Not available for 7131.

Strike Opening: 5/8” x 1-7/16” x ½” deep. Bolt retainer jaw is stainless steel. Strike accepts bolt of any Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical latches.

Faceplate: Measures 1-1/4” x 6-7/8”. 7130 has flat faceplate, 7131 is radiused to match nose on inactive leaf in a pair of narrow stile glass doors. Available in a wide range of architectural finishes.

Voltage: Available in 12 or 24 volt AC and DC. DC continuous units are silent, AC intermittent units “buzz” on operation.

US Lock Supply Stocks The 7160 In All Opions. Description: 7160 Electric Strikes with 4-7/8” faceplates are designed for mortise or cylindrical type locksets with up to 3/4” latchbolt projection without deadbolt. For use in aluminum jambs.

Function: Remote electrical control of any door equipped with a mortise or cylindrical type lockset with up to 3/4” latchbolt projection without deadbolt. Electrical actuation unlocks strike jaw, releasing latchbolt so door can be opened without operating latch itself. Extremely compact mechanism fits into aluminum jamb (or opposing door) sections as shallow as 1-7/8”. Fits existing prep for discontinued Adams Rite 7560, 7860 Electric Strikes.

Finishes:

313-Dark Bronze Anodized Aluminum

628-Clear Aluminum Anodized

Specifications:

Fail-Safe/Fail-Secure: Field convertible from one mode to the other. However, AC intermittent solenoid must not be used continuously in either.

Case: Approximately 1” x 3-3/8” x 1-7/8” deep.

Strike Lip: Basic 7160 strike has lip of proper length for 1-3/4” thick door that closes flush with jamb edge. Where door thickness or jamb shape differs from this standard relationship, lip extension kits are available, specified by last dash number.

Strike Opening: 3/4” x 1-7/16” x 5/8” deep. Bolt retainer jaw is stainless steel. Strike location must be centered on latchbolt.

Faceplate: Measures 1-1/4 x 4-7/8” Faceplate is flat, with radiused corners. Available in a wide range of architectural finishes.

Voltage: Available in 12 or 24 volt AC and DC. DC continuous units are silent, AC intermittent units “buzz” on operation.

US Lock Supply Stocks The 7170 In All Opions.

Description: 7170 Electric Strikes with 4-7/8” faceplates are designed for mortise or cylindrical type locksets with up to 3/4” latchbolt projection without deadbolt. For use in hollow metal or wood door jambs.

Function: Remote electrical control of any door equipped with a mortise or cylindrical type lockset with up to 3/4” latchbolt projection without deadbolt. Electrical actuation unlocks strike jaw, releasing latchbolt so door can be opened without operating latch itself. Extremely compact mechanism fits into hollow metal jamb sections as shallow as 1-7/8”. Fits existing prep for discontinued Adams Rite 7560AN, 7570, 7860AN, 7870 Electric Strikes.

The electric strike must be positioned to accommodate offset mortise latches during installation. Please refer to installation instructions.

Specifications:

Fail-Safe/Fail-Secure: Field convertible from one mode to the other. However, AC intermittent solenoid must not be used continuously in either.

Case: Approximately 1” x 3-3/8” x 1-7/8” deep.

Strike Lip: Basic 7170 strike has lip of proper length for 1-3/4” thick door that closes flush with jamb edge. Where door thickness or jamb shape differs from this standard relationship, lip extension kits are available, specified by last dash number.

Strike Opening: 5/8” x 1-7/16” x 5/8” deep. Bolt retainer jaw is stainless steel.

Faceplate: Measures 1-1/4 x 4-7/8” Faceplate is flat, with square corners. Available in a wide range of architectural finishes.

Voltage: Available in 12 or 24 volt AC and DC. DC continuous units are silent, AC intermittent units “buzz” on operation.

Finishes:

313-Dark Bronze Anodized Aluminum

628-Clear Aluminum Anodized
