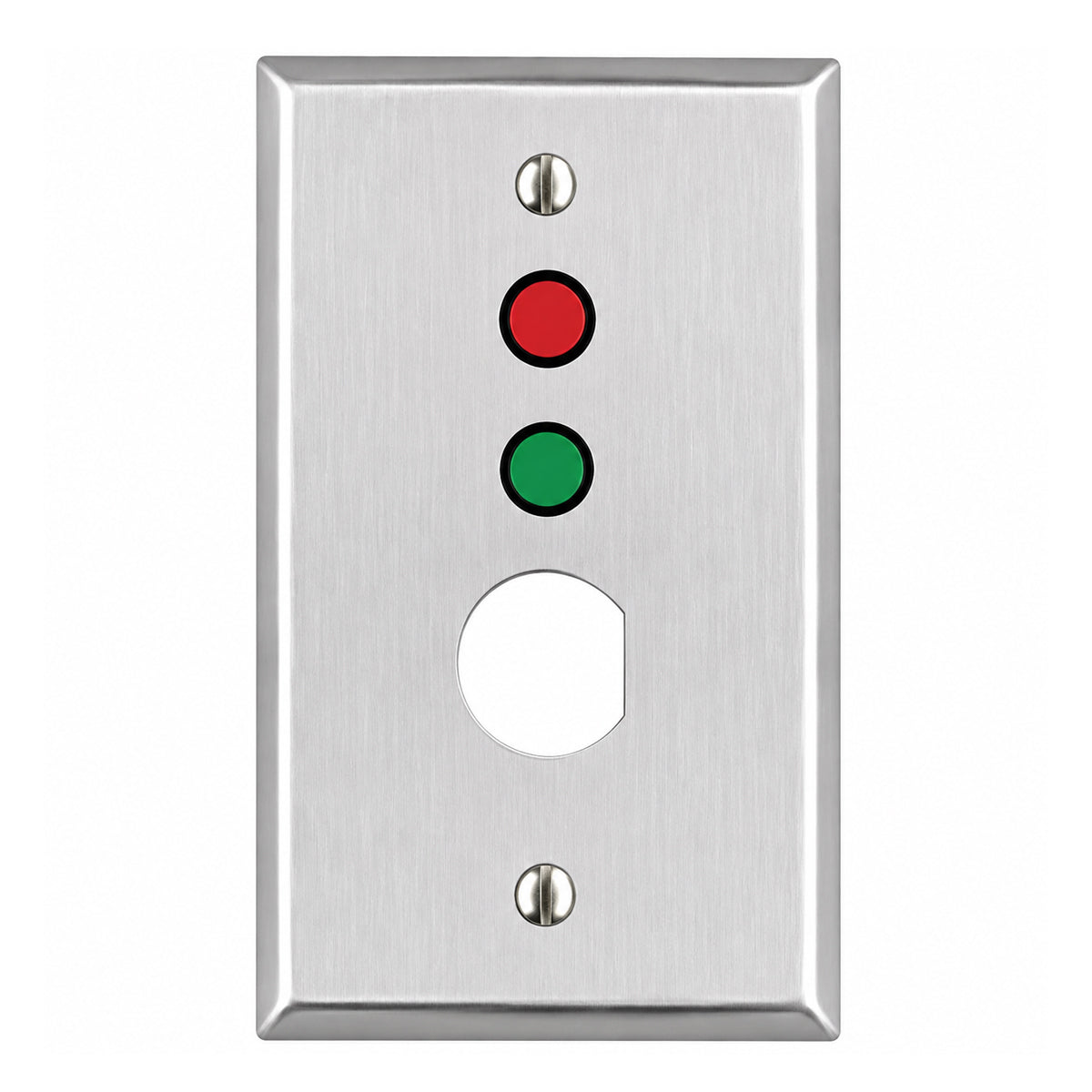

The Alarm Controls RP-50 Remote Wall Plate is a single-gang remote key switch plate designed for applications requiring clear visual status indication and convenient keyed control. Featuring a durable stainless-steel finish, high-brightness red and green LED indicators, and a 3/4" D-shaped opening for an Ace lock, the RP-50 provides a professional solution for access control, alarm, and security installations.
The RP-50 combines compact wall-mounted control with reliable status indication, making it ideal for installations where quick visual confirmation of system status is important.
Key Features
- Single-gang remote wall plate
- Durable stainless-steel finish
- 1/4" red and green high-brightness LEDs
- 3/4" D-shaped hole on backplate for Ace lock
- LEDs operate on 12 or 24 VDC
- Built-in N/C tamper switch
- 6" red and black leads
- Multiple plate finishes available
Available Options
- RP-50M: Double D-hole configuration for Medeco lock
- KA-105 / KA-108: Key switches for use with RP-50
- KA-109 / KA-110: Key switches for RP-50M
- Multiple plate finishes available

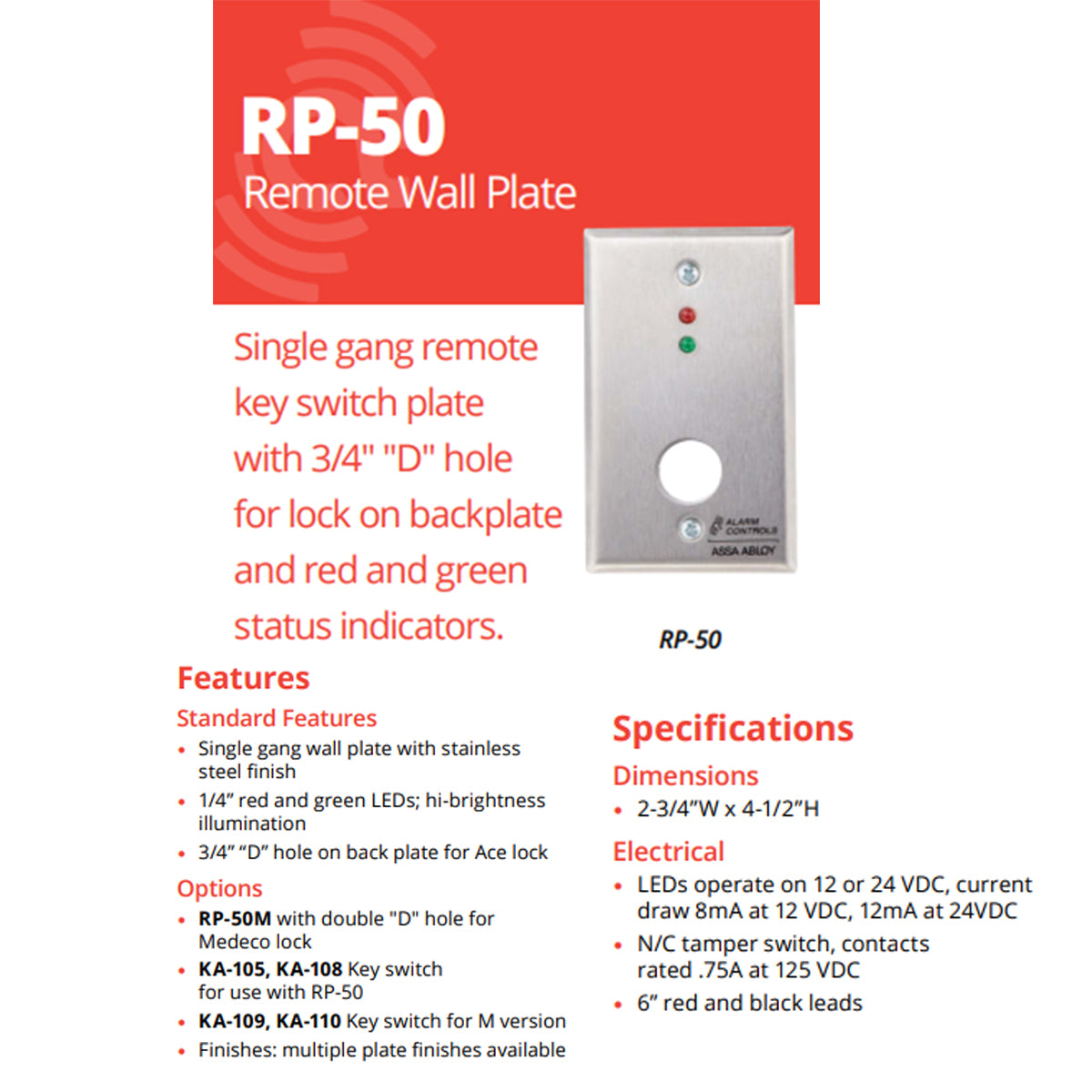

Specifications
Dimensions: 2-3/4" W × 4-1/2" H
LEDs: 1/4" red and green, high-brightness
Operating Voltage: 12 or 24 VDC
Current Draw: 8 mA at 12 VDC; 12 mA at 24 VDC
Tamper Switch: N/C contacts, rated 0.75A at 125 VDC
Lock Opening: 3/4" D hole for Ace lock
Leads: 6" red and black leads
Plate: Single-gang stainless steel
Applications
The Alarm Controls RP-50 is ideal for access control, alarm systems, security installations, door control, and other applications requiring remote keyed operation with clear red/green status indication.
With its durable stainless-steel construction, high-brightness LED indicators, and flexible key-switch options, the RP-50 delivers a clean, professional control solution for commercial and security applications.
