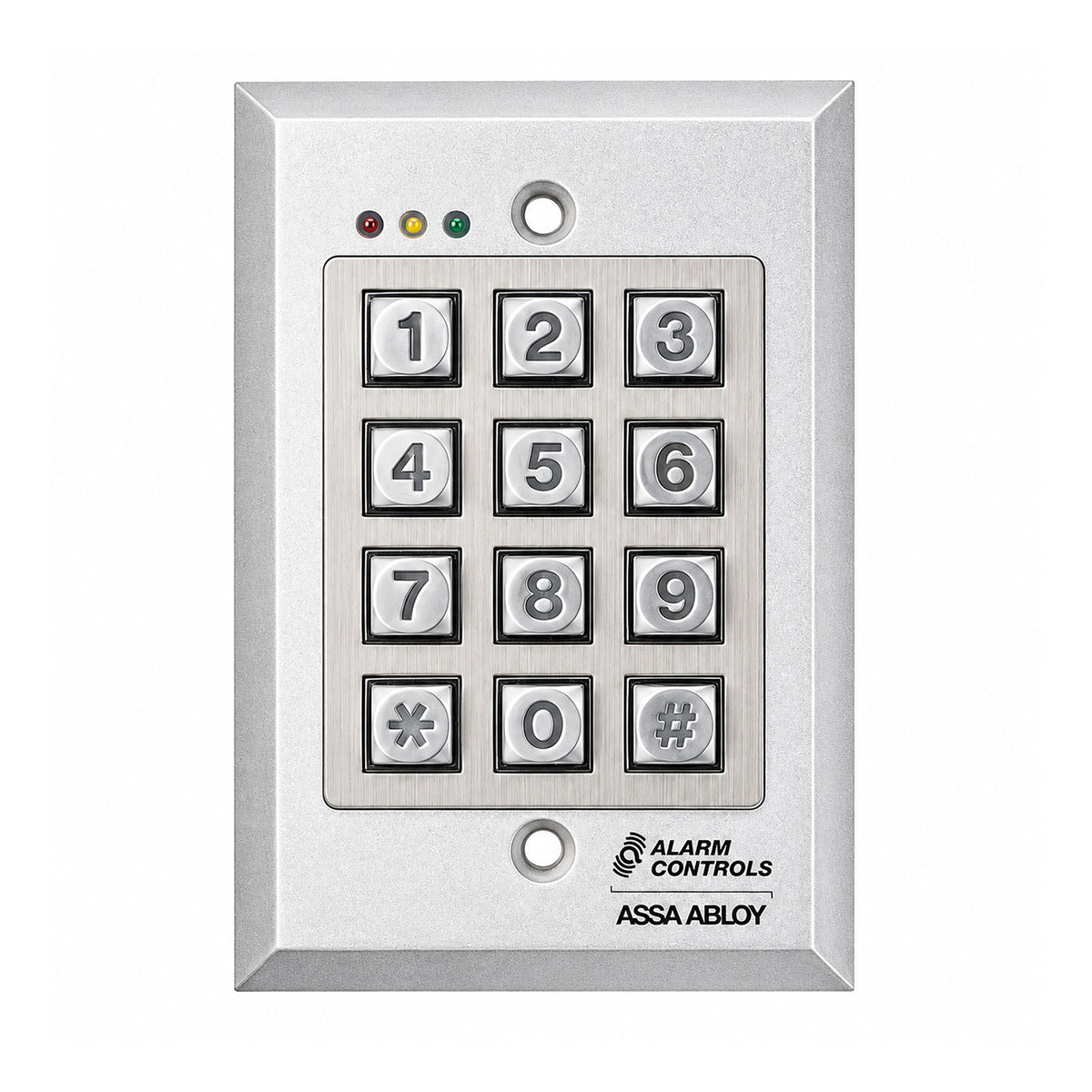

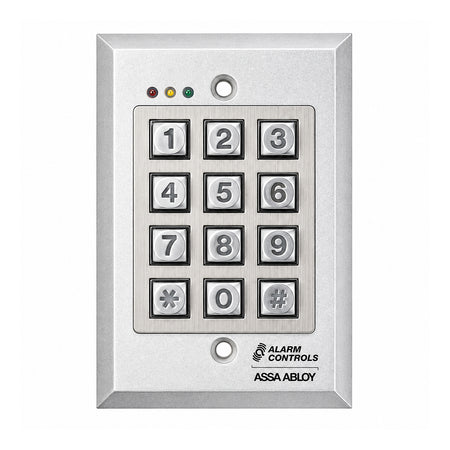

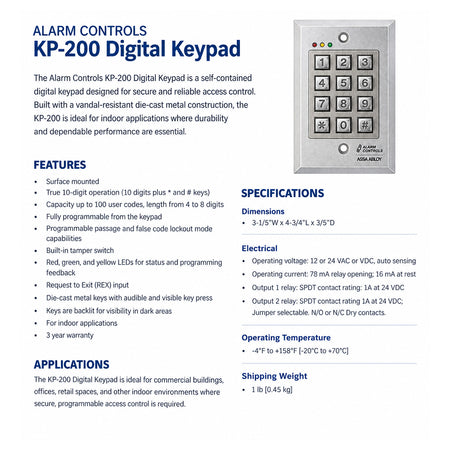

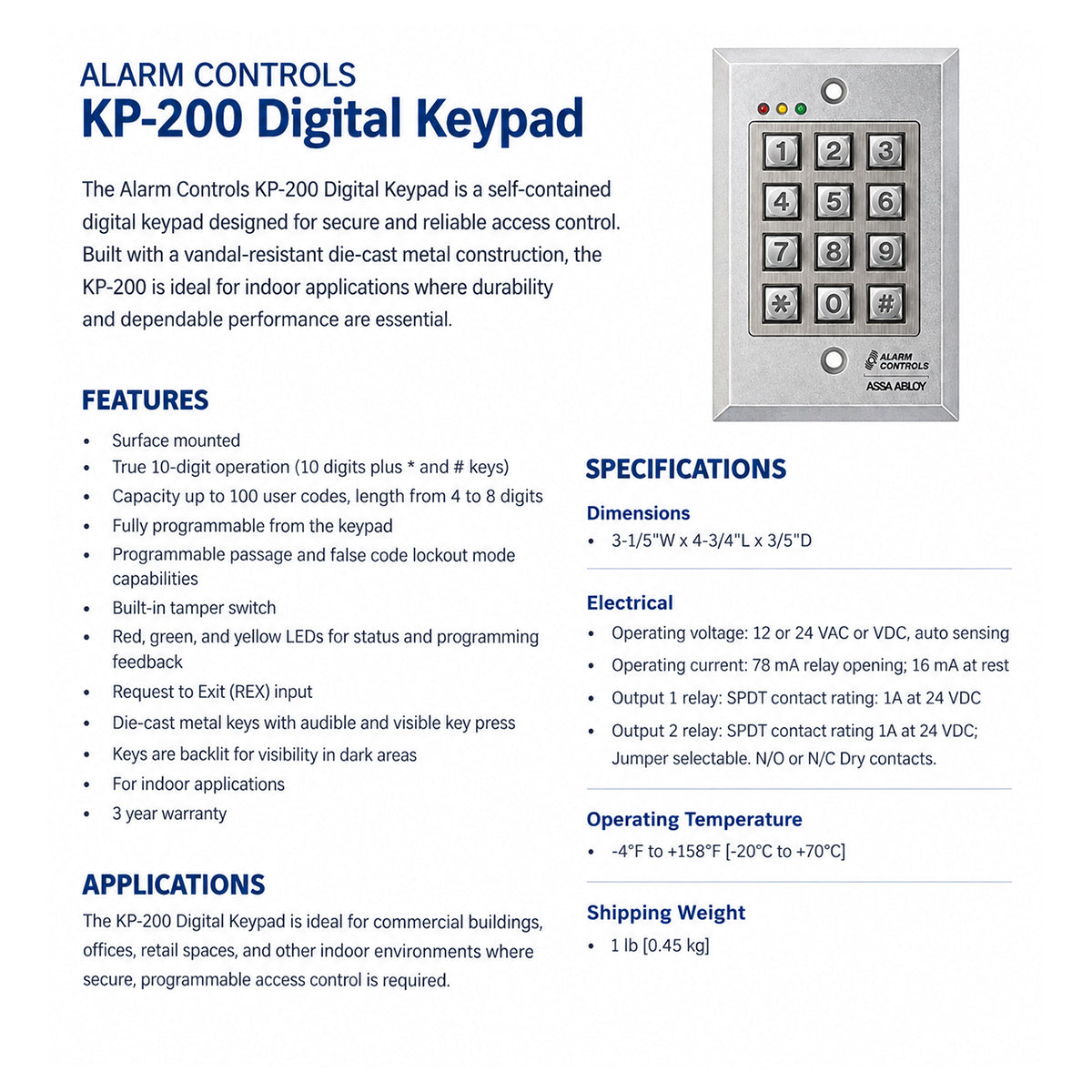

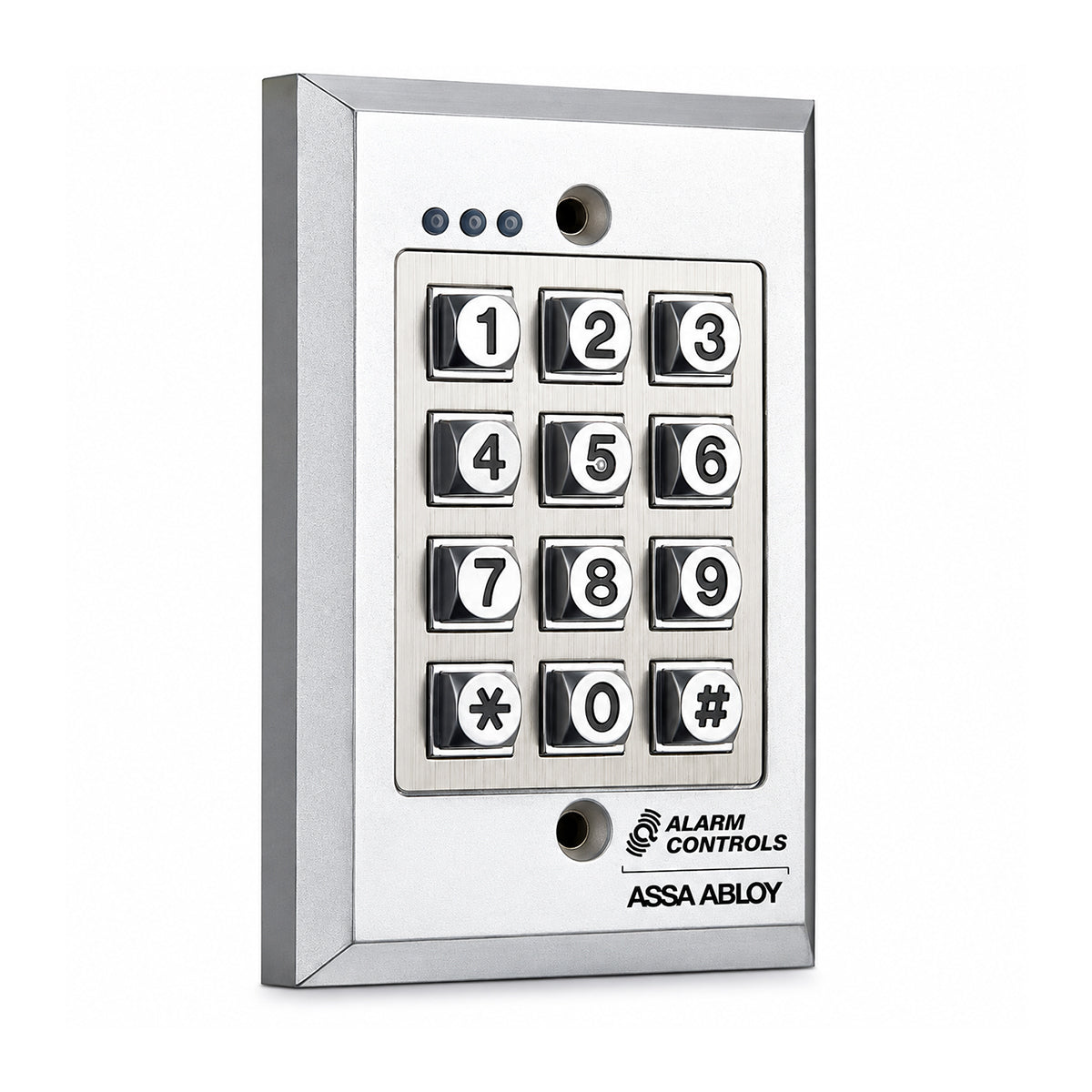

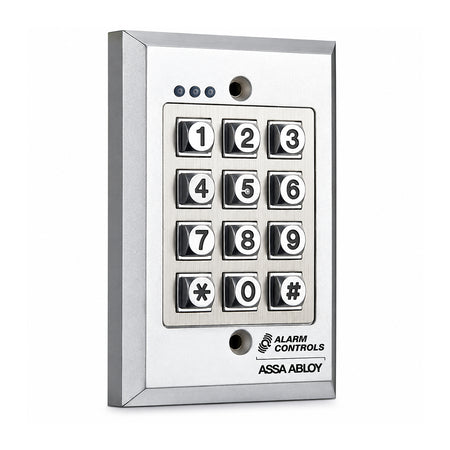

The Alarm Controls KP-200 Digital Keypad is a self-contained, surface-mounted access control keypad designed for secure indoor applications. Its rugged, vandal-resistant construction and die-cast metal keys make it an excellent choice for commercial, industrial, and other controlled-access environments where durability and reliable operation are essential.
The KP-200 provides true 10-digit operation with 0–9, * and # keys and supports up to 100 user codes ranging from 4 to 8 digits. The keypad is fully programmable directly from the unit and includes passage mode, false code lockout, built-in tamper protection, and a Request to Exit (REX) input.
Key Features
- Vandal-resistant, surface-mounted design
- True 10-digit operation with 10 digits plus * and # keys
- Supports up to 100 user codes
- User codes can be 4 to 8 digits
- Fully programmable from the keypad
- Programmable passage mode
- False code lockout capability
- Built-in tamper switch
- Red, green, and yellow LEDs for status and programming feedback
- Request to Exit (REX) input
- Durable die-cast metal keys
- Audible and visible key press feedback
- Backlit keys for improved visibility in dark areas
- Designed for indoor applications
- 3-year warranty
Electrical Specifications
- Operating Voltage: 12 or 24 VAC/VDC, auto sensing
- Operating Current: 78 mA during relay opening; 16 mA at rest
- Output 1 Relay: SPDT, 1A at 24 VDC
- Output 2 Relay: SPDT, 1A at 24 VDC
- Output 2 Contact Selection: Jumper selectable N/O or N/C dry contacts
Dimensions
- 3-1/5"W x 4-3/4"L x 3/5"D
Operating Environment
- Temperature: -4°F to +158°F (-20°C to +70°C)
- Application: Indoor use only
Shipping Information
- Shipping Weight: 1 lb (0.45 kg)
Applications
The KP-200 is ideal for commercial buildings, offices, retail spaces, restricted areas, and other indoor locations requiring durable, programmable keypad access control. Its vandal-resistant design and backlit metal keys provide dependable operation in demanding environments.
Why Choose the KP-200?
With durable die-cast construction, programmable access codes, dual relay outputs, REX functionality, tamper protection, and illuminated keypad operation, the Alarm Controls KP-200 provides a reliable and flexible standalone access control solution for indoor installations.
