Product Overview
Alarm Controls Drop Down Plates for Double Locks are spacer plates designed for double electromagnetic lock installations. These plates provide additional mounting clearance and help achieve proper positioning and alignment when installing two magnetic locks on a single opening.
Available for 600 lb. and 1200 lb. electromagnetic locks, the AM33 and AM63 series spacer plates are offered in multiple thicknesses to accommodate different installation requirements. Each plate is constructed with a durable aluminum finish and features a clear anodized US28 finish for a clean, professional appearance.
Product Features
- Designed for double magnetic lock installations
- Provides additional spacing and mounting clearance
- Available for 600 lb. and 1200 lb. electromagnetic locks
- Multiple spacer thickness options: 1/4" and 1/2"
- Durable aluminum construction
- Clear anodized US28 finish
- Helps provide proper lock positioning and alignment
- Ideal for commercial access control and security applications
Available Models
| Part Number | Description | Dimensions | Finish |
|---|---|---|---|

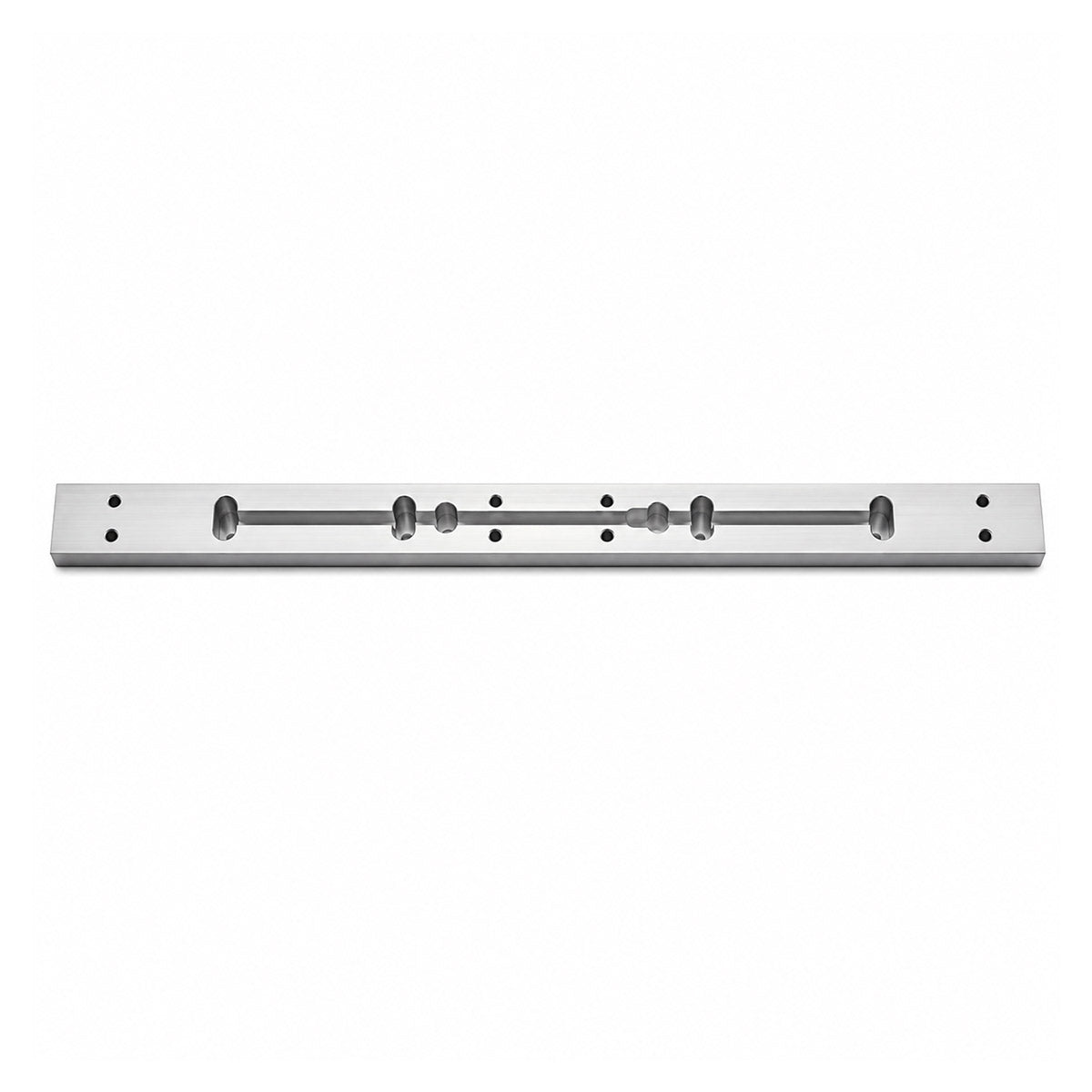

| AM3331 | 1/4" spacer for 600 lb. lock | 19-3/4"L x 1"W x 1/4"D | Clear Anodized (US28) |
| AM3332 | 1/2" spacer for 600 lb. lock | 19-3/4"L x 1"W x 1/2"D | Clear Anodized (US28) |

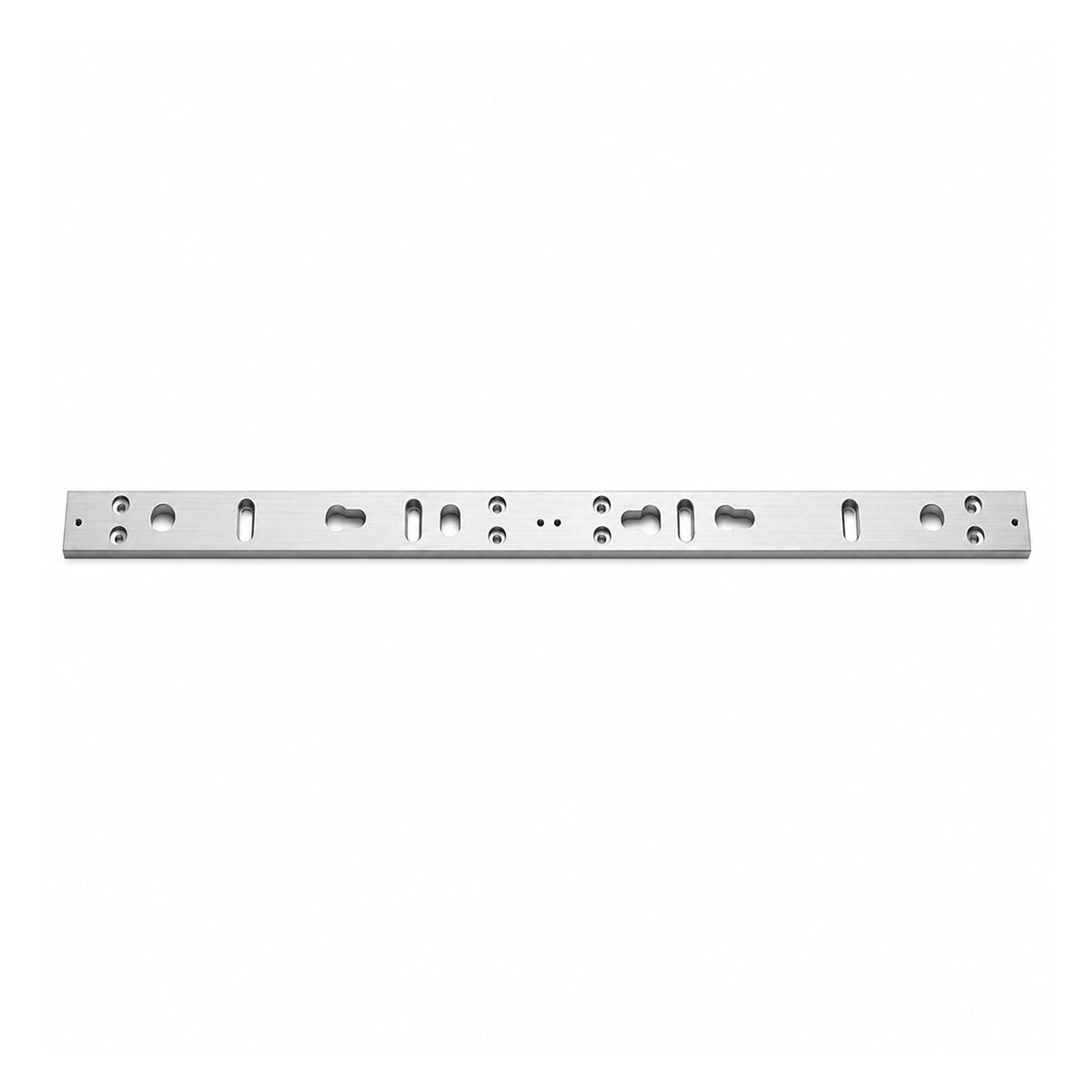

| AM6331 | 1/4" spacer for 1200 lb. lock | 21"L x 1-1/2"W x 1/4"D | Clear Anodized (US28) |
| AM6332 | 1/2" spacer for 1200 lb. lock | 21"L x 1-1/2"W x 1/2"D | Clear Anodized (US28) |
Specifications
600 lb. Lock Spacers – AM33 Series
- Length: 19-3/4"
- Width: 1"
- Available depths: 1/4" and 1/2"
- Finish: Clear Anodized (US28)
1200 lb. Lock Spacers – AM63 Series
- Length: 21"
- Width: 1-1/2"
- Available depths: 1/4" and 1/2"
- Finish: Clear Anodized (US28)
Applications
Alarm Controls Double Lock Drop Down Plates are ideal for commercial doors, access control systems, storefronts, offices, institutional facilities, and other installations using double electromagnetic locks. Select the spacer thickness and lock capacity that best matches your specific mounting requirements.
Available Models: AM3331, AM3332, AM6331, AM6332
