HES

HES is one of the top manufacturers of electric door hardware, and US Lock Supply carries a wide range of HES electric strikes in different finishes and options -- from the HES 4500C to the 9600 series and much more.

We offer the popular HES 5000 series of electric strikes, which can be used with metal or wood door frames and are suitable for outdoor use, plus burglary-resistant. The HES 5200 series is also available, and these electric door strikes are tamper-resistant and non-handed, with a variety of faceplate options to choose from.

The HES 7000 series of electric strikes is designed to work with preloaded doors, and their preload release function allows these electric strikes to work smoothly under different conditions throughout the year that often challenge electric strikes and cause them to malfunction -- whether it’s a change in air pressure from the air conditioning system or weather changes, warped doors, or doors with weather stripping. The HES 7500 series is designed to deal with all of these conditions, plus is fire-rated.

We also offer the HES 8000 and HES 8000C cylindrical lock electric strikes, HES 8300C fire-rated concealed for cylindrical locks electric strikes, and HES 8500 series electric strikes that are fire rated for mortise locks.

Need a surface mounted electric strike? We have that covered with the HES 9400 series, 9500 series and 9600 series. These electric strikes have different attributes to fit your needs, so whether you’re looking for a strike that is slimline, fire rated or windstorm rated, you’ll find the parts you need at US Lock Supply!

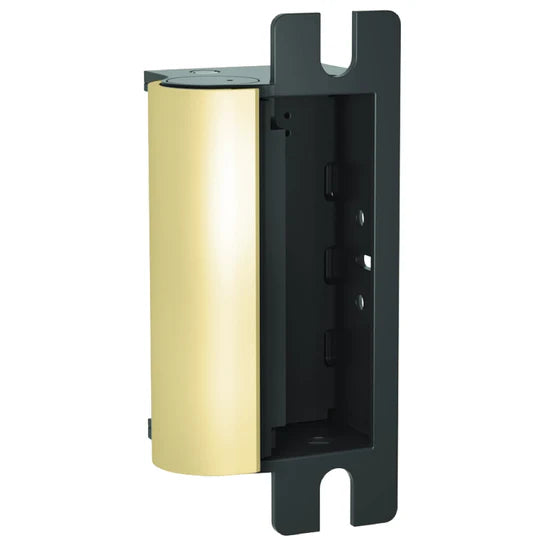

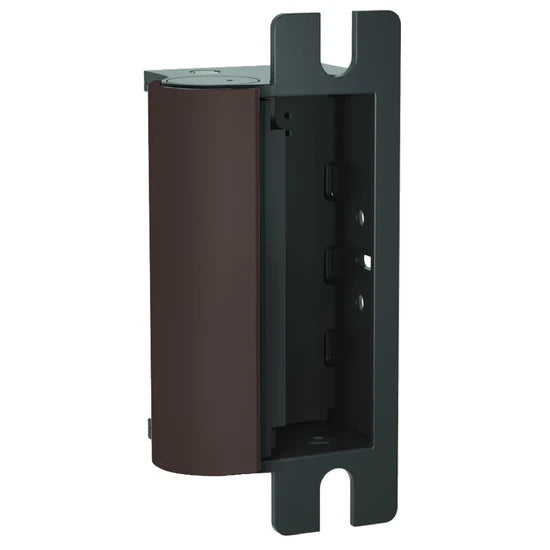

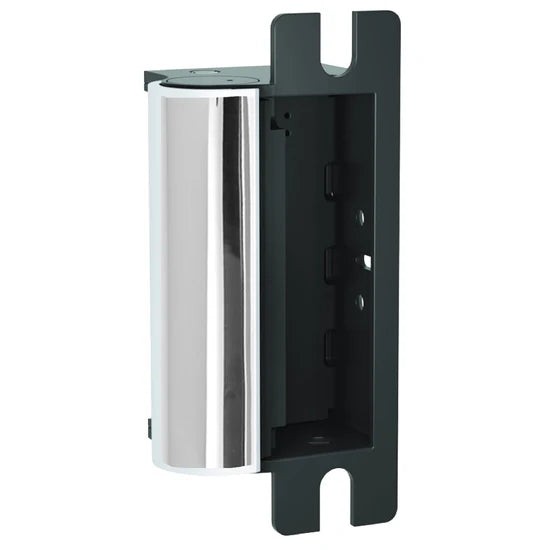

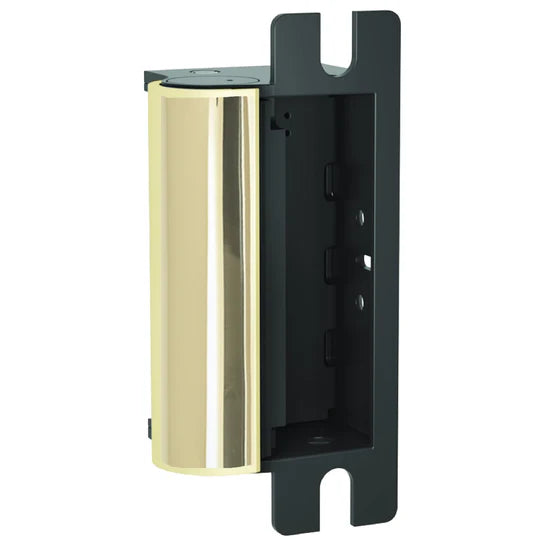

HES 1006 Heavy Duty Electric Strike

The 1006 series is the strongest and most versatile electric strike available. The dual interlocking plunger design and heavy duty stainless steel construction, enables it to exceed every standard developed for electric strikes.

Product Features

  • Stainless steel construction
  • Tamper resistant
  • Static strength 2,500 lbs. (fail secure)
  • Dynamic strength 350 ft-lbs. (fail secure)
  • Endurance 1,000,000 cycles
  • Fail secure (standard)
  • Non-handed
  • Accommodates up to 1" deadbolt
  • Plug-in connector
  • Full keeper shims for horizontal adjustment
  • Trim enhancer
  • Dual voltage 12 or 24 VDC continuous duty
  • Internally mounted solenoid
Application
  • Adjustability : Horizontal
  • Surface Mounting : Cutting required
  • Frame Material : Metal|Wood
  • Shim Type : Field Adjustable
  • Latchbolt Accommodation : 1/2" - 5/8"
Electrical
  • Voltage : 12/24
  • Monitoring Installation : Factory Configured
  • Monitoring Options : Latchbolt Strike Monitor|Latchbolt Monitoring
Strength & Durability
  • Endurance (cycles) : 1,000,000
  • Dynamic Strength (ft-lbs) : 350
  • Tamper Resistant : Yes
  • Fail Safe | Fail Secure : Fail Safe/ Fail Secure
  • Grade : Grade 1
General Specifications
  • Warranty : SecuriCare five-year, no fault, no questions asked warranty
  • Lock Type : Cylindrical Lock|Mortise Lock|Mortise Lock with Deadbolt
Weights & Dimensions
  • Strike Body Depth (in) : 1.6875
  • Strike Body Height (in) : 3.4750
Certifications
  • ANSI/BHMA A156.31, Grade 1
  • ANSI/SDI 250.13 Certified
  • ASTM E152 Fire Door Compliant
  • ASTM E330 Certified
  • Florida Building Code Approved TAS 201, 202, 203 (old)
  • NFPA-252 fire door Compliant
  • RoHS Compliant
  • UL 1034 burglary-resistant listed
  • UL 10C Fire-Rated, 1-1/2 Hour Double Door [Fail Secure only]
  • UL 10C Fire-Rated, 3 Hour Single Door [Fail Secure Only]
  • UL294 Listed

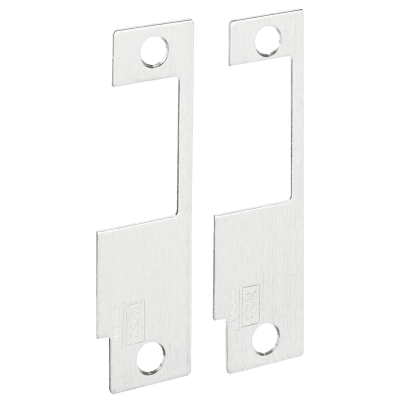

KD Option Faceplate
  • (4.875 H x 1.25 W) For use with: Mortise locksets up to 3/4" throw latchbolt. Compatible locksets: Dorma 9500, Jackson, Sargent (7700 & 8100), Schlage, Yale (8700)
HTD Option Faceplate
  • (4.875 H x 1.25 W) For use with: Mortise locksets with a 1" deadbolt and no deadlatch or a center positioned deadlatch. Strike will not release when deadbolt is extended. Compatible locksets: Sargent (7700 & 8100), Schalge, Yale (8700)
H-2 Option Faceplate
  • (9 H x 1.375 W) For use with: Mortise locksets with a 1" deadbolt without a deadlatch, in wood frame applications. Strike will not release when deadbolt is extended. Compatible Locksets: Accurate, Arrow, Baldwin, Marks, Omnia, PDQ, Yale (8700).
HT Option Faceplate
  • (4.875 H x 1.25 W) For use with: Mortise locksets with a 1" deadbolt without a deadlatch. Strike will not release when deadbolt is extended. Compatible Locksets: Sargent (7700 & 8100 series), Yale (8700)
E Option Faceplate
  • (4.875 H x 1.25 W) For Use With: Corbin Russwin Security Bolt, Weiserbolt and normally extended 1" tubular deadbolts
R Option Faceplate
  • (4.875 H x 1.25 W) For Use With: Adams Rite style hookbolt up to 1" throw
Z Option Faceplate
  • (4.875 H x 1.25 W) For Use With: Unit and Mono locks
J-2 Option Faceplate
  • (9 H x 1.375 W) For Use With: All cylindrical locks up to a 3/4" latchbolt
N Option Faceplate
  • (4.875 H x 1.25 W) For use with: Mortise locksets where the deadbolt is used for night-latch function only. Compatible Locksets: Accurate, Arrow, Baldwin, Marks, Omnia, PDQ, Others
NM Option Faceplate
  • (4.875 H x 1.25 W) For use with: Mortise locksets with a deadbolt used for night latch function only. Compatible locksets: Accurate, Arrow, Baldwin, Best, Corbin Russwin, Falcon (45H, 47H, 34H & 37H), Marks, Omina, PDQ, Sargent (7800, 8200 & 9200), Yale (8800)
T Option Faceplate
  • (4.875 H x 1.25 W) For use with: Mortise locksets with a normally extended 1" deadbolt and center-lined deadlatch. Compatible locksets: Accurate, Arrow, Baldwin, Marks, Omnia, PDQ, Schalge
T-2 Option Faceplate
  • (9 H x 1.375 W) For use with: Mortise locksets where the deadbolt is used for night-latch function only, in wood frame applications. Compatible Locksets: Accurate, Arrow, Baldwin, Marks, Omnia, PDQ, Schlage, Yale (8700), Others
DB Option Faceplate
  • (4.875 H x 1.25 W) Kit includes faceplates and brackets to make N and H series options
KM-2 Option Faceplate
  • (9 H x 1.375 W) For Use With: Mortise locksets up to a 3/4" latchbolt
ND Option Faceplate
  • (4.875 H x 1.25 W) For use with: Mortise locksets with a deadbolt used for night latch function only. Compatible locksets: Sargent (7700 & 8100), Schlage, Yale (8700)
KM Option Faceplate
  • (4.875 H x 1.25 W) For use with: Mortise locksets up to 3/4" throw latchbolt. Compatible locksets: Accurate, Arrow, Baldwin, Best, Corbin Russwin, Falcon, Marks, PDQ, Sargent (7800, 8200 & 9200), Yale (8800)
HM Option Faceplate
  • (4.875 H x 1.25 W) For use with: Mortise locksets with a 1" deadbolt. Strike will not release when deadbolt is extended. Compatible locksets: Accurate, Arrow, Baldwin, Best, Corbin Russwin, Falcon (45H, 47H, 34H & 37H), Marks, Omnia, PDQ, Sargent (7800, 8200 & 9200), Yale (8800)
HD Option Faceplate
  • (4.875 H x 1.25 W) For use with: Mortise locksets with a 1" deadbolt without a deadlatch. Strike will not release when deadbolt is extended. Compatible Locksets: Sargent (7700 & 8100 series), Yale (8700)
K-2 Option Faceplate
  • (9 H x 1.375 W) For use with: Mortise locksets with a deadlatch positioned above the latchbolt, in wood frame applications. Compatible Locksets: Baldwin, Marks, PDQ, Others
A-2 Option Faceplate
  • (9 H x 1.375 W) For use with: Mortise locksets with a normally extended 1" deadbolt without a deadlatch, in wood frame applications. Compatible Locksets: Accurate, Arrow, Baldwin, Marks, Omnia, PDQ, Schlage, Yale, Others.
H Option Faceplate
  • (4.875 H x 1.25 W) For use with: Mortise locksets with a 1" deadbolt without a deadlatch. Strike will not release when deadbolt is extended. Compatible Locksets: Arrow, Baldwin, Marks, Omnia, PDQ, Others

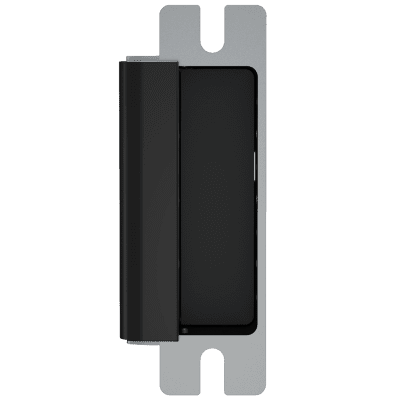

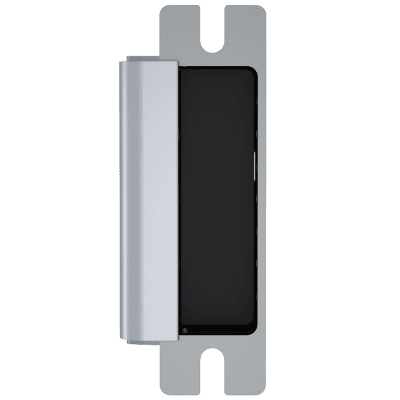

HES 1500C Electric Strike

HES 1500C Electric Strike

by hes
$ 312.00

Works with all brands of cylindrical and mortise locksets without a deadbolt

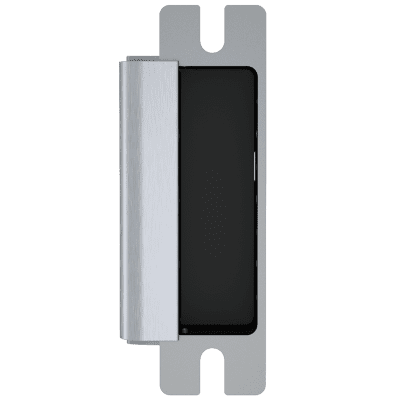

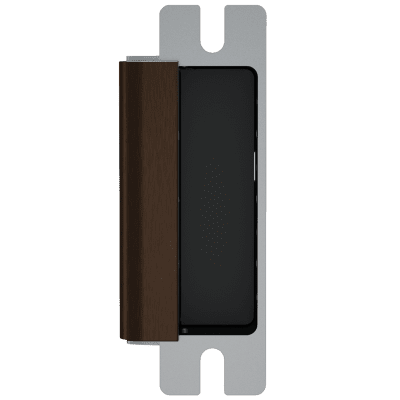

The HES 1500 Series™ and 1600 Series™ Electric Strikes set a new standard in the industry by offering dynamic integrated adjustability and field configurable options compatible with any cylindrical or mortise lock. The modular design of the platform makes stocking and installing easier with interchangeable faceplates and accessories. For the first time, the aesthetics of an electric strike are complimentary to other surrounding door hardware and blend in with the opening due to the fully finished design available in eight finishes.

HES 1500 Series Electric Strike Feature Image 1

Product Features

  • Stainless steel construction
  • Tamper resistant
  • Static strength 1500 lbs
  • Dynamic strength 70 ft-lbs
  • Endurance 1,000,000 cycles
  • Field selectable fail safe/fail secure
  • Non-handed
  • Interchangeable faceplates and accessories
  • Field replaceable components
  • Fully finished faceplate, keeper, case and trim
  • Field adjustable integrated shim
  • Electrolynx ® connectors
  • Dual voltage 12/ 24 VDC/VAC
Application
  • Surface Mounting : Cutting required
  • Frame Material : Metal|Wood
  • Adjustability : Horizontal
  • Latchbolt Accommodation : Up to 3/4"
Listings
  • CE Certified : NA
  • Fire Rated : Yes
  • Grade : Grade 1
  • Weather Resistance : NA
  • Windstorm Resistant : Yes
Certifications
  • ANSI/BHMA A156.31, Grade 1
  • ANSI/SDI 250.13 Certified
  • ASTM E152 Fire Door Compliant
  • ASTM E330 Certified
  • CAL FIRE, 3776-1654:0500
  • Florida Building Code Approved FL# 22400
  • NFPA-252 fire door Compliant
  • RoHS Compliant
  • UL 1034 burglary-resistant listed
  • UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
  • UL294 Listed
Dimensions
  • Card Reader Depth (in) : NA
  • Card Reader Height (in) : NA
  • Card Reader Width (in) : NA
Environmental
  • Maximum Operating Temperature (° F) : NA
  • Minimum Operating Temperature (° F) : NA
  • Operating Humidity : NA
Electrical
  • Batteries Included : NA
  • Battery Cycles : NA
  • Battery Backup : NA
  • Battery Type : NA
  • Power Source : Hardwired
  • Number of Batteries : NA
  • Voltage : 12/24
  • Monitoring Installation : Factory Configured|Field Installable
  • Actuator Type : Solenoid
General Specification
  • Body Material : Stainless Steel
  • Lock Type : Cylindrical Lock|Mortise Lock
  • Handing : Non-handed
  • Fire Rating ~ Single Door : 3 Hour (Fail Secure Only)
  • Fire Rating ~ Double Door : 1.5 Hour (Fail Secure Only)
Strength & Durability
  • Dynamic Strength (ft-lbs) : 70
  • Endurance (cycles) : 1,000,000
Technology
  • High Frequency (13.56 MHz) : NA
  • Low Frequency (125 kHz) : NA
  • Communication Technology : NA
  • Credential Type : NA
HES 154-MTK, Metal Template Kit - Barzellock.com
HES 157 Torx Screw - Barzellock.com

HES 157 Torx Screw

by HES
$ 9.00
HES AC PLUG-IN BRDGE RECTIFIER
HES 2007M Plug In Connector

12 and 24VDC hard wire connectors with 4" wire leads.






HES 4500C 605,606,612,613,629,630 Electric Strike 4500 Series - Barzellock.com

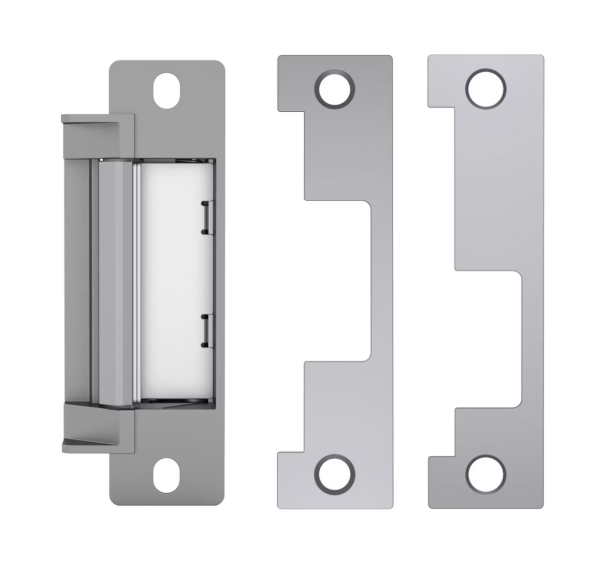

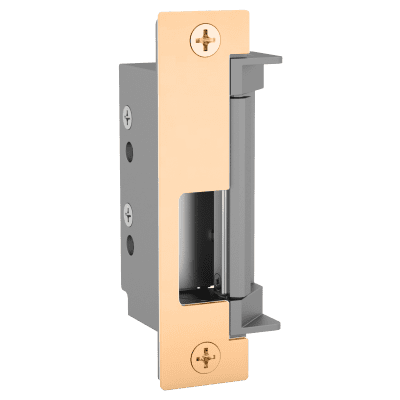

HES 4500C Electric Strike

by hes
$ 323.00

The Hes 4500C series electric strike is designed for installation in 2" UL 10C fire-rated frames with 1/2" drywall penetration. The 4500C features a low profile 1-3/8" depth, heavy-duty stainless steel construction. Its strength is derived from a unique keeper pin locking design, enabling the 4500C to exceed the ratings of the frame, door and locking hardware.

US Lock Supply Stocks The 4500c Series In Stock In All Finishes & Options Ready To Ship. Wholesale & Bulk Pricing Available.

Optional Features

  • LBM - Latchbolt monitor
  • LBSM - Latchbolt strike monitor

Finishes:

630 - Satin stainless steel

605 - Bright brass

606 - Satin brass

612 - Satin bronze

613 - Bronze toned

629 - Bright stainless steel

Each Complete Pac conveniently paris the reliabilty of an HES electric strike with the flexibility of multiple faceplates in a single simple package. The 4500C includes a 4500 strike body and two interchangeable faceplates to accommodate most cylindrical and mortise latchbolts (without deadbolts).

HES 5000 Electric Strike

HES 5000 Electric Strike

by hes
$ 105.00

HES 5000 Series Electric Strike.

US Lock Supply Stocks The HES 5000 In All Finishes & Options Ready To Ship.

Here Is An Installation Video.

Specifications

  • UL 1034 burglary-resistant listed and suitable for outdoor use
  • UL 294 (6th Edition) listed
  • ANSI/BHMA A156.31, Grade 1
  • MEA New York City accepted
  • Patent #5,934,720

HES 5000 Series Catalog

Frame application

  • Metal
  • Wood

Electrical

  • .24 Amps at 12 VDC/VAC
  • .12 Amps at 24 VDC/VAC
  • DC continuous duty/AC intermittent duty only

Standard Features

  • Tamper resistant
  • Static strength 1,500 lbs.
  • Dynamic strength 70 ft-lbs.
  • Endurance 500,000 cycles
  • Field selectable fail secure/ fail safe
  • Dual voltage 12 or 24 VDC/VAC
  • Non-handed
  • Internally mounted solenoid
  • Accommodates 1/2" - 5/8" latchbolt (5/8" with 1/8" door gap)
  • Strike body depth 1-1/16"
  • Plug-in connector
  • Trim enhancer included
  • Five year limited warranty

Optional Features

  • LBM - Latchbolt monitor
  • LBSM- Latchbolt Strike Moniter

  Finishes:

  • 630 - Satin stainless steel
  • 605 - Bright brass
  • 606 - Satin brass
  • 612 - Satin bronze
  • 613 - Bronze toned
  • 629 - Bright stainless steel
  • BLK - Black
  • Complete Pacs are only available in the 630 finish

Faceplate Options

  • 501  (4-7/8" x 1-1/4", square corners & flat faceplate) For use with cylindrical locksets in ANSI metal jambs. ANSI/BHMA Numbers: #E09321, #E09322, #E09323
  • 501A  (4-7/8" x 1-1/4", radius corners & flat faceplate) For use with cylindrical locksets. Includes universal mounting tabs. Aluminum frames. ANSI/BHMA Numbers: #E09321, #E09322, #E09323
  • 502  (7-15/16" x 1-7/16", radius corners & flat faceplate) For use with cylindrical locksets. Includes universal mounting tabs. Aluminum frames. ANSI/BHMA Numbers: #E09321, #E09322, #E09323
  • 503  (6-7/8" x 1-1/4", radius corners & flat faceplate) For use with cylindrical locksets. Includes universal mounting tabs. ANSI/BHMA Numbers: #E09321, #E09322, #E09323
  • 504  (10" x 1-3/8", radius corners & flat faceplate) For use with cylindrical locksets. Four point mounting for wood installations. ANSI/BHMA Numbers: #E09321, #E09322, #E09323
HES 5200C 630 Electric Strike

HES 5200 630 and 5200C 630 Series Electric Strike. US Lock Supply Stocks The 5200 Series Electric Strike In All Finishes & Options Ready To Ship.

5200 Catalog

Standard Features

  • Tamper resistant
  • Static strength 1,500 lbs.
  • Dynamic strength 70 ft-lbs.
  • Endurance 500,000 cycles
  • Field selectable fail secure/ fail safe
  • Dual voltage 12 or 24 VDC/VAC
  • Non-handed
  • Internally mounted solenoid
  • Accommodates 5/8" - 3/4" latchbolt (3/4" with 1/8" door gap)
  • Strike body depth 1-1/16"
  • Plug-in connector
  • Trim enhancer included
  • Five year limited warranty

Faceplate Options

  • 501  (4-7/8" x 1-1/4", square corners & flat faceplate) For use with cylindrical locksets in ANSI metal jambs. ANSI/BHMA Numbers: #E09321, #E09322, #E09323
  • 501A  (4-7/8" x 1-1/4", radius corners & flat faceplate) For use with cylindrical locksets. Includes universal mounting tabs. Aluminum frames. ANSI/BHMA Numbers: #E09321, #E09322, #E09323
  • 502  (7-15/16" x 1-7/16", radius corners & flat faceplate) For use with cylindrical locksets. Includes universal mounting tabs. Aluminum frames. ANSI/BHMA Numbers: #E09321, #E09322, #E09323
  • 503  (6-7/8" x 1-1/4", radius corners & flat faceplate) For use with cylindrical locksets. Includes universal mounting tabs. ANSI/BHMA Numbers: #E09321, #E09322, #E09323
  • 504  (10" x 1-3/8", radius corners & flat faceplate) For use with cylindrical locksets. Four point mounting for wood installations. ANSI/BHMA Numbers: #E09321, #E09322, #E09323

Optional Features

  • LBM - Latchbolt monitor
  • LBSM - Latchbolt strike monitor
Hes 7000 Series Electric Strike - Barzellock.com

Hes 7000 Series Electric Strike. US Lock Supply Stocks The 7000 Series In All Finishes & Options. Specifications

  • UL 1034, burglary-resistant listed
  • UL 294 (6th Edition) listed
  • ANSI/BHMA A156.31, Grade 1 (791 and 792 options)
  • ANSI/BHMA A156.31, Grade 2 (783S, 786S and 789S options)
  • MEA New York City accepted
  • Patent #5,484,180
Hes 7000 Series Electric Strike Catalog

Faceplate Options

  • 791  (4-7/8" x 1-1/4") For use with Cylindrical locksets up to 5/8" throw. ANSI/BHMA Numbers: #E09322, #E09323
  • 792  (7-15/16" x 1-7/16") For use with cylindrical locksets up to 5/8" throw. ANSI/BHMA Numbers: #E09322, #E09323
  • Please Contact Us For Other Faceplates

Standard Features

  • Stainless steel construction
  • Tamper resistant
  • Static strength 1,500 lbs. (791 and 792 options)
  • Dynamic strength 70 ft-lbs. (791 and 792 options)
  • Static strength 1,000 lbs. (783S, 786S and 789S options)
  • Dynamic strength 50 ft-lbs. (783S, 786S and 789S options)
  • Endurance 500,000 cycles
  • Field selectable fail secure/fail safe
  • Accommodates pre-load (fail secure only)
  • Horizontal adjustment
  • Non-handed
  • Internally mounted solenoid
  • Strike body depth 1-11/16"
  • Plug-in connector
  • Trim enhancer (791 and 792 options)
  • Pocket adapter (786S and 789S options)
  • Three year limited warranty

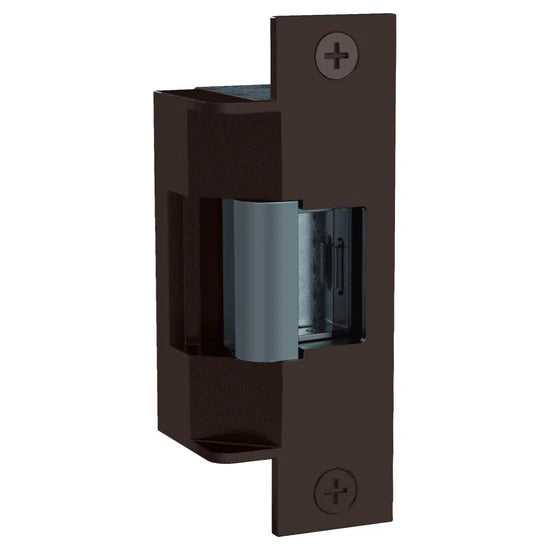

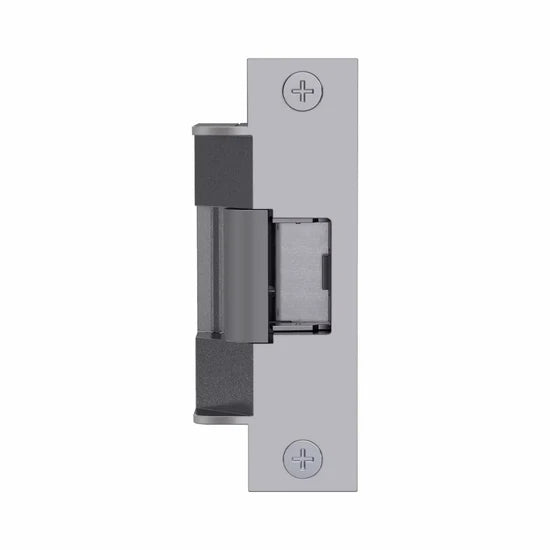

The 7501 series electric strike is ideal for fire-rated applications with pre-load conditions which may be caused by a warped or misaligned door, weather stripping, a smoke seal or any other condition that could cause door bind.  The heavy duty stainless steel construction provides the strength and durability required to accommodate fire-rated latchbolts up to 3/4" throw.

Specifications

  • UL 10C, fire-rated, 3 hour (fail secure only)
  • CAN4-S104 (ULC-S104) fire door conformant
  • UL 1034, burglary-resistant listed
  • ANSI/BHMA A156.31, Grade 1
  • NFPA-252 fire door conformant
  • ASTM-E152 fire door conformant
  • MEA New York City accepted
  • Patent #5,484,180

Frame application

  • Metal
  • Wood

Electrical

  • .45 Amps at 12 VDC continuous duty
  • .25 Amps at 24 VDC continuous duty

Standard Features

  • Stainless steel construction
  • Tamper resistant
  • Static strength 1,500 lbs.
  • Dynamic strength 70 ft-lbs.
  • Endurance 500,000 cycles
  • Field selectable fail safe/fail secure
  • Accommodates pre-load (fail secure only)
  • Keeper shims for horizontal adjustment
  • Non-handed
  • Internally mounted solenoid
  • Strike body depth 1-11/16"
  • Plug-in connector
  • Trim enhancer
  • Five year limited warranty

Optional Features

  • LBM - Latchbolt monitor
Hes 8000 & 8000C Cylindrical Lock Electric Strike

Hes 8000 & 8000C Complete Pac With The 801 & 801A Faceplates Cylindrical Lock Electric Strike. US Lock Supply Stocks The 8000 Series In All Finishes & Options.

Specifications

  • UL 1034 burglary-resistant listed and suitable for outdoor use
  • UL 294 (6th Edition) listed
  • ANSI/BHMA A156.31, Grade 1
  • Patent #5,934,720; 8,146,966; 8,157,302

Hes 8300 & 8300C Catalog

 Frame application-Metal, Wood

Electrical

  • .24 Amps at 12 VDC/VAC
  • .12 Amps at 24 VDC/VAC
  • DC continuous duty/AC intermittent duty only

 Standard Features

  • No cutting on frame required
  • Vertical adjustability to accommodate door sag and misalignment
  • Tamper resistant
  • Static strength 1,500 lbs.
  • Dynamic strength 70 ft-lbs.
  • Endurance 500,000 cycles
  • Field selectable fail safe/fail secure
  • Dual voltage 12 or 24 VDC/VAC
  • Non-handed
  • Internally mounted solenoid
  • Accommodates 1/2"-5/8" cylindrical latchbolt (5/8" with 1/8" door gap)
  • Strike body depth 1-1/16"
  • Strike body width decreased to 1-7/16" to increase frame compatibility
  • Five year limited warranty

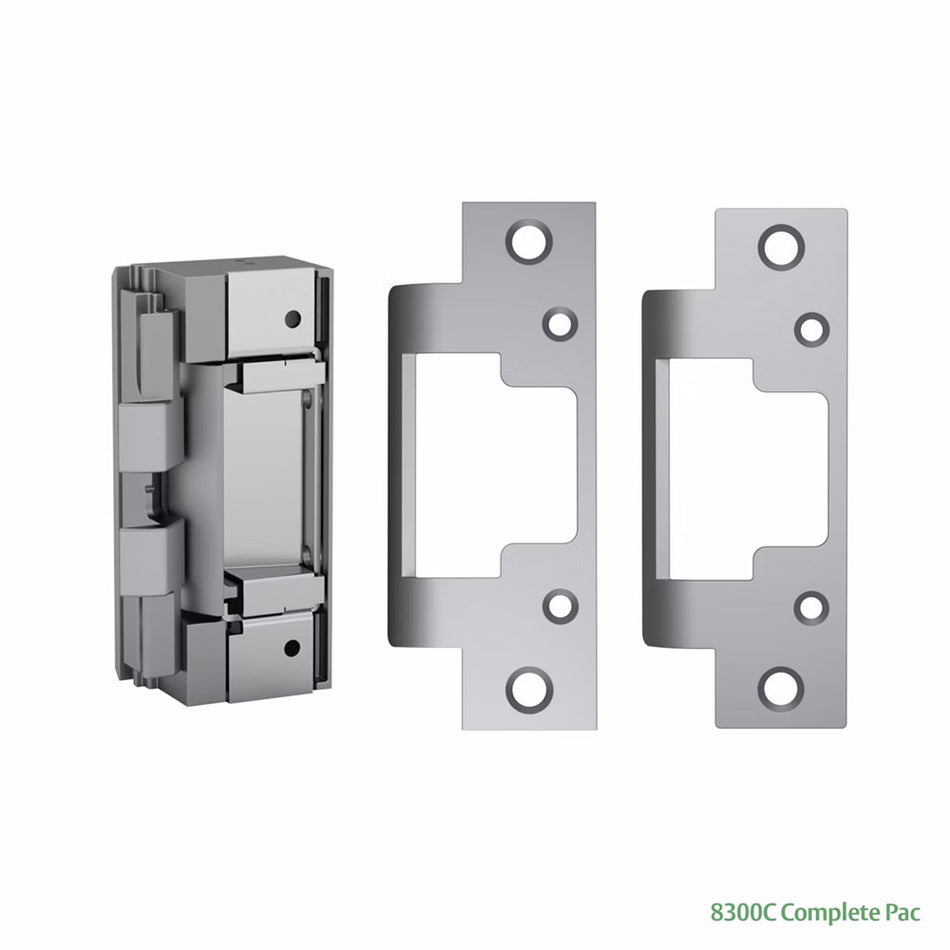

Hes 8300C Complete Pac Comes With The 801 & 801A Faceplate

Faceplate Options For 8300

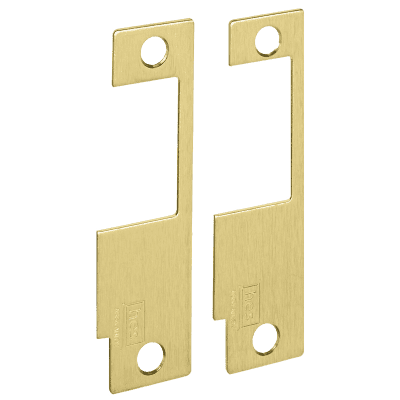

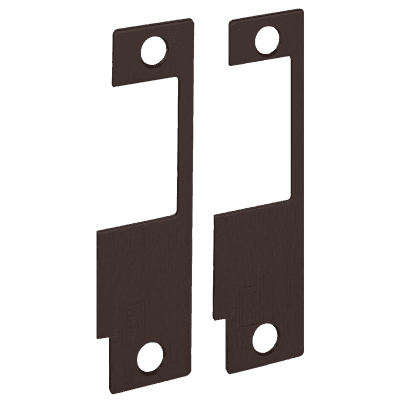

  • 801  (4-7/8" x 1-1/4") For use with cylindrical locksets in ANSI metal jambs. For use with latchbolts up to 5/8" throw. ANSI/BHMA Numbers: #E05031, #E09321, #E09322, #E09323
  • 801A (4-7/8" x 1-1/4", radius corners & flat faceplate) For use with cylindrical locksets. For use with latchbolts up to 5/8" throw. Includes universal mounting tabs. Aluminum frames. ANSI/BHMA Numbers: #E05031, #E09321, #E09322, #E09323
  • 801E (4-7/8" x 1-1/4", Extended lip) For use with extended lip for "knock-down" style frame installations. For use with cylindrical latchbolts up to 5/8" throw. ANSI/BHMA Numbers: #E05031, #E09321, #E09322, #E09323
  • 802  (7-15/16" x 1-7/16") For use with cylindrical locksets. For use with latchbolts up to 5/8" throw. Includes universal mounting tabs. Aluminum frames. ANSI/BHMA Numbers: #E05031, #E09321, #E09322, #E09323
  • 803  (6-7/8" x 1-1/4", radius corners & flat faceplate) For use with cylindrical locksets. For use with latchbolts up to 5/8" throw. Includes universal mounting tabs. Aluminum applications. ANSI/BHMA Numbers: #E05031, #E09321, #E09322, #E09323
  • 805  (9" x 1-3/8", radius corners & flat faceplate) For use with cylindrical locksets. For use with latchbolts up to 5/8" throw. Four point mounting for wood installations. ANSI/BHMA Numbers: #E05031, #E09321, #E09322, #E09323

Optional Features

  • LBM - Latchbolt monitor

Hes 8300C Fire Rated Concealed for Cylindrical Locks Electric Strike . US Lock Supply Stocks The hes 8300C In All Options & Finishes Ready To Ship.

Hes 8300C Catalog

The 8300C is designed for easy installation with no cutting on the frame required.  The 8300C has a concealed design, is fire-rated and works with cylindrical lockets with a 5/8" throw latchbolt.

Each Complete Pac conveniently pairs the reliability of HES electric strike with the flexibility of multiple faceplates in a single simple package. The 8300C includes a 8300 strike body, the 801 faceplate for cylindrical locksets in ANSI metal jambs and the 801A faceplate for cylindrical locksets or spring latches in aluminum frames.

    Specifications

    • UL 10C, fire-rated, 3 hour (fail secure only)
    • UL 294 (6th Edition) listed
    • CAN4-S104 (ULC-S104) fire door conformant
    • NFPA 80-07 compliant
    • UL 1034 burglary-resistant listed and suitable for outdoor use
    • ANSI/BHMA A156.31, Grade 1
    • NFPA-252 fire door conformant
    • ASTM-E152 fire door conformant
    • UBC-7-2-94, Uniform Building Code
    • Patent #5,934,720; 8,146,966; 8,157,302

     Frame application:-Metal, Wood

    Finishes:

    630-Satin stainless steel

    Standard Features

    • Falls within the guidelines for retrofit into fire-rated frames
    • No cutting on frame required
    • Vertical adjustability to accommodate door sag and misalignment
    • Tamper resistant
    • Static strength 1,500 lbs.
    • Dynamic strength 70 ft-lbs.
    • Endurance 500,000 cycles
    • Field selectable fail safe/fail secure
    • Non-handed
    • Accommodates 1/2"-5/8" cylindrical latchbolt (5/8" with 1/8" door gap)
    • Strike body depth 1-1/16"
    • Plug-in connector
    • Five year limited warranty

    Optional Features

    • LBM - Latchbolt monitor Avail.

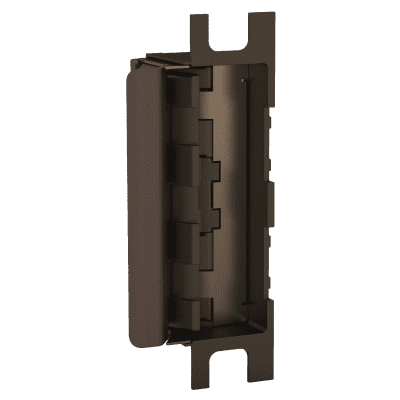

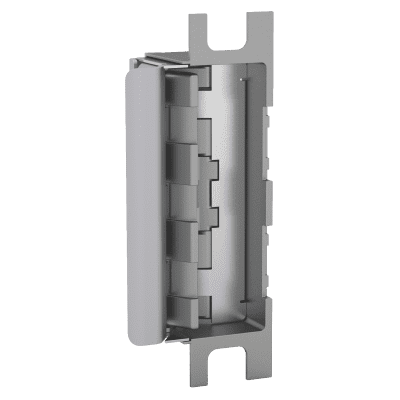

    The 8500 series is a fire rated, compact, high performance electric strike featuring a unique concealed design for use with mortise locksets without a deadbolt. Designed for fast, convenient installation, the 8500 installs with little or no modification to the frame. Simply remove the existing strike plate, remove the dust box and install. Its strength is derived from a unique keeper pin locking design, enabling the 8500 to exceed Grade-1 ratings. This unique electric strike complies with NFPA 80-07 guidelines for retrofit into fire-rated frames. The 8500 accommodates mortise latchbolts up to 3/4" throw.

    Specifications

    • UL 10C-fire-rated, 3 hour (fail secure)
    • CAN4-S104(ULC-S104) fire door conformant
    • NFPA 80-07 Compliant
    • UL 1034 burglary-resistant listed and suitable for outdoor use
    • ANSI/BHMA A156.31, Grade 1
    • NFPA -252 fire door conformant
    • ASTM-E152 fire door conformant
    • Patents Pending

    Frame application

    • Metal
    • Wood

    Electrical

    • .24 Amps @ 12VDC
    • .12 Amps @ 24VDC
    • DC continuous duty/AC intermittent
      duty only

     Standard Features

    • No cutting of the face of the frame
    • Stainless steel construction
    • Tamper resistant
    • Static strength 1,500 lbs
    • Dynamic strength 70 ft-lbs
    • Endurance 500,000 cycles
    • Field selectable fail safe / fail secure
    • Dual voltage 12 or 24 VDC/VAC
    • Non-handed
    • Metal or Wood Frame
    • Internally mounted solenoid
    • Accommodates 3/4” mortise latchbolts
    • Strike body depth 1-5/16”
    • Plug-in connector
    • Full pocket shims for horizontal adjustment
    • Five year limited warranty

    Optional Features

    • 4 faceplate options
    • Three deadlatch platforms to work with all major
      mortise locksets
    • LBM - Latchbolt Monitor
    • LBSM - Latchbolt Strike Monitor

    The 9400 series is a slim-line, surface mounted electric strike designed to accommodate rim exit devices with a 1/2" Pullman latch. All components are completely encased within its 1/2" thick stainless steel housing, so no cutting on the frame is required for installation. Simply place the electric strike on the surface of the frame, align it with the exit latchbolt, and install.


    The 9400 ships with a 1/8" spacer plate to accommodate varying door gaps. The 9400 exceeds Grade-1 standards for strength and performance. It is field selectable for fail secure and fail safe operation, and for 12 or 24VDC. The 9400 features a smooth cover to conceal the mounting screws and provide a sleek surface for superior looks.

    Specifications

    • UL 1034 burglary-resistant listed and suitable for outdoor use
    • ANSI/BHMA, A156.31 Grade 1 (#E09731, #E09732, #E09373)
    • RoHS Compliant
    • Patent 6,390,520;8,454,063
    • Patent Pending

    Frame application

    • Metal
    • Wood

    Electrical

    • .45 Amps at 12VDC continuous duty
    • .25 Amps at 24VDC continuous duty



    Standard Features

    • Installs in metal and wood frames
    • Completely surface mounted
    • Decorative cover for sleek new look
    • Stainless steel construction
    • Tamper resistant
    • Static strength 1,500 lbs.
    • Dynamic strength 70 ft-lbs.
    • Endurance 500,000 cycles
    • 1/8" spacer plate included
    • Field selectable fail safe/fail secure
    • Dual voltage 12 or 24 VDC
    • Horizontal adjustment
    • Non-handed
    • Internally mounted solenoid
    • Accommodates up to 1/2" Pullman latch
    • Five year limited warranty

    Optional Features

    • LBM - Latchbolt monitor
    • LBSM - Latchbolt strike monitor

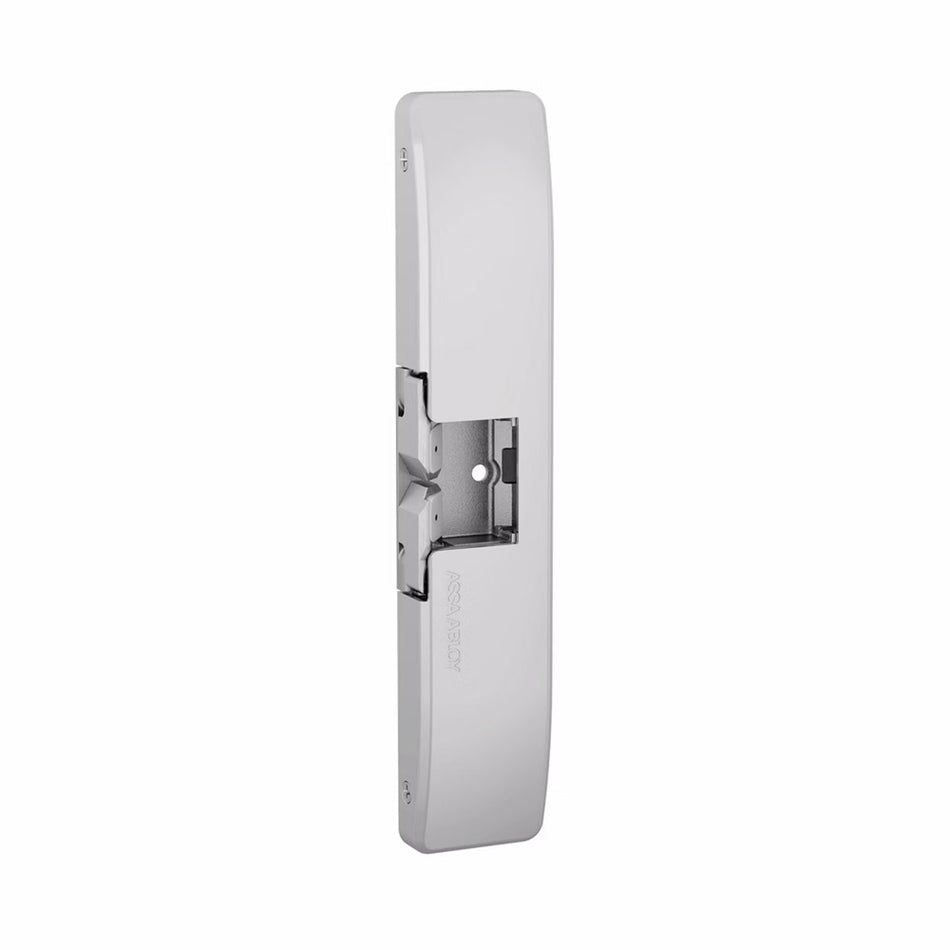

    The 9500 Series is a 3 hour fire rated, surface mounted electric strike designed to accommodate rim exit devices with a 3/4" Pullman latch. All components are completely encased within its 3/4" thick stainless steel housing, so no cutting on the frame is required for installation. Simply place the electric strike on the surface of the frame, align it with the exit latchbolt and install. Adjustments have never been easier as the base is now separate from the cover. The 9500 exceeds grade-1 standards for strength and performance. It is field selectable for fail secure and fail safe operation, and for 12 or 24VDC. This unique electric strike complies with NFPA 80-07 guidelines for retrofit into fire-rated frames.

    Specifications

    • UL 10C fire-rated, 3 hour (fail secure)
    • CAN4-S104 (ULC-S104) fire door conformant
    • WHI fire door listed
    • UL 1034 burglary-resistant listed and suitable for outdoor use
    • UL 294 (6th Edition) Listed
    • ANSI/BHMA A156.31, Grade 1 (#E09371, #E09372, #E09373)
    • NFPA-252 fire door conformant
    • ASTM-E152 fire door conformant
    • California Fire Marshall listed
    • NFPA 80-07 compliant
    • RoHS compliant
    • Patent #6,390,520
    • Patent pending

    Frame application

    • Metal
    • Wood

    Electrical

    • .45 Amps @ 12 VDC continuous duty
    • .25 Amps @ 24 VDC continuous duty
    • PoE friendly

    Standard Features

    • Installs in metal or wood frames
    • Separate base and decorative cover for easy adjustments
    • Stainless steel construction
    • Tamper resistant
    • Static strength 1,500 lbs.
    • Dynamic strength 70 ft-lbs.
    • Endurance 1,000,000 cycles
    • Field selectable fail safe/fail secure
    • Dual voltage 12 or 24 VDC
    • Horizontal adjustability
    • Non-handed
    • Internally mounted solenoid
    • Accommodates up to 3/4" Pullman latch
    • Five year limited warranty



    Optional Features

    • LBM - Latchbolt monitor
    • LBSM - Latchbolt strike monitor
    HES 9600 Electric Strike - Barzellock.com

    HES 9600 Electric Strike

    by HES
    $ 259.95

    In Stock Ready To Ship Today.

    US Lock Supply Stocks The Hes 9600 Windstorm Rated Electric Strike In Stock in All Finishes Ready To Ship.

    Hes 9600 Product Catalog

    Hes 9600 Installation Instructions

     Hes 4500C Strike Hes 5000 Electric Strike

    hes 9600 Series is a windstorm rated, surface mounted electric strike designed to accommodate rim exit devices with a 3/4" throw latch. All components are completely encased within its 3/4" thick stainless steel housing, so no cutting on the frame is required for installation. Simply place the electric strike on the surface of the frame, align it with the exit latchbolt and install. It is field selectable for fail secure and fail safe operation, and for 12 or 24VDC.

    The 9600 is the only surface mounted electric strike designed with the strength and durability required to exceed the severe forces of ANSI Windstorm testing.

    Specifications

    • ANSI 250.13-2003 Severe Windstorm listed
    • Florida Building Code Approved (FL#14307)
    • UL 1034 burglary-resistant listed and suitable for outdoor use
    • UL 294 (6th Edition) listed
    • ANSI/BHMA, A156.31 Grade 1 (#E09731, #E09732, #E09373)
    • RoHS compliant
    • Patent # 6,390,520

    Finishes:

    630-Satin Stainless Steel

    606-Satin Brass(+$40)

    612-Satin Bronze(+$40)

    613-Oil Rubbed Bronze(+$40)

    605-Bright Brass(+50)

    629-Bright Stainless Steel(+$50)

    Frame application

    • Metal
    • Wood

    Electrical

    • .45 Amps at 12 VDC continuous duty
    • .25 Amps at 24 VDC continuous duty
    • PoE friendly



    Standard Features

    • Installs in metal or wood frames
    • Separate base and cover for easy adjustments
    • Stainless steel construction
    • Tamper resistant
    • Static strength 2,000 lbs.
    • Dynamic strength 120 ft-lbs.
    • Endurance 1,000,000 cycles
    • Field selectable fail safe/fail secure
    • Dual voltage 12 or 24 VDC
    • Horizontal adjustment
    • Non-handed
    • Internally mounted solenoid
    • Accommodates up to 3/4" Pullman latch
    • Five-year limited warranty

    Optional Features

    • LBM - Latchbolt monitor
    • LBSM - Latchbolt strike monitor



    Model Numbers: 9600-630, 9600-629, 9600-612, 9600-613, 9600-606, 9600-605
    HES SMB - Surface Mounting Box - Barzellock.com

    Surface Mount Box, For Double Doors with no Mullion.

    Installs on the inactive door of a pair of doors to accommodate rim-exit devices.  To be used on wood or metal frames with the 310-4, 7000 (783S and 789S), 9500 and 9600 series (black finish only).

    Grade 1.

    This SBM is compatible with:
