HES KS210 Series Server Cabinet Lock

SKU: KS-210-S-IPS-B
$ 412.50
Sale $ 750.00 $ 412.50

Designed to integrate seamlessly with existing access control systems and protect critical assets from intrusion and expensive downtime.

Designed to install easily on most swing handle server cabinet doors, the HES KS200 Server Cabinet Lock comes standard with lock monitoring and utilizes an SFIC (Small Format Interchangeable Core) mechanical key override. An additional optional extended DPS monitoring sensor can be connected to ensure that the cabinet is closed, locked and secure. The hard powered HES KS200 features HID multiCLASS SE® contactless card technology.

Product Features

  • Non-handed
  • Hard Wired KS200 (Wiegand) or KS210 (RS-485 OSDP) Communication
  • Integrated HID Mobile Access Enabled multiCLASS SE RFID Card Reader with Bluetooth Option (Bluetooth Available for KS210 Models only)
  • Integrated Locked State and (Optional) Door Status Monitoring
  • KS210 multi-drop functionality with Software House C-CURE and Genetec
  • Cam Activated
  • Mechanical 6 or 7-pin SFIC Key Override (Includes compatibility with MEDECO XT Intelligent Keys)
  • SecuriCare three-year, no-fault, no questions asked warranty
Card Technology
  • Communication Technology : Wired - Wiegand|Wired – OSDP
  • Card Technology [125 kHz] : HID Prox®|AWID Prox|ioProx|EM4102|EM4450 CSN
  • Card Technology [13.56 MHz] : HID iCLASS®|HID iCLASS SE® (SIO®-enabled)|HID iCLASS® Seos®|ISO 14443b UID|MIFARE CLASSIC|FeliCa® (IDm)|DESFire® EV1|DESFire® EV2 (legacy mode)

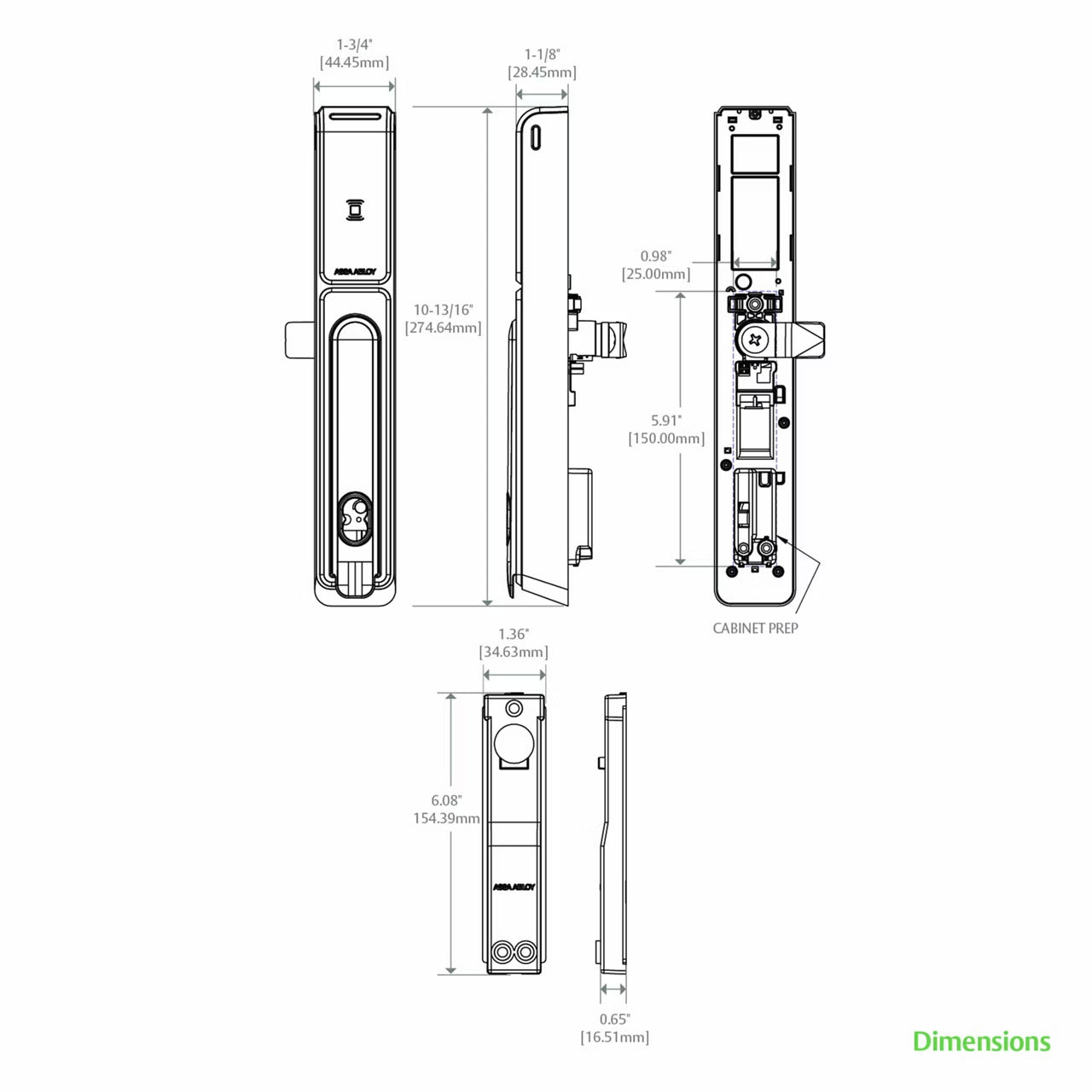

  • Card Reader Depth (in) : 1-3/25"
  • Card Reader Height (in) : 10-81/100"
  • Card Reader Width (in) : 1-3/4"
Electrical
  • Battery Backup : No
  • Input Voltage : 12/24 Dual Voltage
  • Monitoring Options : Locked State Monitoring|DPS Monitoring
  • Monitoring Installation : Factory Configured
  • Monitoring Type : Switch|DPS
  • Power Source : Hardwired|Power over Ethernet (POE)
  • Peak Current 12v DC (mA) : 130
Environmental
  • Maximum Operating Temperature (° F) : 122
  • Minimum Operating Temperature (° F) : 32
Certifications & Listings
  • Fail Safe | Fail Secure : Fail Secure
  • Certified : Yes
Application
  • Door Material : Metal
  • Door Type : Swinging
  • Installation Point : Front, Back
Strength & Durability
  • Preload Capable : No
  • Static Strength (lbs) : 350
  • Tamper Resistant : Yes
General
  • Handing : Non-handed
  • Lock Type : Cabinet Lock
  • Credential Type : Card
  • Knob Type : Swing Handle
  • LED : Red Amber, Green Amber
  • Override Type : SFIC
