Hes 8300C Fire Rated Concealed for Cylindrical Locks Electric Strike 630

by hes
$ 310.00

Hes 8300C Fire Rated Concealed for Cylindrical Locks Electric Strike . US Lock Supply Stocks The hes 8300C In All Options & Finishes Ready To Ship.

Hes 8300C Catalog

The 8300C is designed for easy installation with no cutting on the frame required.  The 8300C has a concealed design, is fire-rated and works with cylindrical lockets with a 5/8" throw latchbolt.

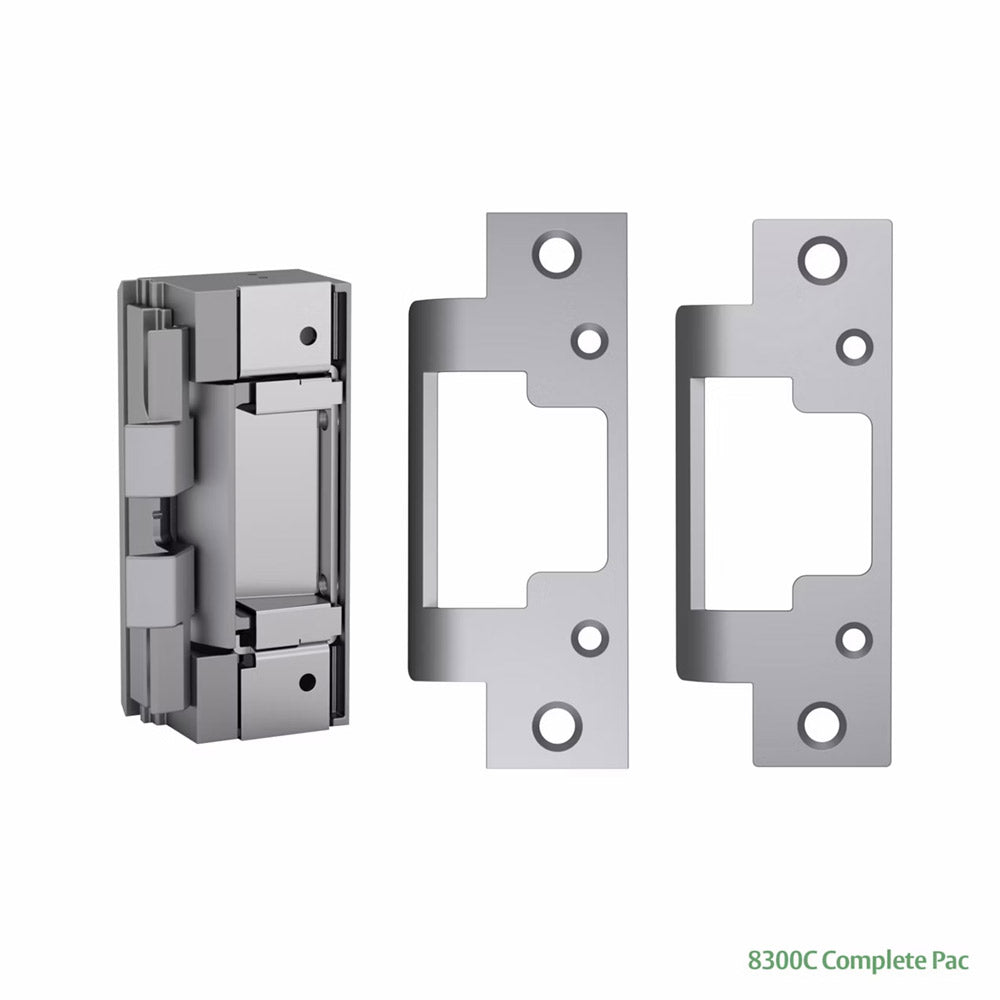

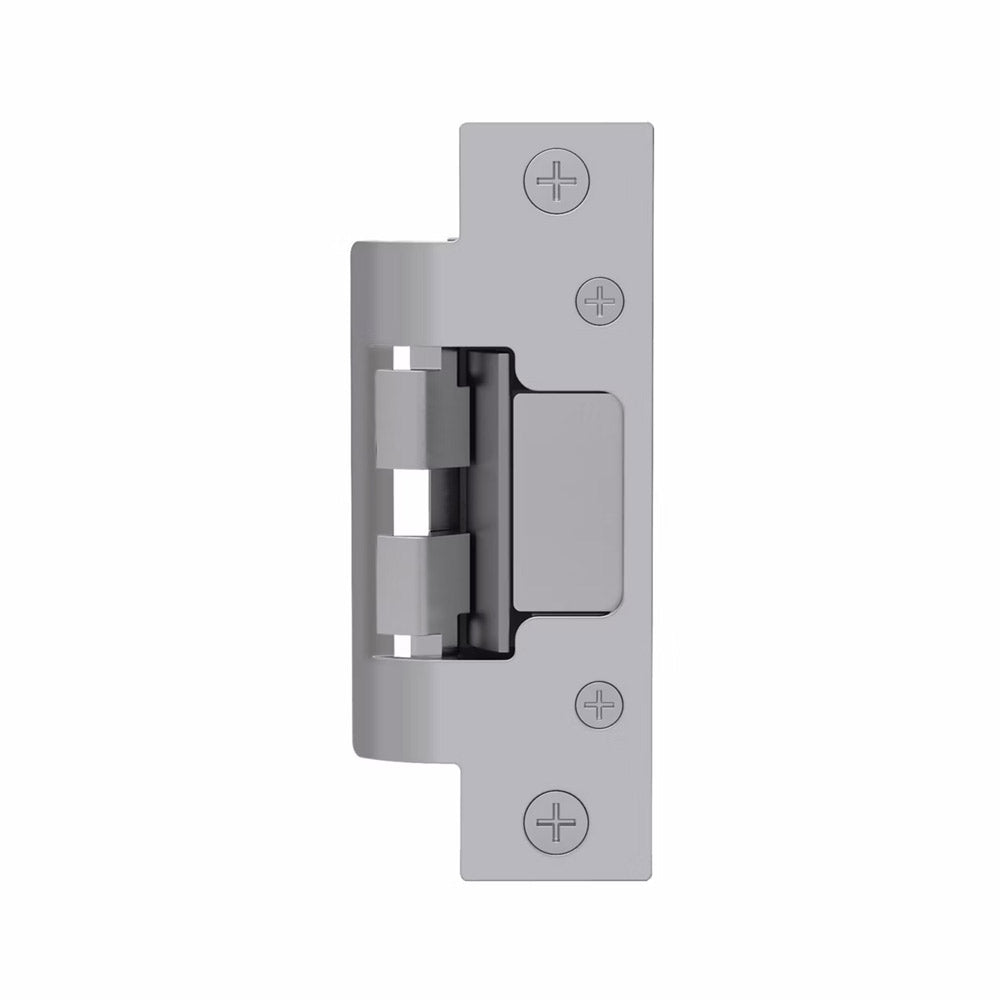

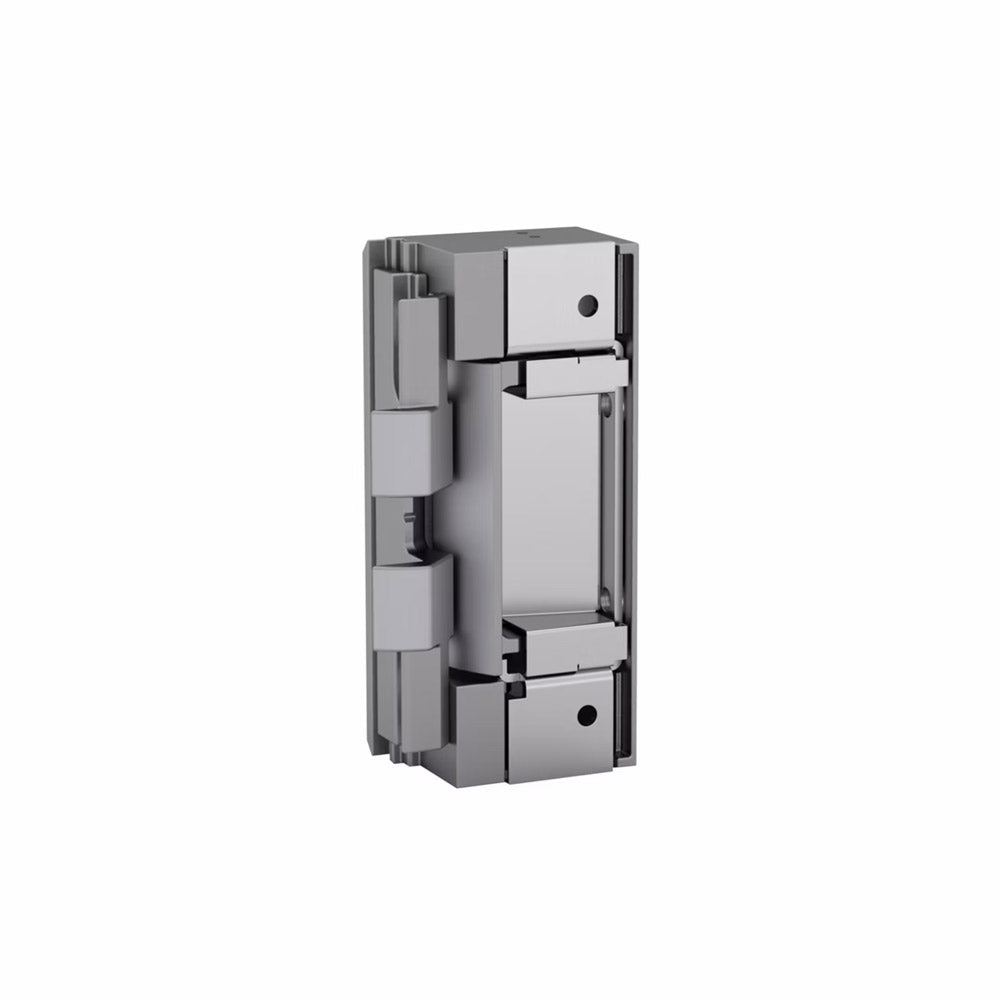

Each Complete Pac conveniently pairs the reliability of HES electric strike with the flexibility of multiple faceplates in a single simple package. The 8300C includes a 8300 strike body, the 801 faceplate for cylindrical locksets in ANSI metal jambs and the 801A faceplate for cylindrical locksets or spring latches in aluminum frames.

    Specifications

    • UL 10C, fire-rated, 3 hour (fail secure only)
    • UL 294 (6th Edition) listed
    • CAN4-S104 (ULC-S104) fire door conformant
    • NFPA 80-07 compliant
    • UL 1034 burglary-resistant listed and suitable for outdoor use
    • ANSI/BHMA A156.31, Grade 1
    • NFPA-252 fire door conformant
    • ASTM-E152 fire door conformant
    • UBC-7-2-94, Uniform Building Code
    • Patent #5,934,720; 8,146,966; 8,157,302

     Frame application:-Metal, Wood

    Finishes:

    630-Satin stainless steel

    Standard Features

    • Falls within the guidelines for retrofit into fire-rated frames
    • No cutting on frame required
    • Vertical adjustability to accommodate door sag and misalignment
    • Tamper resistant
    • Static strength 1,500 lbs.
    • Dynamic strength 70 ft-lbs.
    • Endurance 500,000 cycles
    • Field selectable fail safe/fail secure
    • Non-handed
    • Accommodates 1/2"-5/8" cylindrical latchbolt (5/8" with 1/8" door gap)

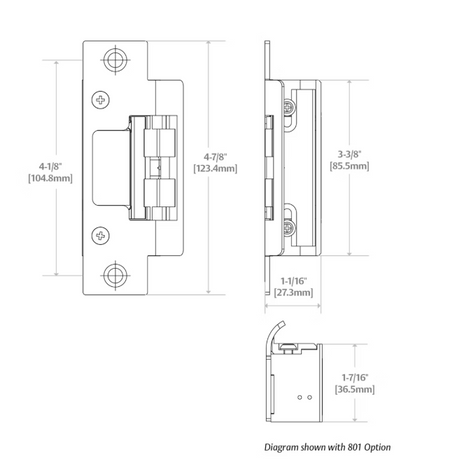

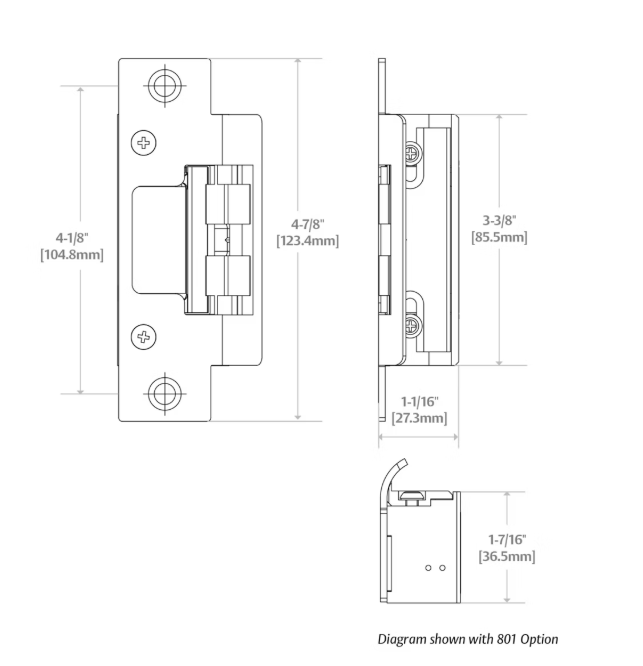

    • Strike body depth 1-1/16"
    • Plug-in connector
    • Five year limited warranty

    Optional Features

    • LBM - Latchbolt monitor Avail.
