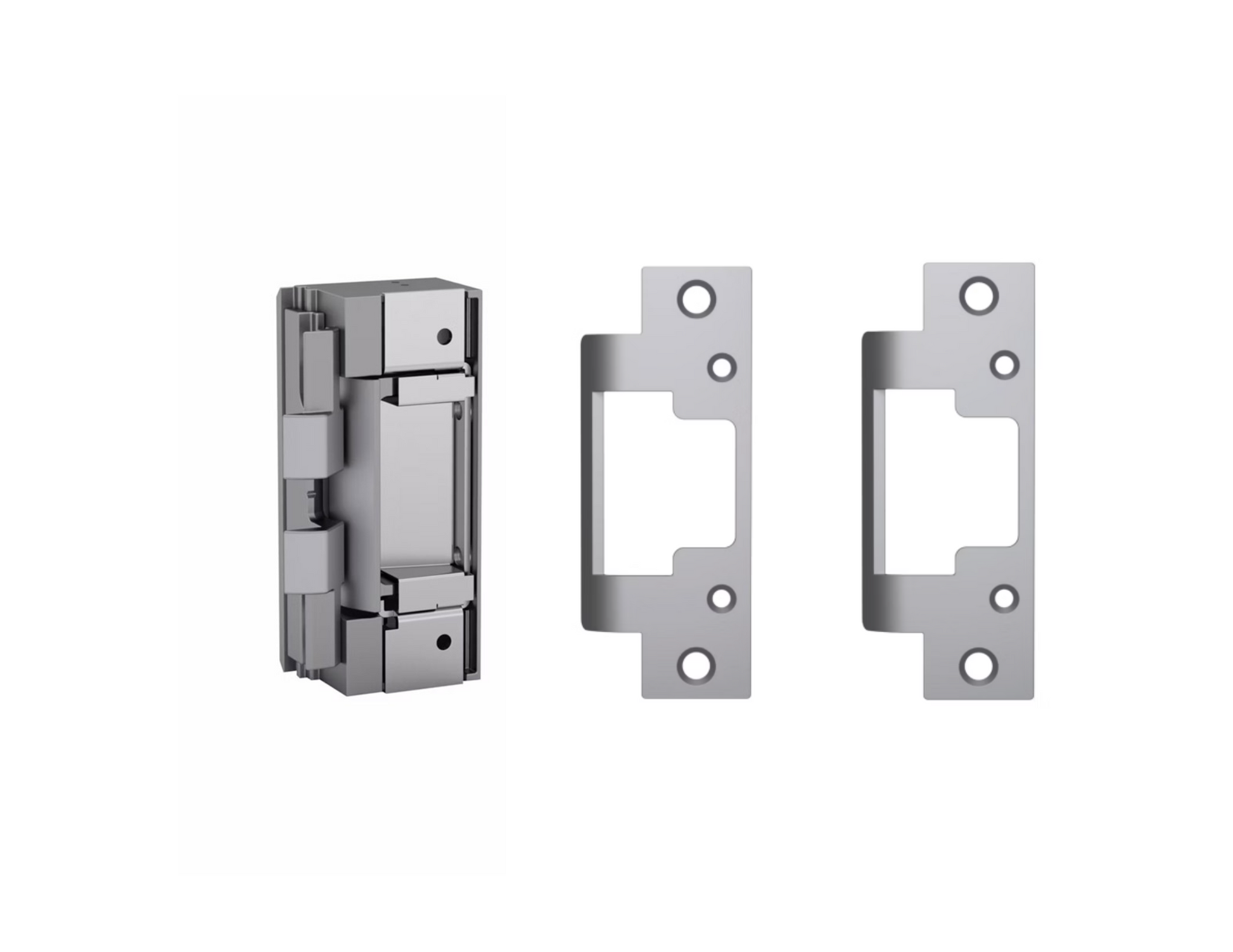

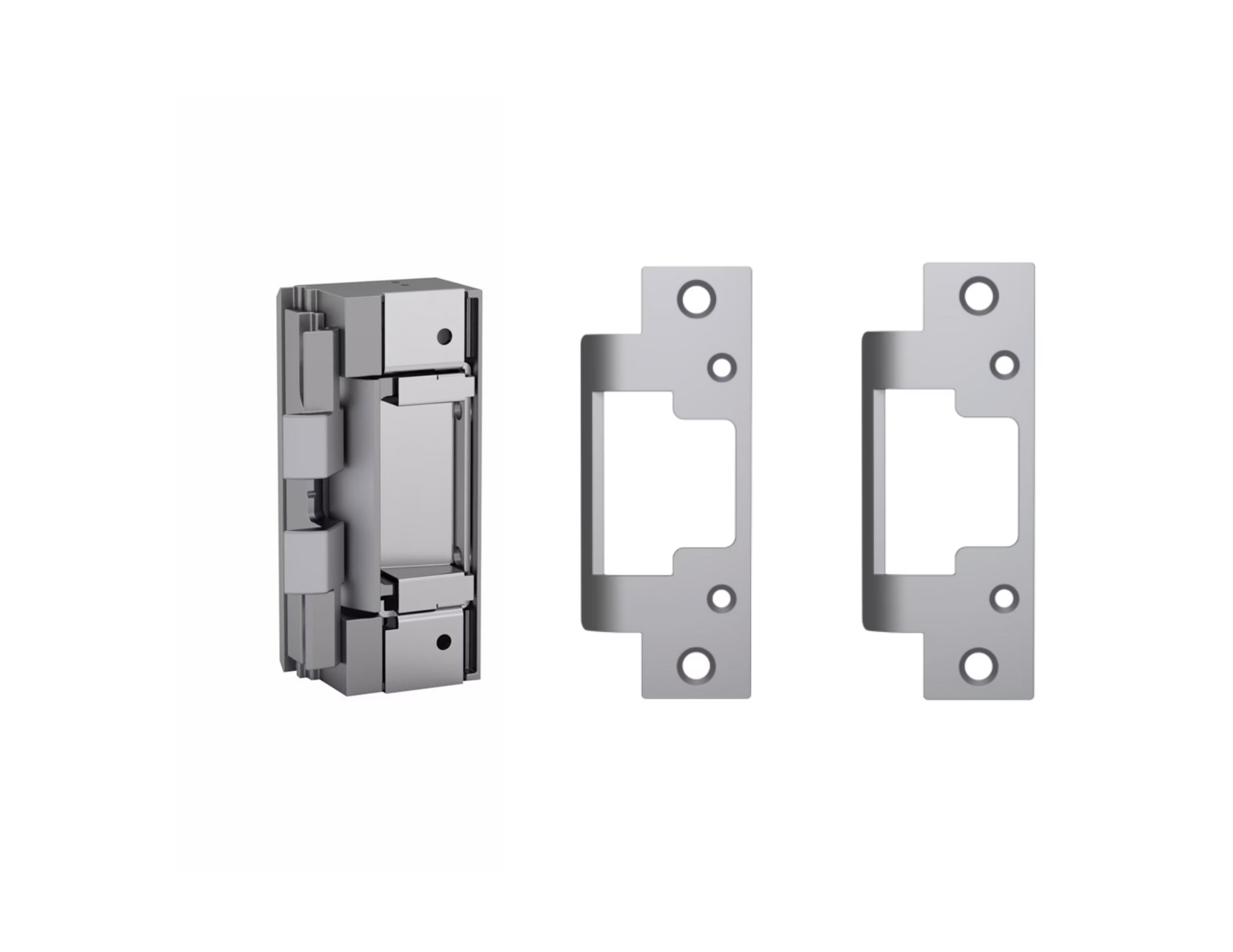

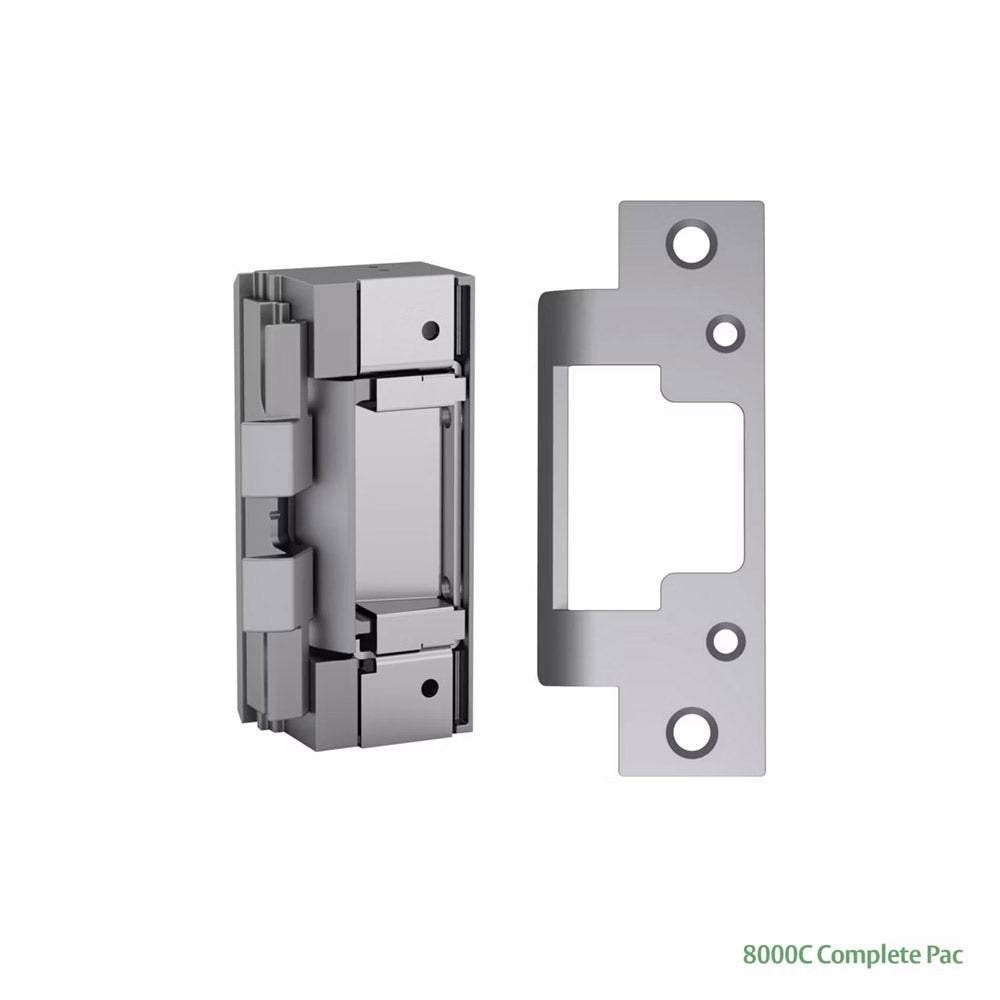

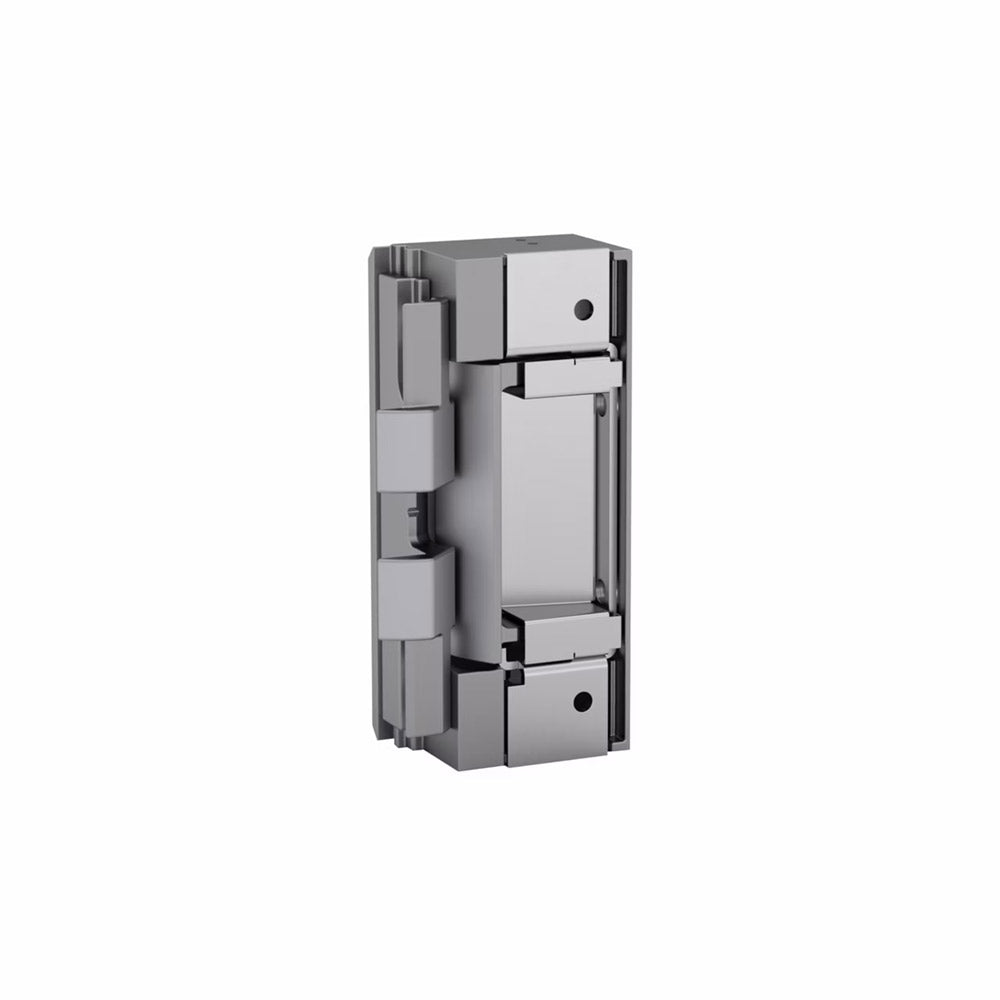

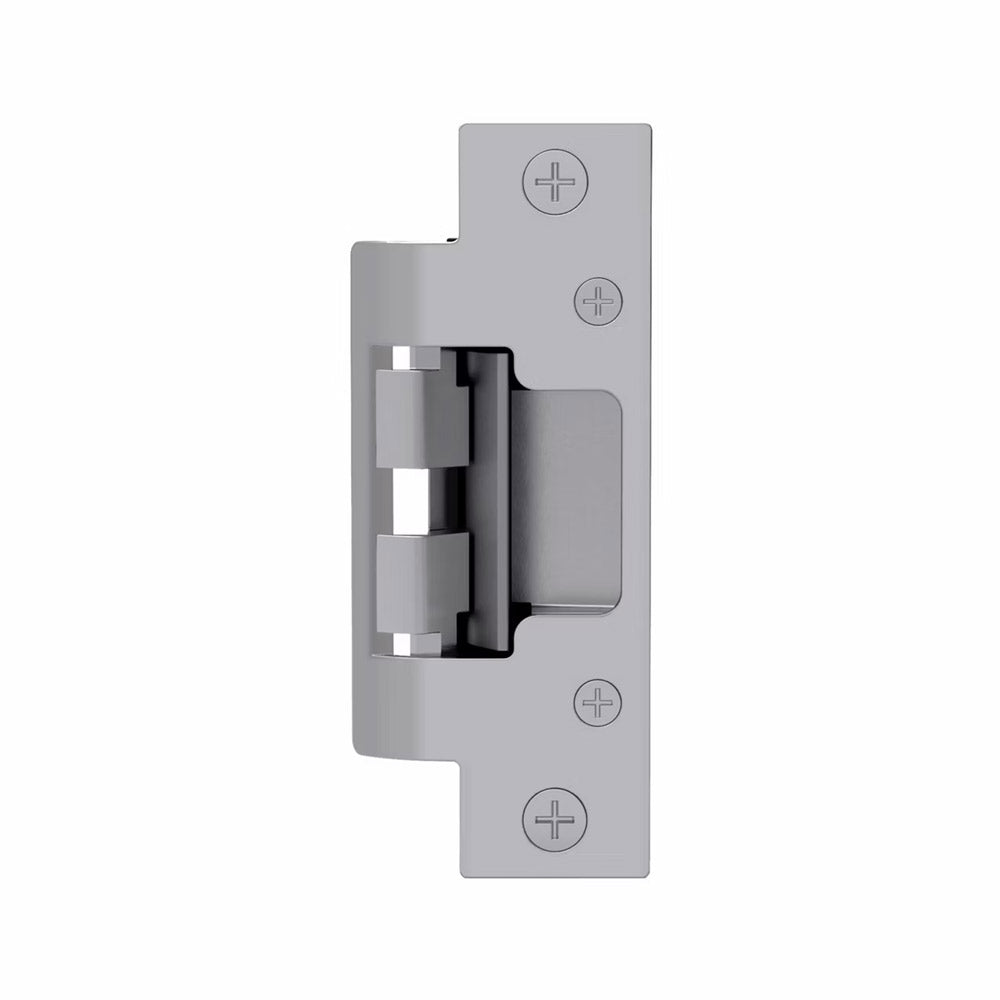

HES 8000 Series Electric Strike

SKU: 8000
$ 133.65

The compact, high-performance electric strike featuring a unique concealed design for use with cylindrical locksets.

Product Features

  • No cutting on frame required
  • Vertical adjustability to accommodate door sag and misalignment
  • Tamper resistant
  • Static strength 1,500 lbs
  • Dynamic strength 70 ft-lbs
  • Endurance 1,000,000 cycles
  • Field selectable fail secure/fail safe
  • Non-handed
  • Internally mounted solenoid
  • Accommodates 1/2" – 5/8" cylindrical latchbolt (5/8" with 1/8" door gap)
  • Strike body depth 1-1/16"
  • Strike body width decreased to 1-7/16" to increase frame compatibility
  • Plug-in Connector
Application
  • Adjustability : Vertical
  • Surface Mounting : No cutting required
  • Frame Material : Metal|Wood
  • Shim Type : NA
  • Latchbolt Accommodation : 1/2" - 5/8"
Electrical
  • Voltage : 12/24
  • Monitoring Installation : Factory Configured
  • Monitoring Options : Latchbolt Monitoring
Strength & Durability
  • Endurance (cycles) : 1,000,000
  • Dynamic Strength (ft-lbs) : 70
  • Tamper Resistant : Yes
  • Fail Safe | Fail Secure : Field selectable fail safe/fail secure
  • Grade : Grade 1
General Specifications
  • Warranty : SecuriCare five-year, no fault, no questions asked warranty
  • Lock Type : Cylindrical Lock
Weights & Dimensions
  • Strike Body Depth (in) : 1-1/16"
  • Strike Body Height (in) : 4-7/8"
Certifications
  • ANSI/BHMA A156.31, Grade 1
  • RoHS Compliant
  • UL 1034 burglary-resistant listed
  • UL294 Listed
