The compact, high performance electric strike designed for fire-rated openings with cylindrical locksets where there is limited space behind the jamb.

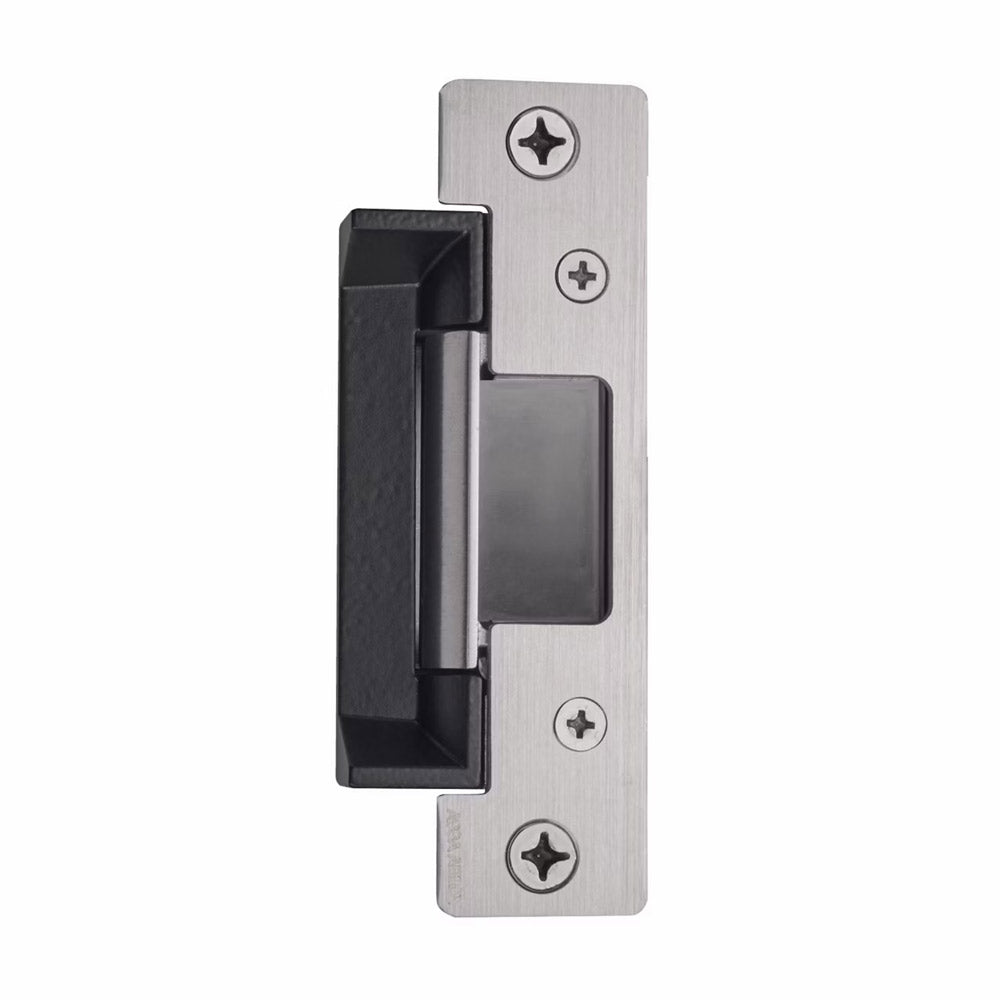

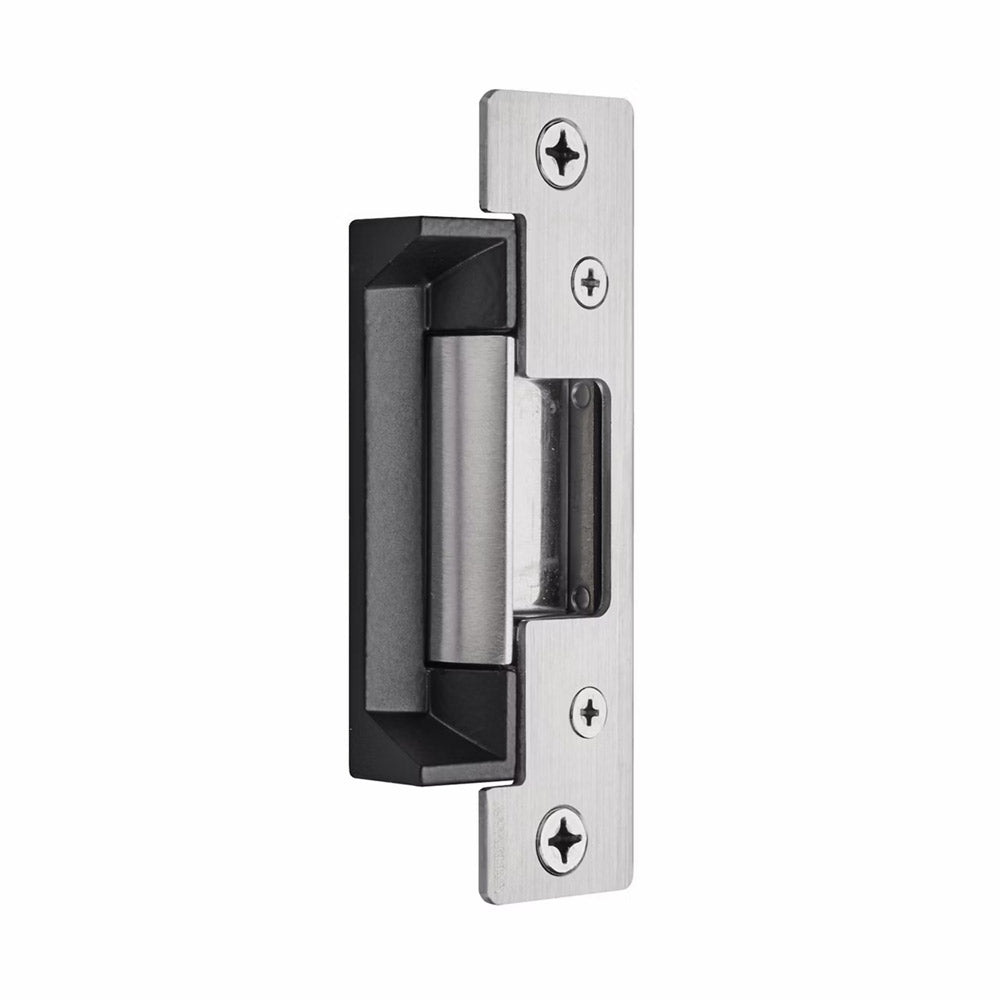

The HES 5300 Series Electric Strike is a fire-rated compact, high performance electric strike designed for low profile openings where there is limited space behind the jamb. Its strength is derived from a unique keeper pin locking design, enabling the 5300 to exceed the ratings of the frame, door and locking hardware. This field selectable fail safe/fail secure unit is easy to install and accommodates latchbolts up to 5/8" throw.

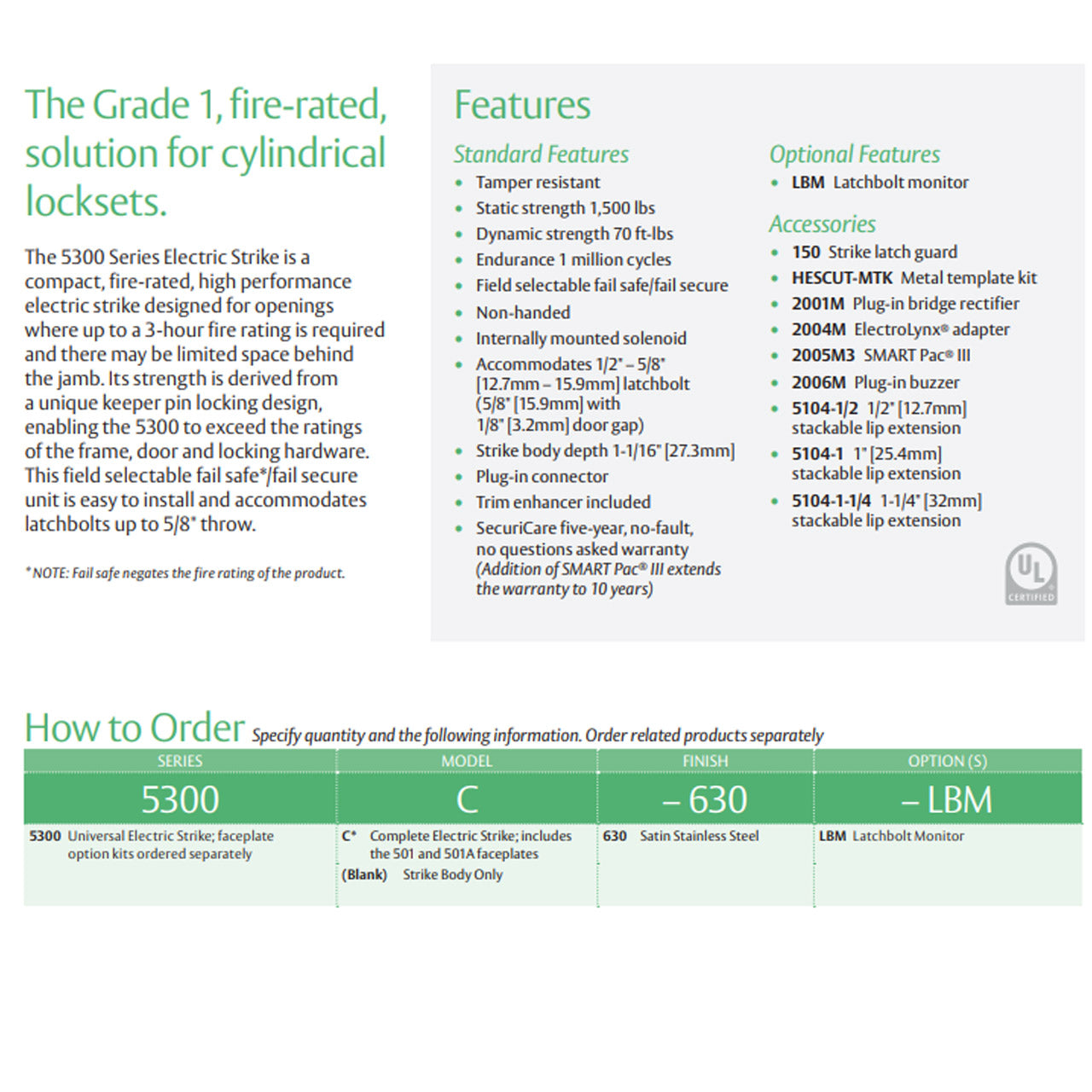

Product Features
- Tamper resistant
- Static strength 1,500 lbs
- Dynamic strength 70 ft-lbs.
- Endurance 1,000,000 cycles
- Field selectable fail secure/ fail safe
- Non-handed
- Internally mounted solenoid
- Accommodates 1/2" - 5/8" latchbolt (5/8" with 1/8" door gap)
- Strike body depth 1-1/16"
- Plug-in connector

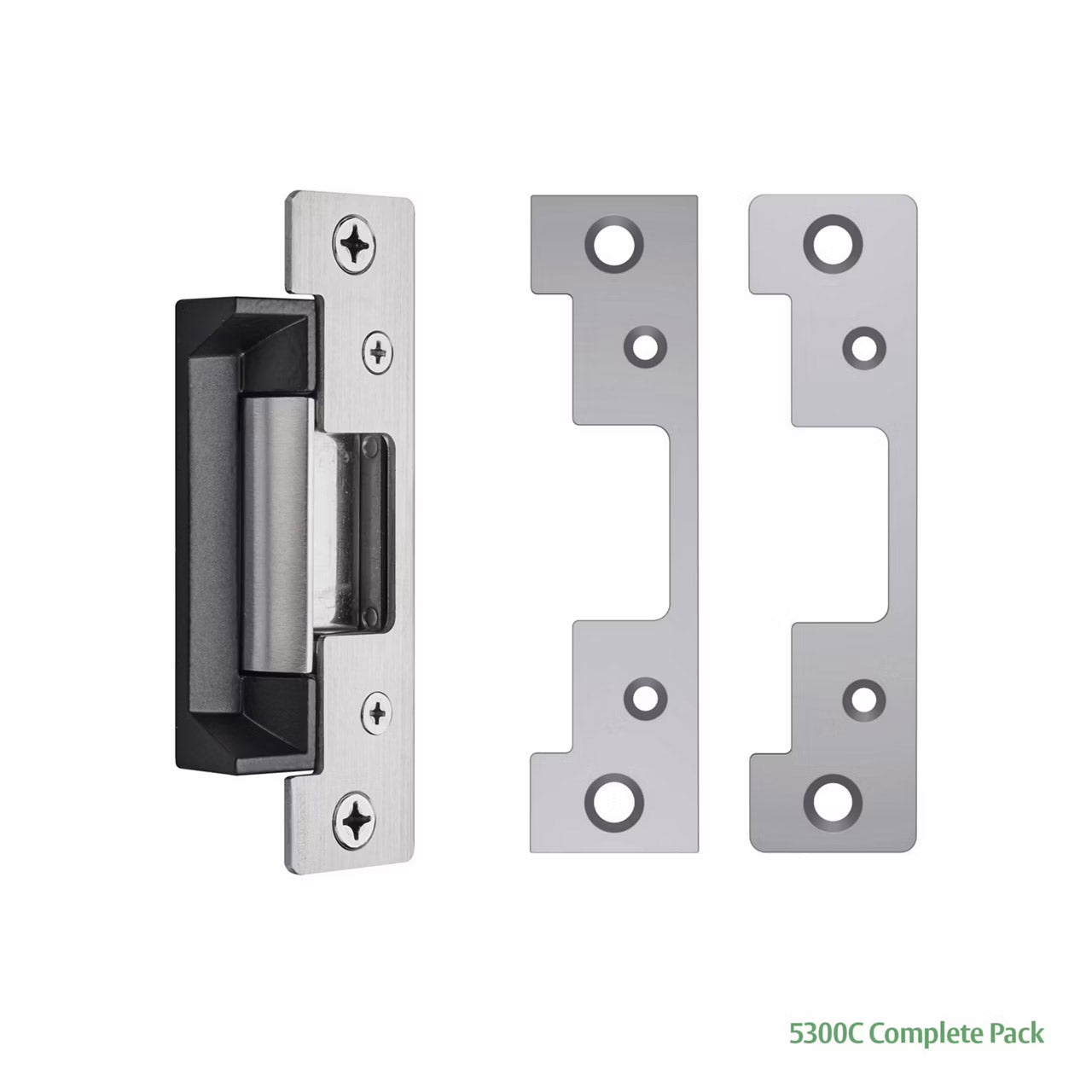

- Trim enhancer included
- Dual voltage 12 or 24 VDC/VAC
Application
- Adjustability : None
- Surface Mounting : Cutting required
- Frame Material : Metal|Wood
- Shim Type : NA
- Latchbolt Accommodation : Up to 5/8"
Electrical
- Voltage : 12/24
- Monitoring Installation : Factory Configured
- Monitoring Options : Latchbolt Monitoring
Strength & Durability
- Endurance (cycles) : 500,000
- Dynamic Strength (ft-lbs) : 70
- Tamper Resistant : Yes
- Fail Safe | Fail Secure : Field selectable fail safe/fail secure
- Grade : Grade 1
General Specifications
- Warranty : SecuriCare five-year, no fault, no questions asked warranty
- Lock Type : Cylindrical Lock

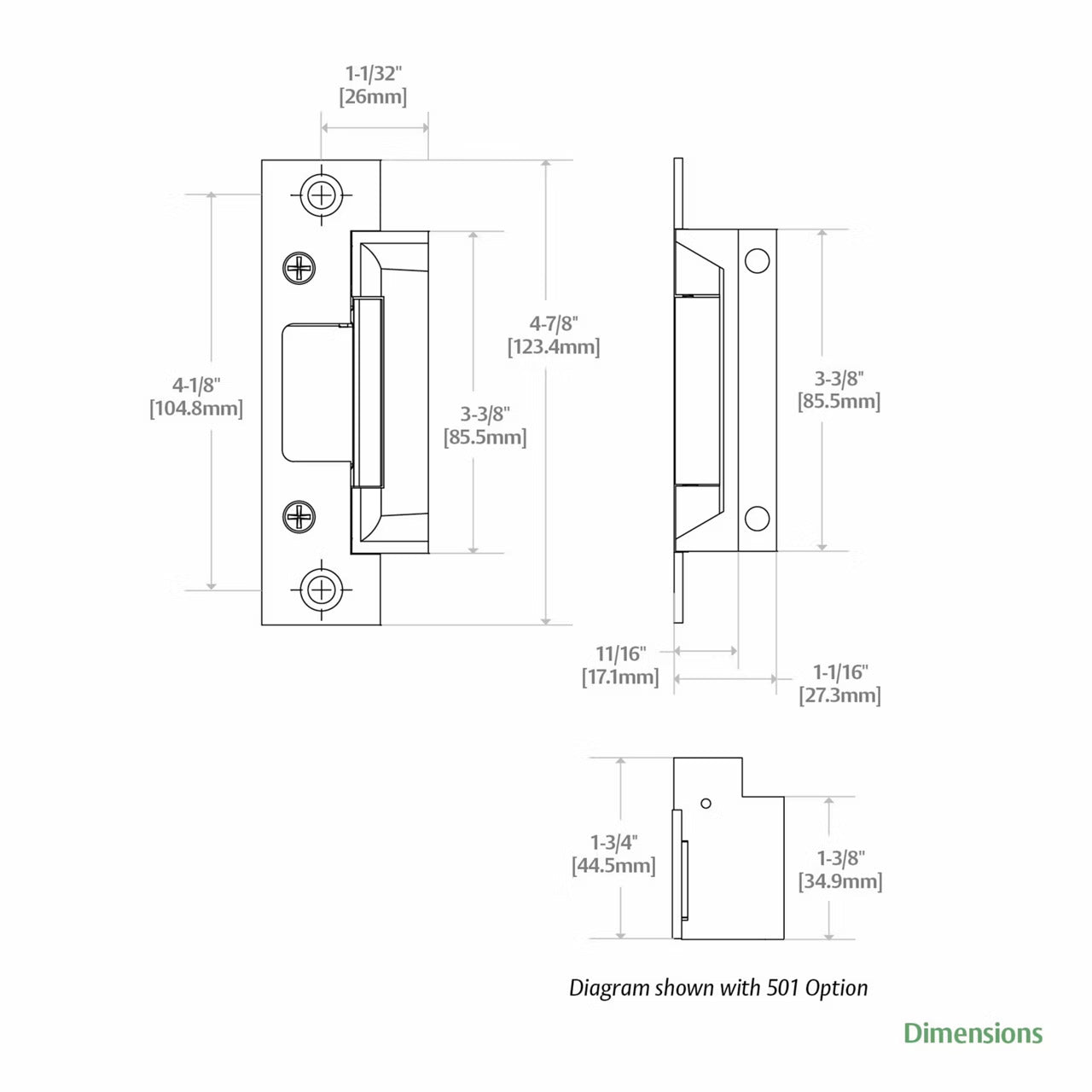

Weights & Dimensions
- Strike Body Depth (in) : 1-1/16"
- Strike Body Height (in) : 4-7/8"
Certifications
- ANSI/BHMA A156.31, Grade 1
- CAL FIRE, 3776-1654:0502
- CAN/ULC-S104 Listed
- NFPA-252 fire door Compliant
- RoHS Compliant
- UL 1034 burglary-resistant listed
- UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
- UL294 Listed
General Specification
- Fire Rating ~ Single Door : 3 hour (Fail Secure Only)
