Home » HES 660 Series Cabinet Lock
HES

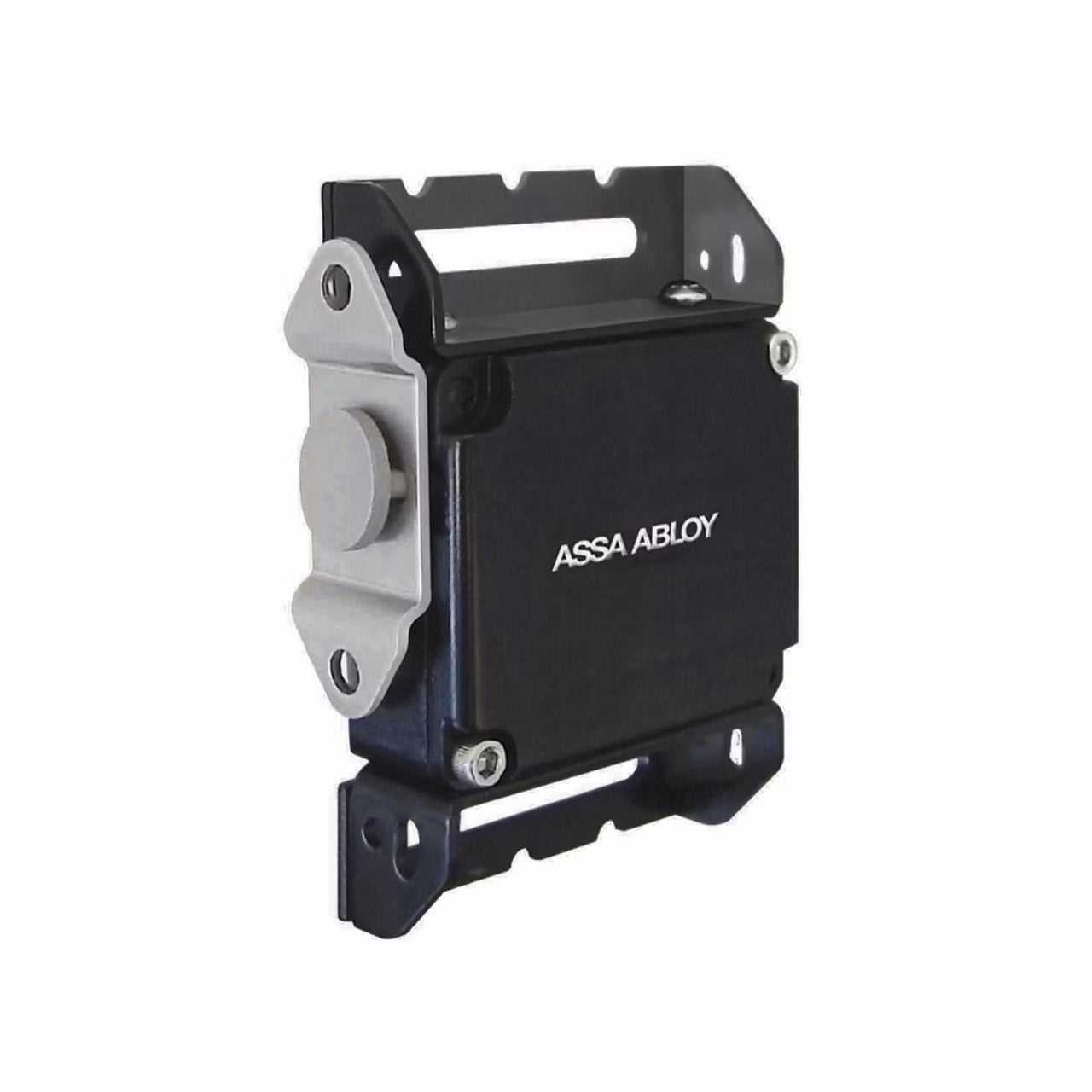

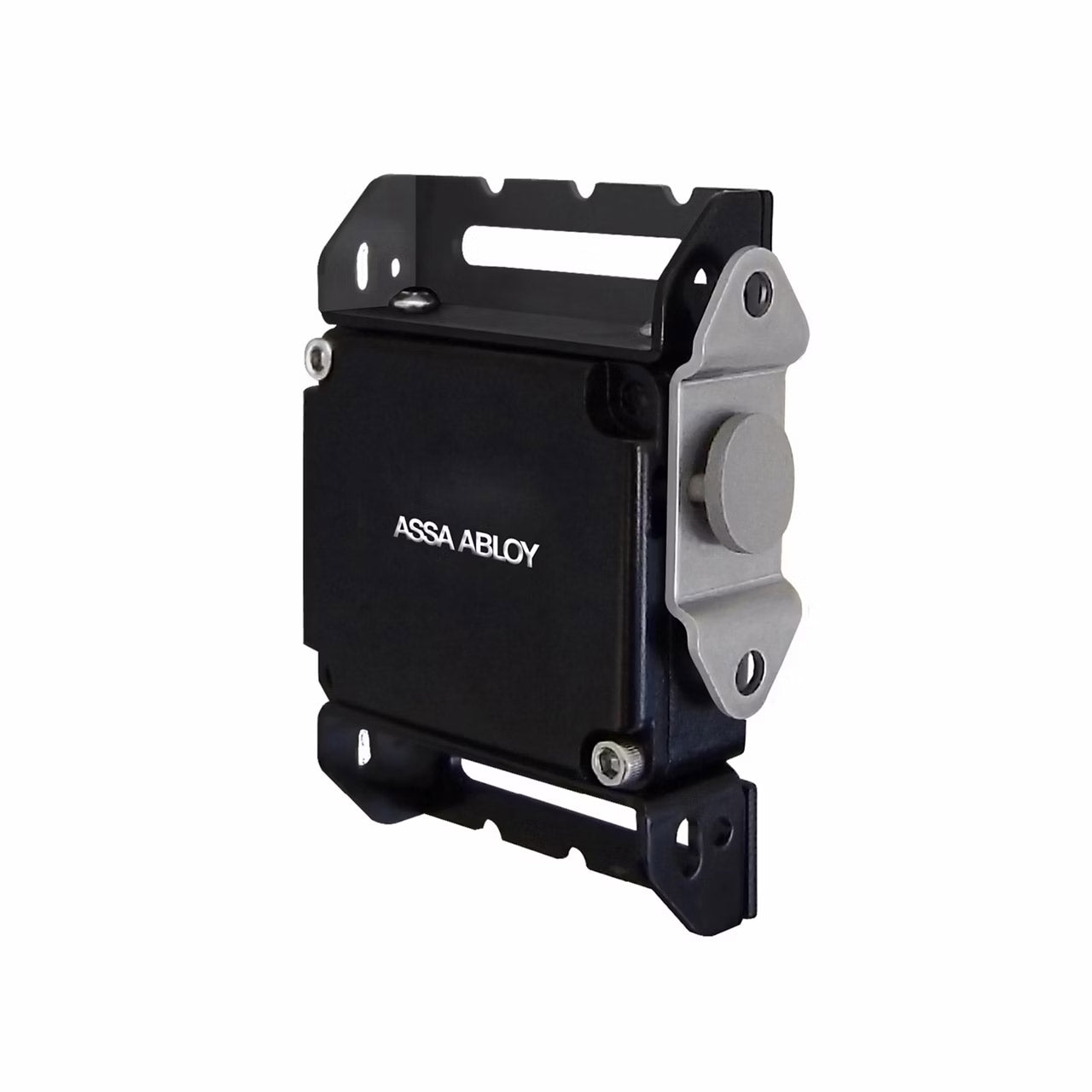

HES 660 Series Cabinet Lock

SKU: 660
$ 96.25
Sale $ 175.00 $ 96.25

With over 1,000 lbs of static holding force.

The HES 660 Cabinet Lock is available with or without locked state monitoring and a preload release function allowing for smooth functional operation under a variety of environmental conditions. Strong, convenient and flexible, it is ideal for corporate and government applications including lockers, cabinets and display cases.

Product Features

  • Static strength 1,000 lbs
  • Dynamic strength over 100 ft-lbs
  • Endurance 1,000,000 cycles
  • Available in either 12 or 24 VDC
  • All metal construction
  • Adjustable mounting brackets with final lockdown feature
  • 6 foot cable lead
  • RoHS compliant
  • Patent #8,562,040; 7,878,560
Electrical
  • Battery Backup : No
  • Voltage : 12/24 Dual Voltage
  • Current 12v DC : 240
  • Current 24v DC : 120
  • Monitoring Options : Locked State Monitoring
  • Monitoring Installation : Field Installable
  • Motor Duty [DC] : Continuous
  • PoE Friendly : Yes
  • Power Source : Hardwired
Environmental
  • Maximum Operating Temperature (° F) : 122
  • Minimum Operating Temperature (° F) : 32
  • Weather Resistance : Indoor use only
Certifications & Listings
  • Fail Safe | Fail Secure : Fail Secure
  • Certified : Yes
  • RoHS Compliant : Yes
Application
  • Door Material : Wood|Metal
  • Door Type : Swinging|Sliding
Strength & Durability
  • Preload Capable : Yes
  • Static Strength (lbs) : 1000
  • Tamper Resistant : No
General
  • Handing : Non-handed
  • Cable Length (ft) : 6'
  • Override Type : Key Override
