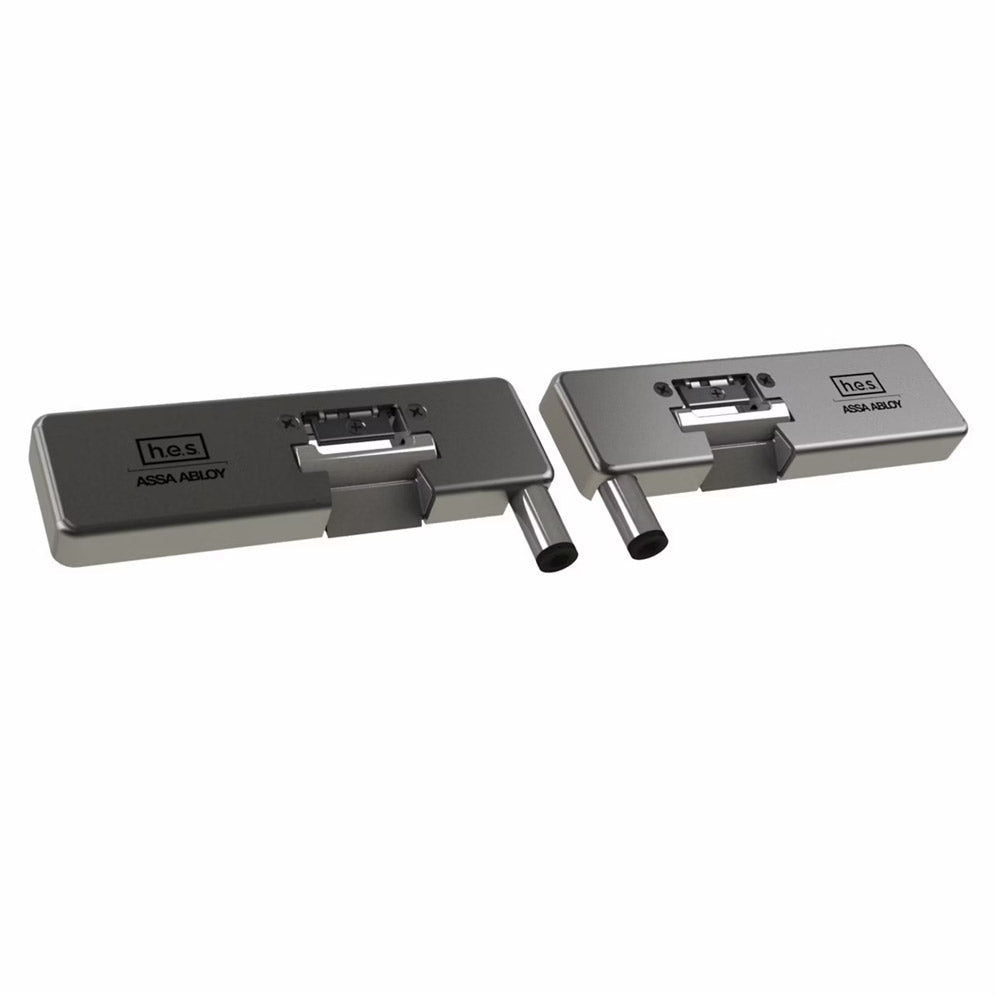

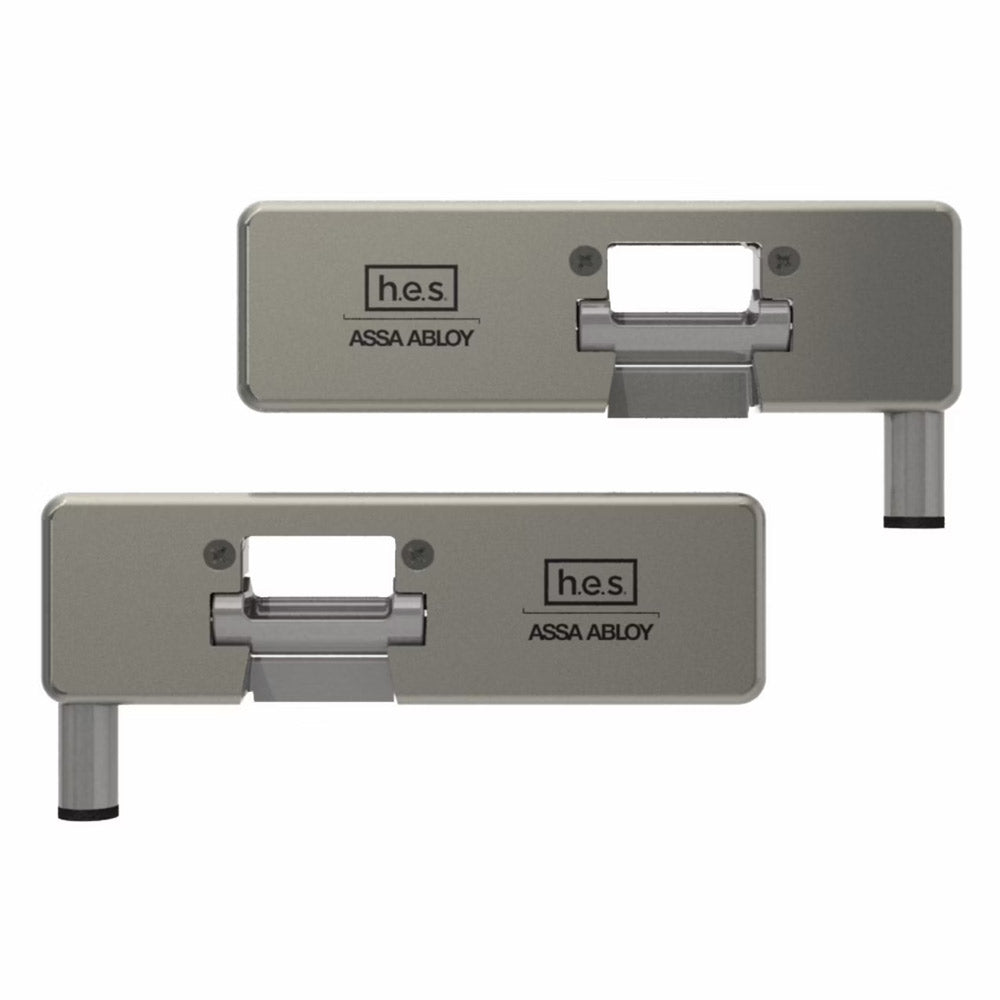

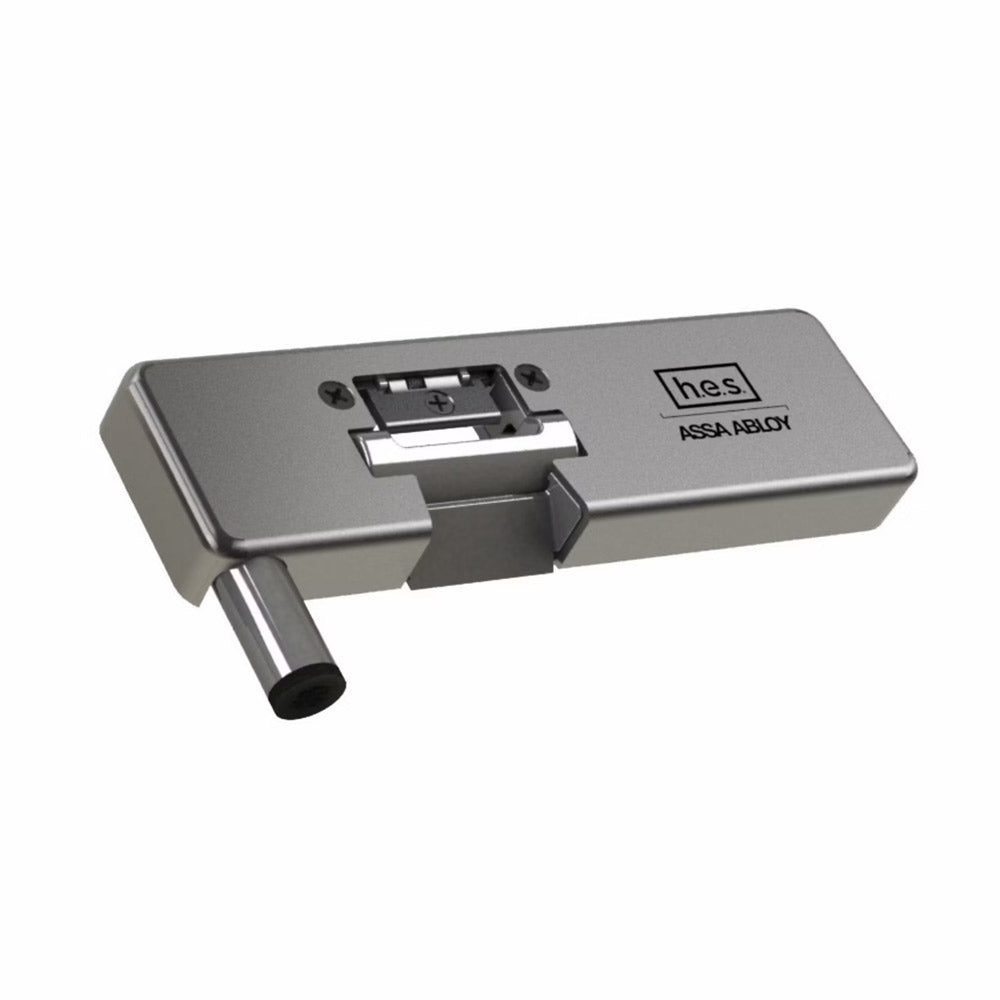

HES 9100 Series Electric Strike

SKU: 9100L-605
$ 521.95

Retro-mounted electric strike with integrated adjustability and field installable options for maximized versatility on single glass doors.

Product Features

  • Retro-mount using existing header prep
  • No cutting required
  • Integrated adjustability
  • Adaptable voltage sensing technology (12-24 VDC)
  • Factory configured or field installable monitoring
  • Static strength 1,500 lbs
  • Dynamic strength to 70 ft-lbs
  • Endurance 1,000,000 cycles
  • Field selectable fail secure/fail safe
  • Quiet operation
  • Stainless steel construction
  • SecuriCare five-year, no-fault, no questions asked warranty
Application
  • Adjustability : Fully Adjustable
  • Surface Mounting : Yes
  • Frame Material : Aluminum|Hollow Metal|Wood
  • Shim Type : Field Adjustable
  • Latchbolt Accommodation (in) : 5/8" - 3/4""
  • Lock Type : Exit Device
Weights & Dimensions
  • Strike Body Depth : 0-5/8
  • Strike Body Height : 6
  • Strike Body Width : 1-7/8
  • Shipping Weight : NA
Electrical
  • Voltage : 12/24
  • Monitoring Installation : Factory Configured|Field Installable
  • Monitoring Options : Latchbolt Monitoring
  • Current 12v DC (mA) : 240
  • Current 24v DC (mA) : 120
Strength & Durability
  • Endurance : 1000000
  • Dynamic Strength (lbs) : 70
  • Tamper Resistant : Yes
  • Fail Safe | Fail Secure : Field selectable fail safe/fail secure
  • Static Strength : 1500
Certifications
  • ANSI/BHMA A156.31, Grade 1
  • RoHS Compliant
  • UL 1034 burglary-resistant listed and suitable for outdoor use
  • UL 294 - Standard for Access Control System Units
  • UL 305 - Standard for Panic Hardware
Environmental
  • Maximum Operating Temperature : NA
  • Minimum Operating Temperature : NA
  • Operating Humidity : NA
