Home » HES 610 Series Cabinet Lock
HES

HES 610 Series Cabinet Lock

SKU: 610
$ 81.95
Sale $ 149.00 $ 81.95

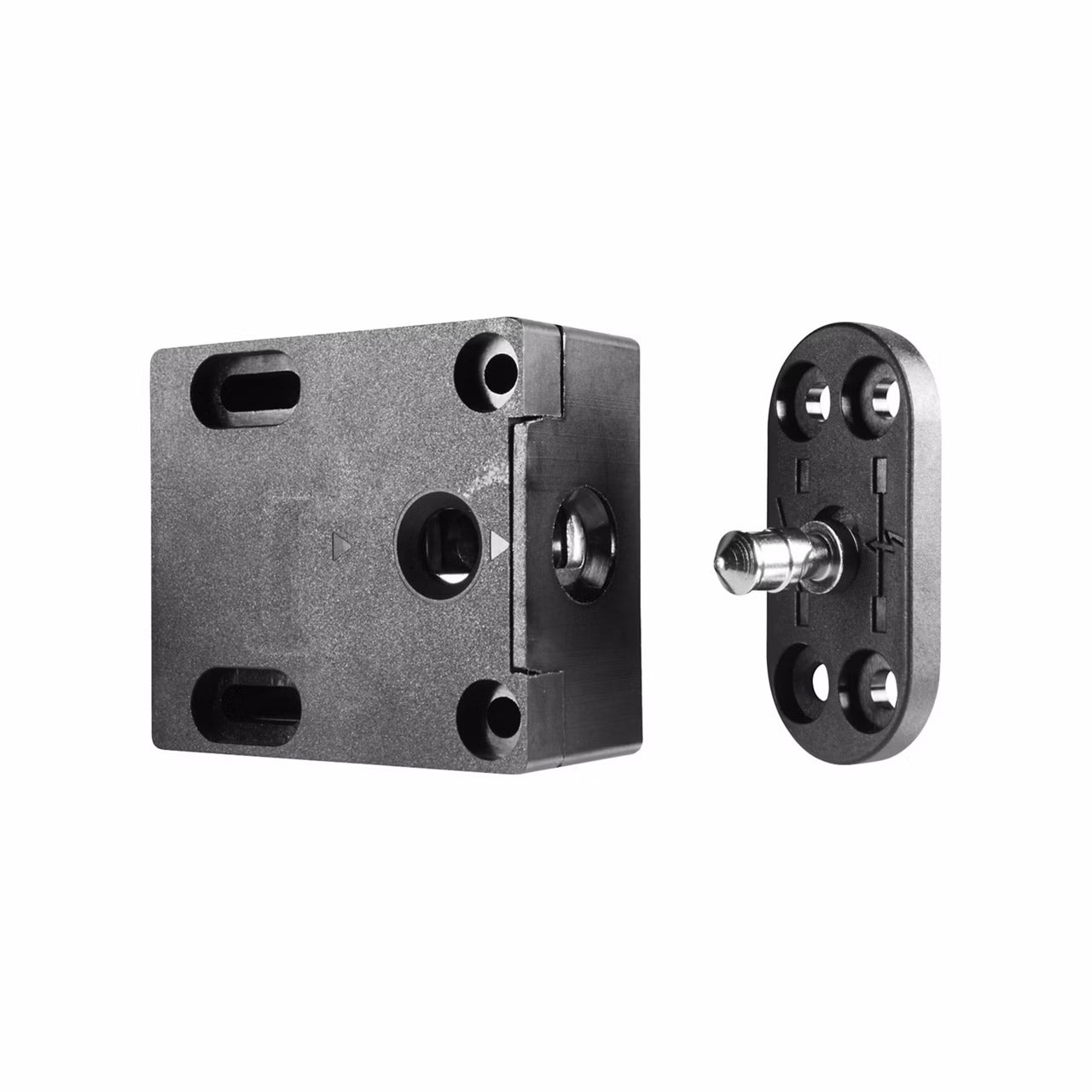

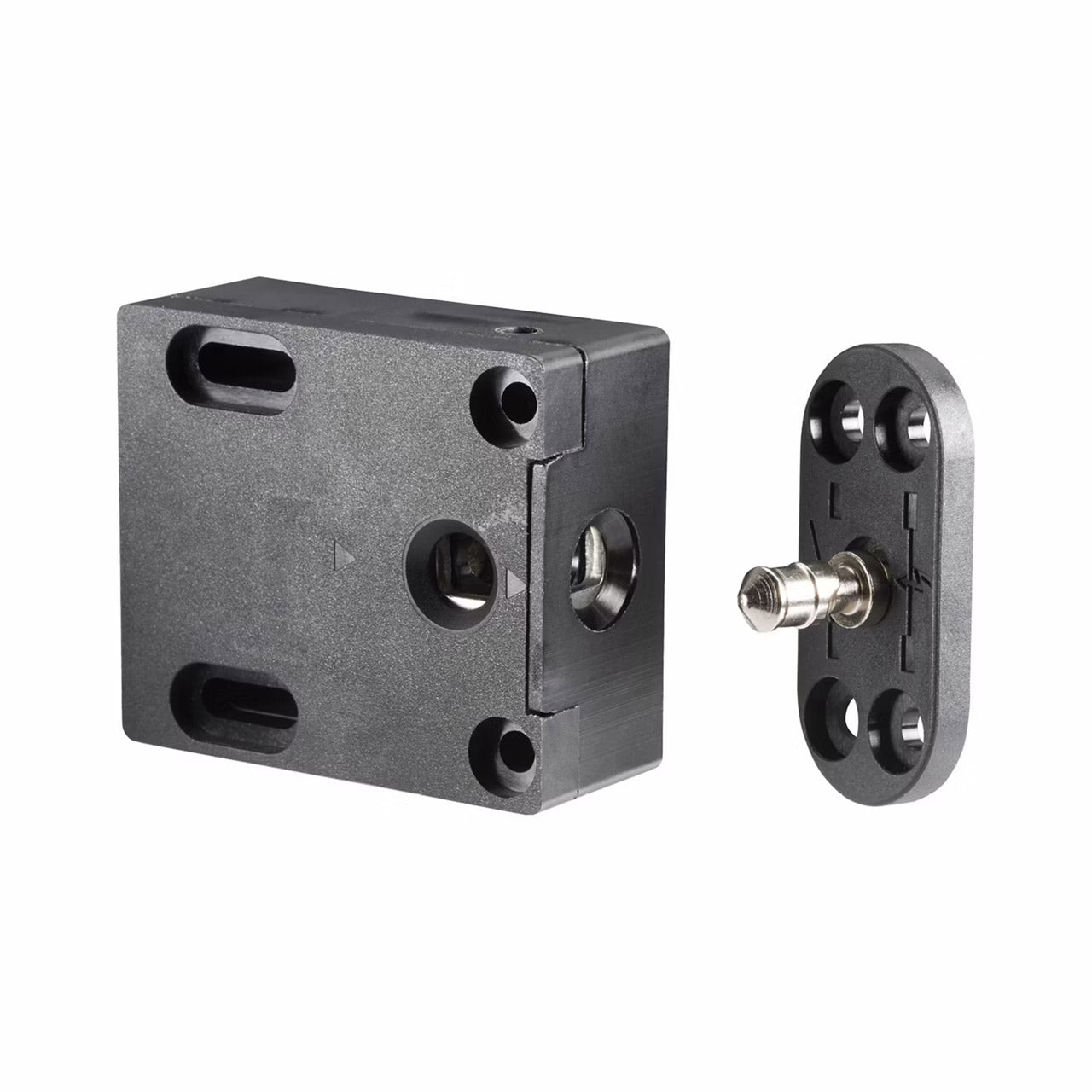

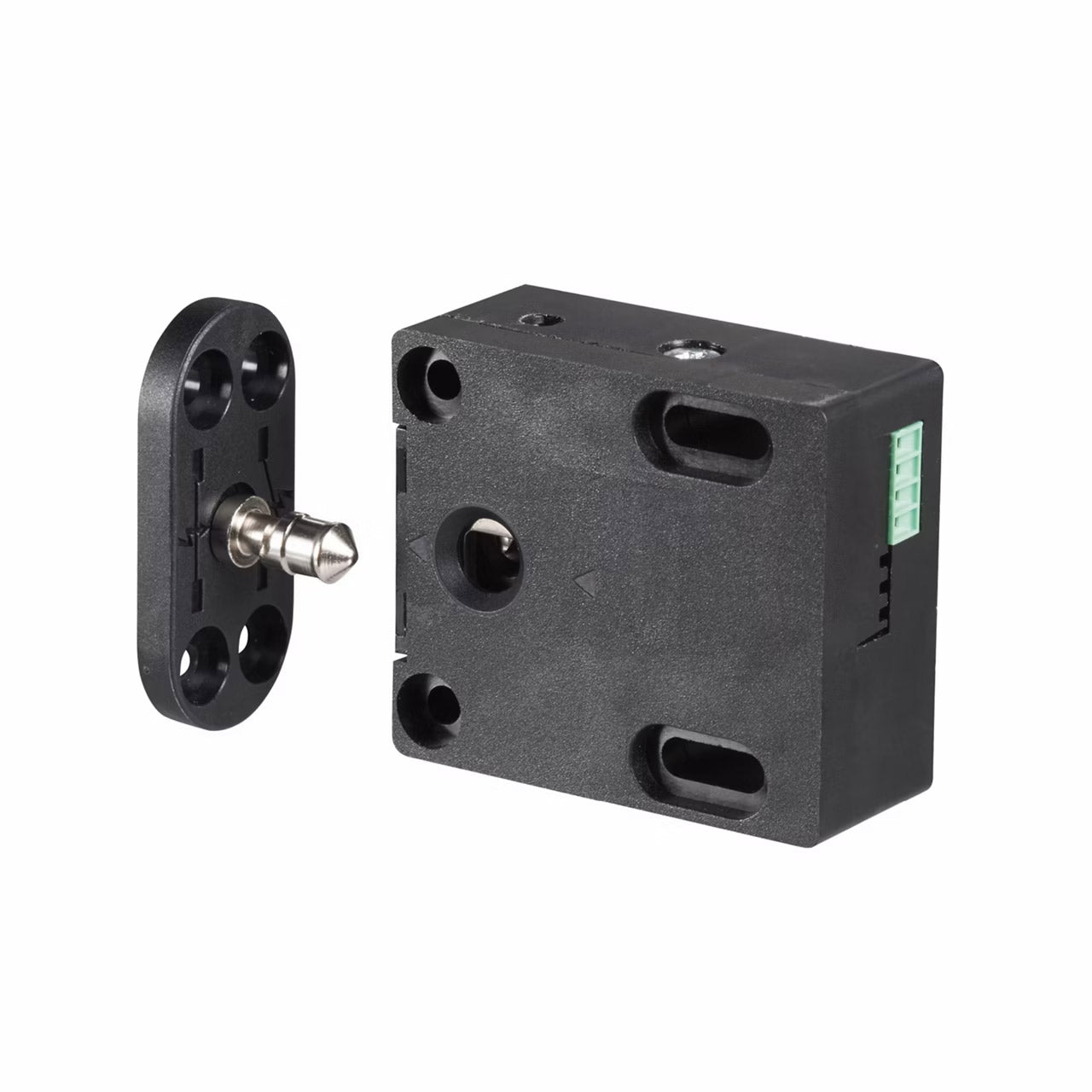

The versatile, compact, cost effective cabinet lock to secure drawers or doors.  The HES 610 Cabinet Lock can be triggered by a simple relay as part of an access control system or with a stand-alone keypad. The HES 610 is available with or without locked state monitoring and has over 200 lbs of holding force.

Product Features

  • Fail safe / fail secure (field selectable)
  • Compact design fits most drawers and cabinets

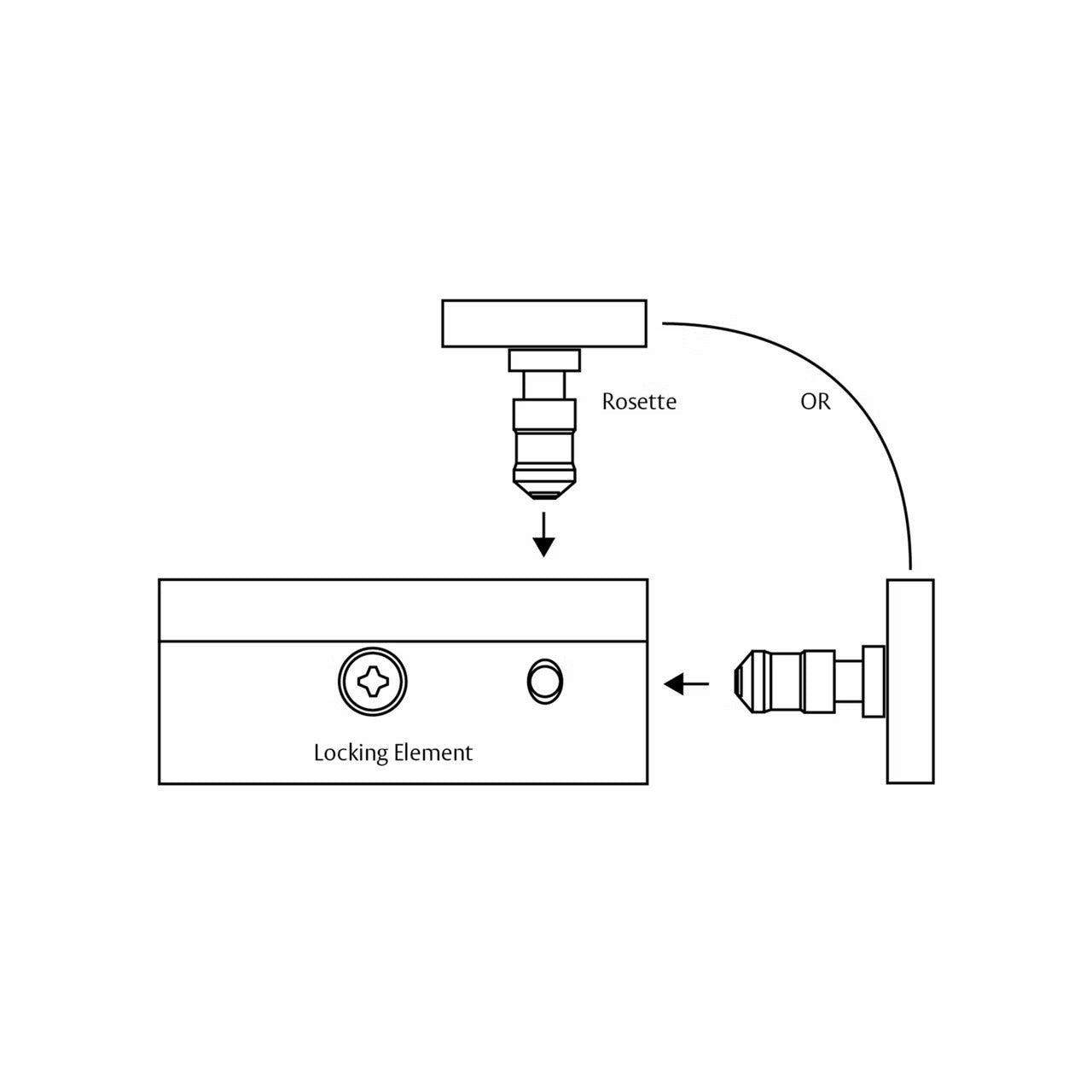

  • Versatile installation either at the side or front of cabinets
  • SecuriCare three-year, no-fault, no questions asked warranty
Electrical
  • Battery Backup : No
  • Voltage : 12/24 Dual Voltage
  • Current 12v AC : 140
  • Current 12v DC : 260
  • Input Voltage : 12/24 Dual Voltage
  • Monitoring Options : Locked State Monitoring
  • Monitoring Installation : Field Installable
  • Monitoring Type : Switch
  • Motor Duty [DC] : Continuous
  • PoE Friendly : Yes
  • Power Source : Hardwired
Environmental
  • Maximum Operating Temperature (° F) : 104
  • Minimum Operating Temperature (° F) : 14
Certifications & Listings
  • Class of Protection : IP 20
  • Fail Safe | Fail Secure : Field selectable fail safe/fail secure
  • Certified : No
Application
  • Door Material : Wood|Glass
  • Door Type : Swinging|Sliding
  • Installation Point : Side,Front
  • Handing : Non-handed
Strength & Durability
  • Preload Capable : No
  • Static Strength (lbs) : 200
  • Tamper Resistant : No
