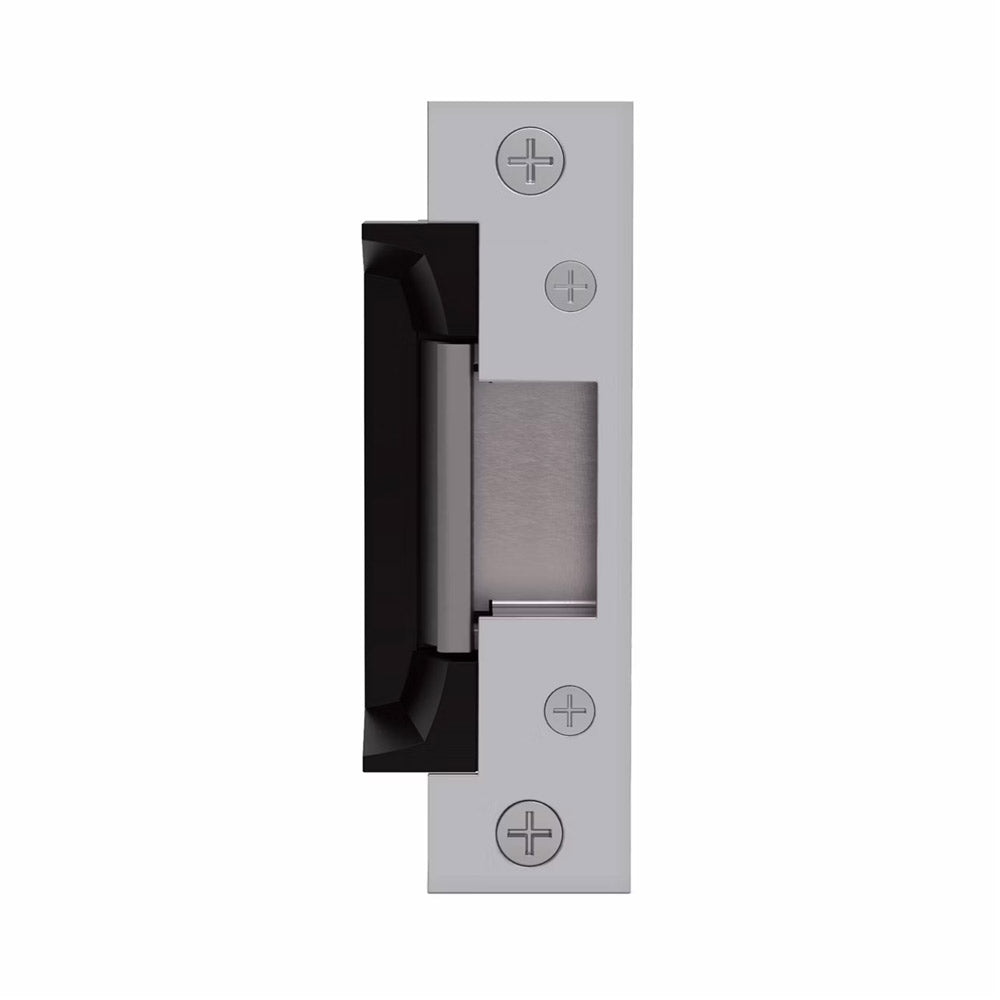

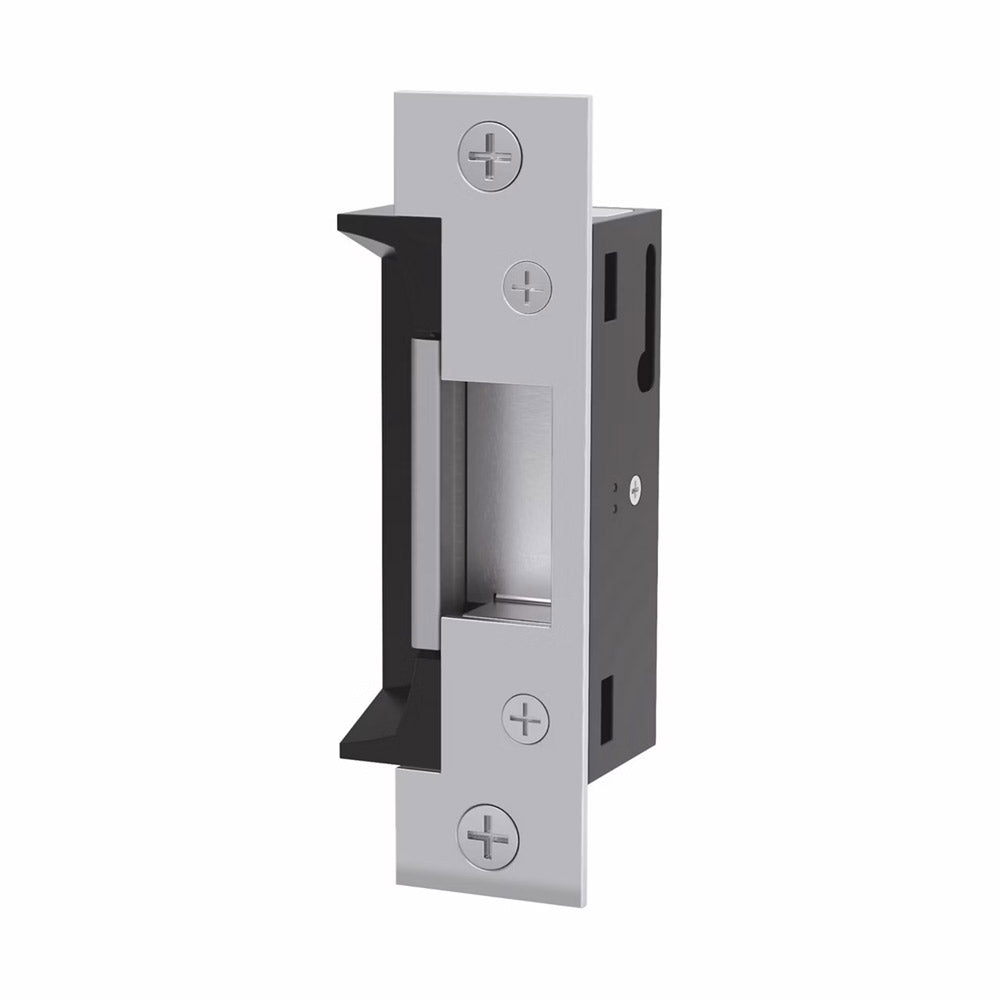

HES 5200 Series Electric Strike

SKU: 5200
Regular price $ 116.60

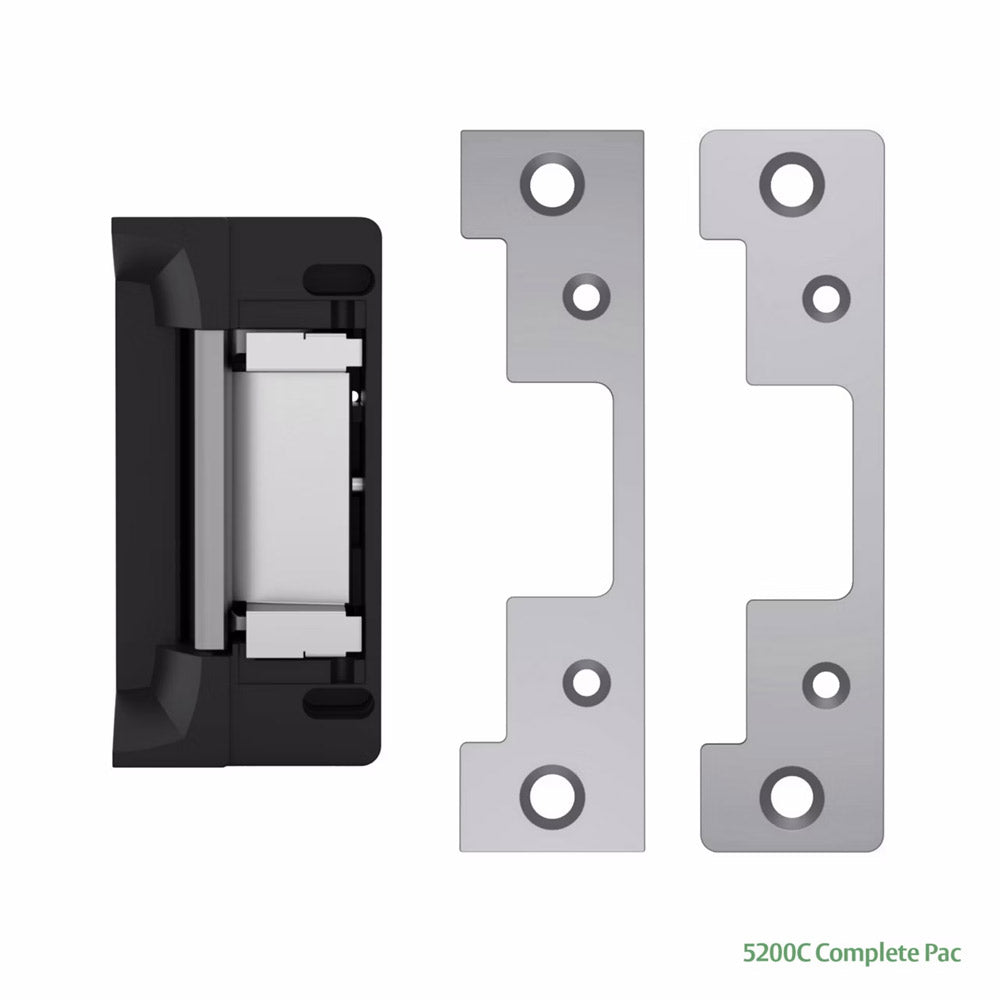

HES 5200 630 and 5200C 630 Series Electric Strike. US Lock Supply Stocks The 5200 Series Electric Strike In All Finishes & Options Ready To Ship.

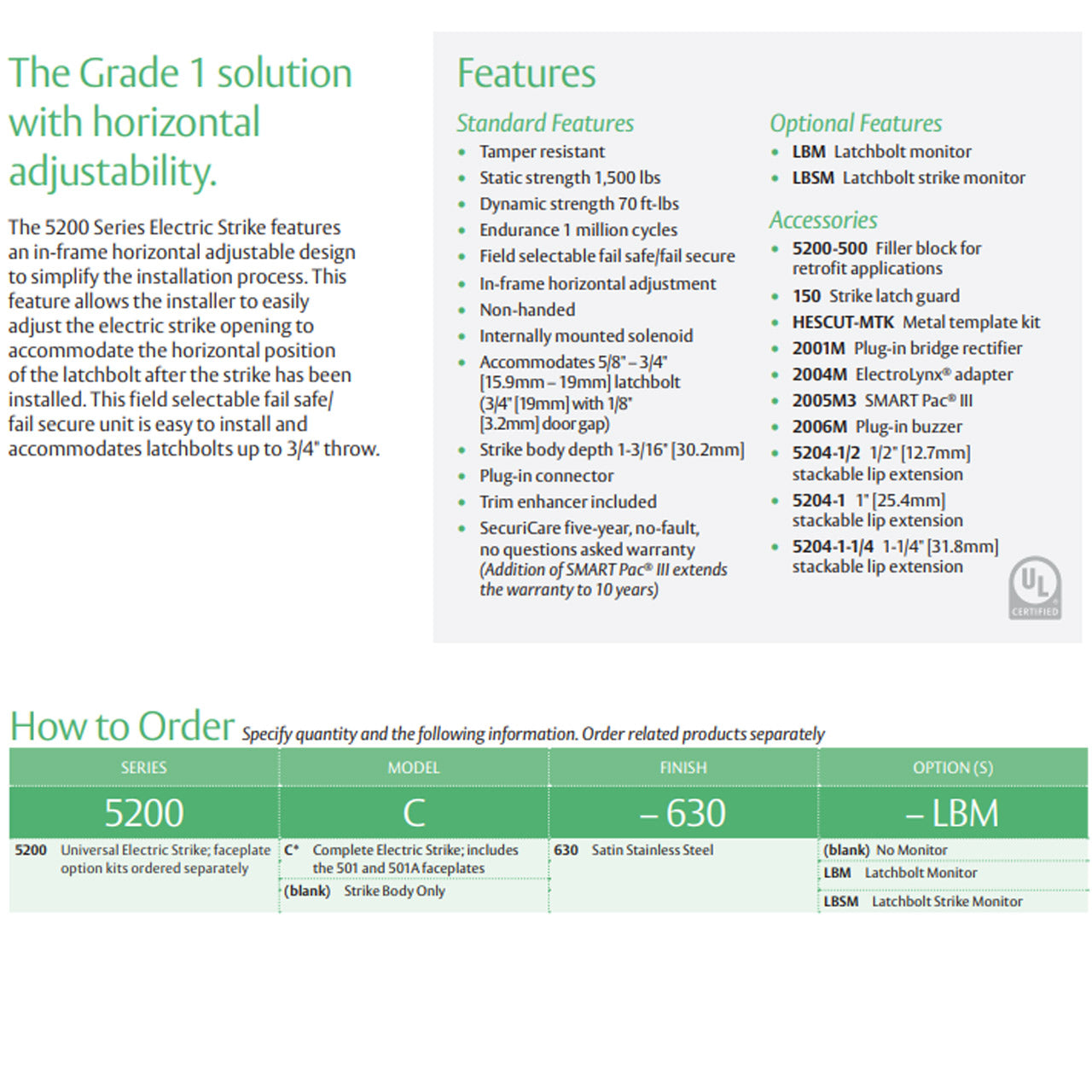

5200 Catalog

Standard Features

  • Tamper resistant
  • Static strength 1,500 lbs.
  • Dynamic strength 70 ft-lbs.
  • Endurance 500,000 cycles
  • Field selectable fail secure/ fail safe
  • Dual voltage 12 or 24 VDC/VAC
  • Non-handed
  • Internally mounted solenoid
  • Accommodates 5/8" - 3/4" latchbolt (3/4" with 1/8" door gap)
  • Strike body depth 1-1/16"
  • Plug-in connector
  • Trim enhancer included
  • Five year limited warranty

Faceplate Options

  • 501  (4-7/8" x 1-1/4", square corners & flat faceplate) For use with cylindrical locksets in ANSI metal jambs. ANSI/BHMA Numbers: #E09321, #E09322, #E09323
  • 501A  (4-7/8" x 1-1/4", radius corners & flat faceplate) For use with cylindrical locksets. Includes universal mounting tabs. Aluminum frames. ANSI/BHMA Numbers: #E09321, #E09322, #E09323
  • 502  (7-15/16" x 1-7/16", radius corners & flat faceplate) For use with cylindrical locksets. Includes universal mounting tabs. Aluminum frames. ANSI/BHMA Numbers: #E09321, #E09322, #E09323
  • 503  (6-7/8" x 1-1/4", radius corners & flat faceplate) For use with cylindrical locksets. Includes universal mounting tabs. ANSI/BHMA Numbers: #E09321, #E09322, #E09323
  • 504  (10" x 1-3/8", radius corners & flat faceplate) For use with cylindrical locksets. Four point mounting for wood installations. ANSI/BHMA Numbers: #E09321, #E09322, #E09323

Optional Features

  • LBM - Latchbolt monitor
  • LBSM - Latchbolt strike monitor
