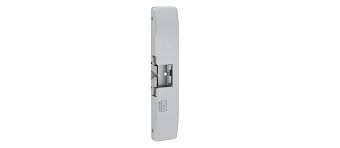

HES 9600 Electric Strike

by HES
$ 277.95

In Stock Ready To Ship Today.

US Lock Supply Stocks The Hes 9600 Windstorm Rated Electric Strike In Stock in All Finishes Ready To Ship.

Hes 9600 Product Catalog

Hes 9600 Installation Instructions

 Hes 4500C Strike Hes 5000 Electric Strike

hes 9600 Series is a windstorm rated, surface mounted electric strike designed to accommodate rim exit devices with a 3/4" throw latch. All components are completely encased within its 3/4" thick stainless steel housing, so no cutting on the frame is required for installation. Simply place the electric strike on the surface of the frame, align it with the exit latchbolt and install. It is field selectable for fail secure and fail safe operation, and for 12 or 24VDC.

The 9600 is the only surface mounted electric strike designed with the strength and durability required to exceed the severe forces of ANSI Windstorm testing.


  • ANSI 250.13-2003 Severe Windstorm listed
  • Florida Building Code Approved (FL#14307)
  • UL 1034 burglary-resistant listed and suitable for outdoor use
  • UL 294 (6th Edition) listed
  • ANSI/BHMA, A156.31 Grade 1 (#E09731, #E09732, #E09373)
  • RoHS compliant
  • Patent # 6,390,520


630-Satin Stainless Steel

606-Satin Brass(+$40)

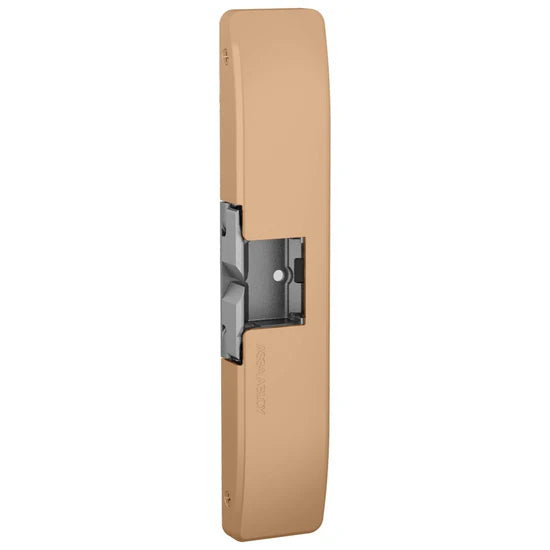

612-Satin Bronze(+$40)

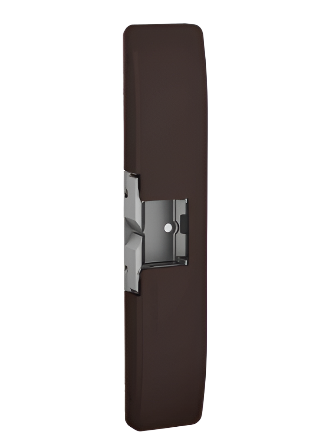

613-Oil Rubbed Bronze(+$40)

605-Bright Brass(+50)

629-Bright Stainless Steel(+$50)

Frame application

  • Metal
  • Wood


  • .45 Amps at 12 VDC continuous duty
  • .25 Amps at 24 VDC continuous duty
  • PoE friendly

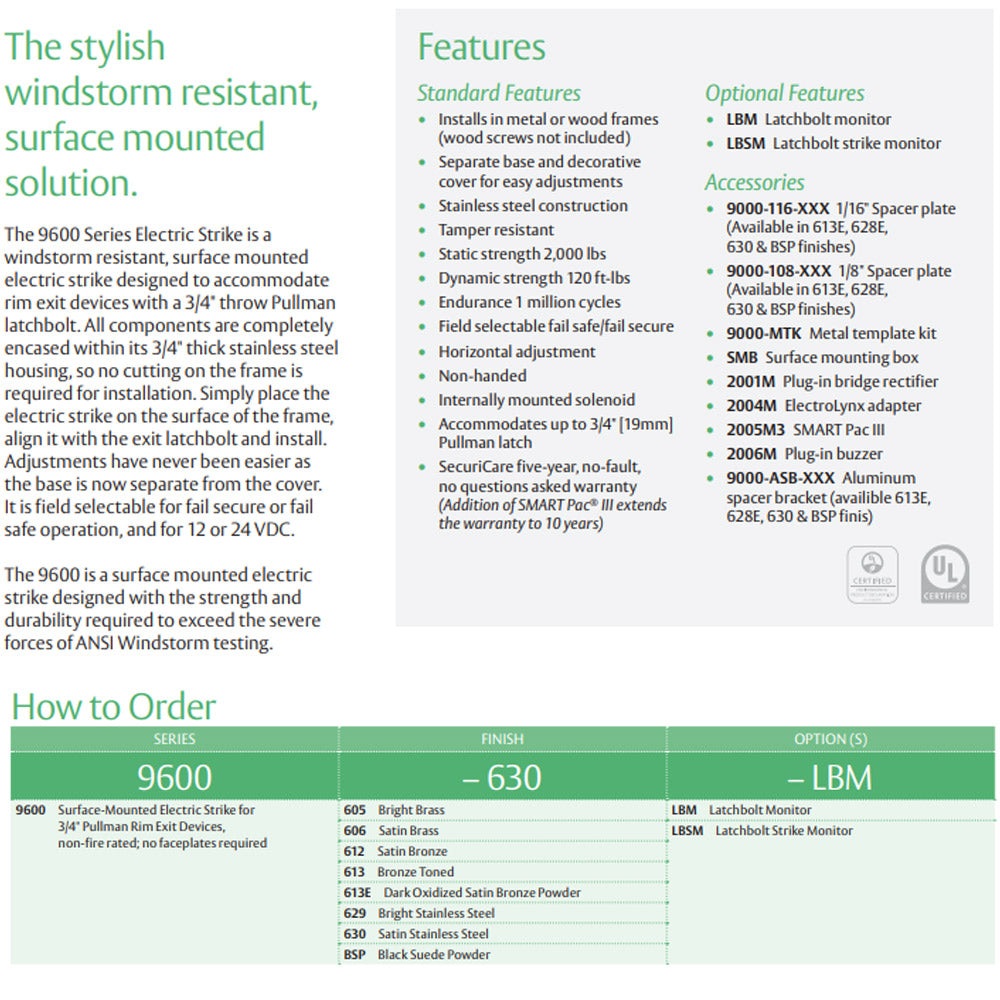

Standard Features

  • Installs in metal or wood frames
  • Separate base and cover for easy adjustments
  • Stainless steel construction
  • Tamper resistant
  • Static strength 2,000 lbs.
  • Dynamic strength 120 ft-lbs.
  • Endurance 1,000,000 cycles
  • Field selectable fail safe/fail secure
  • Dual voltage 12 or 24 VDC
  • Horizontal adjustment
  • Non-handed
  • Internally mounted solenoid
  • Accommodates up to 3/4" Pullman latch
  • Five-year limited warranty

Optional Features

  • LBM - Latchbolt monitor
  • LBSM - Latchbolt strike monitor


Model Numbers: 9600-630, 9600-629, 9600-612, 9600-613, 9600-606, 9600-605
