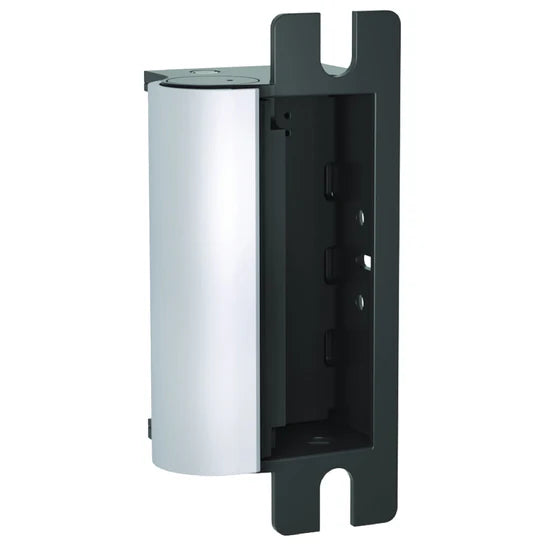

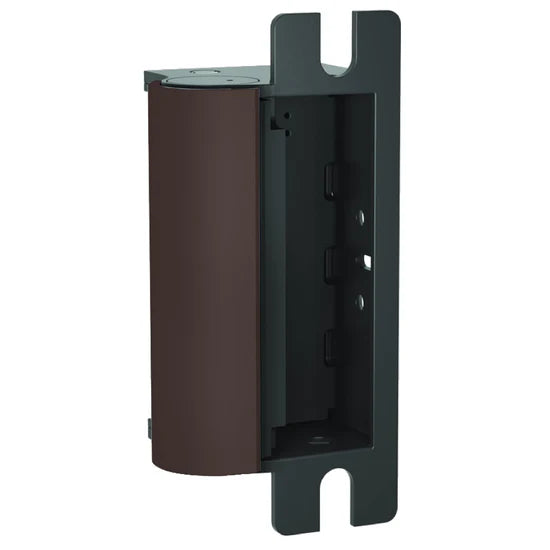

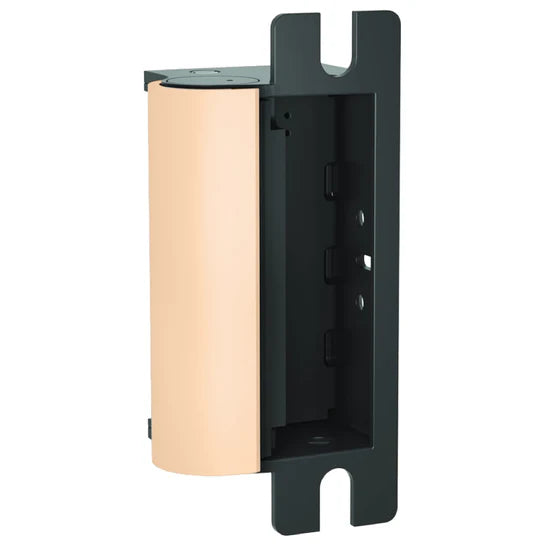

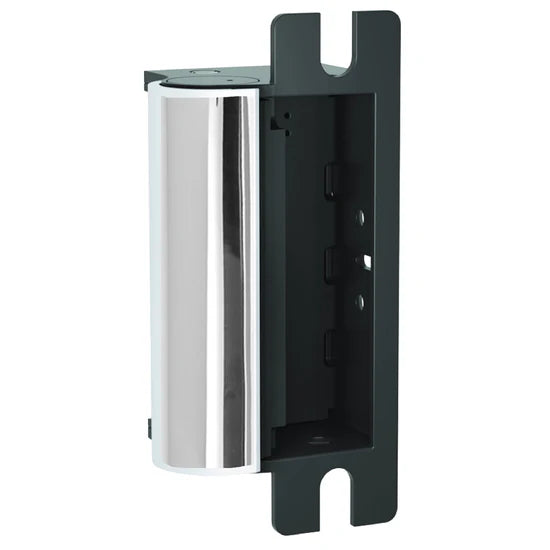

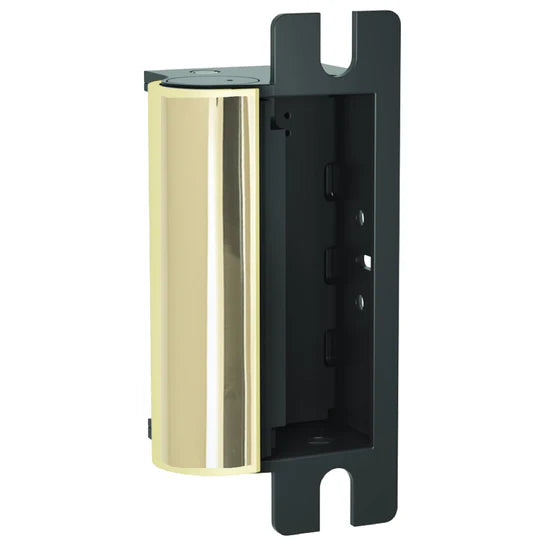

The 1006 series is the strongest and most versatile electric strike available. The dual interlocking plunger design and heavy duty stainless steel construction, enables it to exceed every standard developed for electric strikes. With multiple faceplate options, the 1006 will fully accommodate every lock designed to work within an ANSI 4-7/8" strike plate. Tested to exceed 3,000 lbs. of static strength, 350 ft-lbs. of dynamic strength and factory tested to exceed 1,000,000 cycles of operation, the 1006 is in a class of its own.
Product Features
- Stainless steel construction
- Tamper resistant
- Static strength 2,500 lbs. (fail secure)
- Dynamic strength 350 ft-lbs. (fail secure)
- Endurance 1,000,000 cycles
- Fail secure (standard)
- Non-handed
- Accommodates up to 1" deadbolt
- Plug-in connector
- Full keeper shims for horizontal adjustment
- Trim enhancer
- Dual voltage 12 or 24 VDC continuous duty
- Internally mounted solenoid
Application
- Adjustability : Horizontal
- Surface Mounting : Cutting required
- Frame Material : Metal|Wood
- Shim Type : Field Adjustable
- Latchbolt Accommodation : 1/2" - 5/8"
Electrical
- Voltage : 12/24
- Monitoring Installation : Factory Configured
- Monitoring Options : Latchbolt Strike Monitor|Latchbolt Monitoring
Strength & Durability
- Endurance (cycles) : 1,000,000
- Dynamic Strength (ft-lbs) : 350
- Tamper Resistant : Yes
- Fail Safe | Fail Secure : Fail Safe/ Fail Secure
- Grade : Grade 1
General Specifications
- Warranty : SecuriCare five-year, no fault, no questions asked warranty
- Lock Type : Cylindrical Lock|Mortise Lock|Mortise Lock with Deadbolt
Weights & Dimensions
- Strike Body Depth (in) : 1.6875
- Strike Body Height (in) : 3.4750
Certifications
- ANSI/BHMA A156.31, Grade 1
- ANSI/SDI 250.13 Certified
- ASTM E152 Fire Door Compliant
- ASTM E330 Certified
- Florida Building Code Approved TAS 201, 202, 203 (old)
- NFPA-252 fire door Compliant
- RoHS Compliant
- UL 1034 burglary-resistant listed
- UL 10C Fire-Rated, 1-1/2 Hour Double Door [Fail Secure only]
- UL 10C Fire-Rated, 3 Hour Single Door [Fail Secure Only]
- UL294 Listed
KD Option Faceplate
- (4.875 H x 1.25 W) For use with: Mortise locksets up to 3/4" throw latchbolt. Compatible locksets: Dorma 9500, Jackson, Sargent (7700 & 8100), Schlage, Yale (8700)
HTD Option Faceplate
- (4.875 H x 1.25 W) For use with: Mortise locksets with a 1" deadbolt and no deadlatch or a center positioned deadlatch. Strike will not release when deadbolt is extended. Compatible locksets: Sargent (7700 & 8100), Schalge, Yale (8700)
H-2 Option Faceplate
- (9 H x 1.375 W) For use with: Mortise locksets with a 1" deadbolt without a deadlatch, in wood frame applications. Strike will not release when deadbolt is extended. Compatible Locksets: Accurate, Arrow, Baldwin, Marks, Omnia, PDQ, Yale (8700).
HT Option Faceplate
- (4.875 H x 1.25 W) For use with: Mortise locksets with a 1" deadbolt without a deadlatch. Strike will not release when deadbolt is extended. Compatible Locksets: Sargent (7700 & 8100 series), Yale (8700)
E Option Faceplate
- (4.875 H x 1.25 W) For Use With: Corbin Russwin Security Bolt, Weiserbolt and normally extended 1" tubular deadbolts
R Option Faceplate
- (4.875 H x 1.25 W) For Use With: Adams Rite style hookbolt up to 1" throw
Z Option Faceplate
- (4.875 H x 1.25 W) For Use With: Unit and Mono locks
J-2 Option Faceplate
- (9 H x 1.375 W) For Use With: All cylindrical locks up to a 3/4" latchbolt
N Option Faceplate
- (4.875 H x 1.25 W) For use with: Mortise locksets where the deadbolt is used for night-latch function only. Compatible Locksets: Accurate, Arrow, Baldwin, Marks, Omnia, PDQ, Others
NM Option Faceplate
- (4.875 H x 1.25 W) For use with: Mortise locksets with a deadbolt used for night latch function only. Compatible locksets: Accurate, Arrow, Baldwin, Best, Corbin Russwin, Falcon (45H, 47H, 34H & 37H), Marks, Omina, PDQ, Sargent (7800, 8200 & 9200), Yale (8800)
T Option Faceplate
- (4.875 H x 1.25 W) For use with: Mortise locksets with a normally extended 1" deadbolt and center-lined deadlatch. Compatible locksets: Accurate, Arrow, Baldwin, Marks, Omnia, PDQ, Schalge
T-2 Option Faceplate
- (9 H x 1.375 W) For use with: Mortise locksets where the deadbolt is used for night-latch function only, in wood frame applications. Compatible Locksets: Accurate, Arrow, Baldwin, Marks, Omnia, PDQ, Schlage, Yale (8700), Others
DB Option Faceplate
- (4.875 H x 1.25 W) Kit includes faceplates and brackets to make N and H series options
KM-2 Option Faceplate
- (9 H x 1.375 W) For Use With: Mortise locksets up to a 3/4" latchbolt
ND Option Faceplate
- (4.875 H x 1.25 W) For use with: Mortise locksets with a deadbolt used for night latch function only. Compatible locksets: Sargent (7700 & 8100), Schlage, Yale (8700)
KM Option Faceplate
- (4.875 H x 1.25 W) For use with: Mortise locksets up to 3/4" throw latchbolt. Compatible locksets: Accurate, Arrow, Baldwin, Best, Corbin Russwin, Falcon, Marks, PDQ, Sargent (7800, 8200 & 9200), Yale (8800)
HM Option Faceplate
- (4.875 H x 1.25 W) For use with: Mortise locksets with a 1" deadbolt. Strike will not release when deadbolt is extended. Compatible locksets: Accurate, Arrow, Baldwin, Best, Corbin Russwin, Falcon (45H, 47H, 34H & 37H), Marks, Omnia, PDQ, Sargent (7800, 8200 & 9200), Yale (8800)
HD Option Faceplate
- (4.875 H x 1.25 W) For use with: Mortise locksets with a 1" deadbolt without a deadlatch. Strike will not release when deadbolt is extended. Compatible Locksets: Sargent (7700 & 8100 series), Yale (8700)
K-2 Option Faceplate
- (9 H x 1.375 W) For use with: Mortise locksets with a deadlatch positioned above the latchbolt, in wood frame applications. Compatible Locksets: Baldwin, Marks, PDQ, Others
A-2 Option Faceplate
- (9 H x 1.375 W) For use with: Mortise locksets with a normally extended 1" deadbolt without a deadlatch, in wood frame applications. Compatible Locksets: Accurate, Arrow, Baldwin, Marks, Omnia, PDQ, Schlage, Yale, Others.
H Option Faceplate
- (4.875 H x 1.25 W) For use with: Mortise locksets with a 1" deadbolt without a deadlatch. Strike will not release when deadbolt is extended. Compatible Locksets: Arrow, Baldwin, Marks, Omnia, PDQ, Others
K Option Faceplate
- (4.875 H x 1.25 W) For use with Mortise locksets with a deadlatch positioned above the latchbolt. Compatible Locksets: Baldwin, Marks, PDQ, Others.
