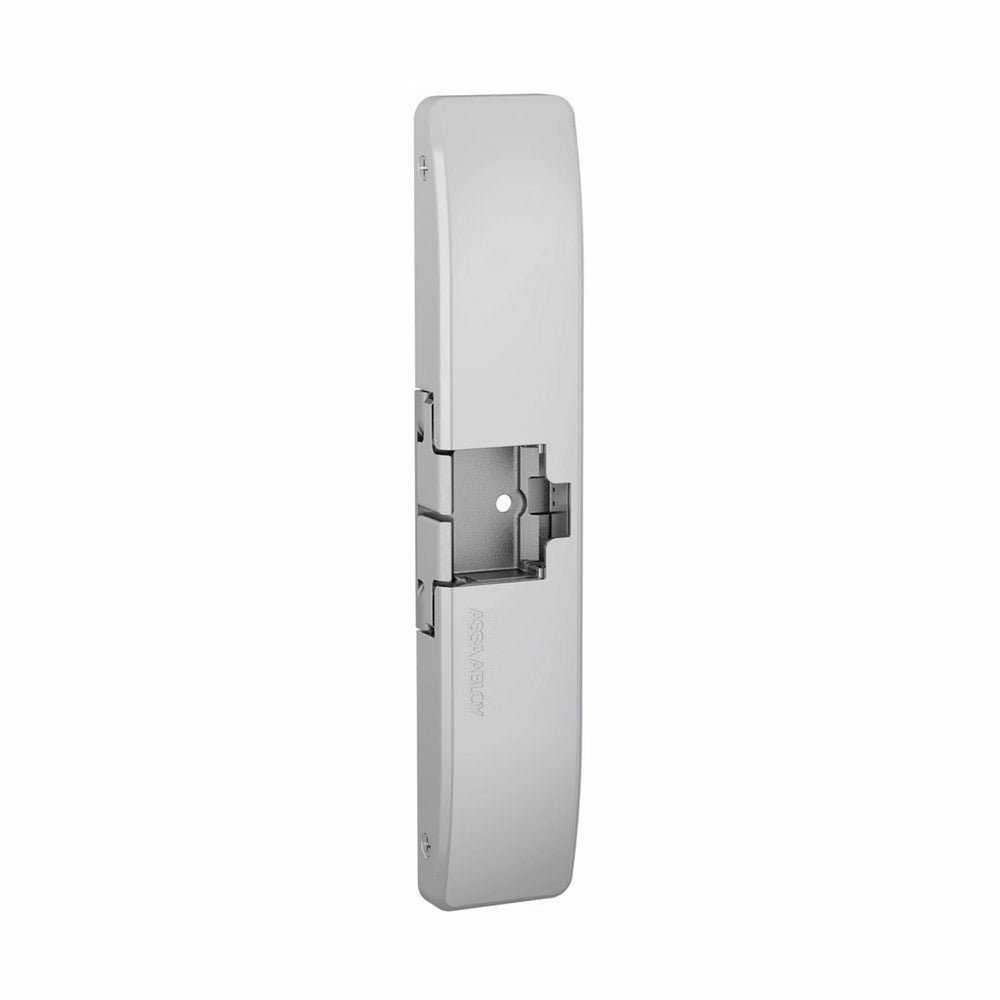

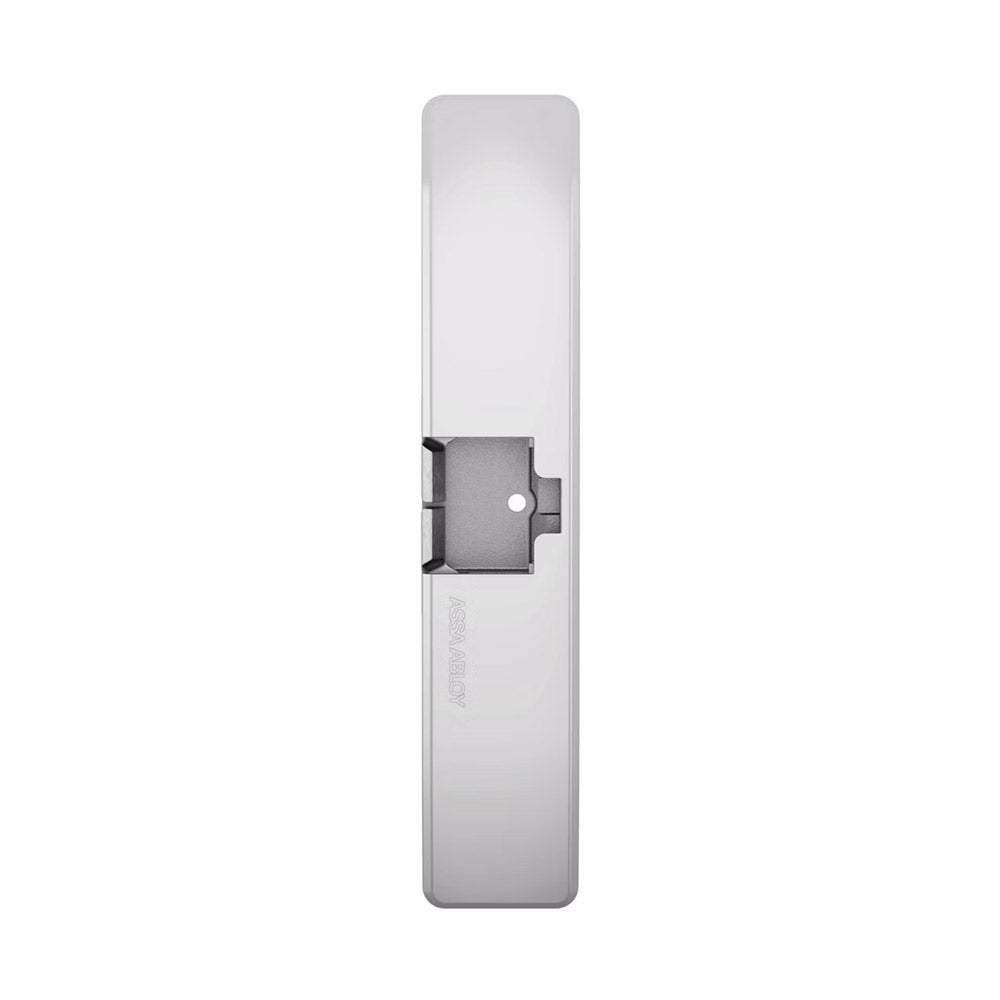

The 9700 Series is a heavy duty, surface mounted electric strike designed to accommodate Corbin Russwin® Securebolt® and ASSA ABLOY ACCENTRA™ Squarebolt® exit devices. All components are completely encased within its 3/4" thick stainless steel housing, so no cutting on the frame is required for installation. It is field selectable for fail secure and fail safe operation, and for 12 or 24 VDC. The 9700 is designed with the strength and durability required to exceed the severe forces of ANSI Windstorm testing. This unique electric strike also complies with NFPA 80-07 guidelines for retrofit into fire rated frames.

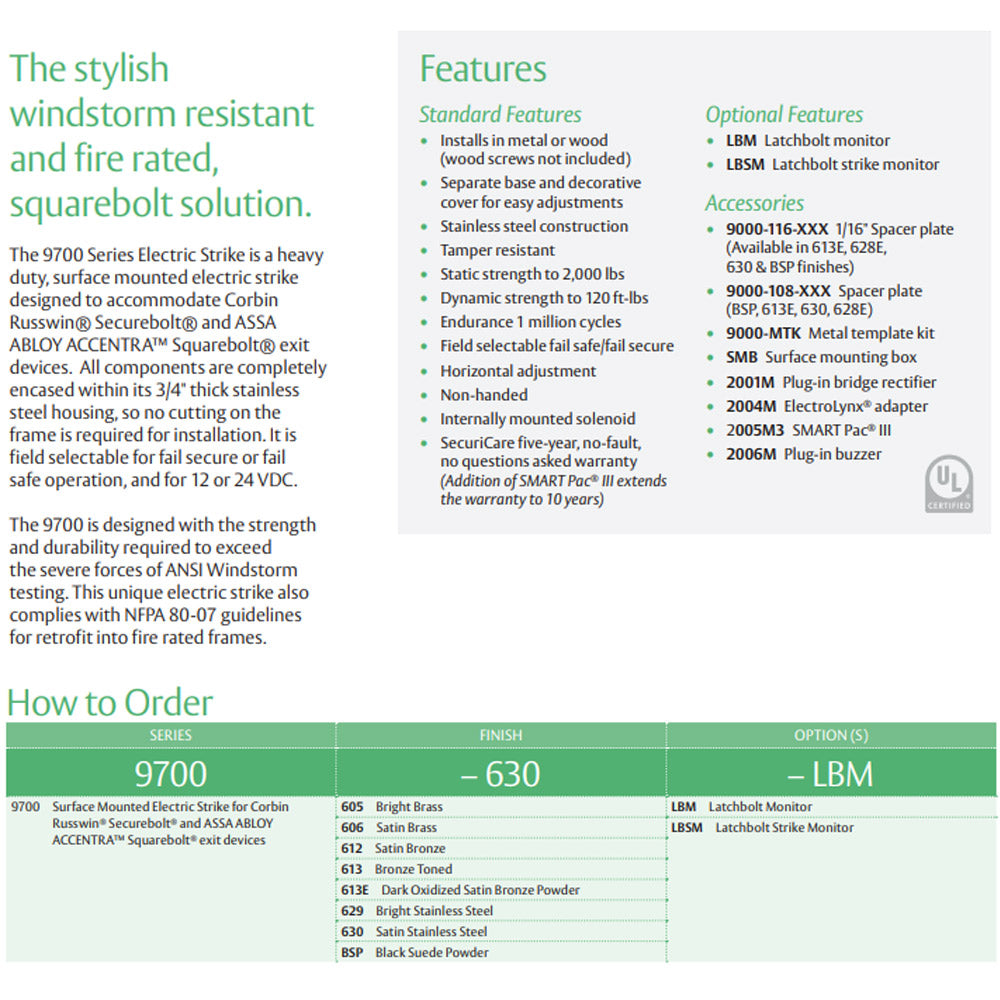

Product Features
- Separate base and decorative cover for easy adjustments
- Stainless steel construction
- Tamper resistant
- Static strength to 2,000 lbs
- Dynamic strength to 120 ft-lbs
- Endurance 1,000,000 cycles
- Field selectable fail safe/fail secure
- Horizontal adjustability
- Non-handed
- Internally mounted solenoid
- Installs in metal or wood (wood screws not included)
Application
- Adjustability : Horizontal
- Surface Mounting : No cutting required
- Frame Material : Metal|Wood
- Shim Type : NA
- Latchbolt Accommodation : 3/4"
Electrical
- Voltage : 12/24
- Monitoring Installation : Factory Configured
- Monitoring Options : Latchbolt Monitoring|Latchbolt Strike Monitor
Strength & Durability
- Endurance (cycles) : 1,000,000
- Dynamic Strength (ft-lbs) : 120
- Tamper Resistant : Yes
- Fail Safe | Fail Secure : Field selectable fail safe/fail secure
General Specifications
- Warranty : SecuriCare five-year, no fault, no questions asked warranty
- Lock Type : Exit Device
Weights & Dimensions
- Strike Body Depth (in) : 0-3/4"
- Strike Body Height (in) : 9"
Certifications
- ANSI/BHMA A156.31, Grade 1
- ANSI/SDI 250.13 Certified
- ASTM E152 Fire Door Compliant
- ASTM E330 Certified
- Florida Building Code Approved FL# 19224
- NFPA 80-07 Compliant
- NFPA-252 fire door Compliant
- RoHS Compliant
- UL 1034 burglary-resistant listed
- UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
- UL 305 - Standard for Panic Hardware
- UL294 Listed
General Specification
- Fire Rating ~ Single Door : 3 Hour (Fail Secure Only)
