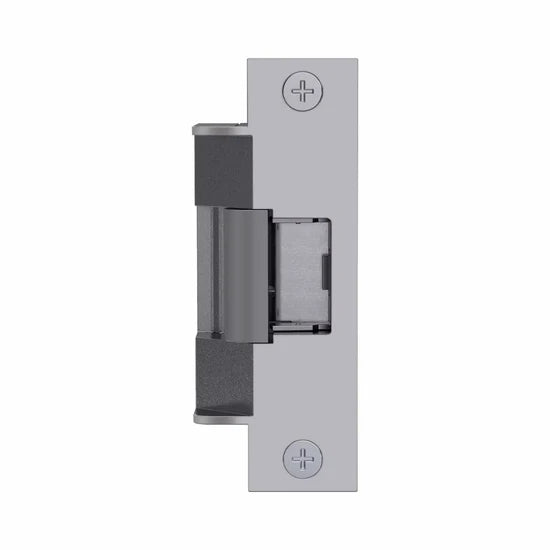

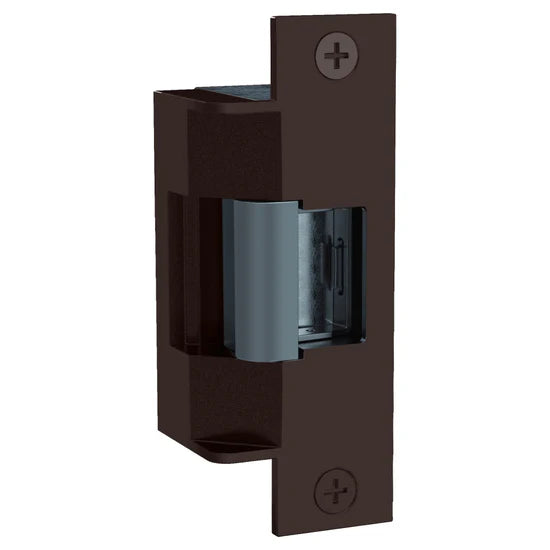

HES 7501 Grade 1 Fire Rated, Pre-Load Solution Electric Strike 7500 Series

by hes
$ 357.00

The 7501 series electric strike is ideal for fire-rated applications with pre-load conditions which may be caused by a warped or misaligned door, weather stripping, a smoke seal or any other condition that could cause door bind.  The heavy duty stainless steel construction provides the strength and durability required to accommodate fire-rated latchbolts up to 3/4" throw.

Specifications

  • UL 10C, fire-rated, 3 hour (fail secure only)
  • CAN4-S104 (ULC-S104) fire door conformant
  • UL 1034, burglary-resistant listed
  • ANSI/BHMA A156.31, Grade 1
  • NFPA-252 fire door conformant
  • ASTM-E152 fire door conformant
  • MEA New York City accepted
  • Patent #5,484,180

Frame application

  • Metal
  • Wood

Electrical

  • .45 Amps at 12 VDC continuous duty
  • .25 Amps at 24 VDC continuous duty

Standard Features

  • Stainless steel construction
  • Tamper resistant
  • Static strength 1,500 lbs.
  • Dynamic strength 70 ft-lbs.
  • Endurance 500,000 cycles
  • Field selectable fail safe/fail secure
  • Accommodates pre-load (fail secure only)
  • Keeper shims for horizontal adjustment
  • Non-handed
  • Internally mounted solenoid

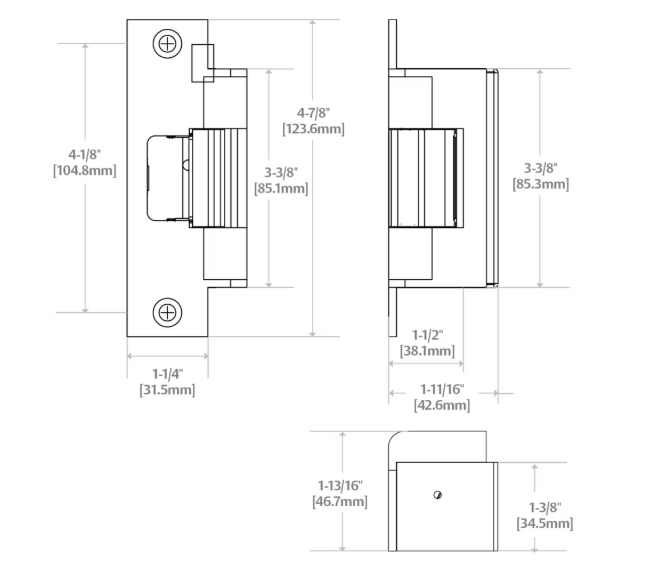

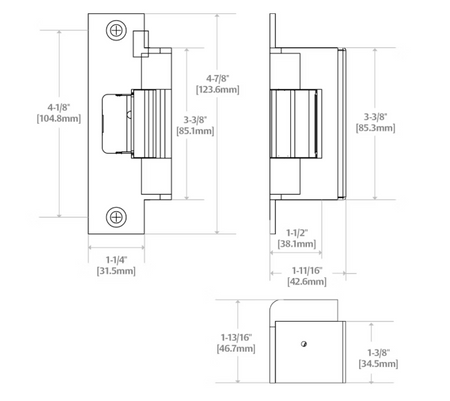

  • Strike body depth 1-11/16"
  • Plug-in connector
  • Trim enhancer
  • Five year limited warranty

Optional Features

  • LBM - Latchbolt monitor
