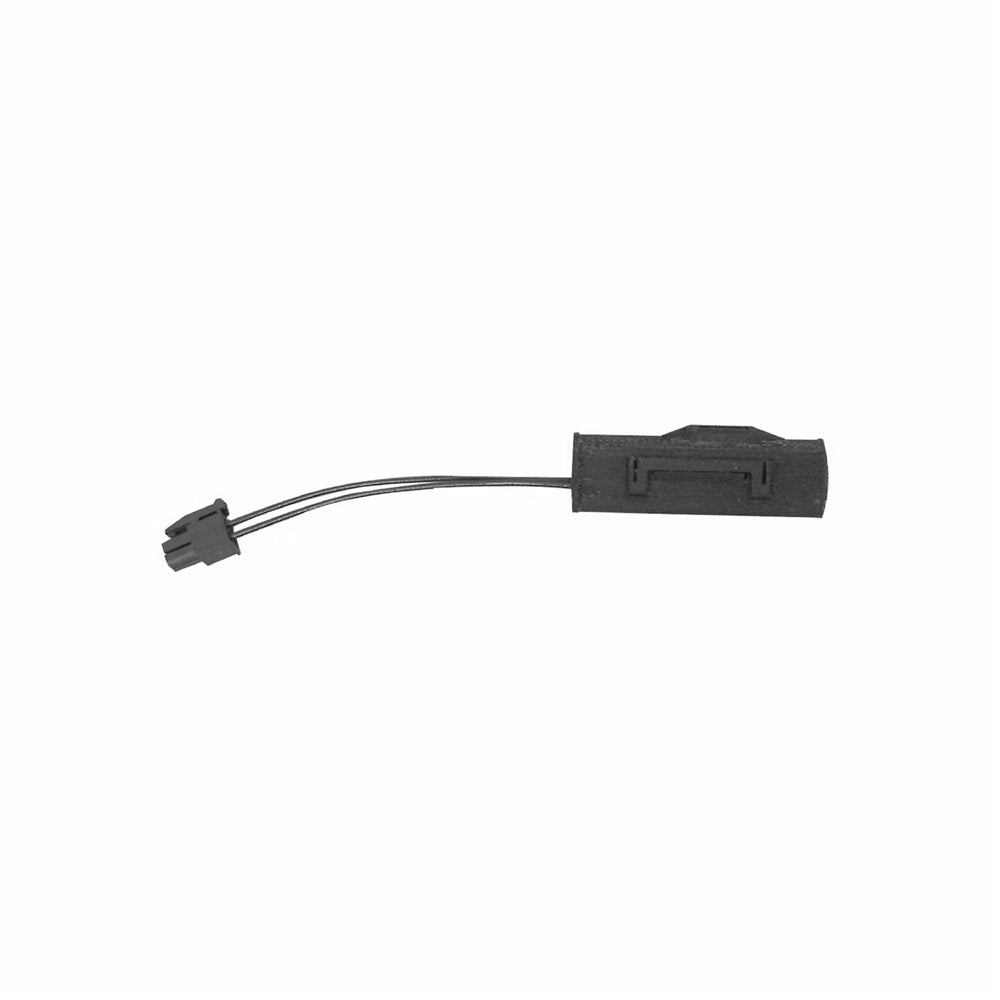

Name: HES 2001M Electrical Accessories
Brand: hes
Price: 44.00 USD
Availability: InStock

HES 1006 Heavy Duty Electric Strike

from $ 355.00

HES 1006 Heavy Duty Electric Strike

by hes

$ 355.00

Complete Pack Option

Quantity

The 1006 series is the strongest and most versatile electric strike available. The dual interlocking plunger design and heavy duty stainless steel construction, enables it to exceed every standard developed for electric strikes.

Product Features

Stainless steel construction
Tamper resistant
Static strength 2,500 lbs. (fail secure)
Dynamic strength 350 ft-lbs. (fail secure)
Endurance 1,000,000 cycles
Fail secure (standard)
Non-handed
Accommodates up to 1" deadbolt
Plug-in connector
Full keeper shims for horizontal adjustment
Trim enhancer
Dual voltage 12 or 24 VDC continuous duty
Internally mounted solenoid

Application

Adjustability : Horizontal
Surface Mounting : Cutting required
Frame Material : Metal|Wood
Shim Type : Field Adjustable
Latchbolt Accommodation : 1/2" - 5/8"

Electrical

Voltage : 12/24
Monitoring Installation : Factory Configured
Monitoring Options : Latchbolt Strike Monitor|Latchbolt Monitoring

Strength & Durability

Endurance (cycles) : 1,000,000
Dynamic Strength (ft-lbs) : 350
Tamper Resistant : Yes
Fail Safe | Fail Secure : Fail Safe/ Fail Secure
Grade : Grade 1

General Specifications

Warranty : SecuriCare five-year, no fault, no questions asked warranty
Lock Type : Cylindrical Lock|Mortise Lock|Mortise Lock with Deadbolt

Weights & Dimensions

Strike Body Depth (in) : 1.6875
Strike Body Height (in) : 3.4750

Certifications

ANSI/BHMA A156.31, Grade 1
ANSI/SDI 250.13 Certified
ASTM E152 Fire Door Compliant
ASTM E330 Certified
Florida Building Code Approved TAS 201, 202, 203 (old)
NFPA-252 fire door Compliant
RoHS Compliant
UL 1034 burglary-resistant listed
UL 10C Fire-Rated, 1-1/2 Hour Double Door [Fail Secure only]
UL 10C Fire-Rated, 3 Hour Single Door [Fail Secure Only]
UL294 Listed

KD Option Faceplate

(4.875 H x 1.25 W) For use with: Mortise locksets up to 3/4" throw latchbolt. Compatible locksets: Dorma 9500, Jackson, Sargent (7700 & 8100), Schlage, Yale (8700)

HTD Option Faceplate

(4.875 H x 1.25 W) For use with: Mortise locksets with a 1" deadbolt and no deadlatch or a center positioned deadlatch. Strike will not release when deadbolt is extended. Compatible locksets: Sargent (7700 & 8100), Schalge, Yale (8700)

H-2 Option Faceplate

(9 H x 1.375 W) For use with: Mortise locksets with a 1" deadbolt without a deadlatch, in wood frame applications. Strike will not release when deadbolt is extended. Compatible Locksets: Accurate, Arrow, Baldwin, Marks, Omnia, PDQ, Yale (8700).

HT Option Faceplate

(4.875 H x 1.25 W) For use with: Mortise locksets with a 1" deadbolt without a deadlatch. Strike will not release when deadbolt is extended. Compatible Locksets: Sargent (7700 & 8100 series), Yale (8700)

E Option Faceplate

(4.875 H x 1.25 W) For Use With: Corbin Russwin Security Bolt, Weiserbolt and normally extended 1" tubular deadbolts

R Option Faceplate

(4.875 H x 1.25 W) For Use With: Adams Rite style hookbolt up to 1" throw

Z Option Faceplate

(4.875 H x 1.25 W) For Use With: Unit and Mono locks

J-2 Option Faceplate

(9 H x 1.375 W) For Use With: All cylindrical locks up to a 3/4" latchbolt

N Option Faceplate

(4.875 H x 1.25 W) For use with: Mortise locksets where the deadbolt is used for night-latch function only. Compatible Locksets: Accurate, Arrow, Baldwin, Marks, Omnia, PDQ, Others

NM Option Faceplate

(4.875 H x 1.25 W) For use with: Mortise locksets with a deadbolt used for night latch function only. Compatible locksets: Accurate, Arrow, Baldwin, Best, Corbin Russwin, Falcon (45H, 47H, 34H & 37H), Marks, Omina, PDQ, Sargent (7800, 8200 & 9200), Yale (8800)

T Option Faceplate

(4.875 H x 1.25 W) For use with: Mortise locksets with a normally extended 1" deadbolt and center-lined deadlatch. Compatible locksets: Accurate, Arrow, Baldwin, Marks, Omnia, PDQ, Schalge

T-2 Option Faceplate

(9 H x 1.375 W) For use with: Mortise locksets where the deadbolt is used for night-latch function only, in wood frame applications. Compatible Locksets: Accurate, Arrow, Baldwin, Marks, Omnia, PDQ, Schlage, Yale (8700), Others

DB Option Faceplate

(4.875 H x 1.25 W) Kit includes faceplates and brackets to make N and H series options

KM-2 Option Faceplate

(9 H x 1.375 W) For Use With: Mortise locksets up to a 3/4" latchbolt

ND Option Faceplate

(4.875 H x 1.25 W) For use with: Mortise locksets with a deadbolt used for night latch function only. Compatible locksets: Sargent (7700 & 8100), Schlage, Yale (8700)

KM Option Faceplate

(4.875 H x 1.25 W) For use with: Mortise locksets up to 3/4" throw latchbolt. Compatible locksets: Accurate, Arrow, Baldwin, Best, Corbin Russwin, Falcon, Marks, PDQ, Sargent (7800, 8200 & 9200), Yale (8800)

HM Option Faceplate

(4.875 H x 1.25 W) For use with: Mortise locksets with a 1" deadbolt. Strike will not release when deadbolt is extended. Compatible locksets: Accurate, Arrow, Baldwin, Best, Corbin Russwin, Falcon (45H, 47H, 34H & 37H), Marks, Omnia, PDQ, Sargent (7800, 8200 & 9200), Yale (8800)

HD Option Faceplate

(4.875 H x 1.25 W) For use with: Mortise locksets with a 1" deadbolt without a deadlatch. Strike will not release when deadbolt is extended. Compatible Locksets: Sargent (7700 & 8100 series), Yale (8700)

K-2 Option Faceplate

(9 H x 1.375 W) For use with: Mortise locksets with a deadlatch positioned above the latchbolt, in wood frame applications. Compatible Locksets: Baldwin, Marks, PDQ, Others

A-2 Option Faceplate

(9 H x 1.375 W) For use with: Mortise locksets with a normally extended 1" deadbolt without a deadlatch, in wood frame applications. Compatible Locksets: Accurate, Arrow, Baldwin, Marks, Omnia, PDQ, Schlage, Yale, Others.

H Option Faceplate

(4.875 H x 1.25 W) For use with: Mortise locksets with a 1" deadbolt without a deadlatch. Strike will not release when deadbolt is extended. Compatible Locksets: Arrow, Baldwin, Marks, Omnia, PDQ, Others

K Option Faceplate

(4.875 H x 1.25 W) For use with Mortise locksets with a deadlatch positioned above the latchbolt. Compatible Locksets: Baldwin, Marks, PDQ, Others.

Documents

HES 1006 Series Electric Strike Installation Instructions

HES 1006 Electric Strike Sell Sheet

HES 1006 Series Electric Strike Catalog Page

HES Electric Strike Overview Brochure

Electric Strike Lock Cross Reference

Electric Strike Compatibility Chart

Certifications

HES 1006 Electric Strike A250.13 Windstorm Certificate of Compliance

HES 1006 Electric Strike UL294 and UL1034 Certificate of Compliance

HES Electric Strikes BHMA Grade 1 Certification

HES 1006 Electric Strike 2019 HPD Document

HES 1006 Electric Strike EPD Document

HES 1500C Electric Strike

$ 312.00

HES 1500C Electric Strike

by hes

$ 312.00

Quantity

Works with all brands of cylindrical and mortise locksets without a deadbolt

The HES 1500 Series™ and 1600 Series™ Electric Strikes set a new standard in the industry by offering dynamic integrated adjustability and field configurable options compatible with any cylindrical or mortise lock. The modular design of the platform makes stocking and installing easier with interchangeable faceplates and accessories. For the first time, the aesthetics of an electric strike are complimentary to other surrounding door hardware and blend in with the opening due to the fully finished design available in eight finishes.
