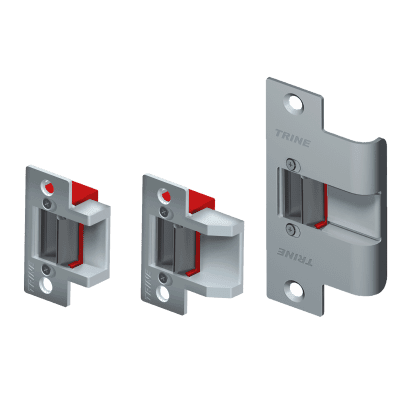

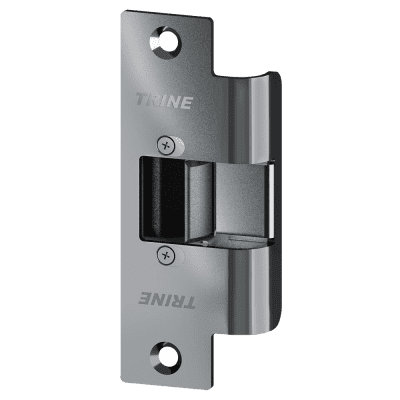

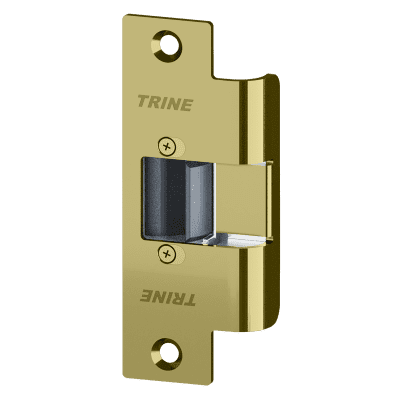

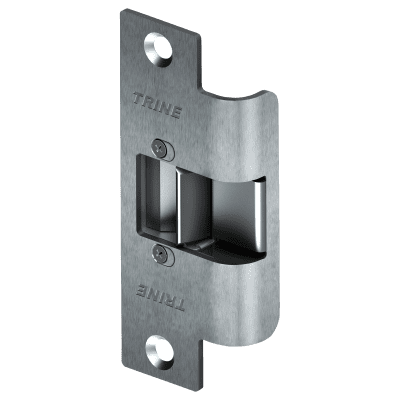

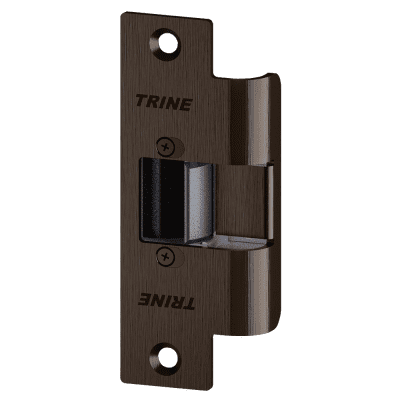

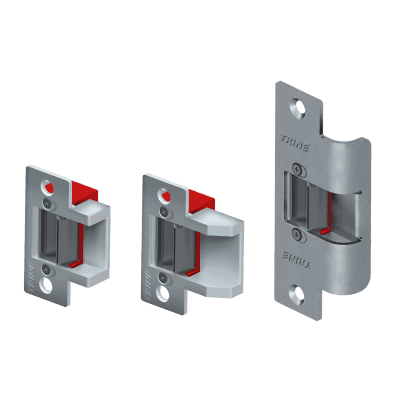

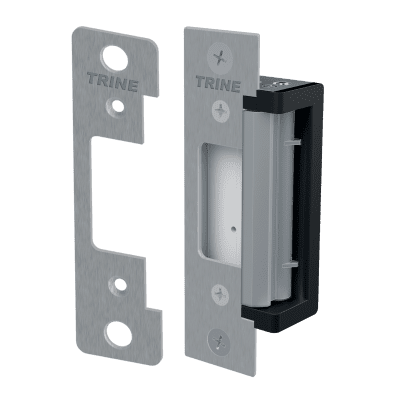

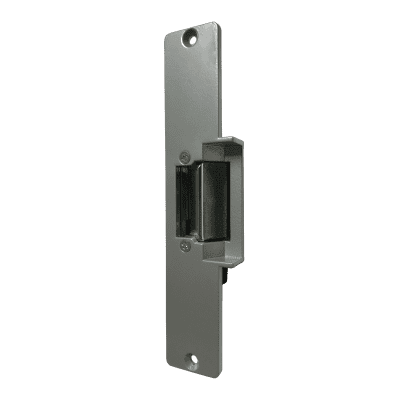

234, 234X, 478 Faceplates, 478-CCFP Filler and 30LC Included in this product.
Trine
For new or replacement installations in wood or metal jambs. Use with cylindrical locksets, mortise locks without dead bolts, and mortise exit devices with up to 7/8” throw.
Downloadable content: |

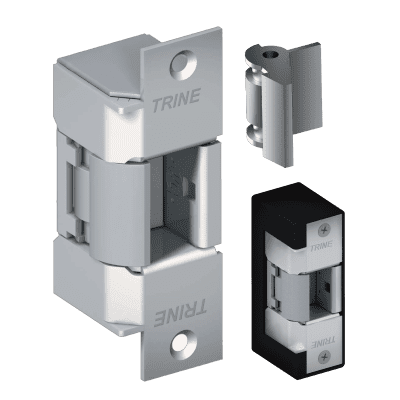

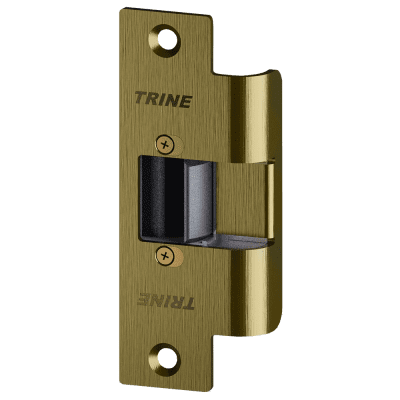

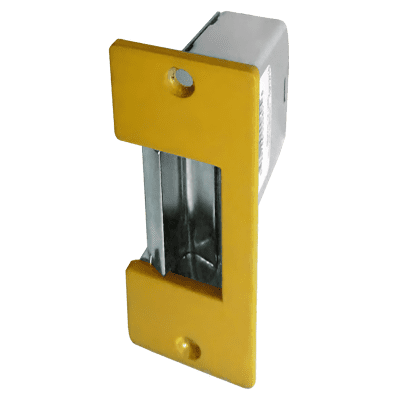

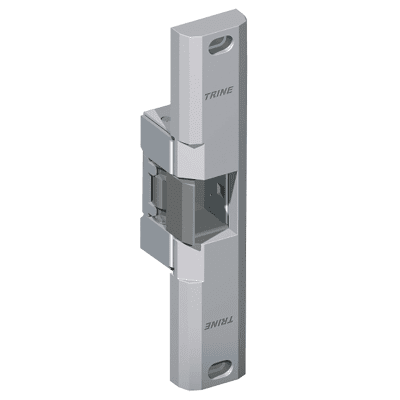

EN400 Features:
- Superior Strength -- Heavy duty 2,000+ lbs UL® tested.
- Superior Life -- Durability of 1,000,000+ life cycles
- Superior Application - Outdoor UL® rating allows the strike to be used anywhere - especially good for gates.
- Fail secure/Fail safe field reversible on DC units.
- Grade 1 Electric Strike -- Contains a one piece locking mechanism with one Solenoid -- less parts mean less problems.
- Left and Right handing is field reversible.
- Great for all high humidity environments like at marinas and pools. The go anywhere strike!
EN400 Specifications:
- UL® Listed 10C - Fire-rated - Class A, 3-hour, single swing door
- UL® Listed 1034 - Indoor/Outdoor Burglary Resistant
- UL294 (6th Edition) listed
- NYC MEA 79-01-E
EN Series Electrical Characteristicss:
| Volts | Current | Ohms (Ω) | Duty | Sound | Wire |
|---|---|---|---|---|---|
| 12AC | 0.700 | 4.5 | Intm. | Buzz | 1-Blue, 1-Orange/White |
| 24AC | 0.370 | 18.0 | Intm. | Buzz | 1-Blue, 1-Black/White |
| 12DC | 0.280 | 43.0 | Intm./Cont. | Silent | 2-Orange/White |
| 24DC | 0.150 | 164.0 | Intm./Cont. | Silent | 2-Black/White |

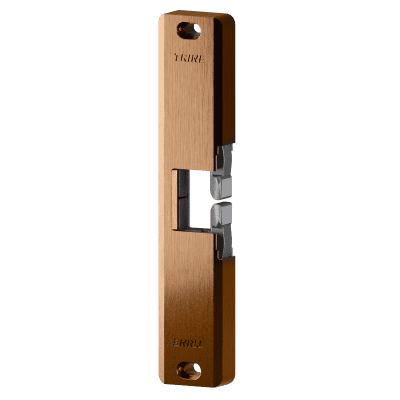

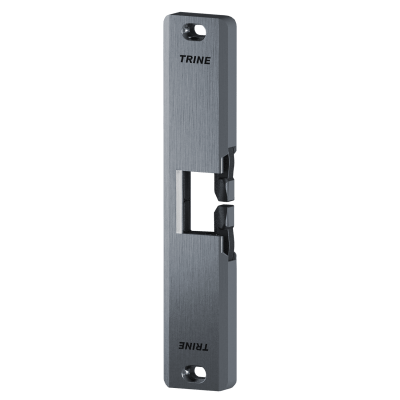

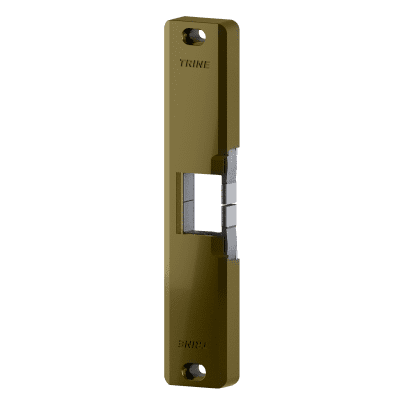

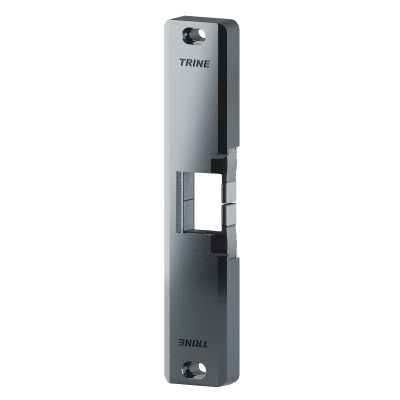

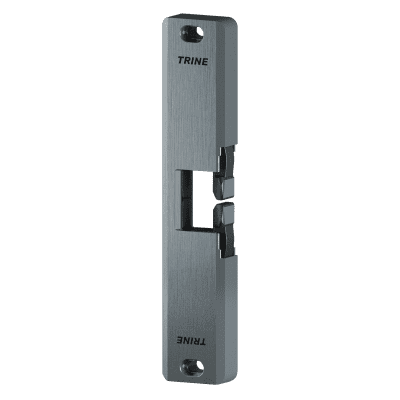

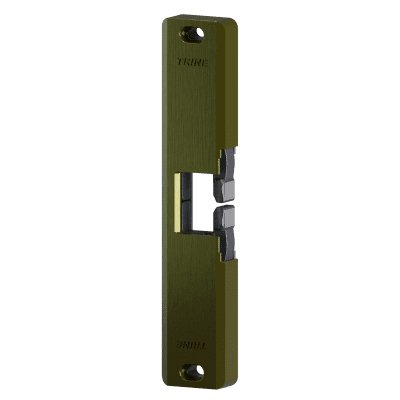

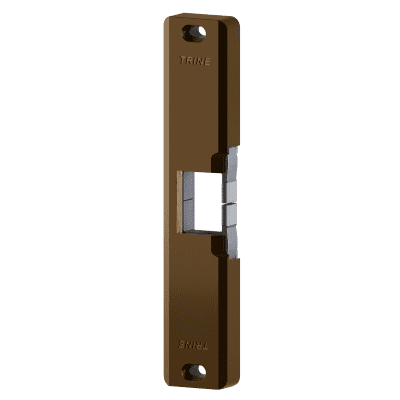

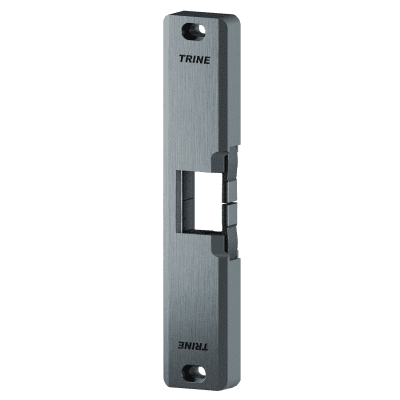

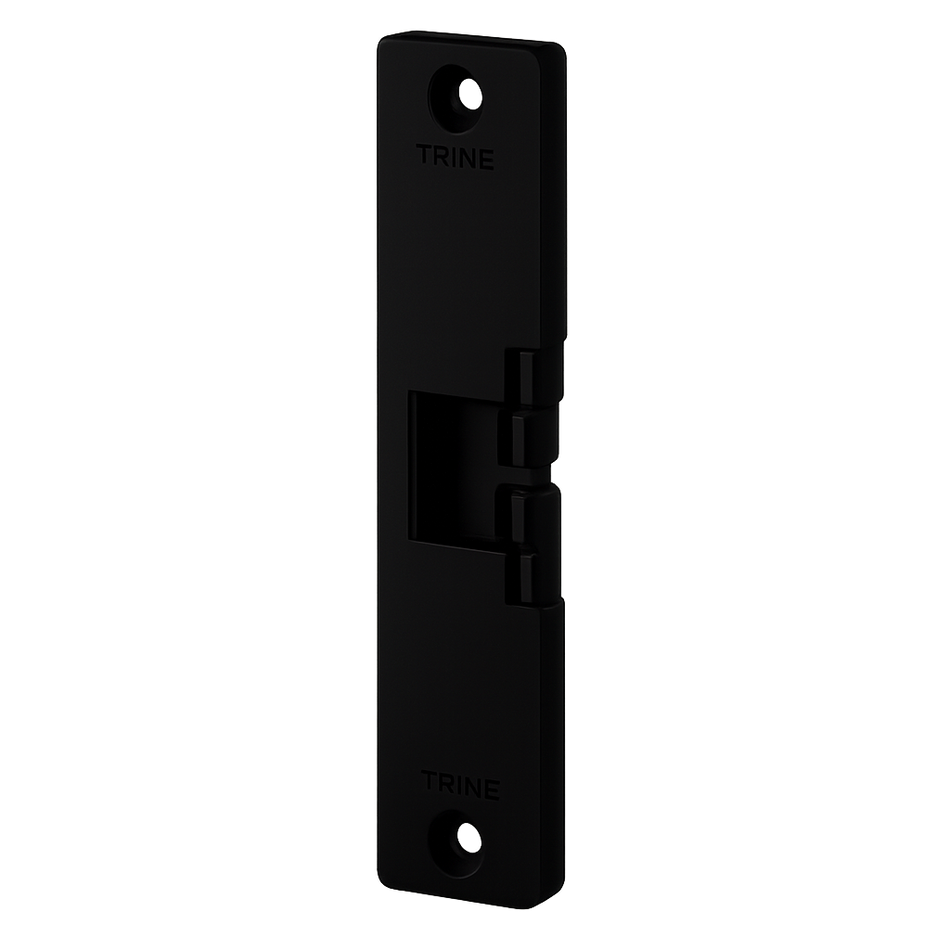

1/2" Surface mounted electric strike for Rim Panic Devices.
The most flexible electric strike for use with surface mounted rim exit devices with up to 1” (6 different thicknesses altogether).
Downloadable content:
|

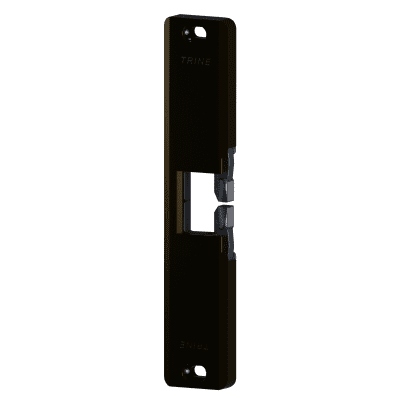

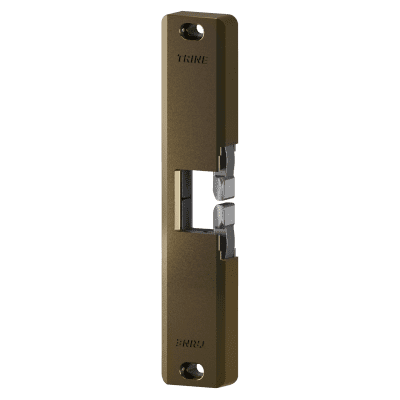

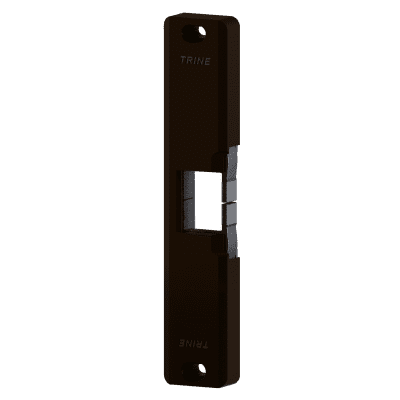

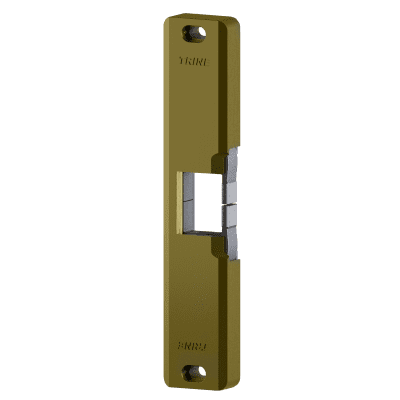

Enhanced 4850 Features:
- 1/2” thick Surface Mount electric strike comes with 1/4” and two (2) 1/16” Spacers plates -- the most versatile rim panic strike provides the flexibility of 6 different sizes!
- The electric strike Cavity is completely open -- which means the 4850 allows for an incremental depth up to a 1" throw -- competitor backplates do not allow for this versatility.
- Comes with Trines Patented 6-Pin Anchoring System
- Contains a one piece locking mechanism with one Solenoid -- less parts mean less problems.
- Fail-safe/Fail-secure (field selectable).
- Grade 1 Electric Strike -- 1,000,000+ Life cycles -- 1,500+ lbs. Holding Force
- No cutting or worrying about voltage means you are always prepared.
- Everyday Low Current Draw
Enhanced 4850 Electrical Characteristics: (DC Only) ™
| Voltage | Amps | Wire Color | Duty | Sound |
|---|---|---|---|---|
| 12DC | 0.218 | Red & Blue | Intm./Cont. | Silent |
| 16DC | 0.290 | Red & Blue | Intm./Cont. | Silent |
| 24DC | 0.195 | Brown & Blue | Intm./Cont. | Silent |

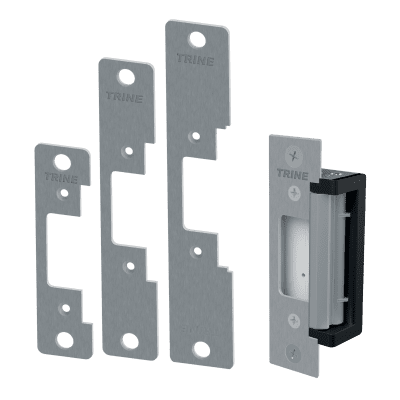

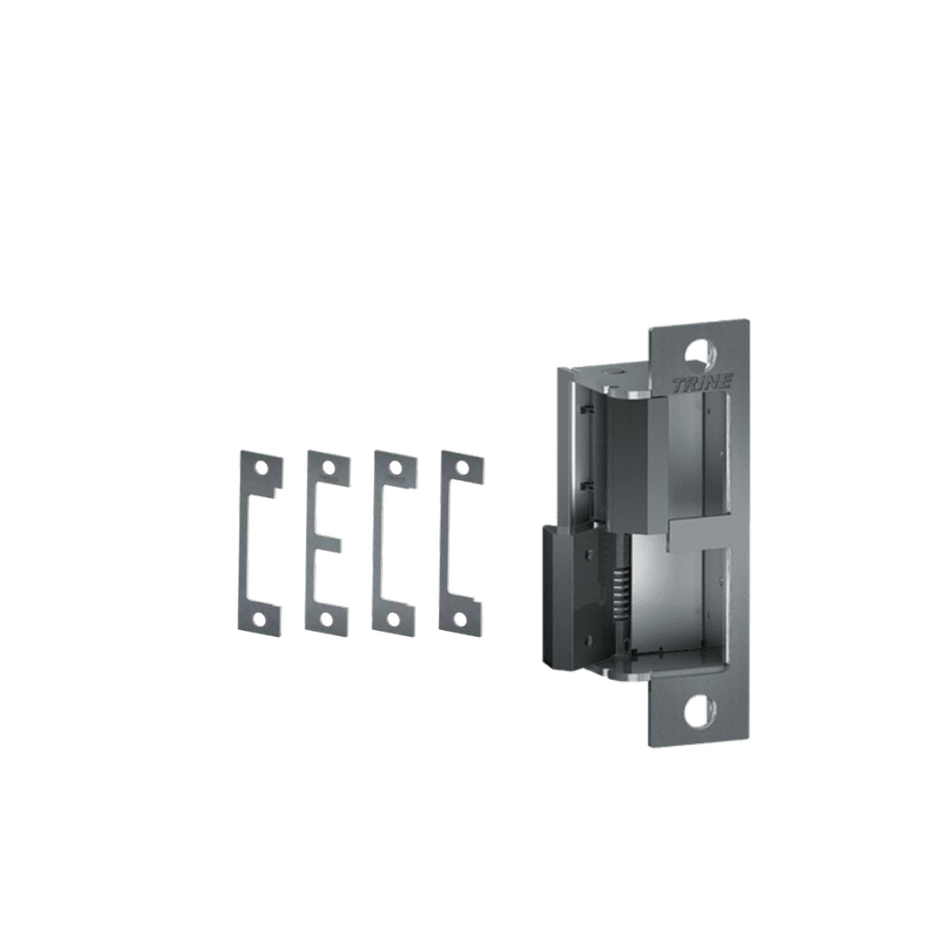

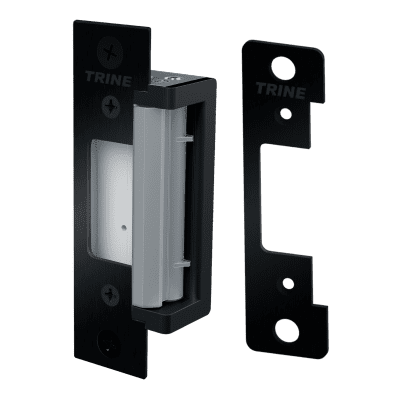

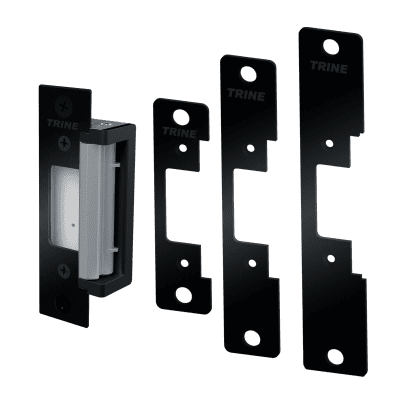

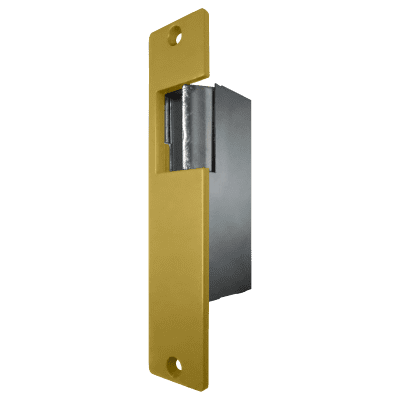

4100 Features:
- Grade 1 Electric Strike -- heavy duty construction, 1,000,000+ Life cycles -- 3,250+ lbs. Holding Force

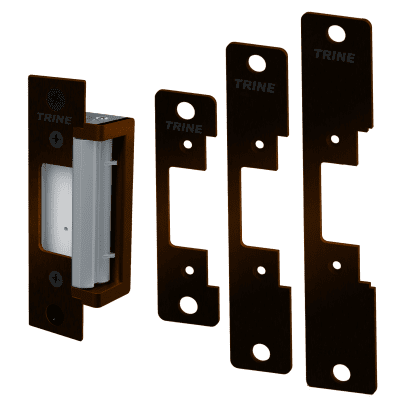

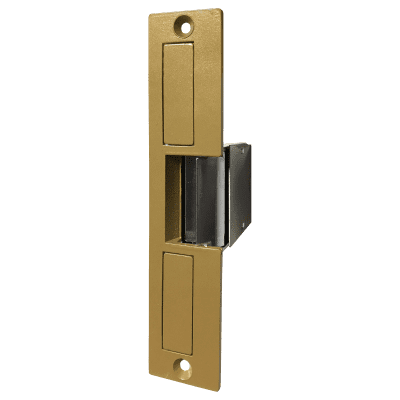

- Four popular faceplates included -- including the 4 most used faceplates in the box makes specifying and installing easy Covers 90%+ of Cylindrical & Mortise Lock configurations (without deadbolt), plus faceplates can be kept & used to help accomodate for door sag.
- 1 - 3/8” Shallow backset -- the 4100 low profile electric strike can be used in 2” fire rated frames with 1/2” sheetrock ingress
- Low Current Draw -- .240 Amp at 12DC makes it very PoE Friendly 12 & 24DC :: 12 through 24 AC. All the low voltage and amperage flexibility you need
- The included CCTS covers the gap when retrofitting the HES® 1006, Folger Adams® 712/732, and Von Duprin® 6200 Series or even Trine EN Series strikes. No more ugly trim skirts. The CCTS always matches the faceplate finish.
- Why cut for a deadbolt 100% of the time when they are only used 5% of the time.
- Patented # US20110241361
- Cutout Specification A115.1 (with Slight Jamb Modification)
Standards:
- Class A, 3 Hour fire rated single door / frame configuration
- WH recognized for UL10C, Fire Tests of Door Assemblies
- UBC 7-2, Uniform building Code
- CAN4 S104, Standard Method for Fire Tests of Door Assemblies
- NFPA 252 - Issue: 1999/01/01 Standard Methods of Fire Tests of Door Assemblies
- NOTE: WH fire listing is void when using fail safe action.
- UL LISTED - 1034 Burglary Resistant
- UL294 (6th Edition) listed
- ANSI A156.5 - 1992 - 4-7/8" x 1-1/4" Fits
4100 Electrical Characteristics:
| Volts | Current | Ohms (Ω) | Duty | Sound | Wire Color |
|---|---|---|---|---|---|
| 12DC | 0.240 A | 50 Ω | Intm./Cont. | Silent | Blue/Red |
| 24DC | 0.114 A | 210 Ω | Intm./Cont. | Silent | Brown/Red |
| 12AC | 0.210 A | 50 Ω | Intm. | Buzz | Blue/Red |
| 16AC | 0.280 A | 50 Ω | Intm. | Buzz | Blue/Red |
| 24AC | 0.420 A | 50 Ω | Intm. | Buzz | Blue/Red |
Downloadable content:

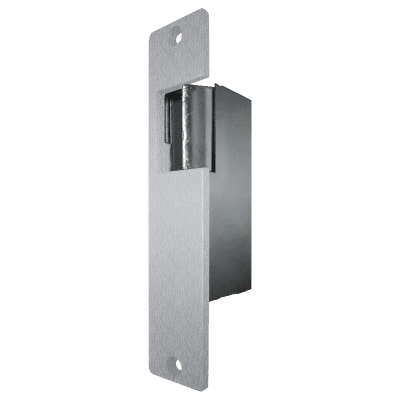

12/24VAC/DC, Fail Secure

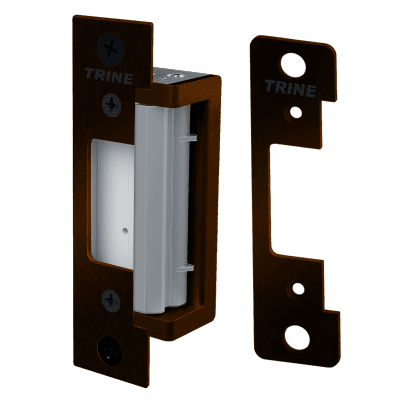

Faceplates Available
Downloadable content:

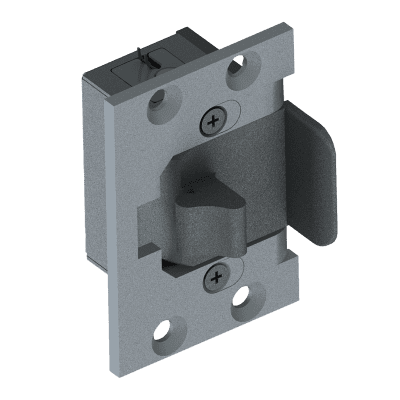

Faceplates Available

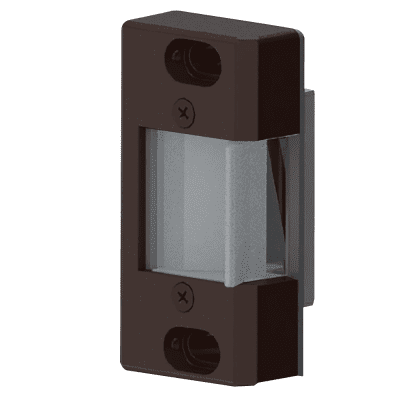

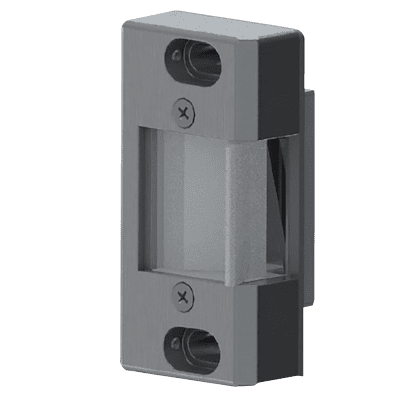

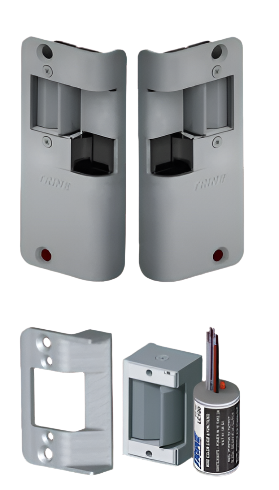

Faceplates for the Trine 3000 Series Electric Strikes
