Adams Rite

US Lock Supply Stocks The Full Line Of Adams Rite From Electric Strikes To Panic/Exit Devices. Adams Rite Is The Leader In Glass Storefront door hardware. From mortise exit devices to electric door strikes Adams Rite is the ideal option for quality Door Hardware.

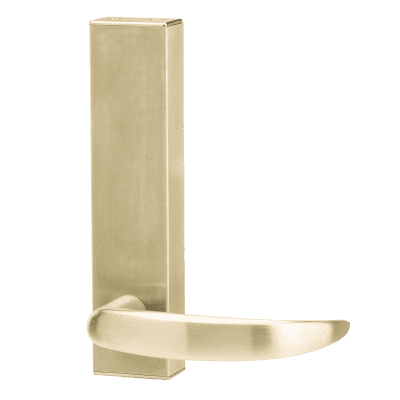

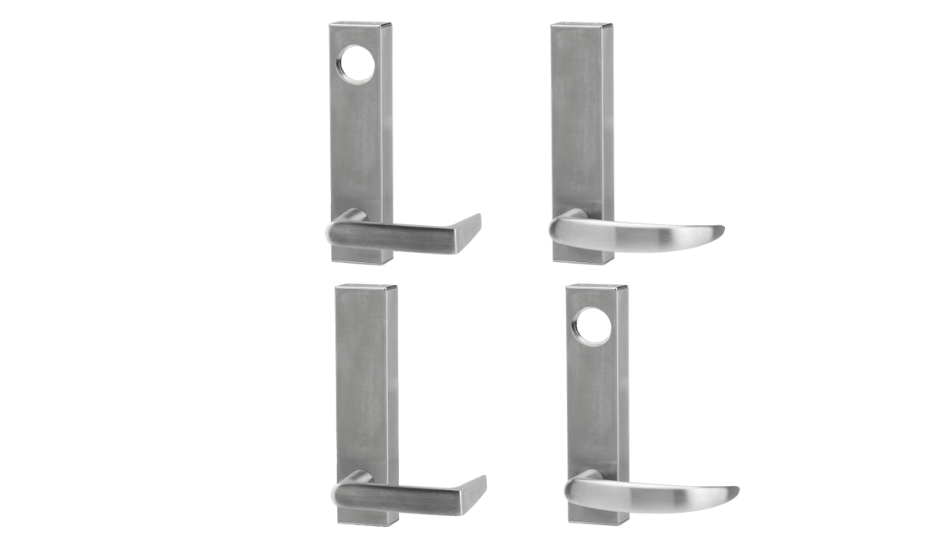

Adams Rite 3080-01-0-9U-US32D

Adams Rite 3080-01-0-9U-US32D

by Adams Rite
$ 220.00

Entry Trim, 01 Curve Lever, Without Cylinder Hole, Universal, Satin Stainless Steel

Adams Rite 4591 Deadlatch Paddle

Adams Rite 4591 Deadlatch Paddle

by Adams Rite
$ 69.00

The 4591 Deadlatch Paddle is an ergonomically-friendly alternative to a knob or lever handle. Operate with a simple push or pull.

Function:

An alternative to knob or lever handles. Makes opening a latched door as natural as opening an unlatched one – just push or pull in the direction in which the door swings. Compatible with any Adams Rite 4300, 4500 or 4900 Series Deadlatch, MS+1890 Deadlock/Deadlatch, or 2190/2290 Interconnected Deadbolt/ Deadlatch.

Operation:

Available in four configurations: push left, push right, pull left, and pull right. Can be reconfigured to any mode in the field. Dogging may not be utilized in pull configuration.

Features:

Paddle: Extruded aluminum.

Escutcheons: Zinc alloy with black finish. Secured to door stile with special binder posts that extend into the escutcheon to rigidly resist torque loads in any direction.

Cam Plug: Furnished for use with 4300, 4500 and 4900 Series Deadlatches. Cam plug not for use with MS+1890 Deadlock/Deadlatch or 2190/2290 Interconnected Deadbolt/Deadlatch. Secured in latch body by cylinder set screw, plug is also rigidly tied to escutcheon by hardened steel pins.

Monitor Switches:
4591M: Paddle without latch drive mechanism but with switch that can be wired to make or break a low voltage circuit.
4591MA: Paddle with latch drive mechanism, complete active paddle with switch.
91-0914 Monitor Switch Kit: Adds monitor switch function to 4591Paddle for "push" version only.

Paddle Dogging: “PUSH” version only: Turning hex key in escutcheon holds the paddle down, leaving door free swinging. Dogging key provided.

Standard Package: Individually boxed with mounting hardware. Units for 4300, 4500 or 4900 Series Deadlatches include cam plug.

Shipping weight: 1-1/2 lb [0.68 kg].

Options:

• First dash number specifies operation, handing and compatible latch. If required, use second dash number to specify non standard units for doors thicker than 1-3/4" [44.5 mm]. Please see configuration table or contact factory for more information.
• 4591M Paddle switch to actuate magnetic lock, alarm, etc. No latch retracting mechanism.
• 4591MA Active paddle with switch and latch retracting mechanism.
• 4781 Two-Point Deadlatch uses a modified, but matching version of the 4591 Paddle.
• Available in choice of 313 Dark bronze anodized, 335 Black anodized, 628 Clear anodized. US3 (605) Bright brass, and US26D (626) Satin chrome special finishes are also available





Related Products: When purchasing this product, please consider the following related products, available separately:

Accessories
91-0914 Monitor Switch Kit


Compatible Products: This product is compatible with the following products:

Deadlocks Deadlatches

MS+1890 Deadlock/Latch, 2190 Series Interconnected Deadbolt/Deadlatch

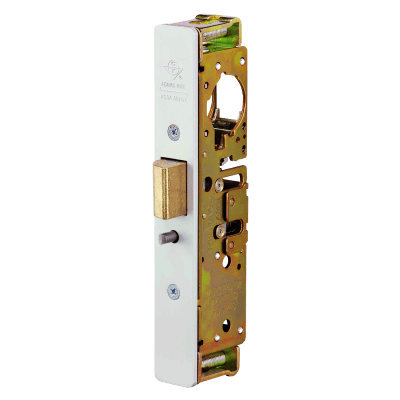

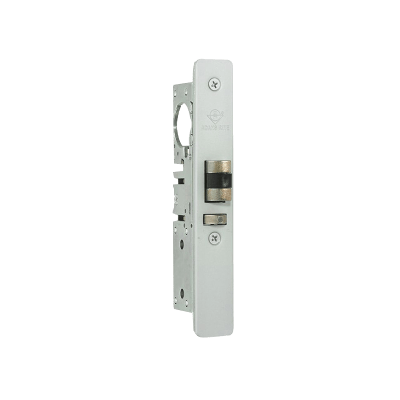

4300 Electrified Deadlatches, 4510, 4530, 4900, 4920AN Series Deadlatches.

Adams Rite Electric Strikes In Stock In 313 & 628 Finishes. Description: 7100, 7101 Electric Strikes with 4-7/8” faceplates are designed for Adams Rite deadlatches or cylindrical locksets with 1/2” to 5/8” latchbolt projection. For use in aluminum jambs and stiles.

7100 Installation Instructions

Adams Rite 7100/7101 Catalog

Adams Rite 7400 Electric Strike

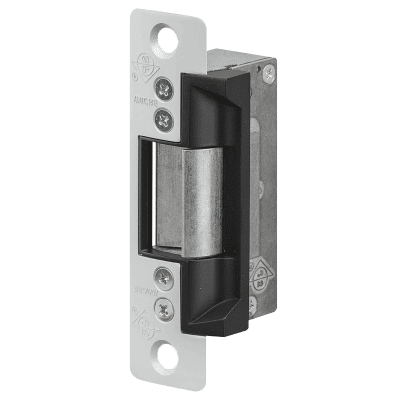

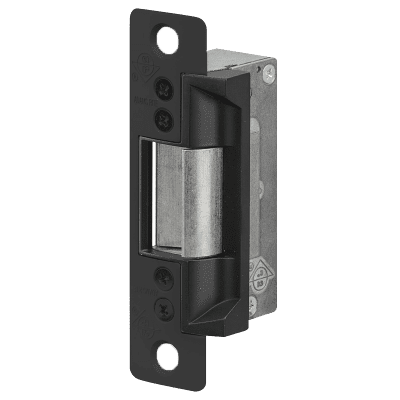

Adams Rite 7101 Electric Strike

Function: Remote electrical control of any door equipped with an Adams Rite 4500, 4700, or 4900 Series (or similar) Deadlatch or cylindrical (key-in-knob/lever) type lockset with 1/2” to 5/8” latchbolt projection. Electrical actuation unlocks strike jaw, releasing latchbolt so door can be opened without operating latch itself. Extremely compact mechanism fits into aluminum jamb (or opposing door) sections as shallow as 1-5/8”. Fits existing prep for discontinued Adams Rite 7000, 7500, 7800 Electric Strikes.

Finishes:

313-Dark Bronze Anodized Aluminum

628-Clear Aluminum Anodized

Specifications:

Fail-Safe/Fail-Secure: Field convertible from one mode to the other. However, AC intermittent solenoid must not be used continuously in either.

Case: Approximately 1” x 3-3/8” x 1-5/8” deep.

Strike Lip: Basic 7100 strike has lip of proper length for 1-3/4” thick door that closes flush with jamb edge. Where door thickness or jamb shape differs from this standard relationship, lip extension kits are available, specified by last dash number. Not available on 7101.

Strike Opening: 5/8” x 1-7/16” x 1/2” deep. Bolt retainer jaw is stainless steel. Strike accepts bolt of any Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical latches.

Faceplate: Measures 1-1/4” x 4-7/8”. 7100 has flat faceplate; 7101 is radiused to match nose on inactive leaf in a pair of narrow stile glass doors. Available in a wide range of architectural finishes.

Voltage: Available in 12 or 24 volt AC and DC. DC continuous units are silent, AC intermittent units “buzz” on operation.

Adams Rite Electric Strikes In Stock In 313 & 628 Finishes. Description: 7100, 7101 Electric Strikes with 4-7/8” faceplates are designed for Adams Rite deadlatches or cylindrical locksets with 1/2” to 5/8” latchbolt projection. For use in aluminum jambs and stiles.

Function: Remote electrical control of any door equipped with an Adams Rite 4500, 4700, or 4900 Series (or similar) Deadlatch or cylindrical (key-in-knob/lever) type lockset with 1/2” to 5/8” latchbolt projection. Electrical actuation unlocks strike jaw, releasing latchbolt so door can be opened without operating latch itself. Extremely compact mechanism fits into aluminum jamb (or opposing door) sections as shallow as 1-5/8”. Fits existing prep for discontinued Adams Rite 7000, 7500, 7800 Electric Strikes.

Finishes:

313-Dark Bronze Anodized Aluminum

628-Clear Aluminum Anodized

Specifications:

Fail-Safe/Fail-Secure: Field convertible from one mode to the other. However, AC intermittent solenoid must not be used continuously in either.

Case: Approximately 1” x 3-3/8” x 1-5/8” deep.

Strike Lip: Basic 7100 strike has lip of proper length for 1-3/4” thick door that closes flush with jamb edge. Where door thickness or jamb shape differs from this standard relationship, lip extension kits are available, specified by last dash number. Not available on 7101.

Strike Opening: 5/8” x 1-7/16” x 1/2” deep. Bolt retainer jaw is stainless steel. Strike accepts bolt of any Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical latches.

Faceplate: Measures 1-1/4” x 4-7/8”. 7100 has flat faceplate; 7101 is radiused to match nose on inactive leaf in a pair of narrow stile glass doors. Available in a wide range of architectural finishes.

Voltage: Available in 12 or 24 volt AC and DC. DC continuous units are silent, AC intermittent units “buzz” on operation.

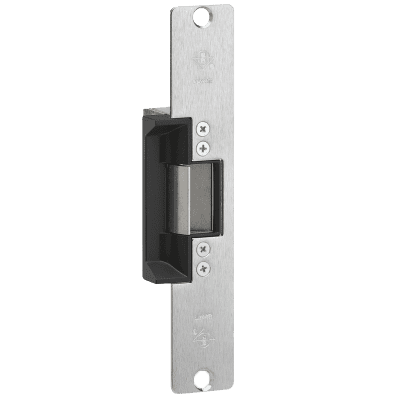

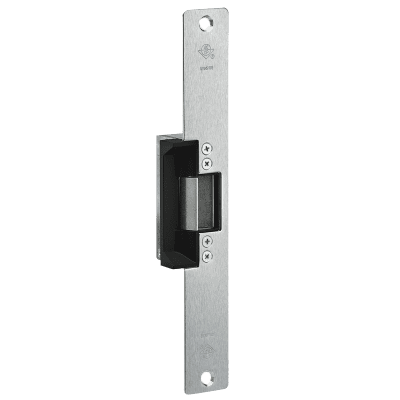

US Lock Supply Stocks The 7110 & 7111 In All Finishes & Options. Description: 7110 Electric Strike with 7-15/16” faceplate and 7111 Electric Strike with 10-1/4” faceplate are designed for Adams Rite deadlatches or cylindrical locksets with 1/2” to 5/8” latchbolt projection. For use in hollow metal, wood and aluminum door jambs.

Function: Replaces earlier 002, 7510, or 7810 electric releases in either metal or wood jambs for remote electrical control of any door equipped with an Adams Rite 4500, 4700, or 4900 Series (or similar) Deadlatch or cylindrical (key-in-knob/lever) type lockset with 1/2” to 5/8” latchbolt projection. Electrical actuation unlocks strike jaw, releasing latchbolt so door can be opened without operating latch itself. Extremely compact mechanism fits into jamb sections as shallow as 1-5/8”.

Finishes:

628-Clear Aluminum Anodized

Specifications:

Fail-Safe/Fail-Secure: Field convertible from one mode to the other. However, AC intermittent solenoid must not be used continuously in either.

Case: Approximately 1” x 3-3/8” x 1-5/8” deep.

Strike Lip: Basic 7110 strike has lip of proper length for 1-3/4” thick door that closes flush with jamb edge. Where door thickness or jamb shape differs from this standard relationship, lip extension kits are available, specified by last dash number (see catalog page).

Strike Opening: 5/8” x 1-7/16” x 1/2” deep. Bolt retainer jaw is stainless steel. Strike accepts bolt of any Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical latches.

Faceplate: Faceplate for 7110 measures 1-7/16” x 7-15/16”. 7111 faceplate measures 1-7/16” x 10-1/4”. Available in a wide range of architectural finishes.

Voltage: Available in 12 or 24 volt AC and DC. DC continuous units are silent, AC intermittent units “buzz” on operation.

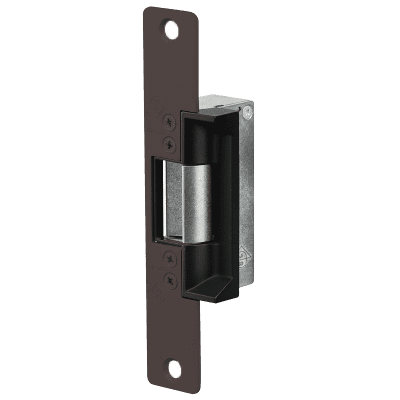

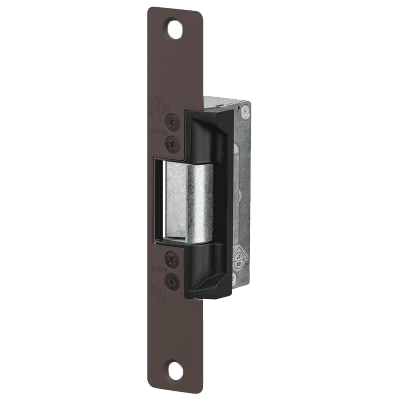

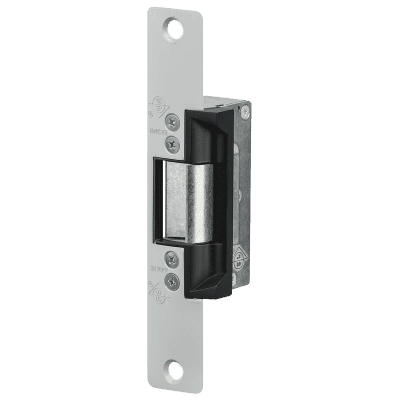

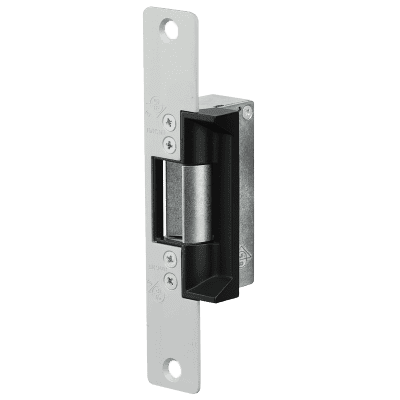

US Lock Supply Stocks The 7130 & 7131 In All Finishes & Options.

Description: 7130, 7131 Electric Strikes with 6-7/8” faceplates are designed for Adams Rite deadlatches or cylindrical locksets with 1/2” to 5/8” latchbolt projection. For use in aluminum jambs and stiles.

Function: Remote electrical control of any narrow stile or hollow metal door equipped with an Adams Rite Series 4500, 4700, or 4900 Series (or similar) Deadlatch or cylindrical (key-in-knob/lever) type lockset with 1/2” to 5/8” latchbolt projection. Large faceplate is designed to cover strike opening when converting from an MS pivoted-bolt deadlock to a deadlatch. Electrical actuation unlocks strike jaw, releasing latchbolt so door can be opened without operating latch itself. Extremely compact mechanism fits into aluminum jamb (or opposing door) sections as shallow as 1-5/8”. Replaces discontinued Adams Rite 7030, 7530, 7830 Electric Strikes.

Finishes:

313-Dark Bronze Anodized Aluminum

628-Clear Aluminum Anodized

Specifications:

Fail-Safe/Fail-Secure: Field convertible from one mode to the other. However, AC intermittent solenoid must not be used continuously in either.

Case: Approximately 1” x 3-3/8” x 1-5/8” deep.

Strike Lip: Basic 7130 strike has lip of proper length for 1-3/4” thick door that closes flush with jamb edge. Where door thickness or jamb shape differs from this standard relationship, lip extension kits are available, specified by last dash number. Not available for 7131.

Strike Opening: 5/8” x 1-7/16” x ½” deep. Bolt retainer jaw is stainless steel. Strike accepts bolt of any Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical latches.

Faceplate: Measures 1-1/4” x 6-7/8”. 7130 has flat faceplate, 7131 is radiused to match nose on inactive leaf in a pair of narrow stile glass doors. Available in a wide range of architectural finishes.

Voltage: Available in 12 or 24 volt AC and DC. DC continuous units are silent, AC intermittent units “buzz” on operation.





US Lock Supply Stocks The 7140 In All Finishes & Options. Description: 7140 Electric Strikes with 4-7/8” faceplates are designed for Adams Rite deadlatches or cylindrical locksets with 1/2” to 5/8” latchbolt projection. For use in hollow metal or wood doors and jambs.

Function: Remote electrical control of any door equipped with an Adams Rite 4500, 4700, or 4900 Series (or similar) Deadlatch or cylindrical (key-in-knob/lever) type locksets with 1/2” to 5/8” latchbolt projection. Electrical actuation unlocks strike jaw, releasing latchbolt so door can be opened without operating latch itself. Extremely compact mechanism fits into aluminum jamb sections as shallow as 1-5/8”. Fits existing prep for discontinued Adams Rite 7040, 7840N, 7850 Electric Strikes.

Finishes:

313-Dark Bronze Anodized Aluminum

628-Clear Aluminum Anodized

Specifications:

Fail-Safe/Fail-Secure: Field convertible from one mode to the other. However, AC intermittent solenoid must not be used continuously in either.

Case: Approximately 1” x 3-3/8” x 1-5/8” deep. Zinc aluminum alloy.

Strike Lip: Basic 7140 strike has lip of proper length for 1-3/4” thick door that closes flush with jamb edge. Where door thickness or jamb shape differs from this standard relationship, lip extension kits are available, specified by last dash number.

Strike Opening: 5/8” x 1-7/16” x 1/2” deep. Bolt retainer jaw is stainless steel. Strike accepts bolt of any Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical latches.

Faceplate: Measures 1-1/4 x 4-7/8” Faceplate is flat, with square corners. Available in a wide range of architectural finishes.

Voltage: Available in 12 or 24 volt AC and DC. DC continuous units are silent, AC intermittent units “buzz” on operation.

Adams Rite 7160 Electric Strike - Barzellock.com

Adams Rite 7160 Electric Strike

by Adams Rite
$ 143.00

US Lock Supply Stocks The 7160 In All Opions. Description: 7160 Electric Strikes with 4-7/8” faceplates are designed for mortise or cylindrical type locksets with up to 3/4” latchbolt projection without deadbolt. For use in aluminum jambs.

Function: Remote electrical control of any door equipped with a mortise or cylindrical type lockset with up to 3/4” latchbolt projection without deadbolt. Electrical actuation unlocks strike jaw, releasing latchbolt so door can be opened without operating latch itself. Extremely compact mechanism fits into aluminum jamb (or opposing door) sections as shallow as 1-7/8”. Fits existing prep for discontinued Adams Rite 7560, 7860 Electric Strikes.

Finishes:

313-Dark Bronze Anodized Aluminum

628-Clear Aluminum Anodized

Specifications:

Fail-Safe/Fail-Secure: Field convertible from one mode to the other. However, AC intermittent solenoid must not be used continuously in either.

Case: Approximately 1” x 3-3/8” x 1-7/8” deep.

Strike Lip: Basic 7160 strike has lip of proper length for 1-3/4” thick door that closes flush with jamb edge. Where door thickness or jamb shape differs from this standard relationship, lip extension kits are available, specified by last dash number.

Strike Opening: 3/4” x 1-7/16” x 5/8” deep. Bolt retainer jaw is stainless steel. Strike location must be centered on latchbolt.

Faceplate: Measures 1-1/4 x 4-7/8” Faceplate is flat, with radiused corners. Available in a wide range of architectural finishes.

Voltage: Available in 12 or 24 volt AC and DC. DC continuous units are silent, AC intermittent units “buzz” on operation.

Adams Rite 7170 Electric Strike - Barzellock.com

Adams Rite 7170 Electric Strike

by Adams Rite
$ 143.00

US Lock Supply Stocks The 7170 In All Opions.

Description: 7170 Electric Strikes with 4-7/8” faceplates are designed for mortise or cylindrical type locksets with up to 3/4” latchbolt projection without deadbolt. For use in hollow metal or wood door jambs.

Function: Remote electrical control of any door equipped with a mortise or cylindrical type lockset with up to 3/4” latchbolt projection without deadbolt. Electrical actuation unlocks strike jaw, releasing latchbolt so door can be opened without operating latch itself. Extremely compact mechanism fits into hollow metal jamb sections as shallow as 1-7/8”. Fits existing prep for discontinued Adams Rite 7560AN, 7570, 7860AN, 7870 Electric Strikes.

The electric strike must be positioned to accommodate offset mortise latches during installation. Please refer to installation instructions.

Specifications:

Fail-Safe/Fail-Secure: Field convertible from one mode to the other. However, AC intermittent solenoid must not be used continuously in either.

Case: Approximately 1” x 3-3/8” x 1-7/8” deep.

Strike Lip: Basic 7170 strike has lip of proper length for 1-3/4” thick door that closes flush with jamb edge. Where door thickness or jamb shape differs from this standard relationship, lip extension kits are available, specified by last dash number.

Strike Opening: 5/8” x 1-7/16” x 5/8” deep. Bolt retainer jaw is stainless steel.

Faceplate: Measures 1-1/4 x 4-7/8” Faceplate is flat, with square corners. Available in a wide range of architectural finishes.

Voltage: Available in 12 or 24 volt AC and DC. DC continuous units are silent, AC intermittent units “buzz” on operation.

Finishes:

313-Dark Bronze Anodized Aluminum

628-Clear Aluminum Anodized



Adams Rite 7400 Electric Strike - Barzellock.com

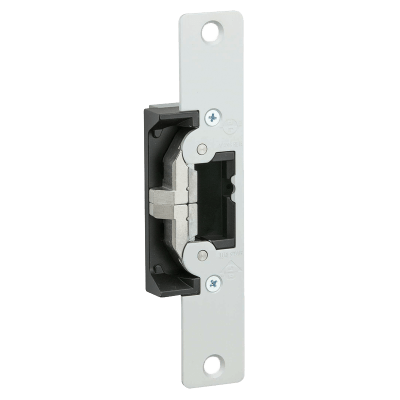

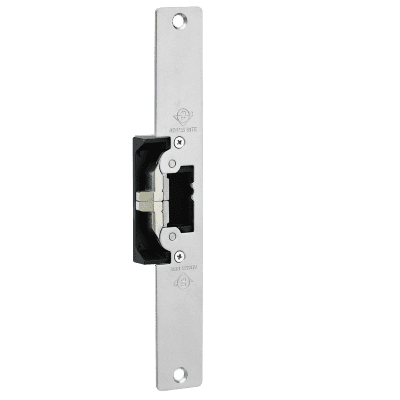

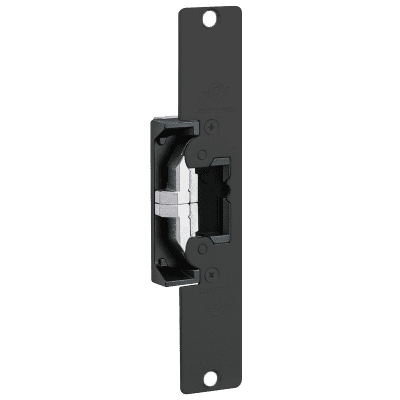

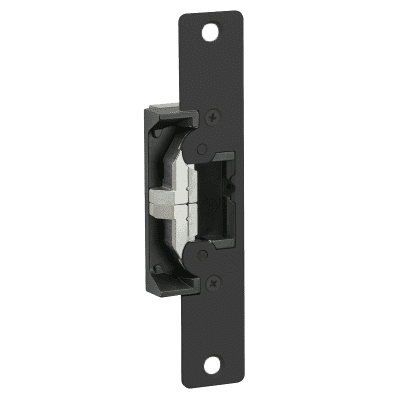

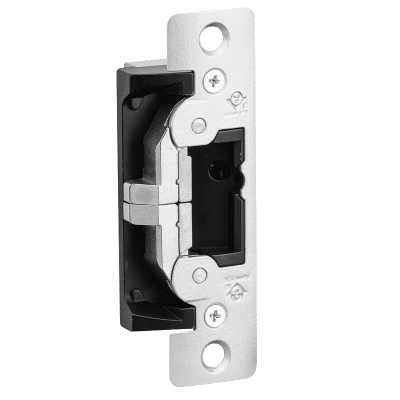

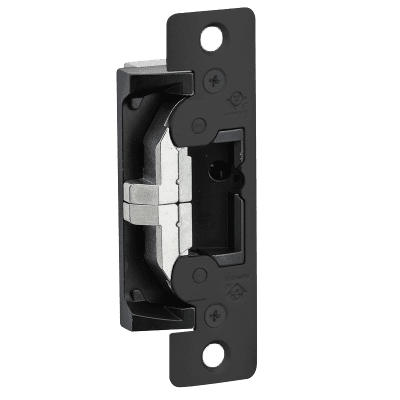

Adams Rite 7400 Electric Strike

by Adams Rite
$ 164.00

Description: 7440 Electric Strikes with 4-7/8” faceplates are designed for Adams Rite deadlatches or cylindrical locksets with 1/2” to 5/8” latchbolt projection. For use in hollow metal or wood door jambs and steel or wood doors. Opens electrically under 35 lbs. of preload.

Function: Remote electrical control of any door equipped with an Adams Rite 4500, 4700, or 4900 Series (or similar) Deadlatch or cylindrical (key-in-knob/lever) type lockset with 1/2” to 5/8” latchbolt projection. Electrical actuation unlocks strike jaw, releasing latchbolt so door can be opened without operating latch itself. Extremely compact mechanism fits into jamb sections as shallow as 1-1/16”. Direct upgrade for Adams Rite 7140 Electric Strikes.

Finishes:

313-Dark Bronze Anodized Aluminum

628-Clear Aluminum Anodized

This non-handed strike features an ultra-compact design and an adjustable stainless steel split-jaw with over 1500 lbs. of holding force in fail-secure mode. The strike releases electrically with up to 35 lbs. of door “preload” (pressure exerted on doors by air conditioning systems, warping or misaligned hardware which can disable common electric strikes). Single solenoid operates on 12, 16, or 24 volt AC/DC power. Strikes are equipped with a quick connect plug-in type connector.

Specifications:

Fail-Safe/Fail-Secure: Field selectable at time of installation.

Case: Approximately 1” x 3-3/8” x 1-1/16” deep.

Strike Lip: Basic 7400 electric strike has lip of proper length for 1-3/4” thick door that closes flush with jamb edge. Where door thickness or jamb shape differs from this standard relationship, lip extension kits are available.

Strike Opening: 5/8” adjustable x 1-7/16” x 1/2” deep. Bolt retainer jaw is stainless steel. Strike accepts bolt of Adams Rite 4500, 4700 (discontinued), or 4900 Series Deadlatch or cylindrical latches

Faceplate: Measures 1-1/4” x 4-7/8” Faceplate is flat, with square corners. Available in a wide range of architectural finishes.

Voltage

  • Field selectable to match power source of 12, 16, or 24 VDC.
  • 16 DC requires adapter (P/N VA 7400-16VDC)
  • 4603 Rectifier is required to convert low voltage AC current to DC current of same voltage. Please contact factory when using in AC mode.

Options:

Monitoring – Two internally mounted switches (Form “C”) to indicate when the latchbolt is engaged in the strike jaws and a locked/unlocked solenoid status.

Lip Extension Kits – Please see catalog for more information.

Modular Packaging – Consult factory or sales representative for details.

Wood Door Cover – WDC7400 for use when mounting the 7400 Series Electric Strike on the inactive leaf of a pair of door. The cover simplifies the mortise prep.

ELX-ElectroLynx™ Adapter – Connects Adams Rite electrified products to ElectroLynx system.

16 VDC Adapter – VA7400-16VDC required when using 16 VDC power.

For more information please see POWER.

Standard Package: Individually boxed with mounting screws, mounting tabs, adhesive shims to accommodate jamb or stile extrusion thickness greater or less than nominal 1/8”, and adjustable jaw shim pack and two plug-in voltage adapters for 12/16/24 VAC and 12/24 VDC.

Adams Rite 74R1 3/4" Ultra Line Electric Strike

US Lock Supply Stock The 74R1 Ready To Ship. Description: The 74R1 Electric Strike is designed for rim exit devices with 3/4” Pullman type latchbolt. For use in hollow metal, wood and aluminum door jambs. Opens electrically under 35 lbs. of preload.

Function: A semi-mortised strike for rim exit devices having 3/4” Pullman type bolts without auxiliary bolts. Provides electrical remote control, allowing door to open without actuation of the exit device.

This non-handed strike features an ultra-compact design and a stainless steel split-jaw with over 1500 lbs. of holding force in fail-secure mode. The strike releases electrically with up to 35 lbs. of door “preload” (pressure exerted on doors by air conditioning systems, warping or misaligned hardware which can disable common electric strikes). Single solenoid operates on 12, 16, or 24 volt AC/DC power. Strikes are equipped with a quick connect plug-in type connector.

Specifications:

Fail-Safe/Fail-Secure: Field selectable at time of installation.

Case: 74R1: 1-13/32" x 3-3/8" x 1-1/16" deep [35.7 mm x 85.7 mm x 27 mm deep]

Mounting Plate/Housing: Measure 1-3/4” x 9” x 11/16” deep. Made of zinc aluminum alloy. Standard finish in epoxy to match Clear, Dark Bronze Anodized and Black Anodized finishes.

Strike Opening: 5/8” x 1-7/16” x 9/16” deep. Bolt retainer jaw is stainless steel. Strike accepts Pullman bolt of exit devices without deadlocking bolts.

Voltage

  • Field selectable to match power source of 12, 16, or 24 VDC.
  • 16 DC requires adapter (P/N VA 7400-16VDC)
  • 4603 Rectifier is required to convert low voltage AC current to DC current of same voltage. Please contact factory when using in AC mode.
Adams Rite 74R2 1/2" Ultra Line Electric Strike
