Von Duprin 5100-3FP Electric Strike

SKU: 5100-3FP SP28
Regular price $ 196.56
Finish

The 5100 Series electric door strike is highly configurable, providing a versatile and time-saving solution for interior and exterior doors. It is useful in most retail and commercial applications requiring electric strike use for cylindrical locks or dead latches. The 5100 Series strike can be easily converted in-field with dual voltage and selectable power fail mode to suit the need. An adjustable keeper and three faceplates simplify fit to frame.

The 5100 Series is compatible with Schlage, Falcon and many other manufacturers' cylindrical locks with up to 5/8" throw, as well as many aluminum narrow stile deadlatches.



Application

  • Designed for cylindrical lock and dead latch applications
  • For interior or exterior doors with hollow metal, aluminum, or wood frames



Versatility

  • 12 in-field configurations
  • Three faceplates standard in every box
  • Field-selectable 12/24 VDC
  • Non-handed, internal solenoid design
  • Field-selectable power failure mode
  • Adjustable keeper improves fit on tight door preps



Strength and durability

  • 1000 lbs. static strength
  • 70 ft-lbs. dynamic strength

Opening

  • Single doors with wood, hollow metal or aluminum frames
  • Cylindrical lock and dead latch applications



Throw

  • 1/2" to 5/8"



Power

  • Field-selectable voltage and power fail mode
  • 12 VDC continuous duty at 0.38 Amp
  • 24 VDC continuous duty at 0.19 Amp



Dimensions

  • See the 5100 Series data sheet for dimensions and wiring.
  • 3 faceplates:
  • Square corner 4-7/8” x 1-1/4”
  • Round corner 4-7/8" x 1-1/4”
  • Wood application 7-15/16" x 1-7/16”
  • 1-11/16" backbox depth



Available finishes

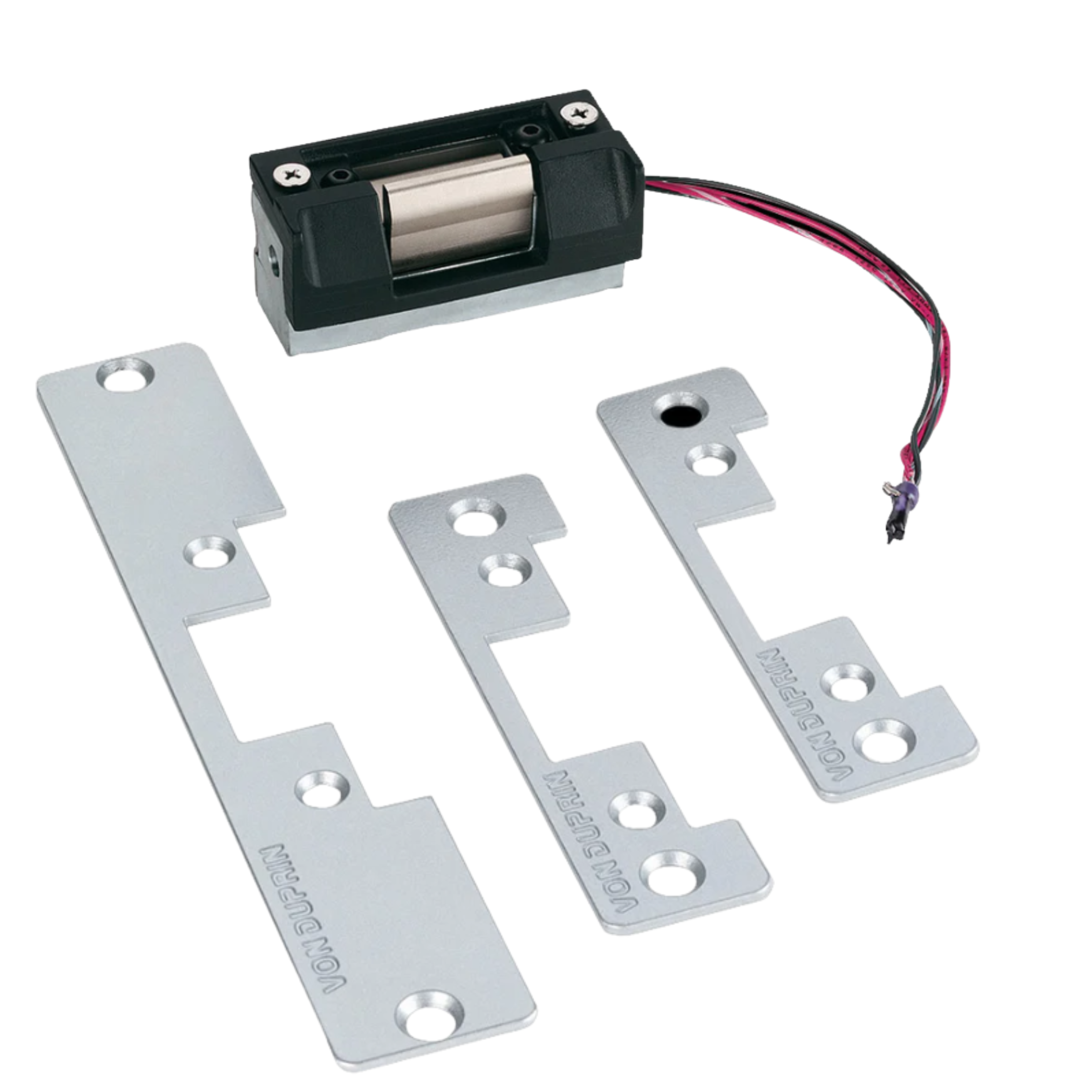

  • BHMA 689 / US SP28 aluminum

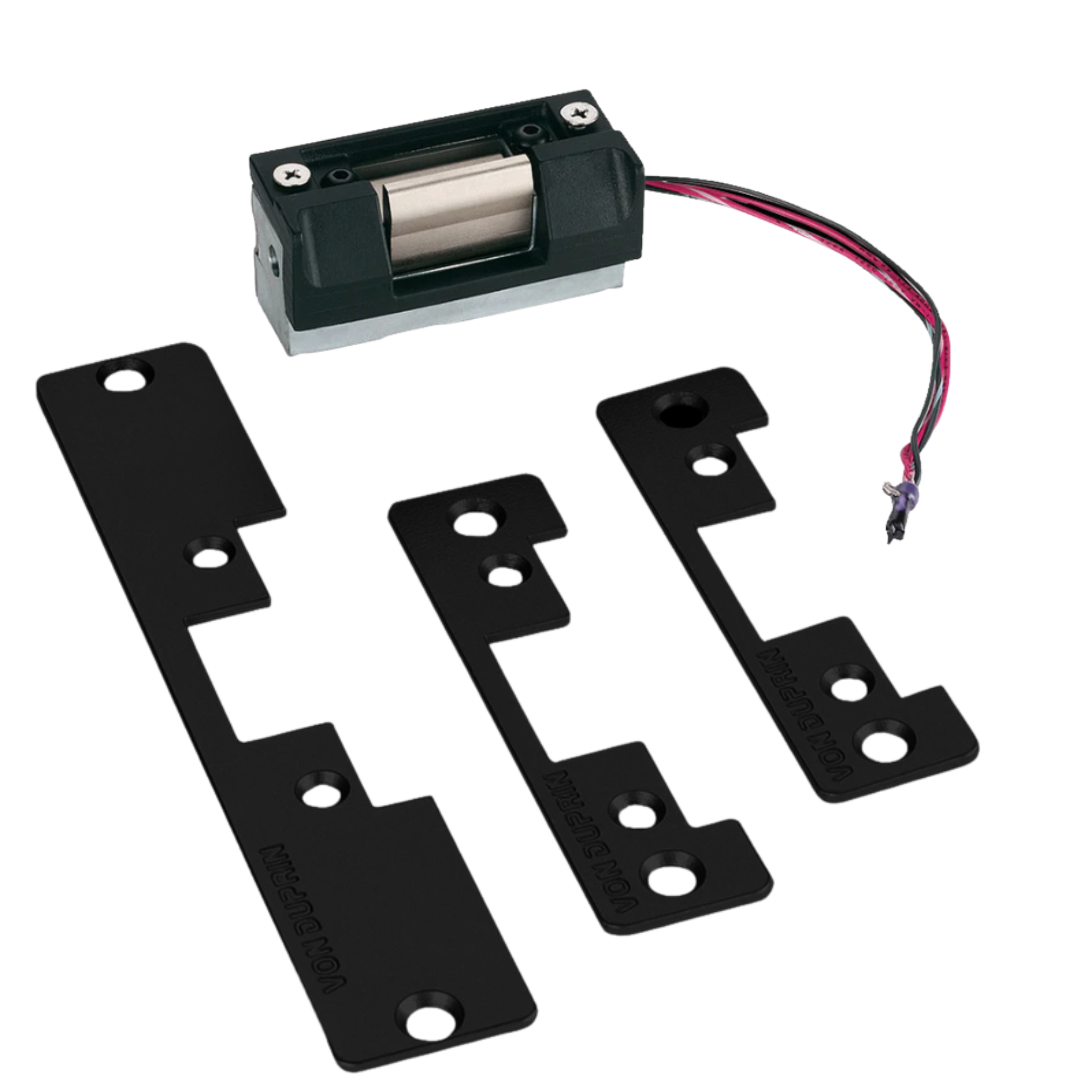

  • BHMA 622 / US19 flat black

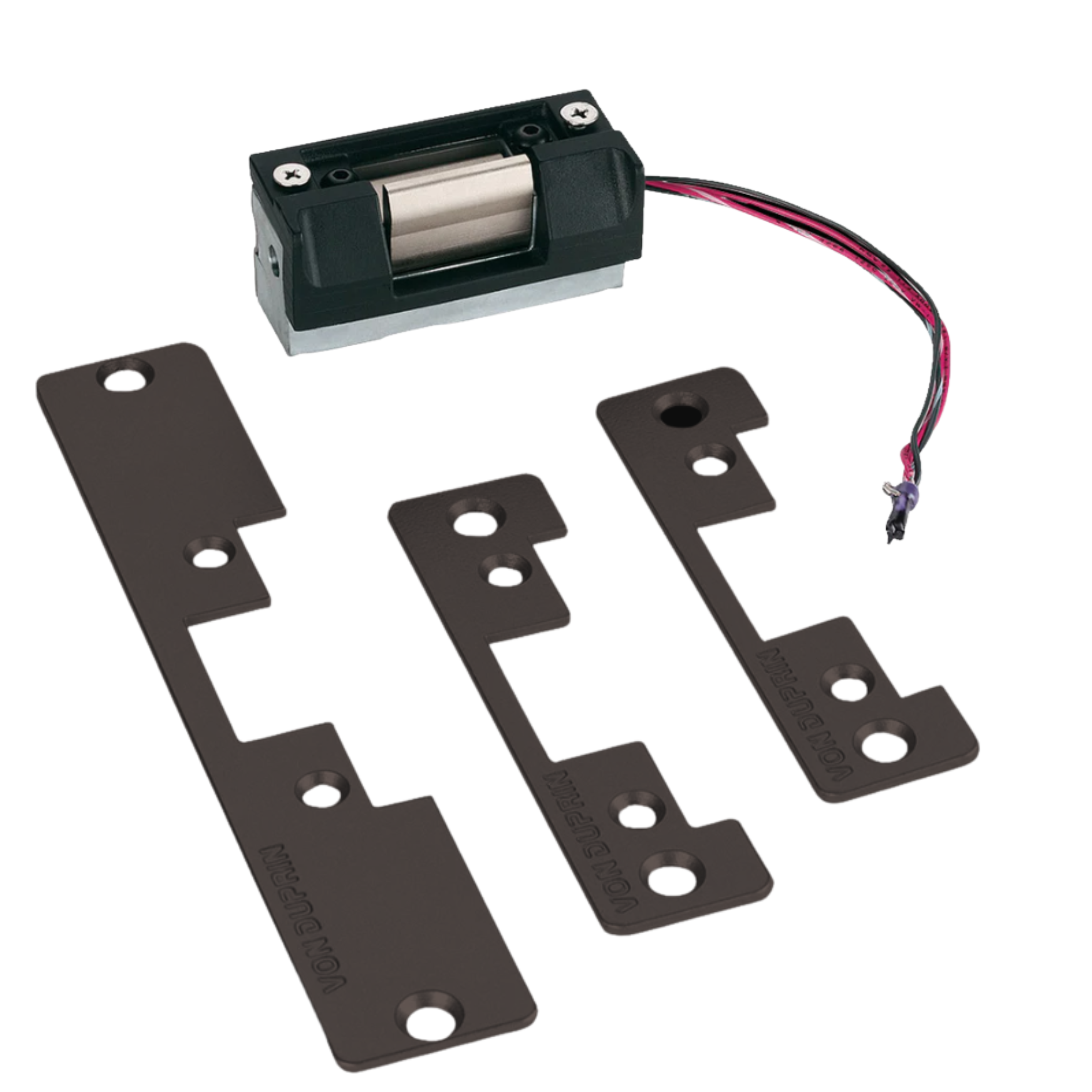

  • BHMA 695 / US SP313 dark bronze



Options

  • 12 VAC to 12 VDC rectifier
  • 24 VAC to 24 VDC rectifier
