RCI 0161 Semi-Mortise Electric Strike

Product Summary


The 0161 is a 3/4" semi-mortise electric strike that is designed to operate with Pullman latch rim exit devices. The stainless-steel finish creates a sleek attractive architectural appearance. The slotted horizontal holes on the faceplate allow for easy and secure mounting during installation and correct alignment with the exit device. It features a hazard-free radius design.


  • Energy: 200mA 12VAC/VDC Or 24VAC/VDC (Max at 12VDC)
  • Strength: 1,500lbf Static 70ft-lb Dynamic
  • Endurance: 500,000 Cycles
  • Mode: Fail-Secure
  • Warranty: 5 Year Limited Warranty
Product Details

  • Semi-mortise rim strike designed for use with Pullman latch rim exit devices
  • Accommodates 1/2" to 3/4" (13mm–19mm) latch projection
  • Ensures proper latch alignment with horizontal adjustment
  • Stainless steel ensures superior strength and creates a sleek aesthetic design
  • Lockdown holes for secure mount
  • Non-handed
  • 200mA 12VAC/VDC Or 24VAC/VDC (Max at 12VDC)
  • 1,500lbf Static 70ft-lb Dynamic
  • 500,000 Cycles
  • Fail-Secure
  • 5 Year Limited Warranty
RCI 0162 32D 3/4" Electric Strike

RCI 0162 3/4" Rim

The 0162 electric strike accommodates ½” to ¾” latch projection and is designed for use with Pullman latch rim exit devices. As a completely surface mounted strike the RCI 0162 requires no cutting of the door frame. The rugged stainless-steel strike accommodates hollow metal, aluminum and wood door frames. Its heavy-duty housing is reinforced to eliminate twisting in the case of imperfect frames. The one-piece conventional keeper promotes even load distribution for increased security in the event of an attempted forced entry.

  • Energy: 500mA Field-Selectable 12/24VDC & 12-24VAC (Max at 12VDC)
  • Strength: 1,500lbf Static 70ft-lb Dynamic
  • Endurance: 250,000 Cycles
  • Mode: Fail-Secure
  • Latch Monitor: Optional Latch Monitor Model Available
  • Fire-Rated: Optional 3-Hour Model Available
  • Warranty: 5 Year Limited Warranty

Product details



  • Completely surface-mounted – no frame cutting required
  • Accommodates 1/2" to 3/4" (13mm–19mm) latch projection
  • Mounting spacer included to provide enhanced latch engagement
  • Stainless steel ensures superior strength and creates a sleek aesthetic design
  • Horizontal adjustment ensures proper latch positioning to compensate for door misalignment – up to 1/4" (6.4mm)
  • Conventional keeper design (one moving part)- promotes even load distribution
  • Plug-in wire connectors
  • Lockdown holes for secure mount
  • HEX socket head cap screws for added support
  • Installation tool included (HEX key)
  • Non-handed (featuring horizontal solenoid design)
  • 1/16" (1.5mm) mounting spacer for additional latch engagement included
  • 500mA Field-Selectable 12/24VDC & 12-24VAC (Max at 12VDC)
  • 1,500lbf Static 70ft-lb Dynamic
  • 250,000 Cycles
  • Fail-Secure
  • Optional Latch Monitor Model Available
  • Optional 3-Hour Model Available (Fire-Rated F0162 and F0162LM models)
  • 5 Year Limited Warranty



RCI 0163 32D 1/2" Electric Strike

RCI 0163 1/2" Rim

CATALOG

This solenoid rim strike is a surface-mounted electric strike designed to work with Pullman style rim exit device latches. Designed to fit in tight situations where the exit device is mounted very close to the door frame, e.g. aluminum storefront applications.

  • Energy: 270mA (max at 12VDC), 11-16VAC, 12VAC/VDC Or 24VAC/VDC
  • Mode: Fail-Secure
  • Strength: 1,500lbf Static, 70ft-lb Dynamic
  • Endurance: 500,000 Cycles
  • Warranty: 5 Year Limited
  • Monitoring: Optional Latch Monitor Model Available





  • Designed to fit in tight situations where the exit device is mounted very close to the door frame, e.g. aluminum storefront applications.
  • For maximum latch engagement, the strike keeper has been designed to pivot out of the strike body versus rolling out of the strike.
  • Accommodates 1/2“ (13 mm) latch projection.
  • Horizontal adjustment ensures proper latch positioning to compensate for door misalignment – up to 1/4“ (6.4 mm).
  • Shim may be added to the strike cavity to engage with misaligned deadlatch.
  • Lockdown holes for secure mount.
  • Cooler operation – runs cool to the touch; no suppressor kit needed.
  • High-grade stainless steel ensures superior strength and creates a sleek aesthetic.
  • Non-handed.
  • Plug-in wire connectors.

Technical Drawing




RCI 2364 Electric Strike

RCI 2364 Electric Strike

by RCI
$ 418.00

Product Summary


The 2 series are versatile, all-in-one, electric strikes that combine strength and convenience in a sleek design. The RCI F2164 & 2364 strikes feature an adjustable deadbolt keeper and deadlatch ramp allowing them to flexibly work with most locks. The "Saw-tooth Adjustment Locator" makes installation simple. It allows the installer to move the deadbolt keeper, or plug and deadlatch ramp vertically to align with a wide variety of mortise locks with offset latches. It also includes a trim plate to cover up an irregular frame cut-out. Everything you need for the strike is in the box, including a faceplate for centerline latch entry.


  • Energy: 375mA Field-Selectable 12/24VDC, 12-24VAC (Max at 12VDC) (12-24VAC not available with 2364 model)
  • Strength: 1,500lbf Static 70ft-lb Dynamic
  • Endurance: 500,000 Cycles
  • Mode: Fail-Secure & Fail-Safe
  • Fire-Rated: Optional 3-Hour Model Available (Fire-rated (F) model only, 3-hour for single swing, 90-minutes for standard pair of doors)
  • Latch Monitor: Plug-In Latch Monitor Accessory Available
Product Details

  • Versatile strike designed to work with most locks
  • Accommodates 1/2" (12.7mm) to 3/4" (19mm) latch projection
  • Adjustable deadbolt keeper and deadlatch ramp
  • Accommodates up to 1" deadbolt (night-latch function only, bolt will not release)
  • Plug-in wire connectors
  • Runs cool – solenoid design prevents keeper from heating up
  • Trim plate included to cover up irregular frame cut-out
  • Stainless steel ensures superior strength and creates a sleek aesthetic
  • Includes two keeper shims – 1/16" (1.5mm) and 1/8" (3mm) –for horizontal adjustment for misaligned frames (unique sliding design)
  • Non-handed
  • 375mA Field-Selectable 12/24VDC, 12-24VAC (Max at 12VDC) (12-24VAC not available with 2364 model)
  • 1,500lbf Static 70ft-lb Dynamic
  • 500,000 Cycles
  • Fail-Secure & Fail-Safe
  • Optional 3-Hour Model Available (Fire-rated (F) model only, 3-hour for single swing, 90-minutes for standard pair of doors)
  • Plug-In Latch Monitor Accessory Available
  • 10 Year Limited Warranty
RCI 4107 6-7/8" Faceplate Electric Strike

Product Summary


The 4 series centerline strike accommodates ¾” latch projections. Its various faceplate options and 1-1/2” cut-out depth accommodates most door frame types and materials. Installation is simple with standard mounting tabs and included fasteners. Crossed wires are never a problem, as the coil is not polarity sensitive. The RCI 4 series centerline strikes are available with an optional 1-1/2 hour fire-rating. 41 Series depicts fail-secure and 43 Series depicts fail-safe.


  • Energy: 200mA 11-16VAC, 12VAC/VDC, 24VAC/VDC (At 12VDC)
  • Strength: 1,500lbf Static2 70ft-lb Dynamic (1,500lbf Static for fire-rated models, 1,000lbf for non-fire-rated 04 & 14 faceplates, 500lbf for 05, 07, 08 & 19 faceplates.)
  • Endurance: 500,000 Cycles (Fire-rated (F) models only, 250,000 for other models)
  • Mode: Fail-Secure & Fail-Safe
  • Fire-Rated: Optional 1-1/2-Hour Models Available (Fire-rated (F) models only available in fail-secure mode with 04 & 14 faceplates)
  • Warranty: 3 Year Limited Warranty
Product Details

  • Accommodates 3/4" (19mm) latch projection
  • 1-1/2" (38mm) cut-out depth accommodates most door frame material types
  • Use with wide range of door thicknesses, 1-3/8" to 2-3/8" (35mm-60mm)
  • Standard mounting tabs and fasteners included
  • Non-handed
  • Trim plate included to cover up irregular frame cutout
  • 200mA 11-16VAC, 12VAC/VDC, 24VAC/VDC (At 12VDC)
  • 1,500lbf Static2 70ft-lb Dynamic (1,500lbf Static for fire-rated models, 1,000lbf for non-fire-rated 04 & 14 faceplates, 500lbf for 05, 07, 08 & 19 faceplates.)
  • 500,000 Cycles (Fire-rated (F) models only, 250,000 for other models)
  • Fail-Secure & Fail-Safe
  • Optional 1-1/2-Hour Models Available (Fire-rated (F) models only available in fail-secure mode with 04 & 14 faceplates)
  • 3 Year Limited Warranty

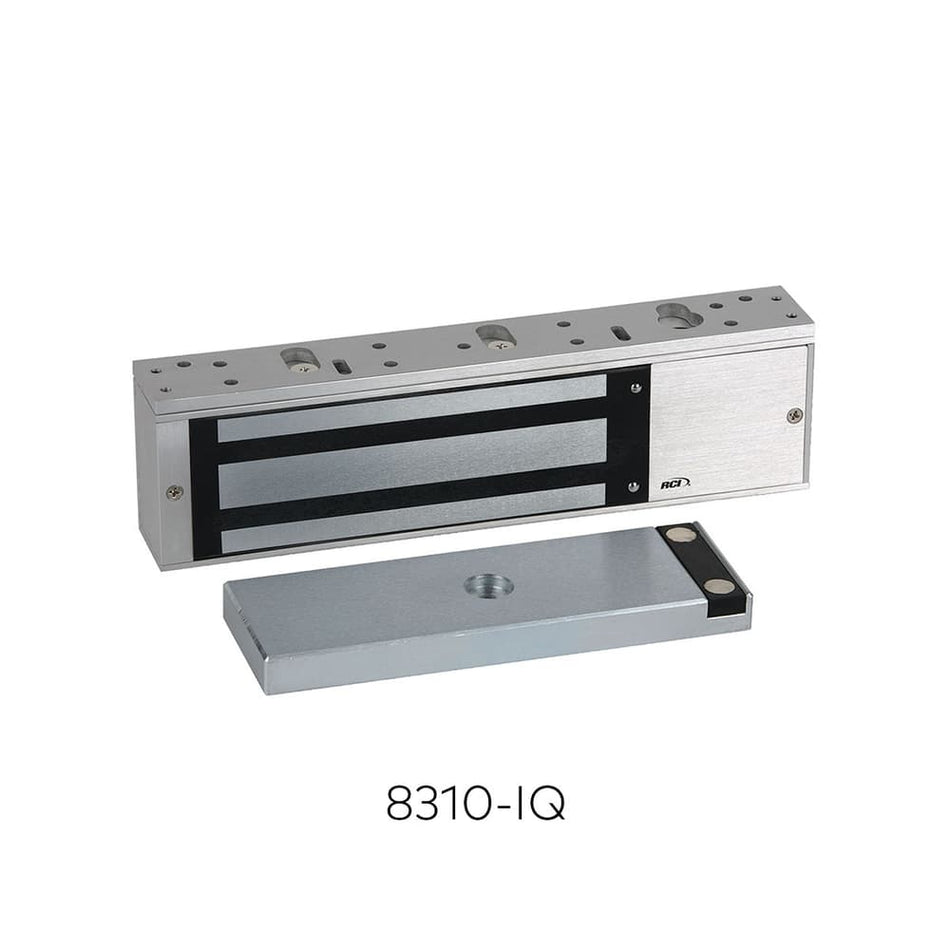

RCI 8310 28 1500LB Maglock

RCI 8310 28 1500LB Maglock

by RCI
$ 422.00

The MultiMag® series of electromagnetic locks are designed for easy installation and multi-purpose operation for interior or perimeter doors. The mounting bracket has keyhole mounting to support the magnet, freeing the installer's hands to affix the magnet mounting screws. The removable cavity cover offers quick, easy access to wiring. The RCI 8310 MultiMag® applies to single outswinging doors, while the RCI 8320 MultiMag® is for double outswinging doors. For additional security monitoring these electromagnetic locks offer optional door status & security condition sensors.

  • Energy: 230mA Auto-Sensing 12-24VDC (Max at 12VDC for 8310, 460mA for 8320)
  • Strength: Up to 1,200lbf Holding Force (Each Electromagnet)
  • Warranty: Lifetime Limited Warranty
  • Mode: Fail-Safe
  • Fire-Rated: CAN/ULC S104 UL 10C 1-1/2-Hours
  • Monitoring: Optional Door Status Sensor (DSS)/ Security Condition Sensor (SCS) Available



  • Keyhole mounting for ease of installation
  • Built-in time delay (instant release with adjustable relock, programmable from 0-35 seconds)
  • Convenient plug-in wiring terminals
  • Easy-access wiring cavity
  • Stabilizing 4-bolt “drop stop” mounting
  • Surge protection
  • Designed to overcome residual magnetism
  • 230mA Auto-Sensing 12-24VDC (Max at 12VDC for 8310, 460mA for 8320)
  • Up to 1,200lbf Holding Force (Each Electromagnet)
  • Lifetime Limited Warranty
  • Fail-Safe
  • CAN/ULC S104 UL 10C 1-1/2-Hours
  • Optional Door Status Sensor (DSS)/ Security Condition Sensor (SCS) Available
RCI 8371 750LB Maglock

RCI 8371 750LB Maglock

by RCI
$ 271.00

The Surface MiniMag® locks are designed with a 1-7/8” width to keep undersized openings within code. These locks are ideal solutions for traffic control on narrow-style interior or perimeter doors. The RCI 8371 Surface MiniMag® is for single outswinging doors. The RCI 8372 Surface MiniMag® is used for double outswinging doors without mullions. These electromagnetic locks install perfectly alongside most automatic door operators or stop-mounted door hardware. They reduce installation time and eliminate the need for extra brackets.


  • Energy: 520mA Field-Selectable 12/24VDC (Max at 12VDC for 8371, 1.04A for 8372)
  • Strength: Up to 750lbf Holding Force
  • Monitoring: Optional Door Status Sensor (DSS)/ Security Condition Sensor (SCS) Available
  • UL 294 Special Locking Arrangement Component
  • CAN/ULC S104
  • UL 10C 1-Hour
  • California State Fire Marshal listed (CSFM: 3774-2275:0500)
  • Stabilizing 4 bolt “drop stop” mounting
  • Keyhole mounting for ease of installation
  • Surge protection
  • Easy-access wiring cavity
  • Lifetime Limited Warranty
  • Fail-Safe
  • Optional Door Status Sensor (DSS)/ Security Condition Sensor (SCS) Available

Technical Details


8371 Surface MiniMag
9-3/8"W x 1-7/8"H x 1"D (238mm x 48mm x 25mm) – Includes 3/16" (5mm) mounting bracket
Armature Plate: 7-1/4"W x 1-1/2"H x 1/2"D (185mm x 38mm x 13mm)

8372 Surface MiniMag
18-3/4"W x 1-7/8"H x 1"D (476mm x 48mm x 25mm) – Includes 3/16" (5mm) mounting bracket
Armature Plate: 7-1/4"W x 1-1/2"H x 1/2"D (185mm x 38mm x 13mm) each

Shared Technical Information

  • Designed to overcome residual magnetism
  • Hardened steel armature nut
  • Includes 3/8" (9.5mm) armature plate
  • Available in Brushed Anodized Aluminum (28) or Brushed Anodized Dark
  • Bronze (40) finish
  • UL 294 Special Locking Arrangement Component (6th Edition)
  • UL 10C Auxiliary Locks Listed for fire doors rated up to 1-hour
  • CAN/ULC S104 Auxiliary Locks Listed for fire doors rated up to 1-hour
  • California State Fire Marshal Listed (CSFM: 3774-2127:0100)



Components


Angle Brackets
For narrow aluminum frames or center-hung single-acting doors, when inadequate space is left for mounting.
Available in Brushed Anodized Aluminum (28) or Brushed Anodized Dark Bronze (40). Please specify when ordering.

  • AB-710 1"H x 1"W x 9-3/8"L 28/40 for 8371
  • AB-711 1-1/2"H x 1"W x 9-3/8"L 28/40 for 8371
  • AB-712 1-1/2"H x 1-1/2"W x 9-3/8"L 28/40 for 8371
  • AB-713 1-1/2"H x 2"W x 9-3/8"L 28/40 for 8371
  • AB-720 1"H x 1"W x 18-3/4"L 28/40 for 8372
  • AB-721 1-1/2"H x 1"W x 18-3/4"L 28/40 for 8372
  • AB-722 1-1/2"H x 1-1/2"W x 18-3/4"L 28/40 for 8372
  • AB-723 1-1/2"H x 2"W x 18-3/4"L 28/40 for 8372

Armature Bolts

  • Compatible With: 8371
    • ARMB155 2-1/8" (55mm) For doors 1-3/4"-2-1/4" (44-57mm) thick
    • ARMB170 2-3/4" (70mm) For doors 2-1/4"-2-3/4" (57-70mm) thick
    • ARMB180 3-1/8" (80mm) For doors 2-1/2"-3" (70-76mm) thick
  • Compatible With: 8372
    • ARMB255 2-1/8" (55mm) For doors 1-3/4"-2-1/4" (44-57mm) thick
    • ARMB270 2-3/4" (70mm) For doors 2-1/4"-2-3/4" (57-70mm) thick
    • ARMB280 3-1/8" (80mm) For doors 2-1/2"-3" (70-76mm) thick

Armature Plates

  • AP03 3/8" (9.5mm) Steel for 8371, 8372
  • AP03D 3/8" (9.5mm) Steel for 8371xDSS, 8372xDSS

Armature Plate Holders
Available in Brushed Anodized Aluminum (28) or Brushed Anodized Dark Bronze (40). Please specify when ordering.

  • AH71 8371 armature plate holder 28/40 for 8371
  • AH72 8372 armature plate holder 28/40 for 8372

Filler Bars
For frame stops narrower than 2" (51mm).
Available in Brushed Anodized Aluminum (28) or Brushed Anodized Dark Bronze (40). Please specify when ordering.

  • FB-710 1/4"H x 3/4"W x 9-3/8"L 28/40 for 8371
  • FB-711 3/8"H x 3/4"W x 9-3/8"L 28/40 for 8371
  • FB-712 1/2"H x 3/4"W x 9-3/8"L 28/40 for 8371
  • FB-713 5/8"H x 3/4"W x 9-3/8"L 28/40 for 8371
  • FB-720 1/4"H x 3/4"W x 18-3/4"L 28/40 for 8372
  • FB-721 3/8"H x 3/4"W x 18-3/4"L 28/40 for 8372
  • FB-722 1/2"H x 3/4"W x 18-3/4"L 28/40 for 8372
  • FB-723 5/8"H x 3/4"W x 18-3/4"L 28/40 for 8372

Glass Door Brackets
Required for glass doors without mounting rails.

  • GB7112 1/2" (13mm) 32 for 8371
  • GB7134 3/4" (19mm) 32 for 8371
  • GB7212 1/2" (13mm) 32 for 8372
  • GB7234 3/4" (19mm) 32 for 8372

Spacers
For aluminum blade stop frames. Used to lower the magnet to align with armature plate.
Available in Brushed Anodized Aluminum (28) or Brushed Anodized Dark Bronze (40). Please specify when ordering.

  • SP-710 1/4"H x 1"W x 9-3/8"L 28/40 for 8371
  • SP-711 3/8"H x 1"W x 9-3/8"L 28/40 for 8371
  • SP-712 1/2"H x 1"W x 9-3/8"L 28/40 for 8371
  • SP-713 5/8"H x 1"W x 9-3/8"L 28/40 for 8371
  • SP-720 1/4"H x 1"W x 18-3/4"L 28/40 for 8372
  • SP-721 3/8"H x 1"W x 18-3/4"L 28/40 for 8372
  • SP-722 1/2"H x 1"W x 18-3/4"L 28/40 for 8372
  • SP-723 5/8"H x 1"W x 18-3/4"L 28/40 for 8372

Top Jamb "Z" Bracket
Allows for horizontal adjustment of armature plate. Mounted on pull side of the door.
Available in Brushed Anodized Aluminum (28) or Brushed Anodized Dark Bronze (40). Please specify when ordering.

  • TJ71 8371 Z bracket kit 28/40 for 8371
  • TJ72 8372 Z bracket kit 28/40 for 8372

Hardware Pack
HK8371: Includes: Allen wrench, metal sleeve, armature bolt, sexnut, bolt, steel washers, rubber washers, flat head screws, pan head screws, plugs, TEK screws. (Buy 2 to make one 8372 Hardware kit)



Applications


8371 Surface MiniMag

  • Single Outswinging Doors
  • Single Inswinging Doors (use with TJ (Z) bracket)

8372 Surface MiniMag

  • Pairs of Outswinging Doors without mullion
  • Pairs of Inswinging Doors without mullion (use with TJ (Z) Bracket)

Product Downloads

RCI 910TC

RCI 910TC

$ 85.00

RCI 910TC

by RCI
$ 85.00
  • Aesthetically pleasing designs.
  • Hands-free – helps reduce the spread of germs and bacteria.
  • Adjustable detection zone to reduce unwanted activations.
  • When the device is activated, the indicator light (waving hand) will change color.
  • Secondary Normally Open (NO) mechanical switch in the event of a power loss.
  • Selectable unlock times (1-63 seconds).
  • Mounts on single-gang electrical box.
  • Available remote control to trigger switch remotely.
  • May be purchased as a kit (910TC-WRM-WRB). Includes 910TC Switch, 910TCWRM Remote Receiver Module and 910TC-WRB Remote Transmitter.
  • Meets ADA compliance to ANSI/BHMA A156.19
    (Always check local building codes for compliance in your area)
Technical Specs
Operating Voltages 12/24 VDC
Relay Action Momentary
Relay Type SPDT
Sensor Technology Capacitive
Range 1" to 2"
Mounting Plate Size 1 Gang
Environment Indoor
Product Type Touchless Actuators
RCI AL65 - L65U Electric Strike

The 6 series centerline strikes are available in standard profile or low-profile options to accommodate different latch projections. This heavy-duty series combines several requested key features. Standard features include a multi-voltage single solenoid, selectable lock mode (no tools necessary), horizontal adjustment, and plug-in wire connectors. ¼” horizontal adjustment makes installations faster and easier. Plus, with the RCI 6 series there will be less pressure on installer’s strike inventory, because these RCI strikes do it all.

  • Energy: 375mA Field-Selectable 12/24VDC, 12-24VAC (At 12VDC)
  • Strength: 1,500lbf Static 70ft-lb Dynamic (Grade 1, 04 & 14 faceplates only. Grade 2, 1,000lbf static for 05, 07 & 08 faceplates)
  • Endurance: 500,000 Cycles (Grade 1, 04 & 14 faceplates only. Grade 2, 1,000lbf static for 05, 07 & 08 faceplates)
  • Mode: Field-Selectable Fail-Secure & Fail-Safe
  • Monitoring: Optional Latch & Keeper Monitor Models Available
  • Warranty: 3 Year Limited Warranty

Technical Drawing

RCI F2164 Fire Rated Electric Strike

Product Summary


The 2 series are versatile, all-in-one, electric strikes that combine strength and convenience in a sleek design. The RCI F2164 & 2364 strikes feature an adjustable deadbolt keeper and deadlatch ramp allowing them to flexibly work with most locks. The "Saw-tooth Adjustment Locator" makes installation simple. It allows the installer to move the deadbolt keeper, or plug and deadlatch ramp vertically to align with a wide variety of mortise locks with offset latches. It also includes a trim plate to cover up an irregular frame cut-out. Everything you need for the strike is in the box, including a faceplate for centerline latch entry.


  • Energy: 375mA Field-Selectable 12/24VDC, 12-24VAC (Max at 12VDC) (12-24VAC not available with 2364 model)
  • Strength: 1,500lbf Static 70ft-lb Dynamic
  • Endurance: 500,000 Cycles
  • Mode: Fail-Secure & Fail-Safe
  • Fire-Rated: Optional 3-Hour Model Available (Fire-rated (F) model only, 3-hour for single swing, 90-minutes for standard pair of doors)
  • Latch Monitor: Plug-In Latch Monitor Accessory Available
Product Details

  • Versatile strike designed to work with most locks
  • Accommodates 1/2" (12.7mm) to 3/4" (19mm) latch projection
  • Adjustable deadbolt keeper and deadlatch ramp
  • Accommodates up to 1" deadbolt (night-latch function only, bolt will not release)
  • Plug-in wire connectors
  • Runs cool – solenoid design prevents keeper from heating up
  • Trim plate included to cover up irregular frame cut-out
  • Stainless steel ensures superior strength and creates a sleek aesthetic
  • Includes two keeper shims – 1/16" (1.5mm) and 1/8" (3mm) –for horizontal adjustment for misaligned frames (unique sliding design)
  • Non-handed
  • 375mA Field-Selectable 12/24VDC, 12-24VAC (Max at 12VDC) (12-24VAC not available with 2364 model)
  • 1,500lbf Static 70ft-lb Dynamic
  • 500,000 Cycles
  • Fail-Secure & Fail-Safe
  • Optional 3-Hour Model Available (Fire-rated (F) model only, 3-hour for single swing, 90-minutes for standard pair of doors)
  • Plug-In Latch Monitor Accessory Available
  • 10 Year Limited Warranty

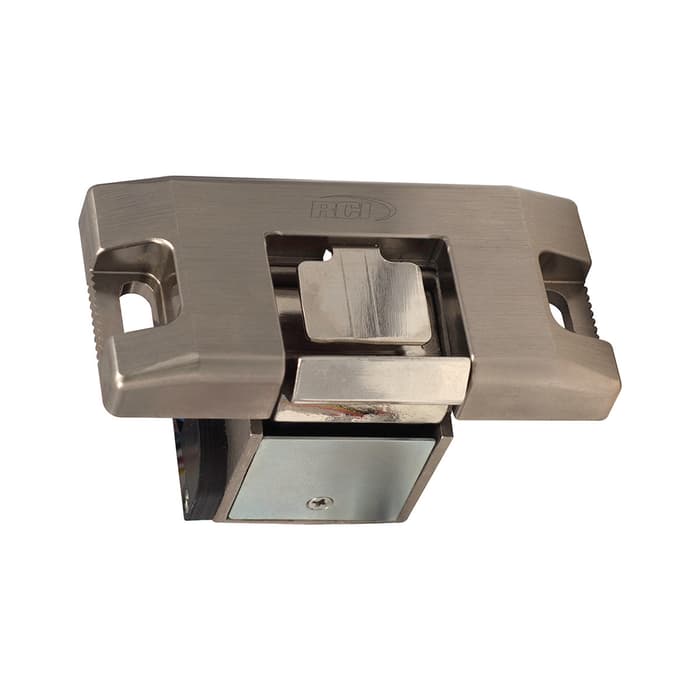

RCI VR165 Vertical Rod Electric Strike

Product Summary


The VR165 vertical rod strike is designed for use with vertical rod exit devices with roller latch. This surface mounted strike accommodates 5/8” roller latch. The heavy-duty RCI VR165 is made of high grade stainless steel offering superior keeper strength. The conventional keeper design (one moving part) promotes even load distribution. To prevent vibration manipulation the RCI VR165 has a horizontal solenoid. Lockdown tabs provide a secure mount with HEX socket head cap screws for added support and tamper resistance.


  • Energy: 450mA Field-Selectable 12/24VDC & 12-24VAC (Max at 12VDC)
  • Strength: 1,500lbf Static 70 Dynamic ft-lb
  • Endurance: 250,000 Cycles
  • Mode: Fail-Secure
  • Warranty: 5 Year Limited Warranty
Product Details

  • Accommodates 5/8" (16mm) roller latch
  • Heavy-duty, surface mounted strike
  • High grade stainless steel ensures superior keeper strength
  • Ensure proper latch alignment – up to 1/4" (6.4mm) adjustment to compensate for door and frame misalignments
  • Door stop adjustment for different rail thicknesses
  • Horizontal solenoid prevents manipulation from vibration
  • Conventional keeper design (one moving part) - promotes even load distribution
  • Lockdown tabs for secure mount
  • Non-handed
  • HEX socket head cap screws for added support and tamper-resistance
  • Plug-in wire connector
  • Installation tool included (HEX key)
  • 450mA Field-Selectable 12/24VDC & 12-24VAC (Max at 12VDC)
  • 1,500lbf Static 70 Dynamic ft-lb
  • 250,000 Cycles
  • Fail-Secure
  • 5 Year Limited Warranty
