Trine 323478LC Electric Strike
Regular price
$ 178.00
Downloadable content:
THE CYLINDRICAL SOLUTION
SMALLEST ELECTRIC STRIKE IN THE WORLD
ONLY A 1" TOTAL BACKSET
The 323478LC electric strike includes the 234X Faceplate in addition to the current faceplates already included Trine Solution. With the Patented horizontal adjustment feature -- Guaranteed not to move -- and the Smallest electric strike faceplate in the world, this 3000 Series strike is your universal ANSI solution. (478-CCFP is no longer included in the 323478LC-32D)
Downloadable content: |

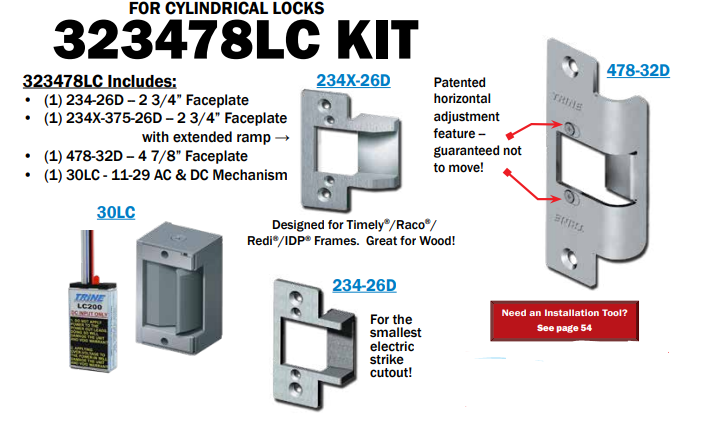

323478LC electric strike Features:
- GRADE 1 electric strike
- 500,000 + life cycles
- Includes One (1) 234-26D Faceplate Faceplate, One (1) 234X Faceplate, One (1) 478-32D Faceplate, One (1) 30LC Mechanism. See individual items for details.
- Solid stainless steel latch and locking mechanism
- Please note: The 478-CCFP filler plate is no longer included in the kit.

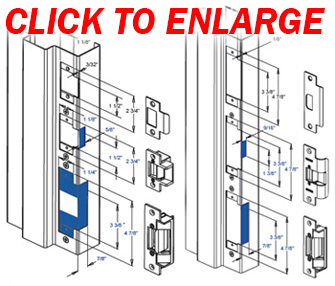

Compare Cutting:
- Top: Standard Door Strike Plate
- Middle: Trines 323478LC Faceplates Require up to 60% less cutting and the 234 requires up to 80% less cutting.
- Bottom: Their strike requires extensive cutting of the frame.
323478LC Electrical Characteristics:
| Voltage | Current/Amps | Ohms (Ω) | Duty | Sound |
|---|---|---|---|---|
| 12DC | 0.420/0.280 | N/A | Intm./Cont. | Silent |
| 24DC | 0.840/0.150 | N/A | Intm./Cont. | Silent |
|
^^^ MUSE USE LC200 ON DC FOR ALL LC/RS UNITS ^^^ |
||||
| 12AC | 0.840 | 11.0 | Intermittent | Buzz |
| 16AC | 1.200 | 11.0 | Intermittent | Buzz |
| 24AC | 1.700 | 11.0 | Intermittent | Buzz |
| ^^^ DO NOT USE LC-200 FOR AC POWER - FOR AC POWER WIRE DIRECT TO 30LC MECHANISM ^^^ | ||||
234, 234X, 478 Faceplates, 478-CCFP Filler and 30LC Included in this product.
