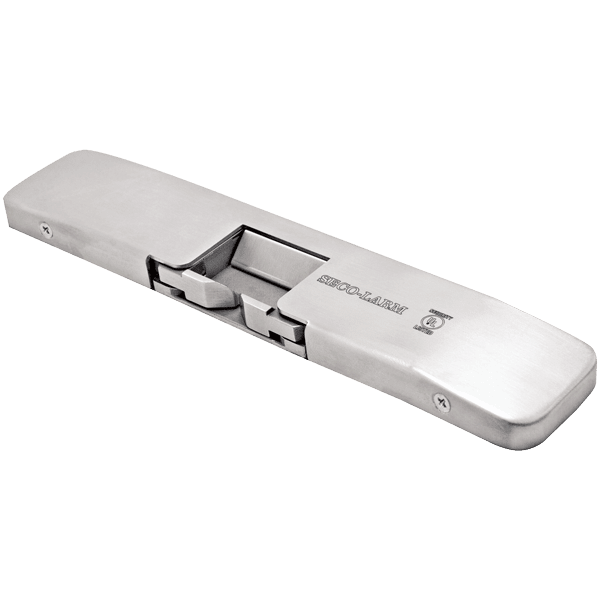

The SECO-LARM Surface-Mount Electric Rim Strike designed with the strength and durability for use with rim-type exit devices with a Pullman latch bolt (1/2″ throw). The strike features 12/24 VDC operating voltage, selectable fail-safe/fail-secure operation, horizontal adjustment, and a surface-mount metal housing, eliminating the need for frame cutting during installation.

• UL 294 and 1034 Listed
• Tamper-resistant
• 12/24 VDC Operating voltage
• Non-polarized connection
• Horizontal adjustment
• Accommodates up to 3/4″ Pullman latch
• Reversible non-handed design
• Stainless steel construction
• Surface-mount on metal or wood frames
• Works with standard rim-type exit devices including SECO-LARM SD-962AR-36A and SD-962AR-36G
• For Indoor Use Only
• Static strength – 1,500-lb (6673N)
• Tested for 250,000 cycles (UL Tested)
• Low current draw: 540mA@12VDC, 270mA@ 24VDC
• Field-selectable for fail-safe or fail-secure operation
• Spacers included: 1x-1/16″, 2x-1/8″ (1.5mm, 3mm)
• The SD-998C series is intended to be used with UL Listed Exit Hardware
• The SD-998C series shall not impair the intended operation of an emergency unit
• The SD-998C series shall not impair the operation of panic hardware mounted on the door
