Rixson

Rixson 128-3/4 Center Hung Pivot

Application
• Interior Doors
• Weight to 250 lbs.
• Door Sizes up to 3'6"x 8'6" (1067 x 2591mm)
• Non-handed
• Light-Duty/Light Weight Pivot Set

Center hung pivots are door hanging means only. To close doors, see floor closer sections.



• Standard top pivot 320 included
• Bottom pivot mounts directly to floor
• Weight of door borne by floor
• Pivot point centered in thickness of door
• Door must have radius on pivot edge
• Not allowed for use on labeled doors and frames
• Pivot point remains constant at 1-1/4 from the edge of the door
• Furnished with wood and machine screws
• Available with extended spindles in 1/2" (13mm) increments up to 2" (51mm) longer than standard



605
Bright Brass
605

606
Satin Brass
606

611
Bright Bronze
611
612
Satin Bronze
612
613
Oil Rubbed Bronze
613

613e
Dark Oxidized Satin
Bronze, Equivalent
613E

618
Bright Nickel
618
619
Satin Nickel
619
622
Flat Black
622
625
Bright Chrome
625

626
Satin Chrome
626

689
Sprayed
Aluminum
689
690
Sprayed Dark
Bronze
690
696
Sprayed Light
Bronze
691
696
Sprayed Gold
696

Black Suede
Powder Coat
BSP

White Suede
Powder Coat
WSP







Pivots & Pivot Sets Catalog

Model 128-3/4 Center Hung Pivot Set Installation Instructions

Model 128-3/4 Center Hung Pivot Set Template

Rixson 370 626 Pivot

Rixson 370 626 Pivot

by Rixson
$ 315.00

Center Hung Pivot Set, Includes 340 Top Pivot, Satin Chromium Plated

Manufacturer Rixson
SKU 370 626
--- ---
Installation
Origin
Unit of Measure Each
Base Material Brass or Bronze
Limited Warranty 2 Years
Finish
Finish

626/US26D
Finish Description Satin Chrome
Rixson 147 Offset Pivot

Rixson 147 Offset Pivot

by Rixson
$ 558.00

3/4" Offset Pivot

Application
• Exterior or Interior Doors
• Weight to 600 lbs.*
• Door Width up to 4'0" (1219mm)
• Handed
• Standard-Duty Pivot Set

* Door size & weight guidelines are determined using the appropriate number of intermediate pivots



• Standard top pivot 180 included
• M19 intermediate pivot required (order separately)
• Bottom pivot mounts directly to floor
• Uses same arm and cap as 27 floor closer
• Available for fire door assemblies up to three hours (ferrous material) – specify F147. Intermediate pivot required by UL. Specify FM19 (order separately)
• For 20-minute label suffix “–20” to the part number
• Non-ferrous base material
• Doors 60" (1524mm) to 90" (2286mm) in height should use one intermediate pivot. Each additional 30" (762mm) of door height warrants another intermediate pivot
• 3/4" (19mm) offset (measured from centerline of pivot to face of door)
• Available for 1-1/2" (38mm) offset (door weight 350 lbs.) for doors with cladding or frame molding
• Door edges must be beveled 1/8" in 2"
• Furnished with wood and machine screws
• Extended spindles available in 1/2" (13mm) increments up to 2" (51mm) longer than standard
• Doors will swing 180°, trim permitting



605
Bright Brass
605

606
Satin Brass
606

611
Bright Bronze
611
612
Satin Bronze
612
613
Oil Rubbed Bronze
613

613e
Dark Oxidized Satin
Bronze, Equivalent
613E

618
Bright Nickel
618
619
Satin Nickel
619
622
Flat Black
622
625
Bright Chrome
625

626
Satin Chrome
626

689
Sprayed
Aluminum
689
690
Sprayed Dark
Bronze
690
696
Sprayed Light
Bronze
691
696
Sprayed Gold
696

Black Suede
Powder Coat
BSP


White Suede
Powder Coat
WSP





Pivots & Pivot Sets Catalog

Model 147, 3/4" Offset Pivot Set Installation Instructions

Model 147, 3/4" Offset Pivot Set Template

Model F147, 3/4" Offset Pivot Set Installation Instructions

Model F147, 3/4" Offset Pivot Set Template

Model 147, 1-1/2" Offset Pivot Set Installation Instructions

Model 147, 1-1/2" Offset Pivot Set Template

Model F147, 1-1/2" Offset Pivot Set Installation Instructions

Model F147, 1-1/2" Offset Pivot Set Template

Rixson M19 Pivot

Rixson M19 Pivot

by Rixson
$ 282.00

Application
• Full Mortise
• Handed

• Not load-bearing
• Maintains door alignment
• Aids in installing floor closers and bottom pivots
• For 20-minute label suffix “–20” to the part number
• Non-ferrous base metal
• 3/4" (19mm) offset
• Available for 1-1/2" (38mm) offset
• Available for fire door assemblies (ferrous material) – specify FM19
• Doors 60" (1524mm) to 90" (2286mm) in height should use one intermediate pivot. Each additional 30" (762mm) warrants another intermediate pivot
• Door edges must be beveled in 1/8" in 2"
• Furnished with wood and machine screws



Pivots & Pivot Sets Catalog

Model M19, 3/4" Offset Intermediate Pivot Installation Instructions

Model M19, 3/4" Offset Intermediate Pivot Template

Model M19, 1-1/2" Offset Intermediate Pivot Installation Instructions

Model M19, 1-1/2" Offset Intermediate Pivot Template



Rixson 117 Pivot

Rixson 117 Pivot

from $ 386.00

Rixson 117 Pivot

by Rixson
$ 386.00

Application
• Interior Doors
• Weight to 300 lbs.*
• Door Width up to 3'6"  (1067mm)
• Handed
• Light-Duty/Light Weight Pivot Set

* Door size & weight guidelines are determined using the appropriate number of intermediate pivots



• Standard top pivot 180 included
• 119 intermediate pivot recommended (order separately)
• Bottom pivot mortised into floor
• Available for fire door assemblies up to three hours – specify F117. Intermediate pivot required by UL. Specify FM19, (order separately)
• For 20-minute label suffix “–20” to the part number
• Non-ferrous base material
• Doors up to 90" (2286mm) in height should use one intermediate pivot. Each additional 30" (762mm) of door height warrants another intermediate pivot
• 3/4" (19mm) offset (measured from centerline of pivot to face of door)
• Available for 1-1/2" (38mm) offset (door weight 150 lbs) for doors with cladding or frame molding.
• Door edges must be beveled 1/8" in 2"
• Furnished with wood and machine screws
• Extended spindles available in 1/2" (13mm increments up to 2" (51mm) longer than standard
• Doors will swing 180°, trim permitting



605
Bright Brass
605

606
Satin Brass
606

611
Bright Bronze
611
612
Satin Bronze
612
613
Oil Rubbed Bronze
613

613e
Dark Oxidized Satin
Bronze, Equivalent
613E

618
Bright Nickel
618
619
Satin Nickel
619
622
Flat Black
622
625
Bright Chrome
625

626
Satin Chrome
626

689
Sprayed
Aluminum
689
690
Sprayed Dark
Bronze
690
696
Sprayed Light
Bronze
691
696
Sprayed Gold
696

Black Suede
Powder Coat
BSP

White Suede
Powder Coat
WSP









Pivots & Pivot Sets Catalog

Model 117, 3/4" Offset Pivot Set Installation Instructions

Model 117, 3/4" Offset Pivot Set Template

Model 117, 1-1/2" Offset Pivot Set Installation Instructions

Model 117, 1-1/2" Offset Pivot Set Template

Rixson 1351 Gate Closer

Rixson 1351 Gate Closer

by Rixson
$ 456.00

The 1351 specialty closer is a single-acting closer for exterior ornamental iron gates up to 250lbs., recommended for high-end residences and commercial campus buildings.





Rixson 340 Center Hung Pivot

Rixson 340 Center Hung Pivot

by Rixson
$ 126.00

Rixson 340 Center Hung Pivot



Application
• Fully Concealed
• Non-handed

• Standard top pivot for Models 370 and 117-3/4 pivot sets. Also used for 28, 30, 40 and 50 Series floor closers
• Walking beam-type pivot – 1/2" (13mm) diameter pivot pin with 3/4" (19mm) engagement
• Oil-impregnated sintered bronze bushing
• Completely concealed when door is closed
• Furnished with wood and machine screws
• Available with longer than standard pivot pins. Increments are 1/4" (6mm), 1/2" (13mm), 3/4" (19mm) only



605
Bright Brass
605

606
Satin Brass
606

611
Bright Bronze
611
612
Satin Bronze
612
613
Oil Rubbed Bronze
613

613e
Dark Oxidized Satin
Bronze, Equivalent
613E

618
Bright Nickel
618
619
Satin Nickel
619
622
Flat Black
622
625
Bright Chrome
625

626
Satin Chrome
626

689
Sprayed
Aluminum
689
690
Sprayed Dark
Bronze
690
696
Sprayed Light
Bronze
691
696
Sprayed Gold
696

Black Suede
Powder Coat
BSP

White Suede
Powder Coat
WSP





Pivots & Pivot Sets Catalog

Model 340 Center Hung Top Pivot Installation Instructions

Model 340 Center Hung Top Pivot Template

Rixson 180 Offset Pivot

Rixson 180 Offset Pivot

by Rixson
$ 195.00

Application
• Full Mortise
• Non-handed
• Standard Top Pivot



• Standard top pivot for most offset pivot sets and floor closers
• Oil-impregnated sintered bronze bushing
• Non-ferrous base material
• Available for fire door assemblies (ferrous material) – specify F180
• For 20-minute label suffix “–20” to the part number
• 3/4" (19mm) offset (measured from centerline of pivot to face of door)
• Available for 1-1/2" (38mm) offset
• Furnished with wood and machine screws
• Available with longer than standard pivot pins. Increments are 1/4" (6mm), 1/2" (13mm), 3/4" (19mm) only
• For extra wide or high traffic applications see Model H180

605
Bright Brass
605

606
Satin Brass
606

611
Bright Bronze
611
612
Satin Bronze
612
613
Oil Rubbed Bronze
613

613e
Dark Oxidized Satin
Bronze, Equivalent
613E

618
Bright Nickel
618
619
Satin Nickel
619
622
Flat Black
622
625
Bright Chrome
625

626
Satin Chrome
626

689
Sprayed
Aluminum
689
690
Sprayed Dark
Bronze
690
696
Sprayed Light
Bronze
691
696
Sprayed Gold
696

Black Suede
Powder Coat
BSP

White Suede
Powder Coat
WSP





Pivot & Pivot Sets Catalog

Model 180, 3/4" Offset Top Pivot Installation Instructions

Model 180, 3/4" Offset Top Pivot Template

Model F180, 3/4" Offset Top Pivot Installation Instructions

Model F180, 3/4" Offset Top Pivot Template

Model 180, 1-1/2" Offset Top Pivot Installation Instructions

Model 180, 1-1/2" Offset Top Pivot Template

Rixson 127-3/4 Pivot

Rixson 127-3/4 Pivot

by Rixson
$ 256.00

Application
• Interior Doors
• Weight to 200 lbs.
• Door Sizes up to 3'6"x 8'6" (1067 x 2591mm)
• Non-handed
• Light-Duty/Light Weight Jamb Attached Pivot Set

Center hung pivots are door hanging means only. To close doors, see floor closer sections.



• Standard top pivot 320 included
• Bottom pivot mortised into side jamb
• Weight of door borne by floor
• Pivot point centered in thickness of door
• Door must have radius on pivot edge
• Not allowed for use on labeled doors and frames
• Pivot point remains constant at 1-1/4 from the edge of the door
• Furnished with wood and machine screws
• Available with extended spindles in 1/2" (13mm) increments up to 2" (51mm) longer than standard



605
Bright Brass
605

606
Satin Brass
606

611
Bright Bronze
611
612
Satin Bronze
612
613
Oil Rubbed Bronze
613

613e
Dark Oxidized Satin
Bronze, Equivalent
613E

618
Bright Nickel
618
619
Satin Nickel
619
622
Flat Black
622
625
Bright Chrome
625

626
Satin Chrome
626

689
Sprayed
Aluminum
689
690
Sprayed Dark
Bronze
690
696
Sprayed Light
Bronze
691
696
Sprayed Gold
696

Black Suede
Powder Coat
BSP


White Suede
Powder Coat
WSP





Pivots & Pivot Sets Catalog

Model 127-3/4 Center Hung Pivot Set Installation Instructions

Model 127-3/4 Center Hung Pivot Set Template



Rixson 117-3/4 Pivot

Rixson 117-3/4 Pivot

by Rixson
$ 771.00

Application
• Interior Doors
• Weight to 250 lbs.*
• Door Width up to 3'6"  (1067mm)
• Handed
• Light-Duty/Light Weight Jamb Attached Pivot Set

* Door size & weight guidelines are determined using the appropriate number of intermediate pivots

• Standard top pivot 180 included
• 119 intermediate pivot recommended (order separately)
• Bottom pivot mortised into side jamb
• Not available for fire-rated doors
• Non-ferrous base material
• Doors 60" (1524mm) to 90" (2286mm) in height should use one intermediate pivot. Each additional 30" (762mm) of door height warrants another intermediate pivot
• 3/4" (19mm) offset (measured from centerline of pivot to face of door)
• Door edges must be beveled 1/8" in 2"
• Weight of door borne by floor
• Furnished with wood and machine screws
• Extended spindles available in 1/2" (13mm) increments up to 2" (51mm) longer than standard



605
Bright Brass
605

606
Satin Brass
606

611
Bright Bronze
611
612
Satin Bronze
612
613
Oil Rubbed Bronze
613

613e
Dark Oxidized Satin
Bronze, Equivalent
613E

618
Bright Nickel
618
619
Satin Nickel
619
622
Flat Black
622
625
Bright Chrome
625

626
Satin Chrome
626

689
Sprayed
Aluminum
689
690
Sprayed Dark
Bronze
690
696
Sprayed Light
Bronze
691
696
Sprayed Gold
696

Black Suede
Powder Coat
BSP


White Suede
Powder Coat
WSP
















Pivots & Pivot Sets Catalog

Model 117-1/4, 3/4" Offset Pivot Set Installation Instructions

Model 117-1/4, 3/4" Offset Pivot Set Template

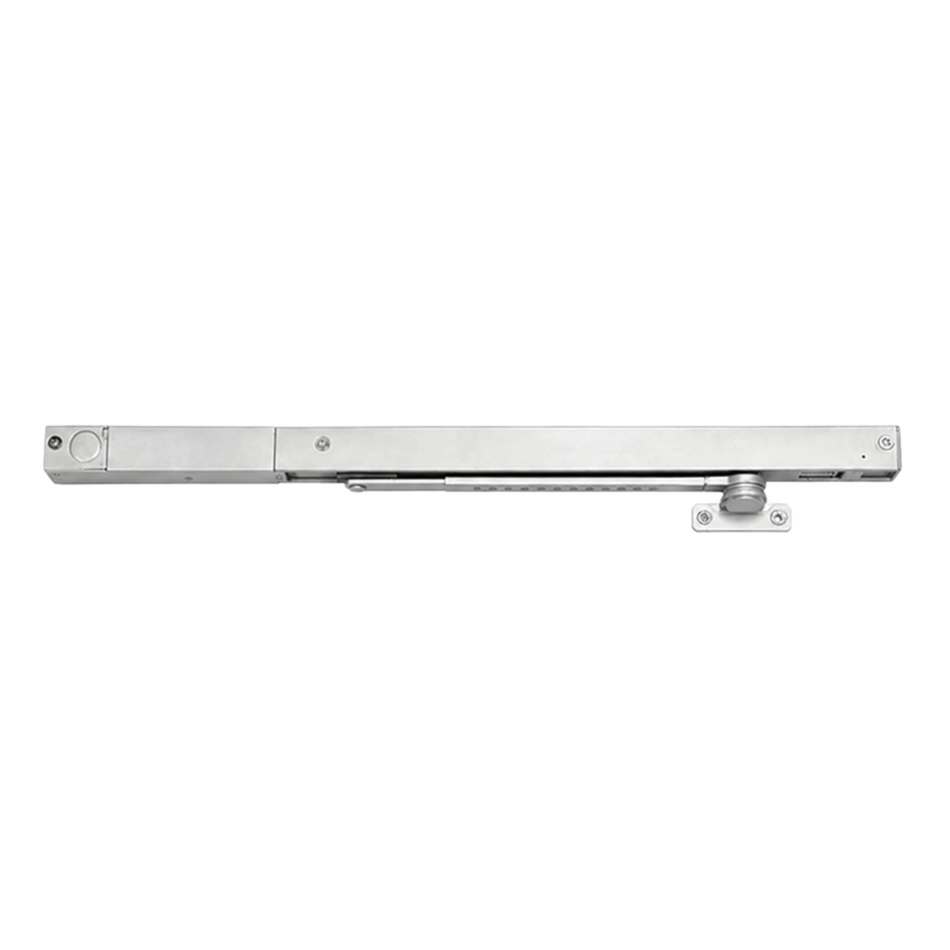

Rixson 0600 24VAC/DC 689 Smok-Chek V

The Smok-Chek V is an electrified closer ideal for cross corridor doors, swinging in the same direction.

Features
  • Single-point hold open

  • Push or pull side mounting

  • Non-handed

  • Hold open range depends on push or pull side mounting

  • Mounts on a 2" header

  • Doors up to 4'0"

  • Maximum door weight 250lbs.

  • Concealed switch disconnects hold open

  • Adjustable spring surface closer

  • Maxium reveal (pull side): 1/8"

  • Standard reveal (push side): 3-1/2". For reveals up to 5-1/2", use 550789 arm

  • Voltage: 24VAC/DC or 120VAC

  • Models available without closer

Benefit
  • Ideal for low ceiling clearance applications

  • Doors automatically close if activated by fire alarm



    Specifications

    • Closer Type: Electromechanical
    • Handing: Non-handed
    • Warranty: 2-year limited warranty
    Certifications
    • CAL FIRE, 3550-0047:0015

    • UL-cUL Fire-Rated Up to 3 Hours



      Documentation

      Catalog


      Document Title Link

      Norton Rixson Electrified Closers and Holders Catalog

      View

      Installation Instructions

      Document Number Release Date Document Title Link

      ISFM0101

      Norton Rixson Smok-Chek V Series Closer, Model 0101, Push Side Mounting, Independent Closing Means Installation Instructions

      View

      ISFM0600

      Norton Rixson Smok-Chek V Series Closer, Model 0600K, Pull Side Mounting Installation Instructions

      View

      ISFM0601

      Norton Rixson Smok-Chek V Series Closer, Model 0601K, Push Side Mounting Installation Instructions

      View

      Template

      Document Number Release Date Document Title Link

      SC90120

      5_2009

      Norton Rixson Smok-Chek V Series Closer, Without Detector, FM-0600, Pull Side Mounting, 85° Thru Max Hold Open Template

      View

      SC90130

      8_2013

      Norton Rixson Smok-Chek V Series Closer, Without Detector, FM-0601K, Push Side Mounting, 85° Thru Max Hold Open Template

      View

      SC90110

      5_2009

      Norton Rixson Smok-Chek V Series Closer, Without Detector, FM-0101, Push Side Mounting, 85° Thru Max Hold Open Template

      View

      SC90100

      5_2009

      Norton Rixson Smok-Chek V Series Closer, without Detector, FM-0100, Pull Side Mounting, Independent Closer Mounting, 85° Thru Max Hold Open Template

      View

Rixson 27 3/4" Offset Floor Closer

Rixson 27 3/4" Offset Floor Closer

by Rixson
$ 1,503.00
