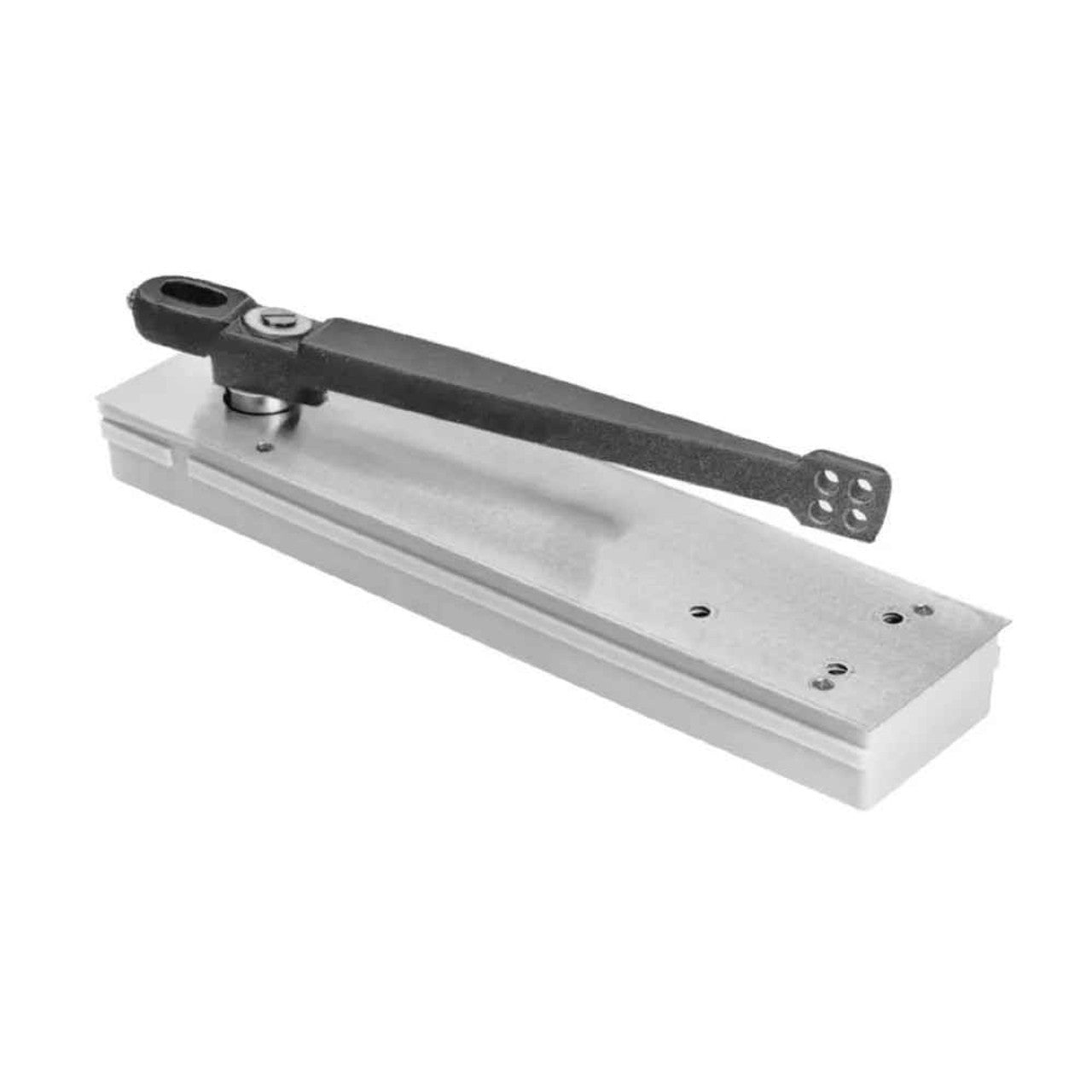

MODEL 50 X 554 ARM | CENTER HUNG, SINGLE ACTING FLOOR CLOSERS
The Norton Rixson 50 Series is a single-acting, center-hung, shallow-depth floor closer designed for standard door frame installation on interior doors up to 250 lbs. with moderate traffic.
PRODUCT FEATURES
- 5010 floor closer, non-hold open w/ backcheck
- Single acting, handed, interior doors
- 554 concealed arm is designed to eliminate visible adjusting screws on face of door; arm bolt locks arm to closer spindle; adjustments made through heel of door
- 340 top pivot included
- Centering arm with adjusting screws in face of door
- Available non-hold open (NBC) or automatic hold open (ABC); specify 90° or 105°
- Separate and independent valves for closing speed, latch speed, and backcheck
- Interchangeable spindle adapters
- Available with floor plate or threshold installation
- Cycolac, rust-proof cement case
- Furnished with wood and machine screws
- Extended spindles available in 1/2" increments up to 2"
BENEFITS
- Ideal for upper levels of multi-story buildings due to shallow depth design
- An aesthetically appealing way to support and control the door
- Centering arm allows adjustment through the face of the door
- Concealment in-floor provides vandal resistance
- Multiple valves provide enhanced control
- Constructed with robust materials and internal components
- The weight of the door is supported by the floor closer

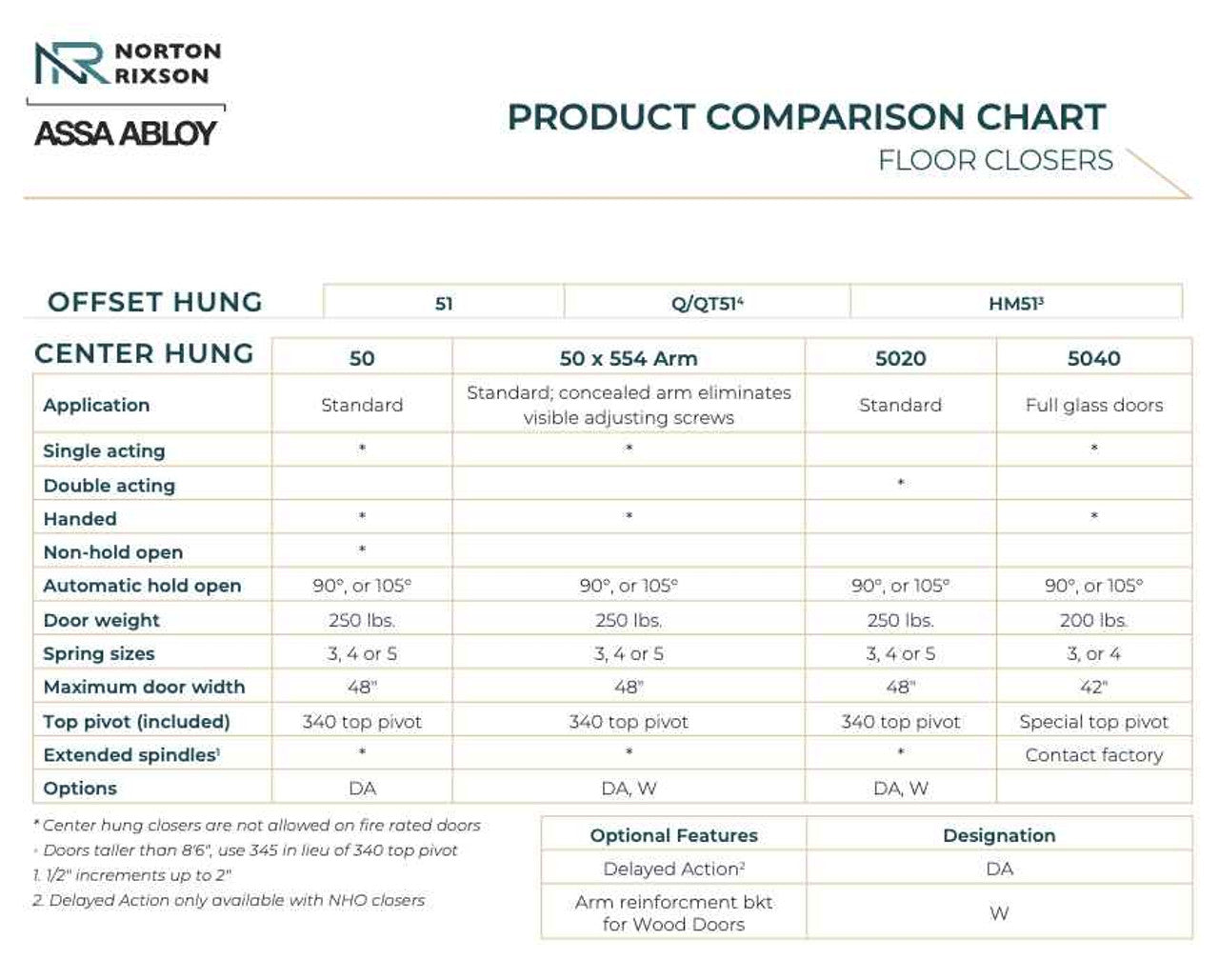

SPECIFICATIONS
- Closer Type: Floor
- Maximum Door Weight: 250 lbs
- Traffic Rating: Moderate Traffic
- Warranty: 2-year limited warranty
