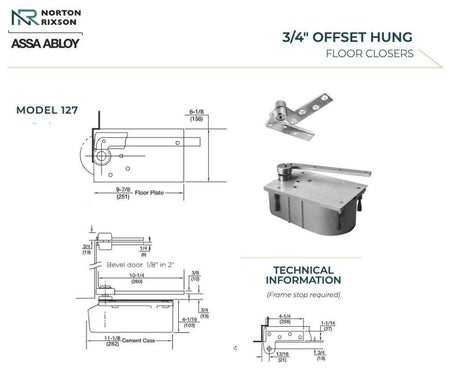

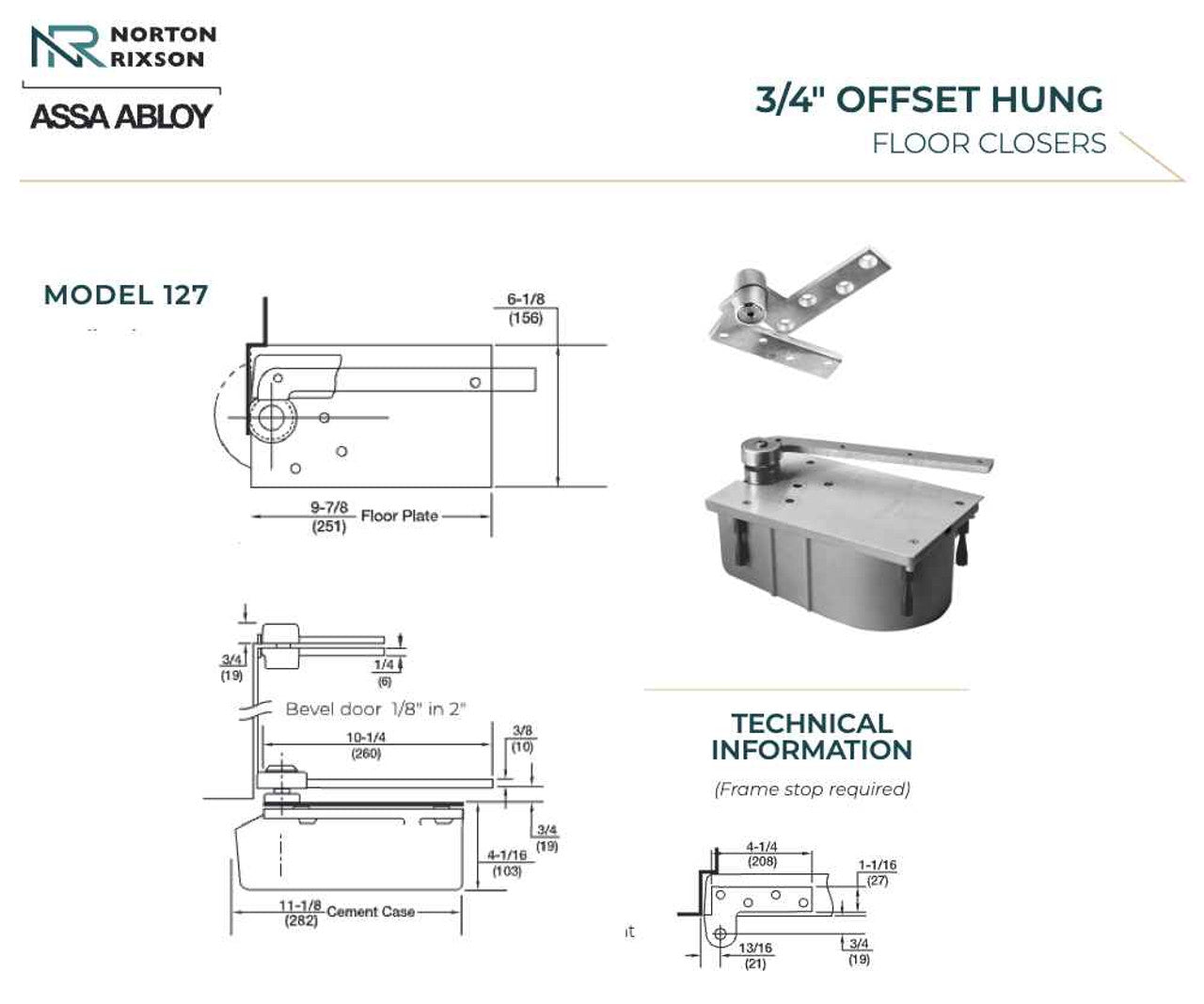

MODEL 127 | 3/4" OFFSET HUNG FLOOR CLOSERS
The Norton Rixson 127 Series is a 3/4 " offset-hung floor closer for interior or exterior doors, designed for deep reveal door frame installation.
PRODUCT FEATURES
- 127 floor closer, 3/4" Offset, non-hold open.
- Single acting, handed
- Exterior or interior doors

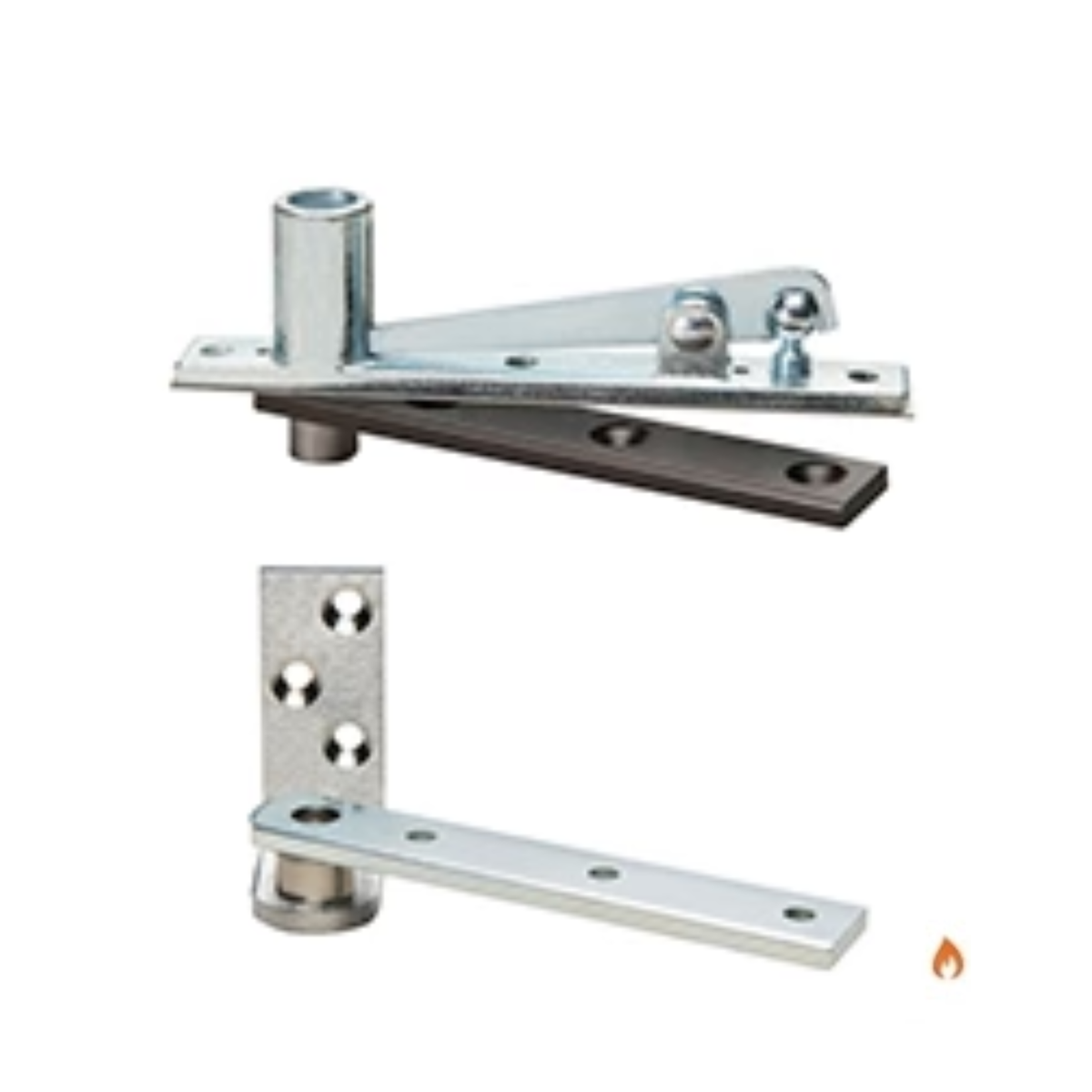

- 180 top pivot included
- Deep reveal applications
- M19 intermediate pivot(s) recommended for non-fire-rated opening (order separately)
- Torx (Security screws). Only provided for screws visible. (order separately)
- Built-in positive dead stop prevents doors from swinging beyond the desired opening degree; specify 85°, 90°, 95°, or 105°
- Available non-hold open (N) or selective hold open (S) at the same degree as dead stop
- Separate and independent valves for closing speed, latch speed, and backcheck
- Available with floor plate or threshold installation
- Cycolac, rust-proof cement case
- For arch top doors or applications where a 180 top pivot cannot be used, supply at least two M190 load-bearing intermediate pivots, mounted together at the top of the vertical edge (do not use 119 intermediate pivot)
- Extended spindles available in 1/2" increments up to 2" longer than standard
- Doors 60"" (1524mm) to 90" (2286mm) in height should use one intermediate pivot; each additional 30" (762mm) warrants another intermediate pivot
- Door width up to 4' 0" (1219mm)
- The door weighs up to 250lbs.
BENEFITS
- Closer has a tapered spindle and uses a unique bottom arm to allow door installation
- Heavy-duty closer constructed with robust materials and internal components for long life and consistent operation
- Heavy-duty hardened one-piece steel spindle designed to provide a positive dead stop
- Built-in positive dead stop prevents the door from swinging beyond the desired opening degree
- Multiple valves provide precision adjustment and enhanced control
- The weight of the door is supported by the floor closer
- An aesthetically appealing way to support and control the door
SPECIFICATIONS
- Closer Type: Floor
- Maximum Door Weight: 250 lbs
- Warranty: 10-year limited warranty
CERTIFICATIONS
- ANSI/C06041
- Buy American Act
- Certain models are UL Listed (F prefix)
- Certain models meet ANSI A117.1 (PH prefix)
- Fire rated for 20 minute labeled doors (suffix -20)
- Trade Agreement Act (TAA)
