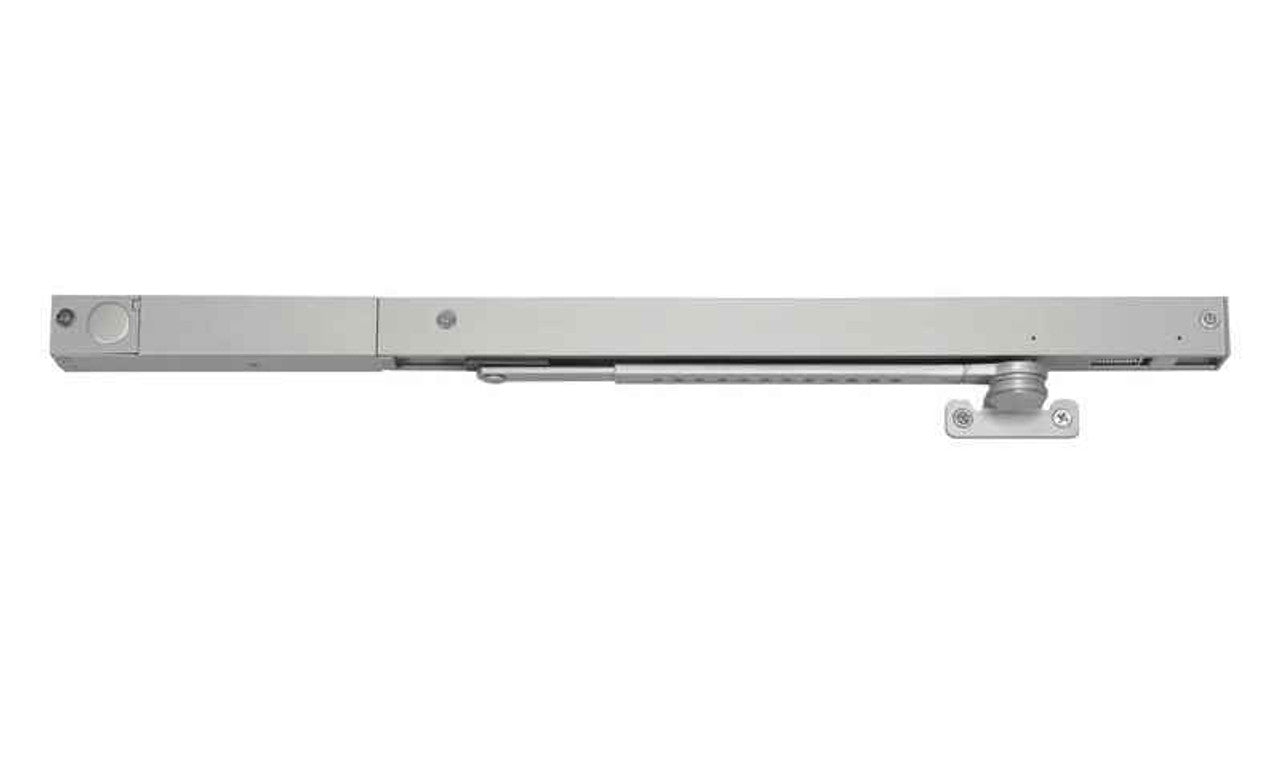

SMOK-CHEK® V | ELECTRIFIED CLOSERS AND HOLDERS
Designed for a variety of applications, fire/life-safety closers and holders protect people and property.

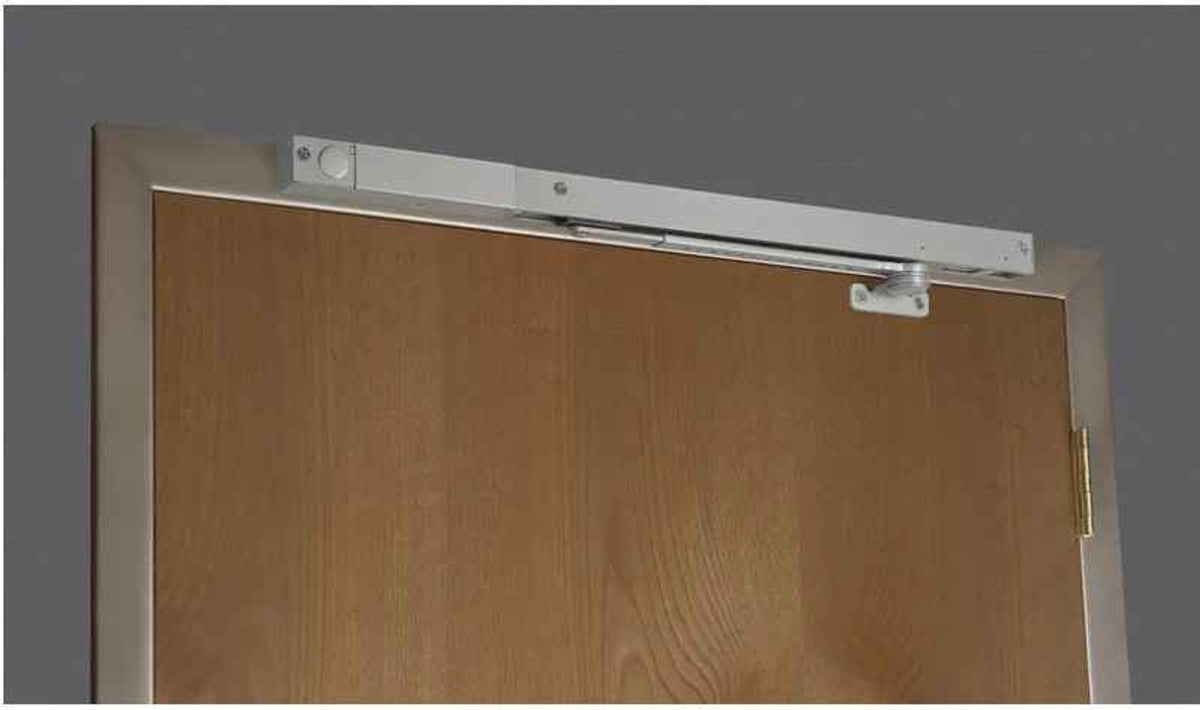

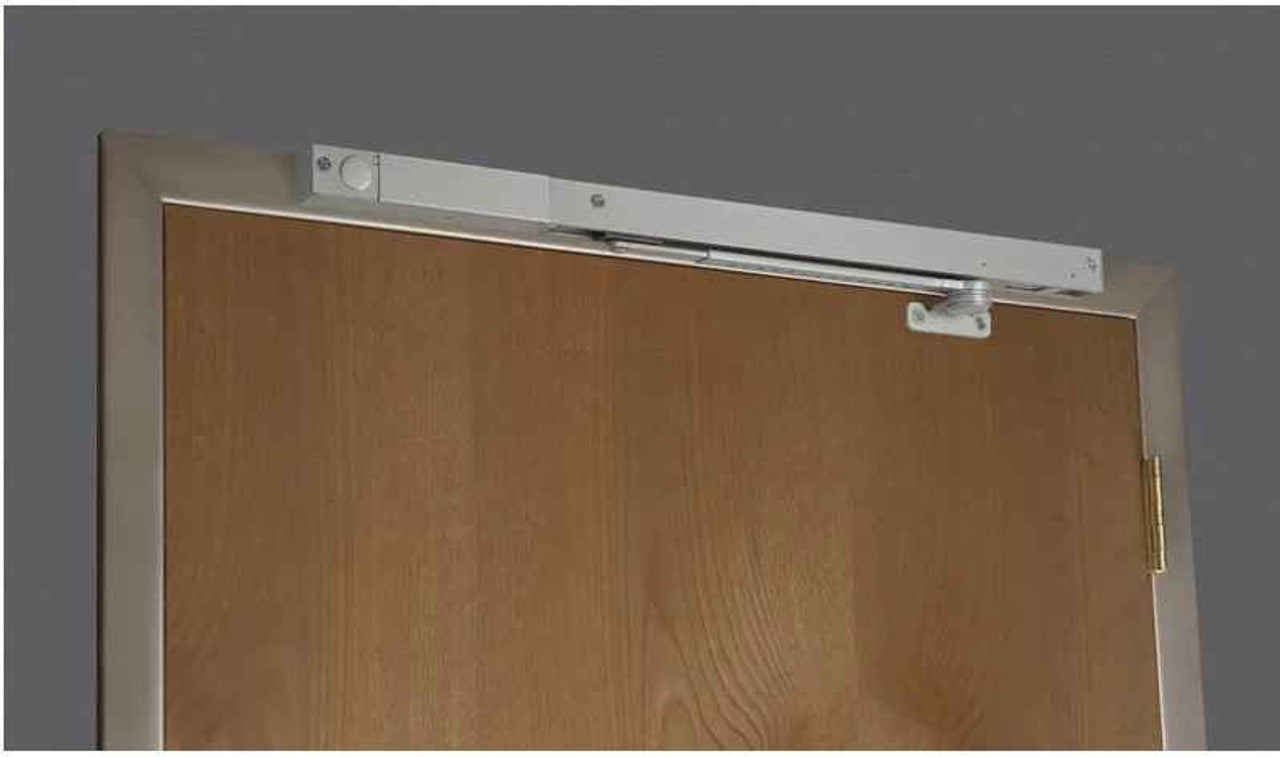

The single-point electromechanical Smok-Chek V can be mounted on the push or pull side of the door and is best suited for cross-corridor doors.
PRODUCT FEATURES
- Single-point hold open
- Push or pull side mounting
- Non-handed
- The hold open range depends on push or pull side mounting
- Mounts on a 2" header
- Doors up to 4'0"
- Maximum door weight: 250lbs.
- Concealed switch disconnects hold open
- Adjustable spring surface closer
- Maxium reveal (pull side): 1/8"
- Standard reveal (push side): 3-1/2". For reveals up to 5-1/2", use 550789 arm
- Voltage: 24VAC/DC or 120VAC
- Models available without a closer
BENEFITS
- Ideal for low ceiling clearance applications
- Doors automatically close if activated by a fire alarm
SPECIFICATIONS
- Closer Type: Electromechanical
- Handing: Non-handed
- Warranty: 2-year limited warranty
CERTIFICATIONS
- CAL FIRE, 3550-0047:0015
- UL-cUL Fire-Rated Up to 3 Hours
