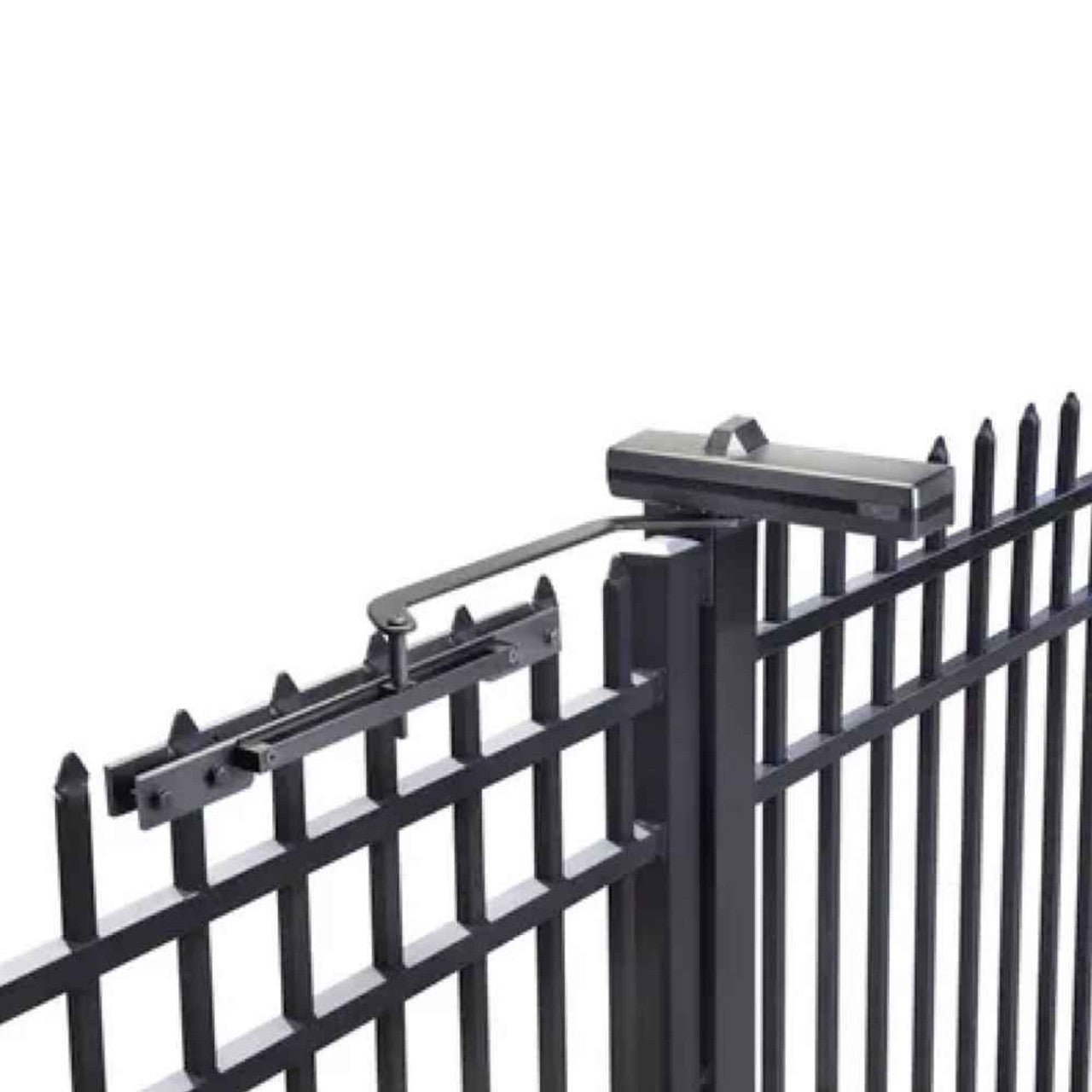

The Rixson 1351 Exterior Gate Closer is a surface-mounted, single-acting hydraulic closer designed specifically for exterior ornamental iron gates. It provides controlled, reliable gate closing for high-end residential properties, commercial buildings, gated entrances, courtyards and campus applications.
The Rixson 1351 accommodates gates measuring up to 4'6" wide × 10'0" high (54" × 120") and weighing up to 250 lb. Adjustable closing speed, latch speed, closing force and backcheck allow the closer to be fine-tuned for the gate and installation conditions. Its exterior-rated construction and rust-resistant components help provide dependable operation in changing weather conditions.
This gate closer mounts on the pull side of the gate and is non-handed, allowing it to be installed for either left-hand or right-hand gate applications. The package includes the closer body, mounting hardware, mounting bracket, arm and slide track for installation on compatible ornamental gates.
Key Features:
-
Designed specifically for exterior ornamental iron gates
-
Single-acting, surface-mounted hydraulic gate closer
-
Maximum gate size: 4'6" wide × 10'0" high (54" × 120")
-
Maximum gate weight: 250 lb
-
Adjustable closing speed
-
Adjustable latch speed
-
Adjustable closing force
-
Adjustable backcheck control
-
Non-handed for left-hand or right-hand applications
-
Pull-side mounting only
-
Suitable for residential and commercial gate applications
-
Rust-resistant components for exterior use
-
Black finish
-
Includes closer body, mounting bracket, arm, slide track and installation hardware
Common Applications:
The Rixson 1351 is commonly used on ornamental iron entry gates, residential estate gates, gated courtyards, apartment and condominium entrances, commercial campuses and other exterior pedestrian gate openings requiring controlled self-closing operation.
Important Installation Information:
The Rixson 1351 must be installed on the pull side of the gate. It can be mounted to tubular or masonry gate posts using the appropriate included mounting components. Confirm that the gate does not exceed 54" wide, 120" high or 250 lb before ordering.
Manufacturer: Rixson
Model: 1351
Product Type: Exterior hydraulic gate closer
Operation: Single-acting
Mounting: Surface mounted, pull side only
Handing: Non-handed
Maximum Gate Size: 54" × 120"
Maximum Gate Weight: 250 lb
Finish: Black
SPECIFICATIONS
- Closer Type: Specialty
- Maximum Door Weight: 250 lbs
- Traffic Rating: Low Traffic
- Warranty: 2-year limited warranty
RESOURCES & DOWNLOADS
Norton Rixson 1351 Exterior Gate Closer Specialty Closer Catalog
Norton Rixson 1351 Exterior Gate Closer Specialty Closer Installation
Norton Rixson Warranty
FAQ
Frequently Asked Questions
What is the Rixson 1351 used for?
The Rixson 1351 is a hydraulic gate closer designed for exterior, single-acting ornamental iron gates. It automatically returns the gate to the closed position after it has been opened.
What is the maximum gate size for the Rixson 1351?
The maximum recommended gate size is 4'6" wide × 10'0" high, or 54" × 120".
How much weight can the Rixson 1351 handle?
The Rixson 1351 is designed for gates weighing up to 250 lb. The gate must remain within both the manufacturer’s size and weight limits.
Is the Rixson 1351 handed?
No. The Rixson 1351 is non-handed and can be installed on compatible left-hand or right-hand gate openings.
Where does the Rixson 1351 mount?
The closer is surface mounted on the pull side of the gate. It is not designed for push-side installation.
What adjustments does the Rixson 1351 provide?
The closer provides adjustments for closing speed, latch speed, closing force and backcheck control.
Can the Rixson 1351 be used outdoors?
Yes. The Rixson 1351 is specifically designed for exterior gate applications and incorporates rust-resistant components.
What comes with the Rixson 1351 gate closer?
The package includes the closer body, mounting bracket, arm, slide track and installation hardware. Always review the installation instructions and existing gate construction before ordering.
