FLOOR MOUNTED | ELECTROMAGNETIC DOOR HOLDER/RELEASES
MODEL 980M

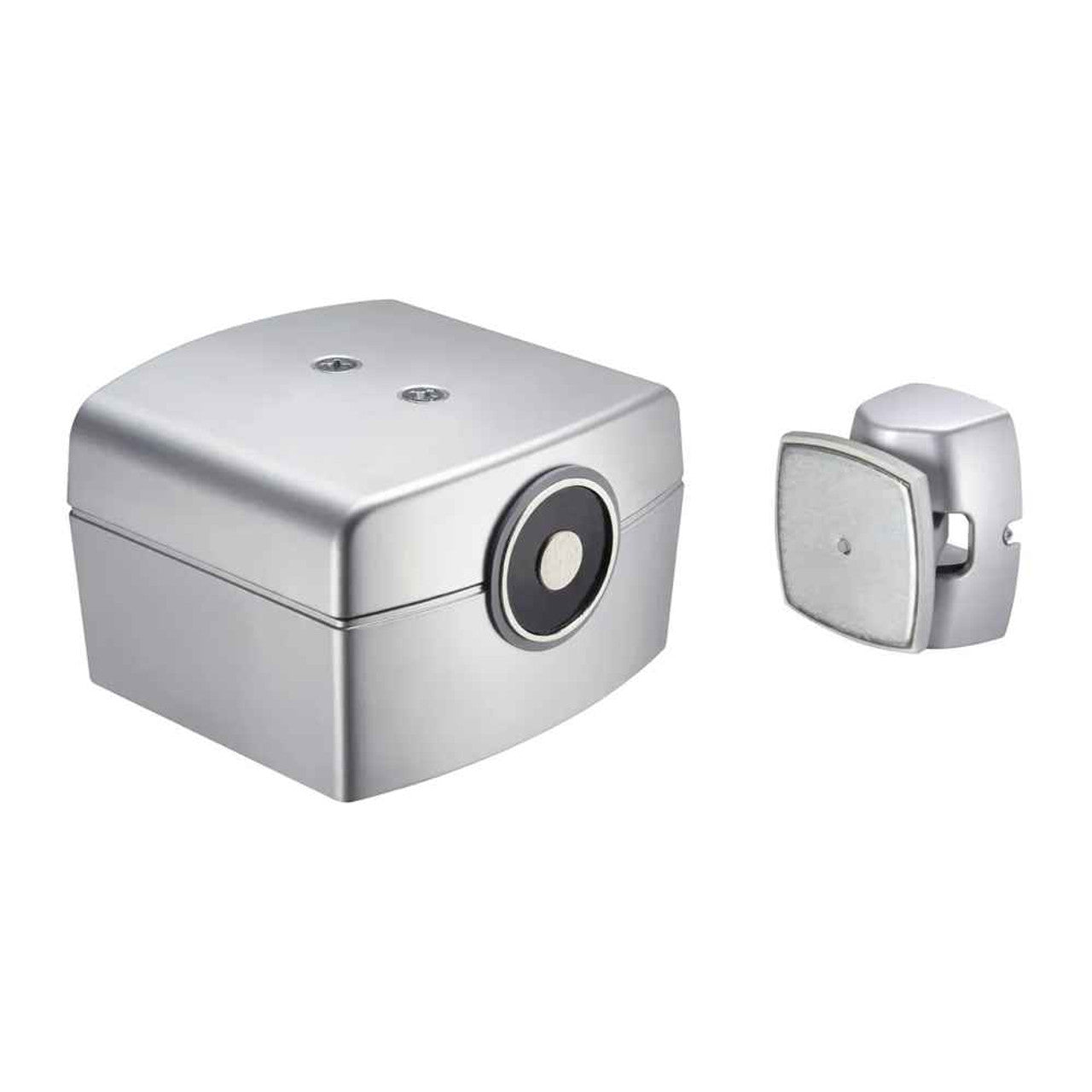

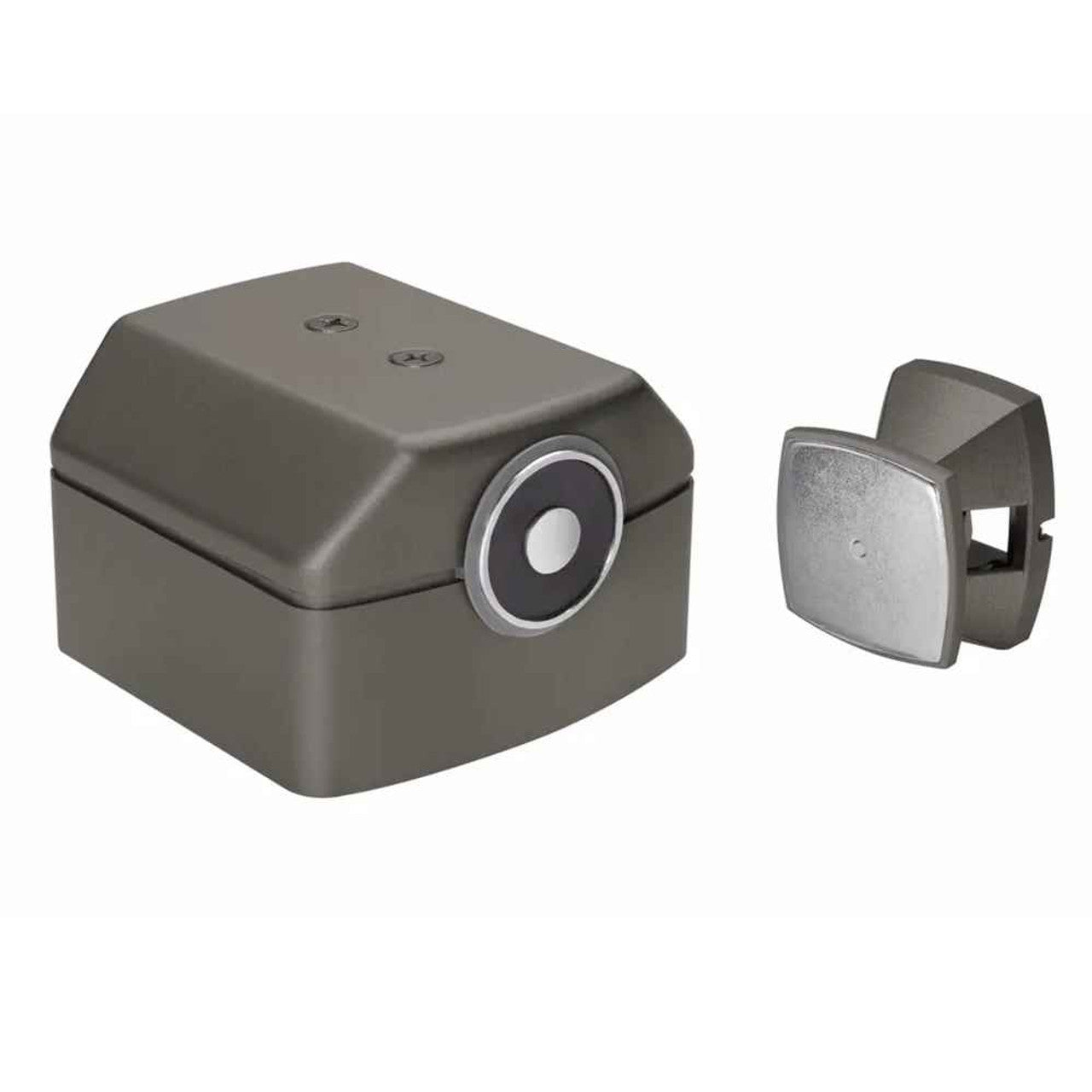

The Norton Rixson 980M electromagnetic door holder is a floor-mounted unit designed for single door applications.
PRODUCT FEATURES
- Floor mounted
- Single door
- Concealed wiring
- Total floor space required: 6-5/8"
- Mounting requirements: conduit connects directly to the floor plate
- Tri-volt (120VAC, 24VAC/DC, 12VDC)
- 25-40 lbs. holding force
- For 50-55 lbs. holding force, specify voltage: 120VAC, 24VAC, 24VDC, 12VDC, 240VAC
BENEFITS
- Doors remain open unless the electromagnetic holder is released by the alarm or the smoke detector
- Fail-safe operation; power failure releases the door to close
SPECIFICATIONS
- Mounting Style: Floor Mounted
- Warranty: 2-year limited warranty
- Wiring Installation: Concealed
CERTIFICATIONS
- ANSI/BHMA A156.15, Grade 1
- CAL FIRE, 3550-0047:0001
- UL-cUL Fire-Rated Up to 3 Hours
RESOURCES & DOWNLOADS
Norton Rixson 980M Floor Mounted Electromagnetic Door Holder / Releases Catalog
Norton Rixson 980M Floor Mounted Electromagnetic Door Holder / Releases Installation
Norton Rixson Warranty
