WALL MOUNTED | ELECTROMAGNETIC DOOR HOLDER/RELEASES
MODEL 989

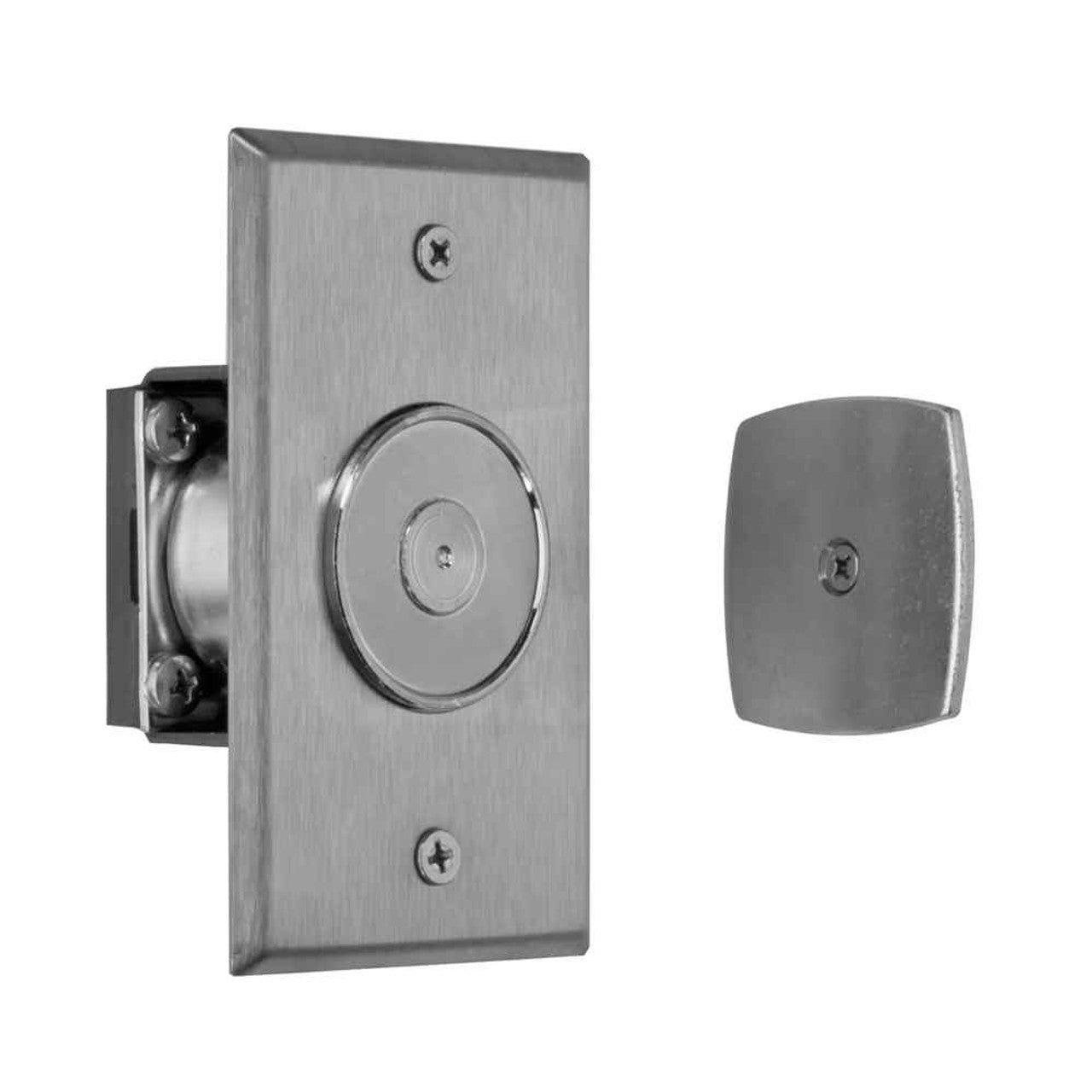

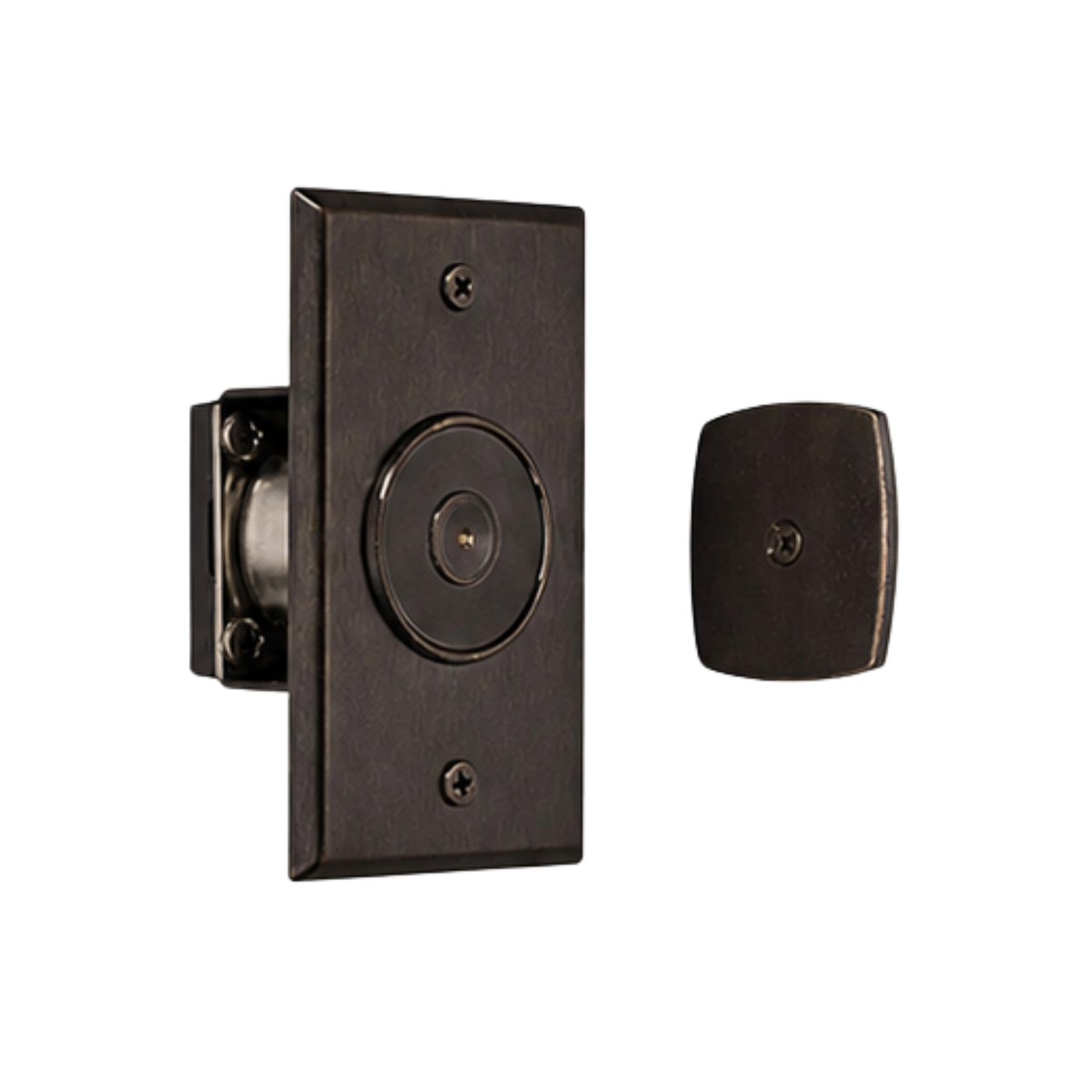

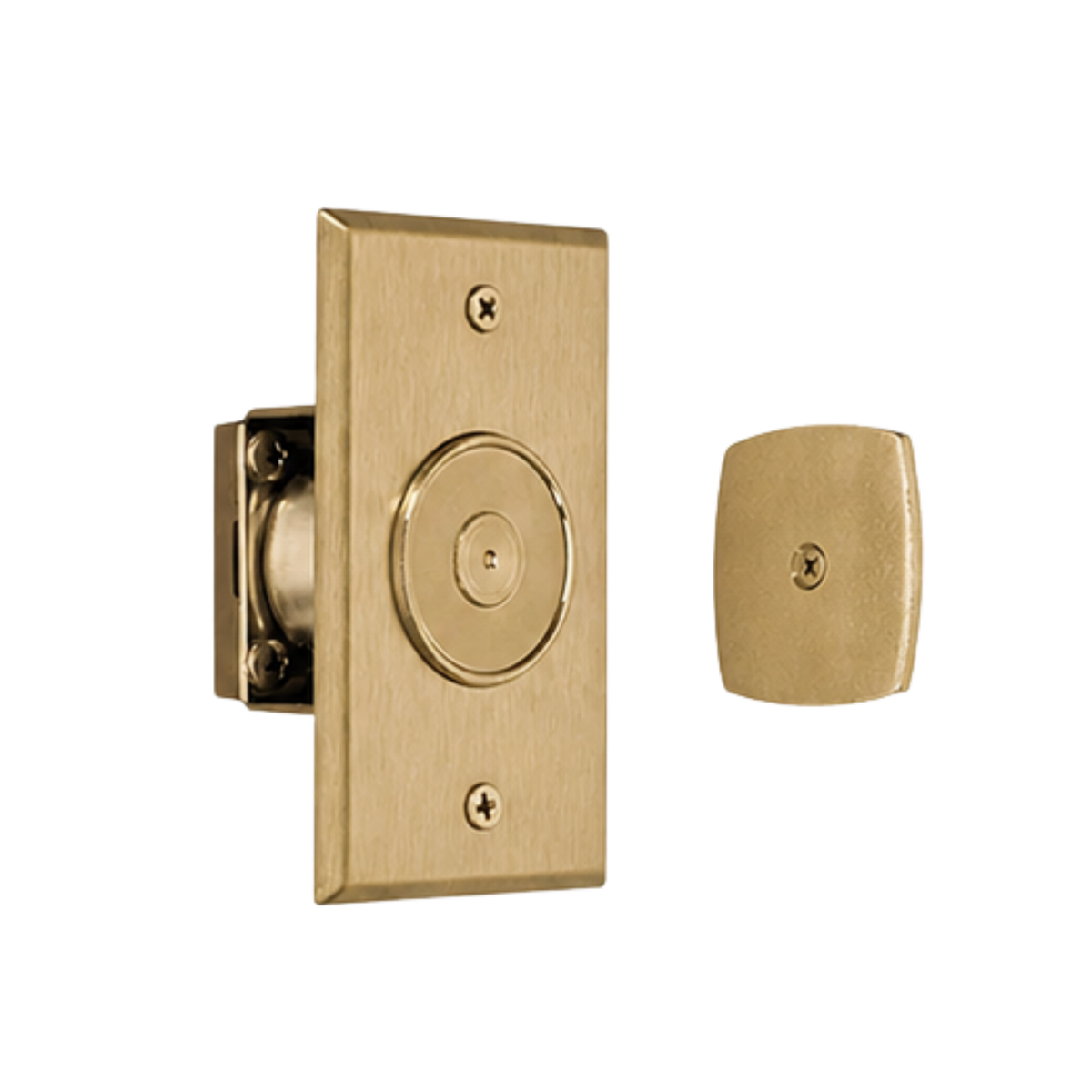

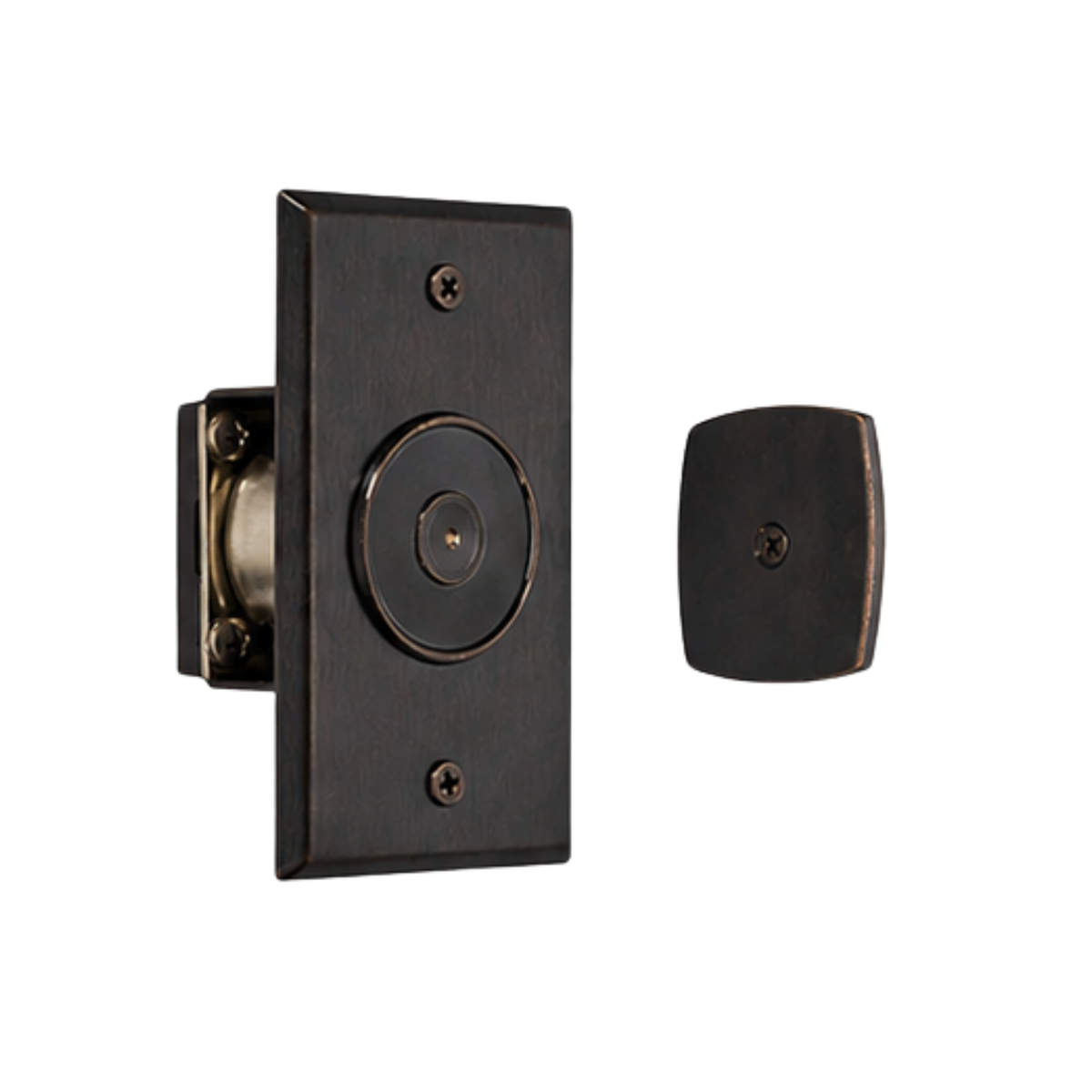

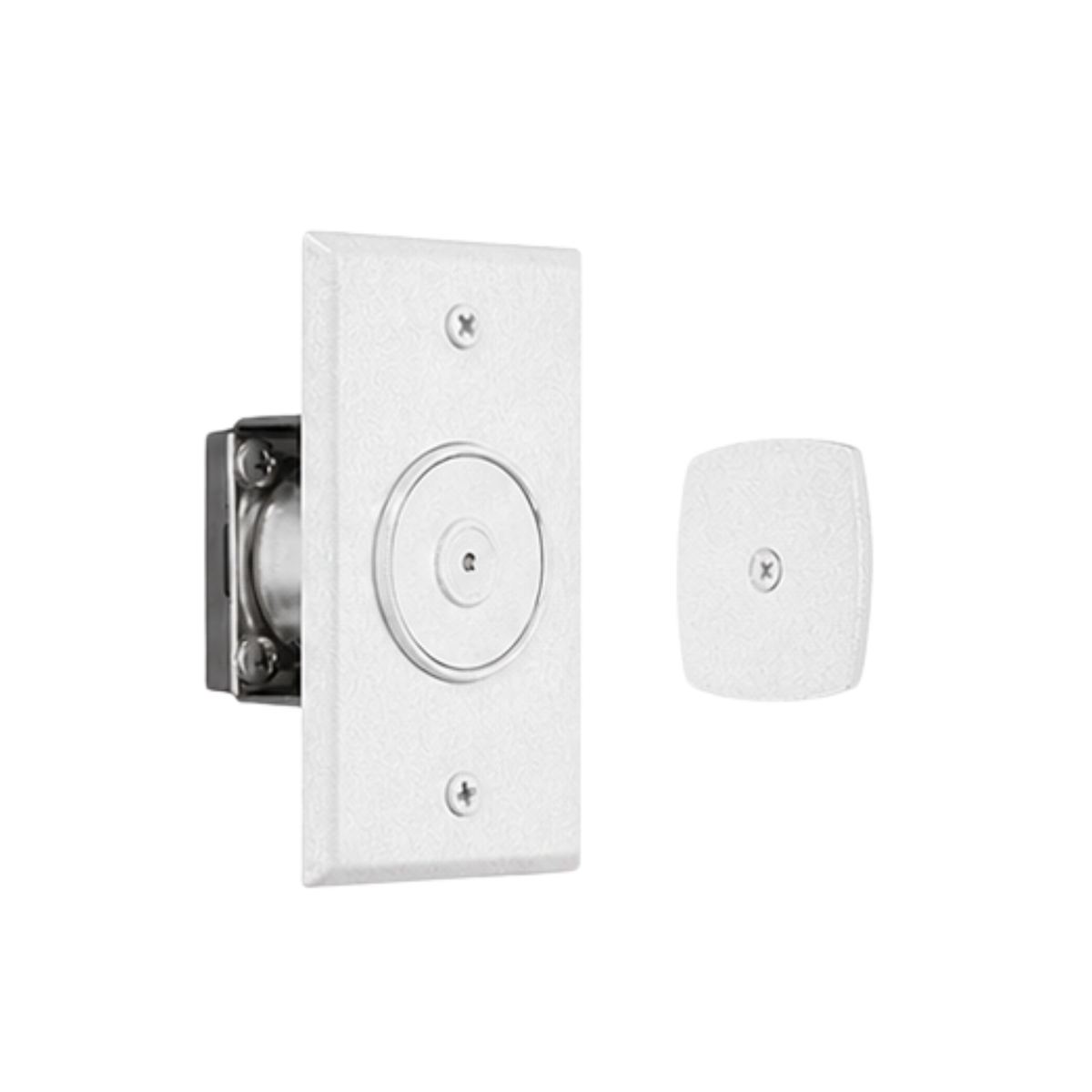

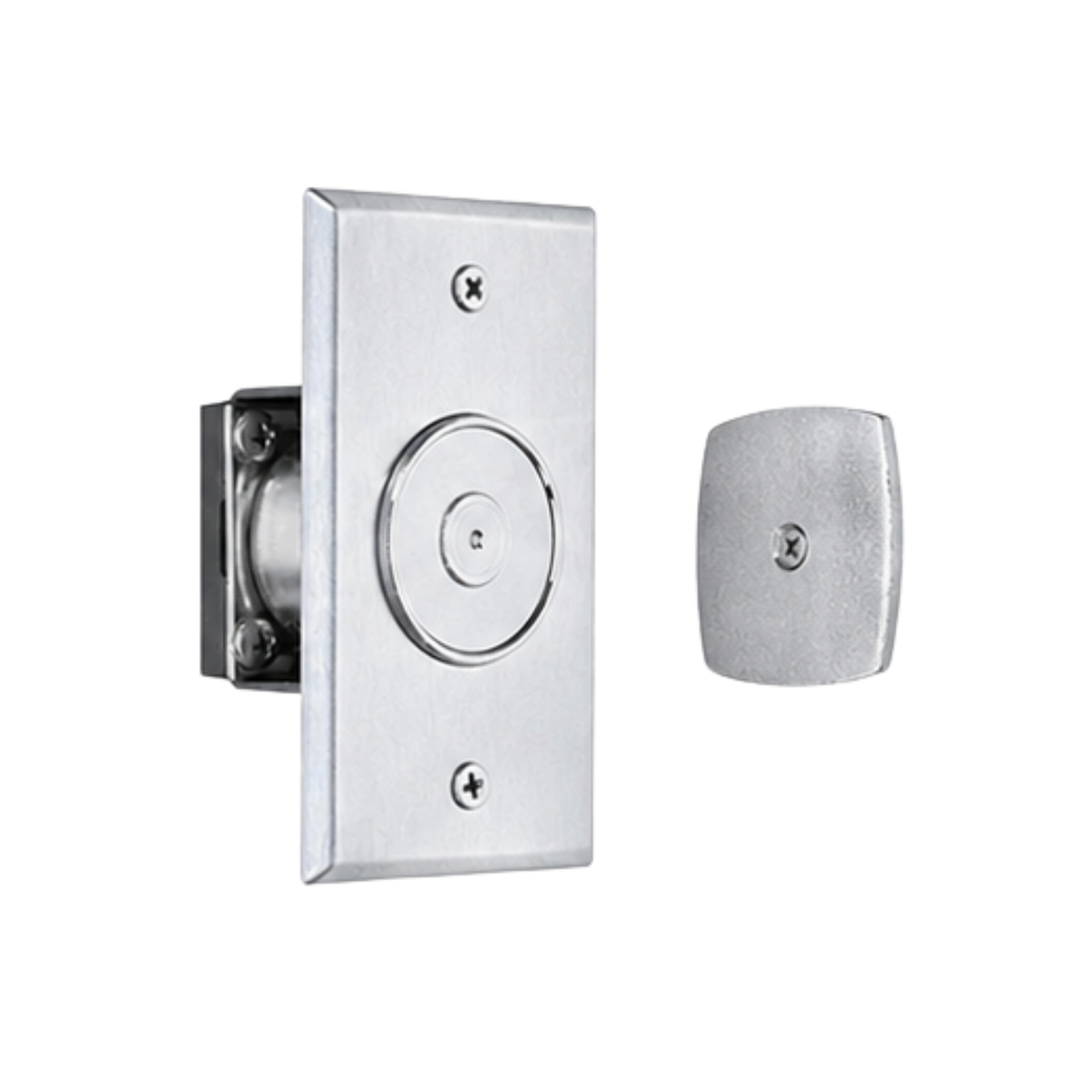

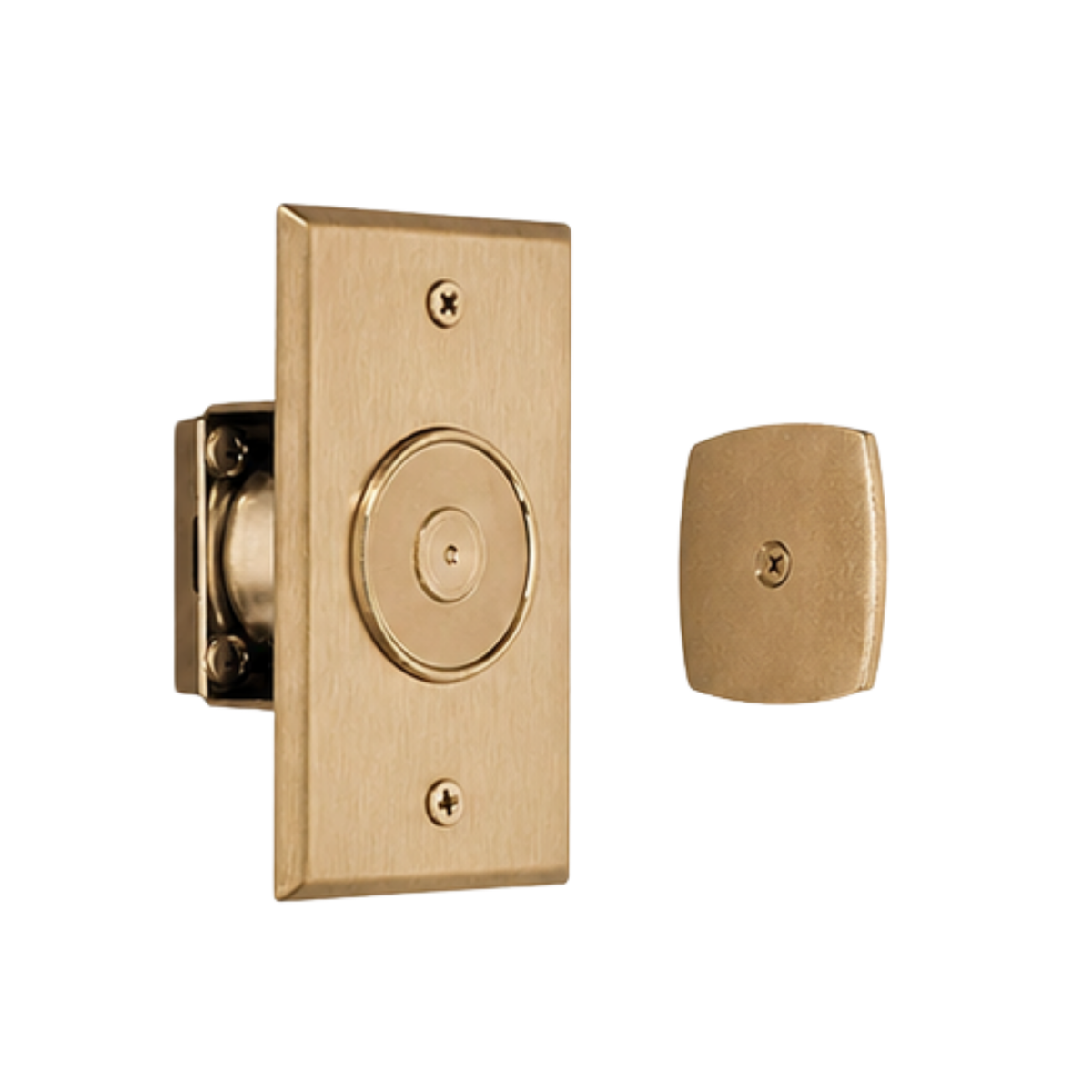

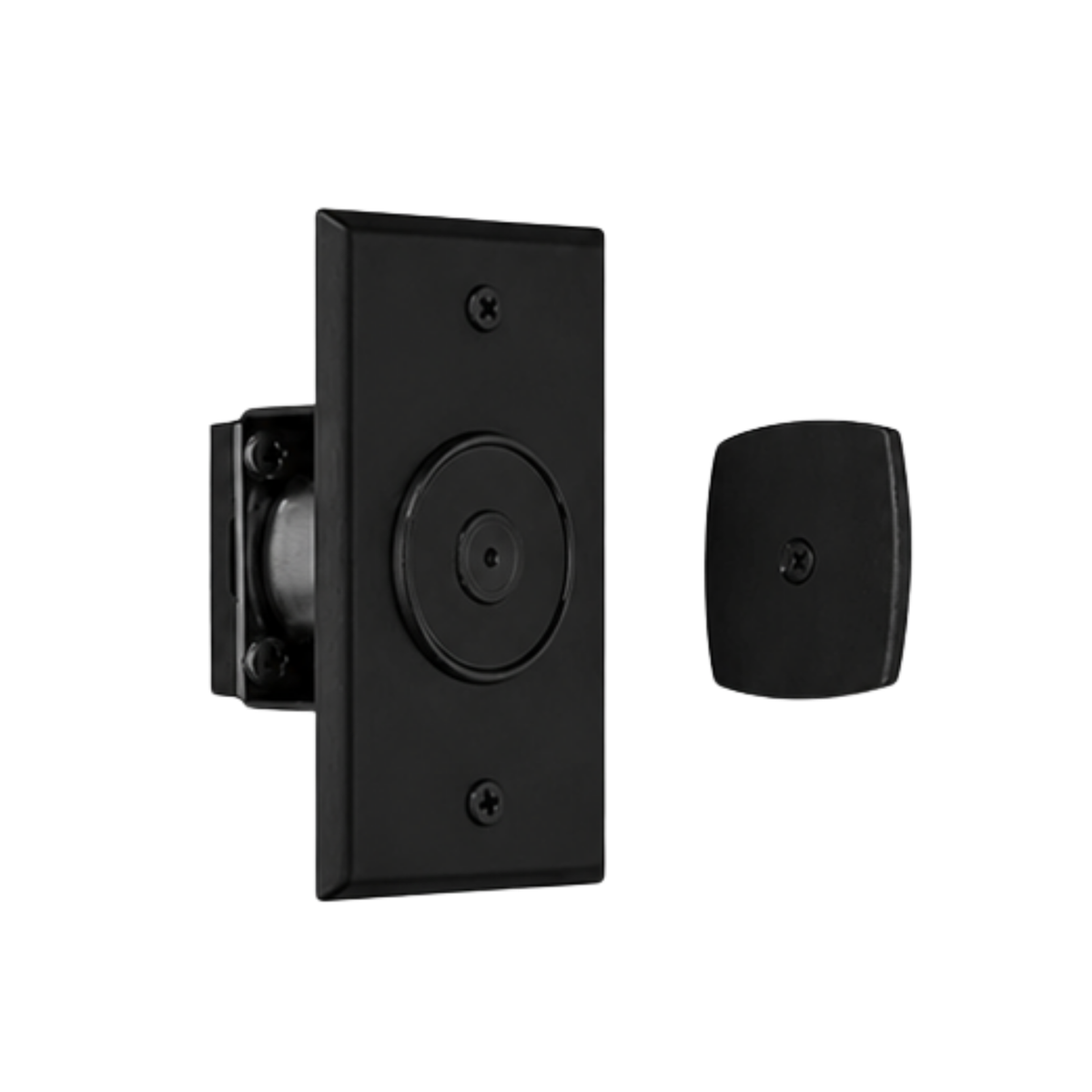

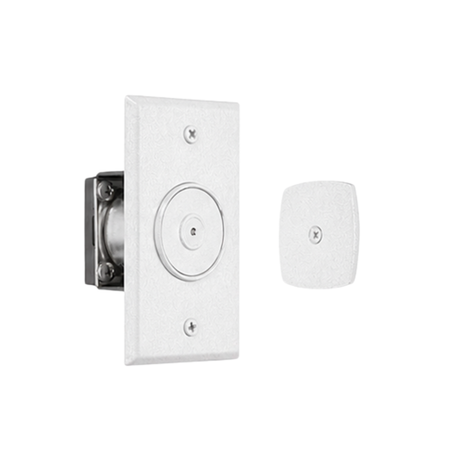

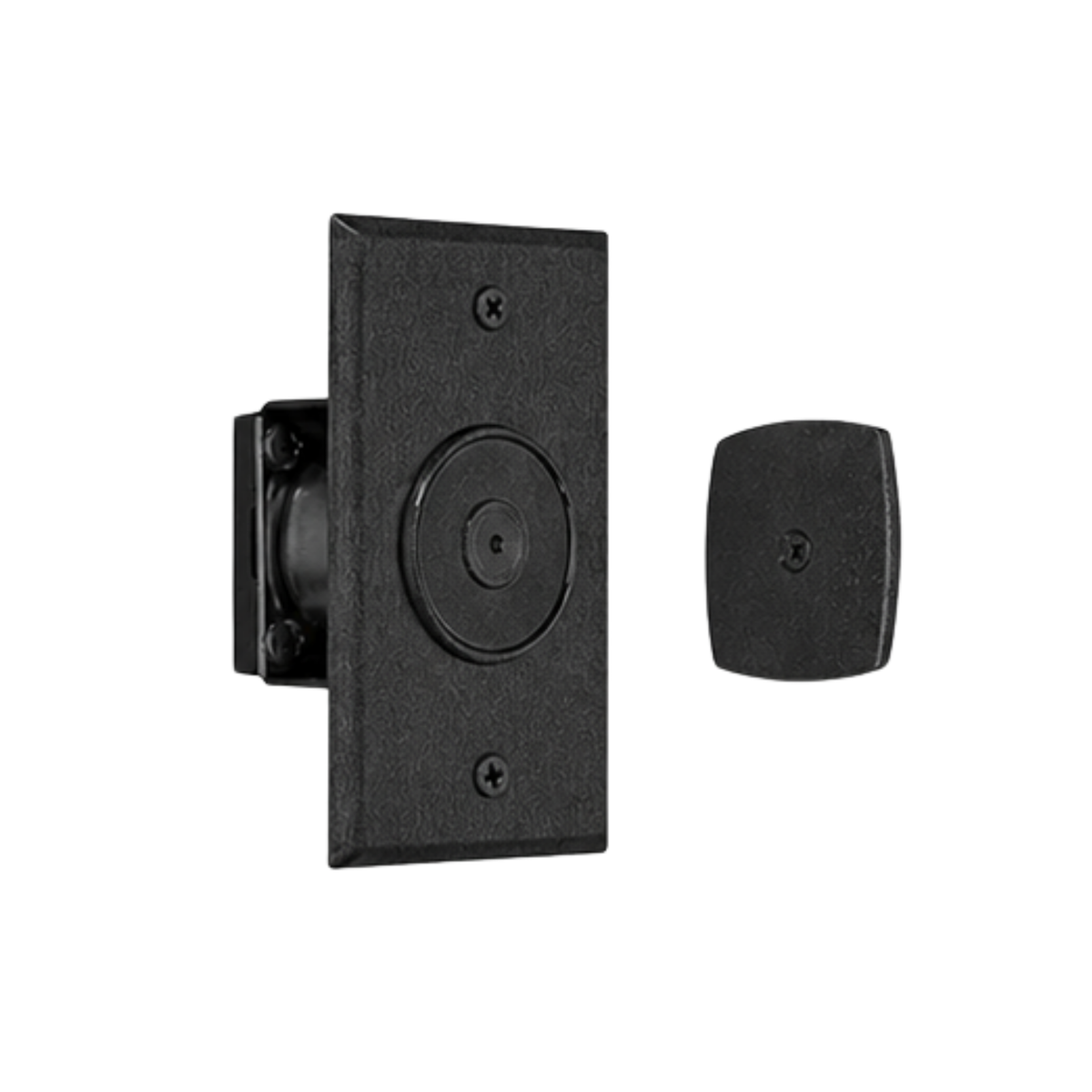

The Norton Rixson 989 electromagnetic door holder is a low-profile, wall-mounted unit with a total projection of 7/16".
Buy the Norton Rixson 989 Low Projection Wall Electromagnetic Door Holder / Releases for an easy installation and dependable door hardware solution.
PRODUCT FEATURES
- Low projection wall
- Wall mount
- Low profile
- Concealed wiring
- Total projection: 7/16"
- The wall must be properly reinforced, and the outlet box adequately fastened
- Tri-volt (120VAC, 24VAC/DC, 12VDC)
- 25-40 lbs. holding force
- For 50-55 lbs. holding force, specify voltage: 120VAC, 24VAC, 24VDC, 12VDC, 240VAC
BENEFITS
- Ideal for low-profile applications where there is minimal space between the door and the wall.
- Doors remain open unless the electromagnetic holder is released by the alarm or the smoke detector
- Fail-safe operation; power failure releases the door to close
SPECIFICATIONS
- Mounting Style: Wall Mounted
- Warranty: 2-year limited warranty
- Wiring Installation: Concealed
CERTIFICATIONS
- ANSI/BHMA A156.15, Grade 1
- UL-cUL Fire-Rated Up to 3 Hours
