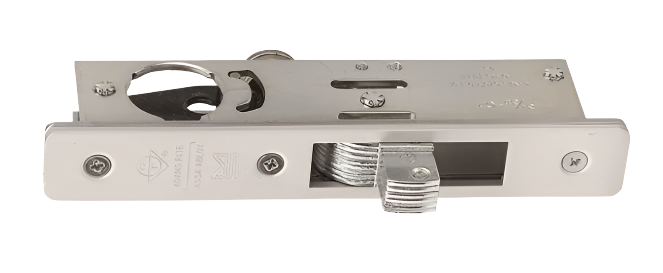

Adams Rite 1830 Swing Bolt Bottom Rail Deadlock

Function:

For bottom rail locking of ultra-narrow stile or tempered glass doors whose bottom rail (shoe) is too shallow for the MS1861 Bottom Rail Deadbolt. Mechanism is similar to the MS1850S Deadlock, but with the bolt size reduced. This keeps the threshold strike opening to a practical minimum, avoiding collection of debris or snagging on high-heeled shoes. Armored faceplate protects cylinder set screws from tampering and keeps them from loosening. Not designed for wood door applications.

Operation:

360° turn of key or thumbturn projects or retracts the counterbalanced bolt. Key can be removed only when bolt is in a positively locked or unlocked position. Lock accepts any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder or thumbturn such as the 4066Thumbturn, available separately. Lock accepts cylinder from either or both sides.

Features:

Cylinder Height: 31/32" [24.6 mm] and 1-1/8" [28.6 mm] only.

Case: Measures 1" x 6" x depth [ 25.4 mm x 152.4mm x depth] where depth varies with cylinder height. Steel with corrosion-resistant plating.

Bolt: 15/32" x 5/8" x 2-1/8" [ 11.9 mm x 15.9 mmx 54.0 mm] with 5/8" [15.9 mm] throw. Six-ply laminated steel with eight plies within case. Center ply has alumina-ceramic core to deter hacksaw attack.

Strike: See back page (of catalog) for dimensions of strike slot which can be cut in metal thresholds. 4006 Strike, shown, available separately with stainless steel trim plate and plastic box.

Standard Package: Individually boxed with mounting screws. Cylinder and/or thumbturn available separately.

Shipping weight: 1-1/2 lbs [0.68 kg]

Options:

4006 Strike, cylinder, thumbturn available separately
Available in choice of 313 Dark bronze anodized, 628 Clear anodized
