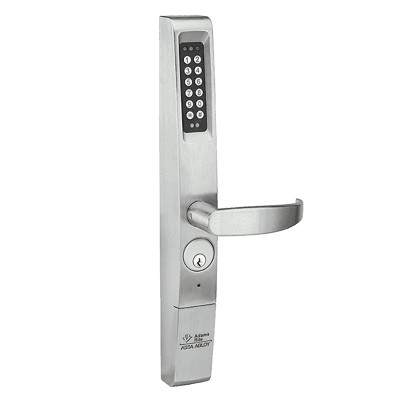

Adams Rite 3090 Eforce Lock
A battery-operated keyless entry control device, the eForce 3090-150 Keyless Entry provides access control for Adams Rite deadlocks, deadlatches, and exit devices.
The eForce 3090-150 Keyless Entry is a battery-operated keyless entry control for Adams Rite deadlocks, deadlatches and exit devices, that is compatible with aluminum and hollow metal door applications. The device can accommodate up to 150 users, including master, supervisor, emergency users plus two one-time codes. The eForce 3090-150 can operate in three modes: Standard, Passage, and Lockout. All programming is accomplished via the keypad. Device operation is confirmed by both a visual LED light indicator and an audible sound generated by a Piezo horn.
In the standard mode of operation, a programmed 2 to 7-digit character followedby a star (*) key allows for one entry when used with Adams Rite deadlatches or exit devices. When an authorized code is entered, rotate lever downward 90° to unlock or unlatch locking device. When released, lever returns to horizontal. The MS Deadlocks must always be relocked manually when used with the eForce 3090-150. Hold open time is adjustable from 1 to 9 seconds. eForce 3090-150 accepts any standard mortise cylinder with MS® cam, available separately.
FCC Part 15 compliant
• Surface mounted with concealed fasteners. Suitable for 1-3/4" [44.5 mm]to 2-1/4" [57.2 mm] door thickness.
• Non-handed with clutched lever protection.
• Powered by 4 AA alkaline batteries; supports 60,000 activations.
Housing: Measures 1-3/4" [44.5 mm] wide x 15-3/8" [390.5 mm] high.
Handle: Clutch-protected cast zinc alloy, finished to match housing, field selectable handing.
Keypad: UV stable keypad material.
Operating Temperatures: Full outdoor rating; Temperature range from -31 to +151F [-35 to +66C] and 5 to 95% humidity (non-condensing).
Standard Package: Individually boxed with mounting hardware for 1-3/4" [44.5 mm] to 2-1/4" [57.2 mm] door thickness.
Shipping weight: 5-1/2 lbs [2.49 kg].
• Remote activation input cable RSK-3090 available separately.

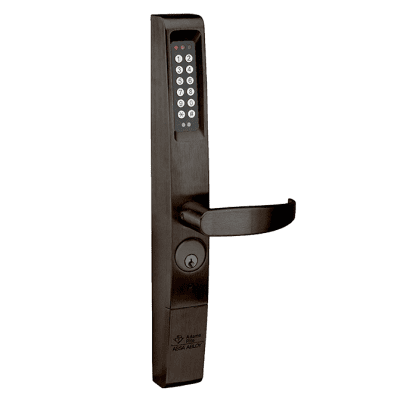

• Available in choice of powder coat 121 Dark bronze to match 313 Dark bronze anodized, or US26D (626) Satin chrome.
Related Products – When purchasing this product, please consider the following related products, available separately:
|RSK-3090 Remote Activation Kit||Standard 1" length, 1-5/32” diameter mortise cylinder with MS® cam such as 4036 Mortise Cylinder|
Compatible Products – This product is compatible with the following products:
MS1850S, MS1850S-050, MS1850SN, MS1850SN-050, MS1950, MS1950-050 Series Deadlocks
8100, 8200 SVR, 8300, 8400 Mortise, 8500, 8600 CVR, 8900 SCVR, 8700, 8800 Rim, Exit Devices with 31/32” backset or greater.
