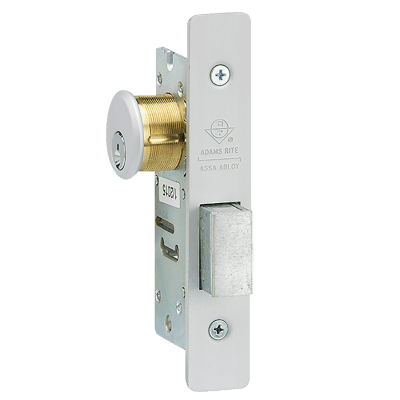

Adams Rite 4070 Short Throw Deadbolt

SKU: 4070-10-628
Regular price $ 109.45

4070 Series Short Throw Deadbolt (Projection Style)

4070 Short Throw Deadbolt provides security for a conventionally projected bolt in installations where the longthrow MS® Deadlock cannot be used. The smaller 4070 deadbolt offers the longest practical throw from a narrow stile.


Function:

For installation where the long-throw MS® Deadlock cannot be accommodated, the smaller 4070 deadbolt offers the longest practical throw for a conventionally projected bolt from a narrow stile. Operates with one-half key turn of any standard mortise type cylinder or cylinder type thumbturn. This product is not designed for use in bottom rail.



Operation:

180° turn of key or thumbturn projects or retracts the bolt. Lock accepts any standard1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder or thumbturn with special cam dimensions. Lock accepts cylinder from either or both sides.



Features:

Cylinder Backset: 7/8" [22.2 mm], 31/32" [24.6 mm], or 1-1/8" [28.6 mm] only.

Case: Measures 1" x 6" x depth [25.4 mm x 152.4 mm x depth], depth varies by backset. Steel with corrosion-resistant plating.

Bolt: 5/8" x 1-1/4" x 5/8" [15.9 mm x 31.8 mm x 15.9 mm] throw.

Strike: In metal installations, a slot in door jamb serves as strike. 4170 Trim Strike is available separately for wood installations.

Faceplate: Measures 1" x 5-9/16" [25.4 mm x 141.3 mm].

Special Cylinder Cam: Operable by any standard mortise cylinder with special cam dimensions. Cylinders with such cams can be readily obtained from most cylinder manufacturers. See CYLINDERS & ACCESSORIES section for cylinder make, thumbturn and trim ring information.

Standard Package: Individually boxed with machine screws for mounting. Cylinder and/or thumbturn available separately.

Shipping weight: 1 lb [0.45 kg].





Related Products: When purchasing this product, please consider the following related products, available separately:

Accessories Cylinders
4170 trim strike for wood installations Standard 1" length, 1-5/32” diameter mortise cylinder with special 4070 cam, such as 4036 Mortise Cylinder, 4066 ThumbturnMS4043 Cylinder Guard
