Adams Rite 4612 Power Transfer

Function:

Provides a secure and unobtrusive means of channeling electrical wiring from the doorframe into the door itself, for powering electric strikes on the inactive leaf of a pair of doors, locks, exit devices, etc. Suitable for any door hung with butt-type hinges, including continuous or pivots offset 3/4" [19.1 mm] or less. Not compatible with center-pivot doors.

Certifications:

• UL listed

Features:

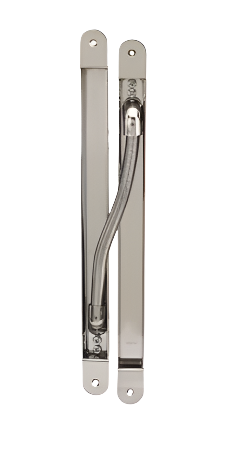

• Housing: Stamped steel, approximately 1/16” [1.6 mm] thick. Short (105° swing) version shown is 11-1/12” [281.5 mm] long. 180° version is 20-5/21” [514mm] long. Chrome finish.
• Case Knife Guard: Particularly for out-swinging doors, a steel barrier fence offers extra protection against attack on the conduit by knives, shims, or other tools. Completely hidden when door is closed.
• Standard Package: Individually boxed with fasteners as required for each application type: aluminum, hollow metal, or wood.
• Shipping Weight: 1 lb. [0.45kg]

Electrical:

• Conduit: Spring steel helix has internal diameter of approximate 5/16". This provides ample room for multiple wires of the low voltage type used with most electrical hardware.

Options:

• Available for application in aluminum, hollow metal, or wood door and frames.
• Standard (short) version suits doors that swing up to 105°. A longer version is available for doors that open 180°.
• Swing Clear option also available.

Compatible Products: This product is compatible with the following products:
